  #51
Old 03-08-2018, 02:29 PM
Member

Join Date: Sep 2017
Location: Geneva, Switzerland
Posts: 302
scourtaud23 is on a distinguished road
https://applications.castrol.com/oil...en_gb/c/search

Just follow the form to select the 4.6is
__________________
2002 4.6is silver on black
Reply With Quote

Sponsored Links

  #52
Old 03-08-2018, 02:31 PM
Member

Join Date: Apr 2014
Location: Vancouver BC
Posts: 322
white46 is on a distinguished road
oh... I have to go through EU.
I was going through Castrol Canada and couldn't find e53 at all.
Reply With Quote
  #53
Old 03-12-2018, 08:26 AM
Junster's Avatar
Member

Join Date: Apr 2007
Location: Northern, VA
Posts: 259
Junster is on a distinguished road
I admire and salute your great love of this car! It's always amaze me, great job and thanks for the wonderful story on bringing this car back to life.
Reply With Quote
  #54
Old 03-12-2018, 12:40 PM
Member

Join Date: Apr 2014
Location: Vancouver BC
Posts: 322
white46 is on a distinguished road
Thank you Junster.
All fluids are replaced.
Next up is swapping red interior back from 02 3.0 x5 to this 03 4.6is x5... why did I do that before..... sigh....
Reply With Quote
  #55
Old 03-12-2018, 12:48 PM
Junster's Avatar
Member

Join Date: Apr 2007
Location: Northern, VA
Posts: 259
Junster is on a distinguished road
It’s because you can
Reply With Quote
  #56
Old 03-13-2018, 08:38 AM
Member

Join Date: Aug 2010
Location: Burlington, NJ
Posts: 317
amancuso is on a distinguished road
Nice work!
__________________
2004 4.8iS
Reply With Quote
  #57
Old 04-02-2018, 11:51 AM
Member

Join Date: Apr 2014
Location: Vancouver BC
Posts: 322
white46 is on a distinguished road
All interior pieces are swapped back. So much work....

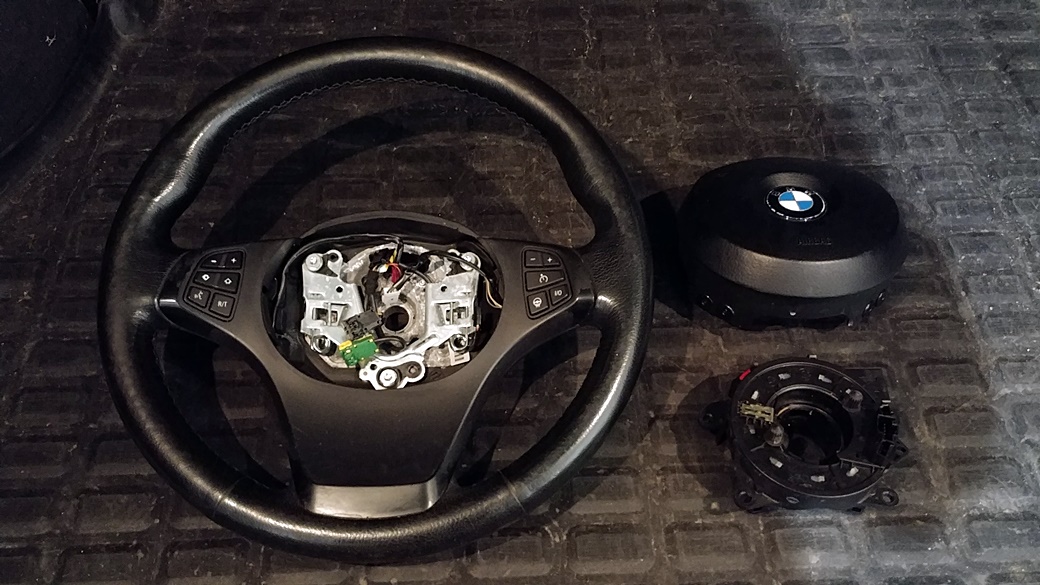

Also picked up face lifted heated sport steering wheel + airbag + clock spring + relay for $150. Price was just too good to pass.
Attached Images

Reply With Quote
  #58
Old 04-12-2018, 10:35 AM
Member

Join Date: Apr 2014
Location: Vancouver BC
Posts: 322
white46 is on a distinguished road
New heated steering wheel is installed.
Sold my old 2002 x5 3L, was pretty sad to see her go, but now I've got 4.6is to drive.
Insured and drove around block, puts smile back on my face.
Reply With Quote
  #59
Old 04-12-2018, 11:34 AM
Member

Join Date: Feb 2014
Location: sandy UTAH
Posts: 539
squidzilla is on a distinguished road
Quote:
Originally Posted by white46 View Post
Another update.

Couple month ago, I've got the car running and about couple weeks later, it started to miss fire with following CEL.
P0363, P1342, P1345, P1347, P1349
Cylinder 1-4 was miss firing. Darn... whole bank 1 is bad.
Swapped around coils/spark plugs between bank 1 and 2. No change.
Performed compression test. Cylinder 1-4 was about 75psi. Cylinder 5-8 was 160psi.
Damn it.
Thought I would re-time it just one last time, but life got too busy, progressed slowly, took me a month.

Last week, after re-time started the car, runs beautifully 160psi in all cylinders, but battery light came on.
After quick OBC test, alternator is toast not charging at all.
Drain the coolant again, replaced alternator then refilled coolant.
I must say water cooled alternator is stupidest idea from BMW. So much work just to replace alternator.
Knock on wood so far, but I'll drive around it little more before I get into suspension work. Pretty much all (front and back) rubber bushings need replacing, especially rear subframe bushings.
Also, trifecta is going on as well and will probably require rebuild.
What was the cause of having the engine fall out of time when it was timed right a couple of weeks before this happened? I am curious since I have the same engine.
__________________
2001 E53 X5 3.0 Auto. Silver Black Build date 10-17-2000 140k miles
2001 E46 330xi Auto. Silver/Black Build Date 11-30-2000 136k miles
2004 E60 545i Sport 6MT. Black/Black Build Date 6-2004 90k miles
2003 E53 X5 3.0 5MT Silver/Black Build date 11-25-2002 92k miles
2003 E53 X5 4.6is Black/Black Build Date 8-2003 109k miles
Reply With Quote
  #60
Old 04-12-2018, 12:18 PM
Member

Join Date: Apr 2014
Location: Vancouver BC
Posts: 322
white46 is on a distinguished road
I'm not too sure, but I think I didn't torque the cam gear bolt properly since it is reverse thread.
Also my cheap T55 wasn't holding torque well, in fact it broke off so I had to get new T55.
With the new T55, I was able to tighten the cam gear bolt further.
Reply With Quote
