  #21
Old 07-03-2016, 10:22 PM
Member

Join Date: Nov 2013
Location: Ottawa
Posts: 195
jljljl is on a distinguished road
Wow, Definitely a steal for the price!
Best of luck with the project!
__________________
JL
'02 x5 3.0i

-Black on Titanium Silver (354)
-Sports Package
-Smoked LED Side Markers
-Chrome Gauge Trim Rings
-Retrofit AEs (Favorite Mod)
-Front & Rear OEM 4.6iS Diffuser
-Front & Rear Fender Flares
-K&N CAI
Reply With Quote

Sponsored Links

  #22
Old 07-04-2016, 02:21 PM
Member

Join Date: Apr 2014
Location: Vancouver BC
Posts: 358
white46 is on a distinguished road
Have done compression test and result is not good.
Wet test was only done in bank 1.

Cyl Dry/wet
1: 165/210
2: 185/240
3: 120/180
4: 180/190
5: 205
6: 200
7: 210
8: 210

Performed vacuum test and air was blowing out by oil cap. So.. I guess valves are good, but either piston rings and/or cylinder walls are bad. Pretty much whole bank 1 is bad....
Looking at exhaust tips, which are covered with black exhaust gas, even if I replace timing chain guides, it will either run rough or burn a lot of oil.

Looking at these results, instead of rebuilding bottom end of this motor, I'll have better chance swapping the motor.

Now on the new engine following items will be done before it goes in.

1. vanos rebuild
2. timing chain guide
3. water pump / thermostat
4. upper/lower oil pan

and because front axle need to be removed, it's good time to replace inner/outer boot.

The question is, is there any seals need to be replaced where front axle mates oil pan?

Thanks!

Last edited by white46; 07-04-2016 at 02:31 PM.
Reply With Quote
  #23
Old 07-04-2016, 05:50 PM
swissfrank's Avatar
Member

Join Date: Jul 2007
Location: Vancouver, British Columbia
Posts: 503
swissfrank is on a distinguished road
Quote:
Originally Posted by white46 View Post
....The question is, is there any seals need to be replaced where front axle mates oil pan?...!
No, just the diff seals.
Reply With Quote
  #24
Old 07-04-2016, 07:02 PM
Member

Join Date: Apr 2014
Location: Vancouver BC
Posts: 358
white46 is on a distinguished road
Is that #8 in this link?

RealOEM.com - Online BMW Parts Catalog

Thanks!
Reply With Quote
  #25
Old 07-05-2016, 05:44 AM
swissfrank's Avatar
Member

Join Date: Jul 2007
Location: Vancouver, British Columbia
Posts: 503
swissfrank is on a distinguished road
Quote:
Originally Posted by white46 View Post
Is that #8 in this link?

RealOEM.com - Online BMW Parts Catalog

Thanks!
yes, and 9 also.
Reply With Quote
  #26
Old 07-28-2016, 12:06 PM
Member

Join Date: Apr 2014
Location: Vancouver BC
Posts: 358
white46 is on a distinguished road
Updates, on what I've found faulty and fixes

1. navi works but no radio or CD
-> BM53 radio was soaked in water and partially rusted. Replaced it with newer radio from 06 4.8is and bluetooth module, antenna, mic. Price was too good to pass. Working great now.

2. Side mirror folding not working. worn out gear I suspect
-> this can wait for now

3. PDC not working, couple blown sensor.
-> this can wait for now

4. cracked front windshield.
-> this can wait for now

5. front CV boot
-> this will be fixed with new engine going in

6. telescope steering wheel not moving, suspect driver power seat switch
-> bought driver power seat switch from ebay and replaced. Telescope steering is working now.

7. driver side lower door seal missing
-> found seal in trunk, but all clips were broken. bought clips and placed seal back on.

8. infamous cluster dead pixel
-> bought cable from ebay for $4 and my God, it looks 100x better with all pixels working

9. MK4 navi v32 update
-> done

10. 2015 HIGH navi map
-> got it as ISO file. couldn't get it to work on DVD-R. Tried on DVD+R DL and it worked.

11. missing/broken misc interior pieces
-> picked them up from donor 4.8is and fixed

12. burn out tail light contact
-> this is well known tail light problem with e53. fixed with some soldering. I personally cannot stand a car with burnt out bulbs.

13. door, footwell nights not working, suspect GM3
-> When door opens, door, mirror, dome and footwell lights suppose to turn on, but mine doesn't.
This took me some time to figure out and thanks God I have another 02 x5 with working GM3.
So I took working GM3 and replaced. As soon as I installed, I see the lights from door, but VERY faintly, and GM3 was heating up quickly. Removed GM3 and thought, there must be electrical short somewhere. ah.... somewhere..... no one likes electrical problem and I'm one of them. Anyhow, starting to remove all the light connected to interior lighting. About a hour later, found a positive wire that was pinched and peeled for driver side footwell light. Wrapped it with electrical tape, and VOILA, all interior lights are working now! Since it was pinched and peeled, it created short in electrical system and fried GM3. I'll still need to get GM3 replaced, but at least I know what caused it and it's fixed.

That's it for now, until new engine goes it.
Reply With Quote
  #27
Old 07-28-2016, 04:47 PM
crystalworks's Avatar
Member

Join Date: Jun 2014
Location: SA, TX
Posts: 4,233
crystalworks is on a distinguished road
Nice work. One fix at a time. Best way to tackle bringing a BMW back from neglect.
__________________
2005 X5 4.4i Build 04/05 Maintenance/Build Log
Nav, Pano, Sport (Purchased 06/14 w/ 109,000 miles) (Sold 8/15 w/121,000 miles)


2006 X5 4.8is Build 11/05 Maintenance/Build Log
Nav, DSP, Pano, Running Boards, OEM Tow Hitch, Cold Weather Pckg (Purchased 08/15 w/ 90,500 miles)

2010 X5 35d Build 02/10
Nav, HiFi, 6 DVD, Sports Pckg, Cold Weather Pckg, HUD, CAS, Running Boards, Leather Dash, PDC, Pano (Purchased 03/17 w/ 136,120 miles)
Reply With Quote
  #28
Old 09-07-2016, 01:21 PM
Member

Join Date: Apr 2014
Location: Vancouver BC
Posts: 358
white46 is on a distinguished road

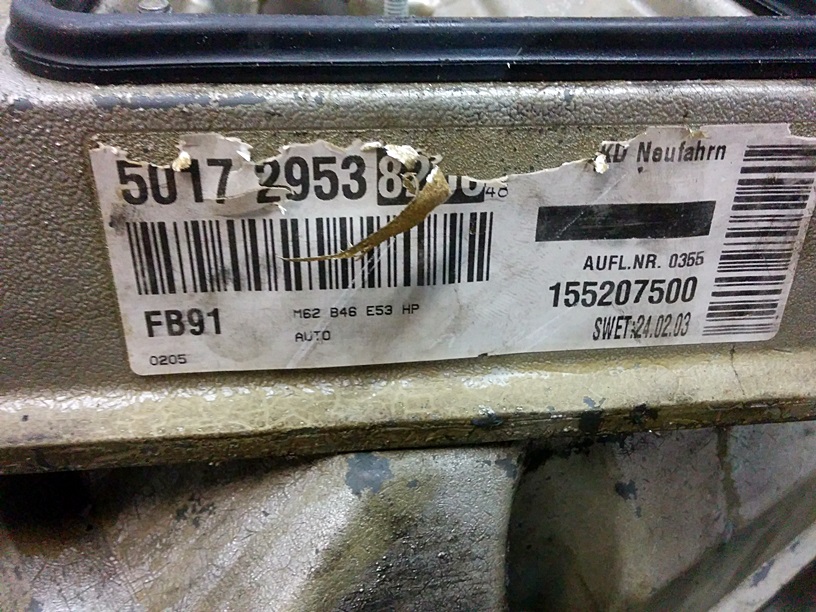

New engine is here!
After some searching, found used motor from far east with about 120000km.

I was little nervous and hesitant to ditch out $3500 for used motor with sight unseen.
After motor arrived we removed front chain cover and lower oil pan to make sure there is no metal/plastic bits which I couldn't find any and original guides were still intact. That's good news.

It's at friend's shop now getting timing chain and guide as well as vanos seal replaced.
Hopefully I can get it running by end of this month.
Attached Images

Reply With Quote
  #29
Old 09-07-2016, 01:46 PM
Member

Join Date: Jul 2016
Location: North Jersey
Posts: 323
O3X5 is on a distinguished road
love the interior between the red & brushed aluminum trim. that's a 2003? I thought up to '03 was still red/amber tails?

and the steering wheel is part of the options? I have the 4 spoke one.
__________________
Inherited 2003 Grey Green/Pastel Green M54
Reply With Quote
  #30
Old 09-07-2016, 02:12 PM
Ricky Bobby's Avatar
Member

Join Date: Dec 2011
Location: Wake Forest, NC
Posts: 9,332
Ricky Bobby will become famous soon enough
Quote:
Originally Posted by O3X5 View Post
love the interior between the red & brushed aluminum trim. that's a 2003? I thought up to '03 was still red/amber tails?

and the steering wheel is part of the options? I have the 4 spoke one.
3 spoke wheel and red/clear tails are for all Sport Package equipped 00-03 models - all 04-06 models had red/clear tails, but the 3 spoke wheel was still a Sport Package piece of equipment.
__________________
2003 X5 3.0i 5-Speed - Born on 9/18/2003
105k miles -Topaz Blue/Schwarz/Titan Int. Trim/EHCII/Sport
Proud 3-Pedal owner, UUC SS/AFE/4.8iS Exhaust/Sharked
2013 X5 35D (CEO's) - Born on 5/17/2013 -
68k miles - Alpine White/Cinnamon Brown/Premium Pkg, Sport Activity/Premium Pkg and Sound/20" Style 214/Running Boards
