EHC Height Level Sensor

[we350z]

Re-affirmed my driver rear height sensor is in need of changing via INPA:

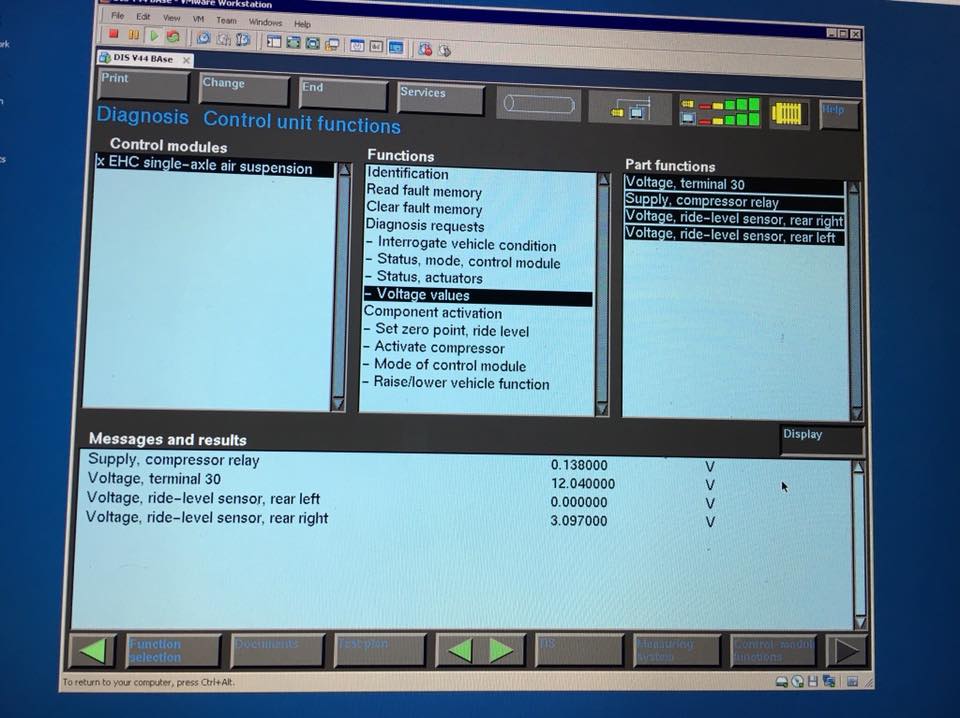

And also in DIS:




Not sure why the driver side still pumps back up or how it is choosing it's ride height with a faulty height sensor?

[we350z]

Got a replacement height sensor right here. Should be ezpz replacement right? Should it automatically start working or do I need to clear faults and/or set ride heights via INPA/DIS?

Can one make adjustments "on the fly" even while driving?

[BigBlack48is]

Should be ezpz... install it, start it up and cycle it up and down once and you should be all set!

[we350z]

Originally Posted by BigBlack48is

Should be ezpz... install it, start it up and cycle it up and down once and you should be all set!

Cool. I haven't done this before so which option in INPA/DIS "cycles" the bags?

[BigBlack48is]

Originally Posted by we350z

Cool. I haven't done this before so which option in INPA/DIS "cycles" the bags?

Just use the buttons on your dashboard.. DIS shouldn't be needed for it. although I would still verify that the sensor is working correct after installation. never know, it could be a wire or connector that failed.

[we350z]

Originally Posted by BigBlack48is

Just use the buttons on your dashboard.. DIS shouldn't be needed for it. although I would still verify that the sensor is working correct after installation. never know, it could be a wire or connector that failed.

I have no EHC buttons on my dashboard. Are you saying the code should clear itself? And I should not need to calibrate?

[BigBlack48is]

Originally Posted by we350z

I have no EHC buttons on my dashboard. Are you saying the code should clear itself? And I should not need to calibrate?

My bad... I thought you had ECHII as I do.

The code should clear up upon ignition. If it does not, you can clear codes in the ECH using DIS / INPA. I don't see why you would need to re-set right height, but you can always verify that it is all setup right with a tape measure ( make sure you pre-load with the appropriate weights in the passenger area.

[we350z]

Originally Posted by BigBlack48is

My bad... I thought you had ECHII as I do.

The code should clear up upon ignition. If it does not, you can clear codes in the ECH using DIS / INPA. I don't see why you would need to re-set right height, but you can always verify that it is all setup right with a tape measure ( make sure you pre-load with the appropriate weights in the passenger area.

Oh good call I had not thought about that probably why I have slight difference in height between sides.

[we350z]

Culprit
