  #151
Old 01-21-2019, 04:45 PM
Member

Join Date: Jul 2016
Location: pa
Posts: 192
kmm111 is on a distinguished road
Quote:
Originally Posted by Crowz View Post
Between 3/4 of a tank and full. It had less than a 1/4 when I got it and I went and almost filled it up with super unleaded.

Seemed fuel related to me with the surge back to running right then no power.

I went and watched a video on changing the fuel filter on an E53. WTH were they thinking? There aren't that many bolts holding the dash in.
Its really not that bad, I rarely have to take the whole cover down, only on the super stuck & rusty ones. Its hard to remember exactly without being in front of that shield, but I believe I pull the front bolts & most of the side bolts. Both center driveshaft bearing bolts & then pull the cover down. I use 5-6 long 2 X 4 s to hold it down out of my way. I also have the advantage of a lift so this method may not work for everyone.
__________________
Current vehicles
2001 325XI
2006 X5 3.0
2004 X5 3.0
Reply With Quote

Sponsored Links

  #152
Old 01-21-2019, 06:26 PM
Crowz's Avatar
Premier Member

Join Date: Aug 2017
Location: Alabama
Posts: 2,389
Crowz is on a distinguished road
I ordered a digital fuel pressure gauge like you put in a dash or a pod that comes with 9 feet of line between the sensor and the gauge. Im going to wire a 12volt cig lighter plug to it when it gets here.

With this I should be able to tap the fuel line for a reading and drive the car and watch the fuel pressure.

I have been meaning to do this for awhile. I had a Bluetooth one years ago but cant find it. But with this rig I can test the problem I am having on the new x5 and a problem one of my pickup trucks is having too so it will be handy to have.

It gets here Thursday so after that I can rule out the pump, pickup screen and filter at least.
__________________
Just BMW's - All cars and trucks was two pages long
1994 318is
1997 528i
2000 323i
2001 X5 3.0 auto
2005 X5 3.0 auto
2013 X5 xdrive35 Turbo
More are at my website

Aftermarket E53 Radio Install
Reply With Quote
  #153
Old 01-21-2019, 11:47 PM
Crowz's Avatar
Premier Member

Join Date: Aug 2017
Location: Alabama
Posts: 2,389
Crowz is on a distinguished road
Im trying to find an adapter that fits the bmw Schrader valve and will accept the plug on the fuel gauge's sensor. Preferably a 90 degree turn one.

Here is what I bought :

https://www.amazon.com/MaxTow-Double...dp/B0095Y5OKI/

Fuel Pressure Sensor with 1/8 NPT Threads



Anyone want to help me find the plumbing I need to connect his to the fuel rail
__________________
Just BMW's - All cars and trucks was two pages long
1994 318is
1997 528i
2000 323i
2001 X5 3.0 auto
2005 X5 3.0 auto
2013 X5 xdrive35 Turbo
More are at my website

Aftermarket E53 Radio Install
Reply With Quote
  #154
Old 01-22-2019, 04:59 PM
Crowz's Avatar
Premier Member

Join Date: Aug 2017
Location: Alabama
Posts: 2,389
Crowz is on a distinguished road
Well I may of fixed the no power and rough running problem. I went to napa and bought a bottle of heet water remover and dumped it in the tank. It spit and sputtered a bit when I started it up but seemed to run better. I went for a drive and it did great. I put about 15 miles total on it and never had a problem. Maybe its fixed.
__________________
Just BMW's - All cars and trucks was two pages long
1994 318is
1997 528i
2000 323i
2001 X5 3.0 auto
2005 X5 3.0 auto
2013 X5 xdrive35 Turbo
More are at my website

Aftermarket E53 Radio Install
Reply With Quote
  #155
Old 01-27-2019, 11:58 PM
Crowz's Avatar
Premier Member

Join Date: Aug 2017
Location: Alabama
Posts: 2,389
Crowz is on a distinguished road
Someone wanted me to post pics of the hole I drilled in the battery compartment under the spare tire to keep water from pooling up.

Here they are.

One pic shows with normal lighting.

The other picture has the compartment dark so you can see the light coming thru from under the car to spot the hole I drilled.
Attached Images

__________________
Just BMW's - All cars and trucks was two pages long
1994 318is
1997 528i
2000 323i
2001 X5 3.0 auto
2005 X5 3.0 auto
2013 X5 xdrive35 Turbo
More are at my website

Aftermarket E53 Radio Install
Reply With Quote
  #156
Old 01-28-2019, 12:17 AM
semcoinc's Avatar
Member

Join Date: Dec 2014
Location: Dallas, TX
Posts: 770
semcoinc is on a distinguished road
Thanks Crowz!

I might take that on when I do the rear fog light wiring back there.

Mike
__________________

Mike
Dallas, TX & Appleton, WI
2003 E53 4.4i Pearl Beige
2003 E46 330Xi Monaco Blue
2007 E90 335Xi Black Sapphire Metallic
2011 F25 X3 28i Black Sapphire Metallic
Reply With Quote
  #157
Old 01-28-2019, 12:45 PM
bcredliner's Avatar
X HP/TQ increase = $1.00 X 100X

Join Date: Jun 2008
Location: Little Elm,Texas. (40 minutes North of Dallas)
Posts: 6,769
bcredliner is on a distinguished road
Why is water getting into the battery compartment?
__________________
X5 4.6 2002 Black Sap, Black interior. 2013 X5M Melbourne Red, Bamboo interior
Dallas
Reply With Quote
  #158
Old 01-28-2019, 12:49 PM
crystalworks's Avatar
Premier Member

Join Date: Jun 2014
Location: SA, TX
Posts: 3,488
crystalworks is on a distinguished road
Quote:
Originally Posted by bcredliner View Post
Why is water getting into the battery compartment?
Could be clogged rear drains. Or a rain storm hard and long enough to over power them. That's what happened to mine. Had torrential rains over the course of a week and it flooded that electronics area. Drains were fine as far as I could tell. I now drill a couple of small holes in there to mitigate any possibilities in the future of a repeat.
__________________
2005 X5 4.4i Build 04/05 Maintenance/Build Log
Nav, Pano, Sport (Purchased 06/14 w/ 109,000 miles) (Sold 8/15 w/121,000 miles)


2006 X5 4.8is Build 11/05 Maintenance/Build Log
Nav, DSP, Pano, Running Boards, OEM Tow Hitch, Cold Weather Pckg (Purchased 08/15 w/ 90,500 miles)

2010 X5 35d Build 02/10
Nav, HiFi, 6 DVD, Sports Pckg, Cold Weather Pckg, HUD, CAS, Running Boards, Leather Dash, PDC, Pano (Purchased 03/17 w/ 136,120 miles)
Reply With Quote
  #159
Old 02-07-2019, 06:35 PM
Crowz's Avatar
Premier Member

Join Date: Aug 2017
Location: Alabama
Posts: 2,389
Crowz is on a distinguished road
Well I still have lean codes but the car runs great after replacing the fuel filter.

So I built a portable fuel pressure rig using a maxtow fuel pressure gauge.

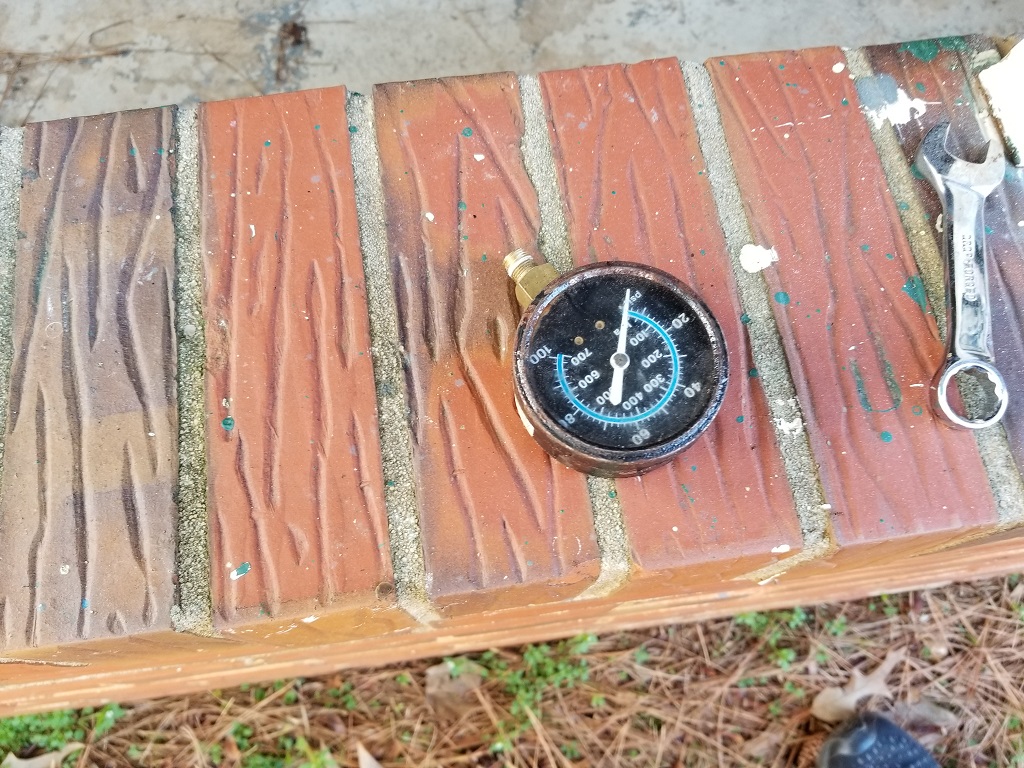

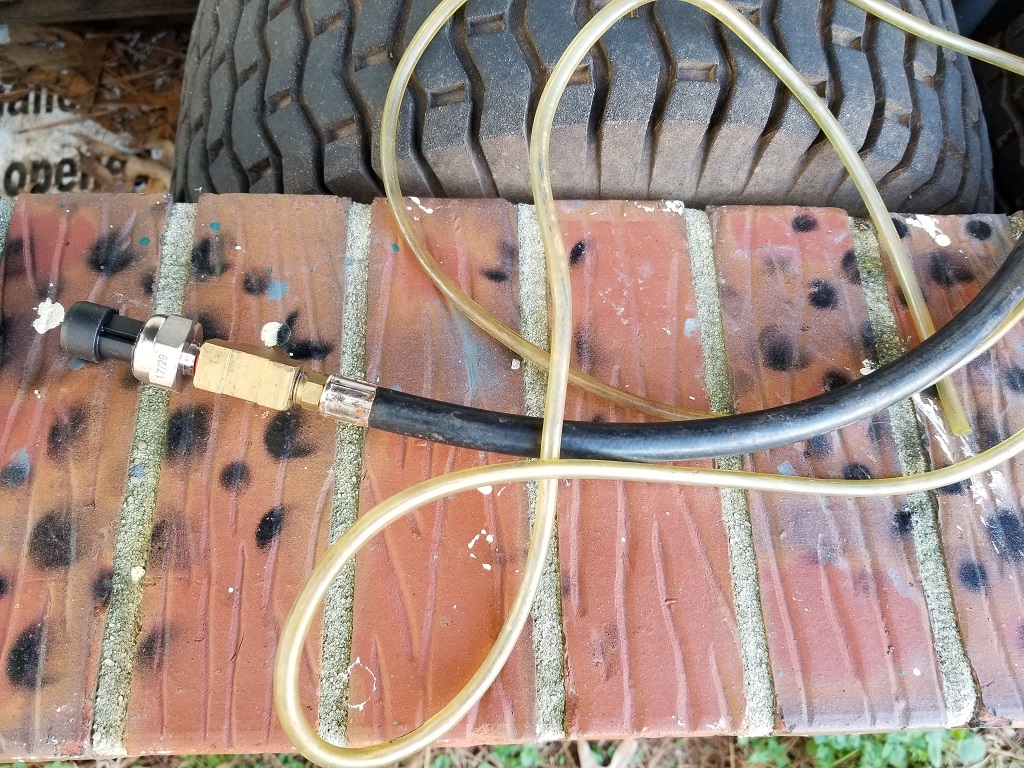

I started out by removing the mechanical fuel pressure gauge from my fuel pressure tester and screwed the sensor for the maxtow gauge in its place.
Attached Images

__________________
Just BMW's - All cars and trucks was two pages long
1994 318is
1997 528i
2000 323i
2001 X5 3.0 auto
2005 X5 3.0 auto
2013 X5 xdrive35 Turbo
More are at my website

Aftermarket E53 Radio Install
Reply With Quote
  #160
Old 02-07-2019, 06:37 PM
Crowz's Avatar
Premier Member

Join Date: Aug 2017
Location: Alabama
Posts: 2,389
Crowz is on a distinguished road
Next I spliced the cigarette lighter power adapter cable I bought onto the maxtow power leads.
Attached Images

__________________
Just BMW's - All cars and trucks was two pages long
1994 318is
1997 528i
2000 323i
2001 X5 3.0 auto
2005 X5 3.0 auto
2013 X5 xdrive35 Turbo
More are at my website

Aftermarket E53 Radio Install
Reply With Quote
