What is this for?

Does anyone know what this light is for?

I'm sure that I am the only person without a single clue, but hey I'd rather ask and prove my dumbassedness than have another question rattling around in my head. :

Sent from my SM-A730F using Tapatalk
__________________
"When the Team Chief said.... You're trapped in a hole with nothing but a goat and a slinky, what do you do? Stubby said, I'm not sure but it won't end well for the goat...." ~(Overheard) Last day, Phase 3, Q Course
Reply With Quote

Sponsored Links

  #2
Old 01-08-2019, 02:50 AM
Crowz's Avatar
Premier Member

Join Date: Aug 2017
Location: Alabama
Posts: 2,257
Crowz is on a distinguished road
Its a photovoltaic detector aka light sensor. Not a led. It doesn't "light up" it only detects the presence of light in the cars interior.

I'm sure it effects the way it handles climate control for the car. Probably leans towards a cooler setting during the daylight hours vs what you set the temperature too.
__________________
Just BMW's - All cars and trucks was two pages long
1994 318is
1997 528i
2000 323i
2001 X5 3.0 auto
2005 X5 3.0 auto
2013 X5 xdrive35 Turbo
More are at my website

Aftermarket E53 Radio Install
Reply With Quote
  #3
Old 01-08-2019, 02:58 AM
EODguy's Avatar
Member

Join Date: Jun 2018
Location: Saudi Arabia/Philippines/USA
Posts: 434
EODguy is on a distinguished road
Awesome thanks.

I guess that explains why I never saw it light up...

Sent from my SM-A730F using Tapatalk
__________________
"When the Team Chief said.... You're trapped in a hole with nothing but a goat and a slinky, what do you do? Stubby said, I'm not sure but it won't end well for the goat...." ~(Overheard) Last day, Phase 3, Q Course
Reply With Quote
  #4
Old 01-08-2019, 04:42 AM
Member

Join Date: Jun 2017
Location: New zealand
Posts: 62
Ohsoslow is on a distinguished road
BMW is watching you!!!!!
__________________
2004 X5 3.0d

New Zealand
Reply With Quote
  #5
Old 01-08-2019, 09:36 AM
Qsilver7's Avatar
Member

Join Date: Oct 2012
Location: Indiana, USA
Posts: 3,272
Qsilver7 is on a distinguished road
Just a plain old ambient light sensor for the IHKA control panel...there's also one on the instrument cluster and the back of the interior rear view mirror (if you have the Electrochromatic (auto dimming) mirror).


Check back...I'm looking through my old pic stash to find BMW tech data that shows/explains what these sensors are.


EDIT:


Here's info for the photo transistor built into the instrument cluster:
__________________
{BMW CCA Member #191509 - (for more info see: www.bmwcca.org)}
  • 2013 f06 650ix GC (1/13 build date) Black Sapphire exterior/Schwarz (black) Nappa Leather interior
  • 2006 e53 X5 4.4i (12/05 build date) Sterling Gray exterior/Schwarz (black) Dakota Leather interior
  • 1997 e38 740iL (sold) Arctic Silver
  • 1999 e39 540iT (sold) Orient Blue
  • 1995 e34 525iT (sold) Alpine White
  • 1991 e32 735iL (sold) Schwarz (black)
  • 1985 e30 325e (sold) Bronzit

Last edited by Qsilver7; 01-08-2019 at 09:45 AM.
Reply With Quote
  #6
Old 01-08-2019, 12:22 PM
Member

Join Date: Mar 2016
Location: Saskatchewan Canada
Posts: 844
80stech is on a distinguished road
Well that info about the coolant sensor is very interesting! I can't seem to cut and paste that part though. QS, could you maybe add that part into the "temp gauge recode" thread?
__________________
1988 325is (purchased new)
2004 X5 3.0 (new to me) 2005 X3 2.5 (new to wife)
Reply With Quote
  #7
Old 01-08-2019, 12:31 PM
Qsilver7's Avatar
Member

Join Date: Oct 2012
Location: Indiana, USA
Posts: 3,272
Qsilver7 is on a distinguished road
Quote:
Originally Posted by 80stech View Post
Well that info about the coolant sensor is very interesting! I can't seem to cut and paste that part though. QS, could you maybe add that part into the "temp gauge recode" thread?

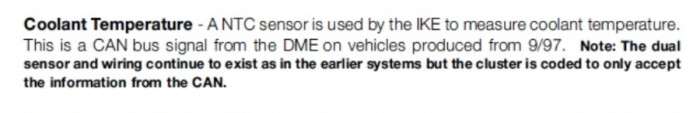

Is this what you need? Try a right click to see if you can copy the image location (then paste it into another post) or save the image to your device then upload it. You can then upload it to whatever post you want if you use the MANAGE ATTACHMENT buttons below the reply box.
Attached Images

__________________
{BMW CCA Member #191509 - (for more info see: www.bmwcca.org)}
  • 2013 f06 650ix GC (1/13 build date) Black Sapphire exterior/Schwarz (black) Nappa Leather interior
  • 2006 e53 X5 4.4i (12/05 build date) Sterling Gray exterior/Schwarz (black) Dakota Leather interior
  • 1997 e38 740iL (sold) Arctic Silver
  • 1999 e39 540iT (sold) Orient Blue
  • 1995 e34 525iT (sold) Alpine White
  • 1991 e32 735iL (sold) Schwarz (black)
  • 1985 e30 325e (sold) Bronzit
Reply With Quote
  #8
Old 01-08-2019, 12:42 PM
EODguy's Avatar
Member

Join Date: Jun 2018
Location: Saudi Arabia/Philippines/USA
Posts: 434
EODguy is on a distinguished road
Awesome jnfo guys and to think that the one thing I was right about was that I was the only one who didn't know

Sent from my SM-A730F using Tapatalk
__________________
"When the Team Chief said.... You're trapped in a hole with nothing but a goat and a slinky, what do you do? Stubby said, I'm not sure but it won't end well for the goat...." ~(Overheard) Last day, Phase 3, Q Course
Reply With Quote
  #9
Old 01-08-2019, 02:48 PM
Crowz's Avatar
Premier Member

Join Date: Aug 2017
Location: Alabama
Posts: 2,257
Crowz is on a distinguished road
Quote:
Originally Posted by EODguy View Post
Awesome jnfo guys and to think that the one thing I was right about was that I was the only one who didn't know

Sent from my SM-A730F using Tapatalk
Well it does look like a led light
__________________
Just BMW's - All cars and trucks was two pages long
1994 318is
1997 528i
2000 323i
2001 X5 3.0 auto
2005 X5 3.0 auto
2013 X5 xdrive35 Turbo
More are at my website

Aftermarket E53 Radio Install
Reply With Quote
  #10
Old 01-08-2019, 04:03 PM
wpoll's Avatar
Member

Join Date: Sep 2015
Location: South Island, New Zealand
Posts: 2,326
wpoll will become famous soon enough
It's a bit like the "mystery" red LED just to the right of the BC button on the MID units (#3 below) - you don't even really notice it until one day you think "what the heck is that for" and then it bugs you until you find out...

BTW, it indicates the operation (or setting) of the Aux. Vent and/or Aux. Heating. And of course, this one IS in the user manual (unlike the sensor in the IHKA panel as queried by EODGuy).

__________________
Wayne
2005 BMW X5 3.0d (b 02/05)
2001 BMW F650GS Dakar (b 06/01)
Reply With Quote
