  #1
Old 04-02-2019, 06:28 PM
Member

Join Date: Mar 2019
Location: Ann Arbor, MI
Posts: 37
petebert is on a distinguished road
Think it's just the washer pumps leaking?

The rubber grommets don't look bad to me. Noticed both pumps have blue crustiness around their seams.



Reply With Quote

Sponsored Links

  #2
Old 04-02-2019, 07:05 PM
crystalworks's Avatar
Premier Member

Join Date: Jun 2014
Location: SA, TX
Posts: 5,167
crystalworks is on a distinguished road
The pumps do fail at the seams... but those grommets don't look pretty either. Anytime I see them silicon'd on I worry.
__________________
2005 X5 4.4i Build 04/05 Maintenance/Build Log
Nav, Pano, Sport (Purchased 06/14 w/ 109,000 miles) (Sold 8/15 w/121,000 miles)


2006 X5 4.8is Build 11/05 Maintenance/Build Log
Nav, DSP, Pano, Running Boards, OEM Tow Hitch, Cold Weather Pckg (Purchased 08/15 w/ 90,500 miles)

2010 X5 35d Build 02/10
Nav, HiFi, 6 DVD, Sports Pckg, Cold Weather Pckg, HUD, CAS, Running Boards, Leather Dash, PDC, Pano (Purchased 03/17 w/ 136,120 miles)
Reply With Quote
  #3
Old 04-02-2019, 07:26 PM
Member

Join Date: Jun 2014
Location: Omaha, NE
Posts: 1,403
cn90 is on a distinguished road
- Get new grommets from dealer, they are cheap.

- The pumps...I use VDO, which is OEM, search rmeuropean.com or eeuroparts.com. It is about $16/each. Just replace both, they last about 100K.

- If one of the old pumps still work, save it in the glovebox as spare.

- Use realoem.com to look for PNs.
__________________
1998 E39 528i 5sp MT
2006 E53 X5 3.0 6sp MT
Reply With Quote
  #4
Old 04-02-2019, 09:37 PM
Member

Join Date: Mar 2019
Location: Ann Arbor, MI
Posts: 37
petebert is on a distinguished road
So is this the entire grommet on one of these? I don't see anything else on ecs or realoem


Reply With Quote
  #5
Old 04-02-2019, 10:21 PM
Member

Join Date: Jun 2014
Location: Omaha, NE
Posts: 1,403
cn90 is on a distinguished road
Yes,

That is the grommet, very cheap at dealer.

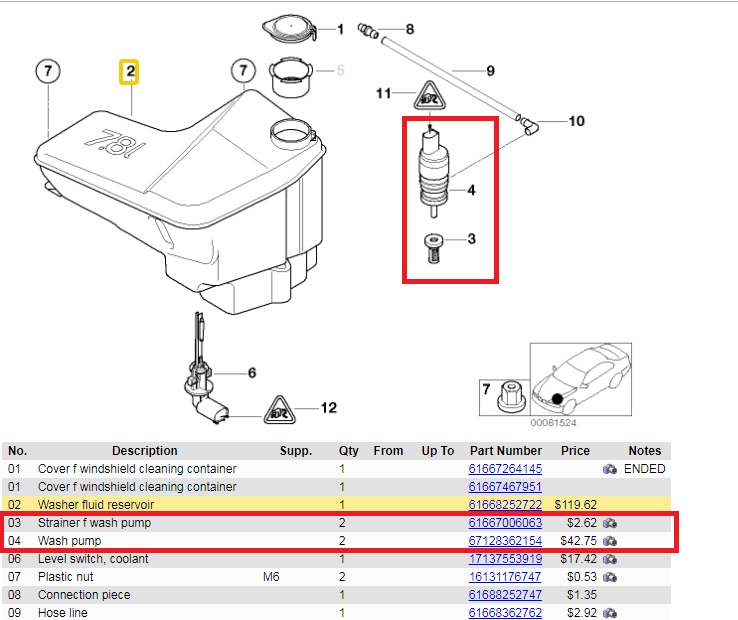

See photo for PNs.

Re: washer pump, I strongly recommend that you replace at least the FRONT pump at this age/mileage. This happened to me: pump went out in the middle of night, then someone ran through a puddle and my windshield was covered in mud. I had to stop nearby to clean my windshield glass simply b/c the washer pump failed at that moment!

So, go to rmeuropean.com and enter 67128362154, you should see a VDO pump for $15. Save the old pump in the glovebox as spare.


---
Attached Images

__________________
1998 E39 528i 5sp MT
2006 E53 X5 3.0 6sp MT
Reply With Quote
  #6
Old 04-03-2019, 09:10 AM
Member

Join Date: Jun 2013
Location: Virigina, USA
Posts: 2,331
StephenVA is on a distinguished road
This is one topic has been posted over and over again. Simple solutions posted before are: purchase two aftermarket pumps motors, get the rubber gaskets with screens for all three pumps, pull the bucket out of the car after disconnecting the pumps from the washer reservoir, this will give you the room to disconnect the electrical connectors and the hose lines. Take the bucket into your sink area and clean out all the junk in the bottom. Then replace all the seals, pumps and re install. Leave the headlamp pump alone and in the car.
The pumps are high failure items as they leak internally and as mentioned the seals dry out and leak. If you follow this path your repairs will be a one stop to solve all your issues.
Note: if you are missing the filter screen little insert http://www.ecstuning.com/b-genuine-b...r/61661365848/ at the fill area of your reservoir, buy one now or you will have pressure leaks in the future now that you sealed all the other leaks. The fill screen allows the bucket to vent properly or you can drill a hole in the top of cap. Your car your choice.

Link to ECS to see all that are your choices on parts as you maybe missing a few items due to tech abuse and previous owner neglect. https://www.ecstuning.com/BMW-E53-X5...terior/Wiper/2
__________________

2005 X5 4.8IS
The Blue ones are always FASTER....

Current Garage:
2005 X5 4.8is
2002 M5 TiSilver
2003 525iT
1998 528i
Former Garage Stable Highlights
2004 325XiT Sport
1973 De Tomaso Pantera, L Model
1970 Dodge Challenger T/A 4 sp Alpine White
1970 Dodge Challenger T/A 4 sp GoManGo Green
1971 Dart Sport, “Dart Light” package
1969 Road Runner 383
1968 Ply Barracuda 340S FB Sea-foam Green
Reply With Quote
  #7
Old 04-03-2019, 09:53 AM
Member

Join Date: Mar 2016
Location: Saskatchewan Canada
Posts: 1,076
80stech is on a distinguished road
The grommets are a loose fit and barely seal even when new. Try putting a piece of heat shrink tubing on the pump stems.
__________________
1988 325is (purchased new)
2004 X5 3.0 (new to me) 2005 X3 2.5 (new to wife)
Reply With Quote
  #8
Old 04-03-2019, 10:29 PM
upallnight's Avatar
Member

Join Date: Aug 2012
Location: Cook County
Posts: 7,041
upallnight is on a distinguished road
Quote:
Originally Posted by 80stech View Post
The grommets are a loose fit and barely seal even when new. Try putting a piece of heat shrink tubing on the pump stems.
I always found the seal to be a nice tight fit. Maybe it's an aftermarket pump or seal that is the problem.
__________________
2006 Infiniti G35
2001 BMW 3.0I E53 X5 Build date 08/2000 SOLD
Lotus Europa 1970 Destroyed by fire
Lotus Europa 1970 S2 Renault Powered
Lotus Type 52 1970 Twincam Webers Powered
PORSCHE 911 Targa 1982 The Garage Queen
Audi Avant donated to Kars for Kids
BMW 525IT Sold
Audi 4000CS Quattro Sold
Jensen Healey Lotus Powered Sold
Opel 1900 Sold
Triumph Spitfire 1971 Sold
Triumph Spitfire 1968 Sold
Plymouth "Cuda" 340 Six pack SOLD
Reply With Quote
  #9
Old Yesterday, 04:22 PM
andrewwynn's Avatar
Member

Join Date: Jun 2015
Location: Racine, WI
Posts: 6,855
andrewwynn is on a distinguished road
Quote:
Originally Posted by 80stech View Post
The grommets are a loose fit and barely seal even when new. Try putting a piece of heat shrink tubing on the pump stems.


I wrapped mine with Teflon but plan to upgrade to heat shrink tubing if the leak returns before I buy a replacement grommet.


Sent from my iPhone using Tapatalk Pro
__________________
E53 / M54 2001 3.0i gas LHD (pair of them: his & her)
Reply With Quote
  #10
Old Yesterday, 04:34 PM
Member

Join Date: Jun 2014
Location: Omaha, NE
Posts: 1,403
cn90 is on a distinguished road
I use BMW grommet + VDO washer pump (orig supplier, about $15).
No leak at all.
__________________
1998 E39 528i 5sp MT
2006 E53 X5 3.0 6sp MT
Reply With Quote
