G01/G05 USB-C Chargers fit the E53!

[ToadFMB]

Originally Posted by hansnielsen

There is a wiring diagram posted above that shows the pin-out for the charger. If you look closely on your connectors, the pins are numbered 1-4.

According to the diagram above (and my own testing):
Pin 1: power,
Pin 2: ground
Pin 3: illumination
Pin 4: not used.

I'm in the process of doing this - perhaps I should do a write-up or video.

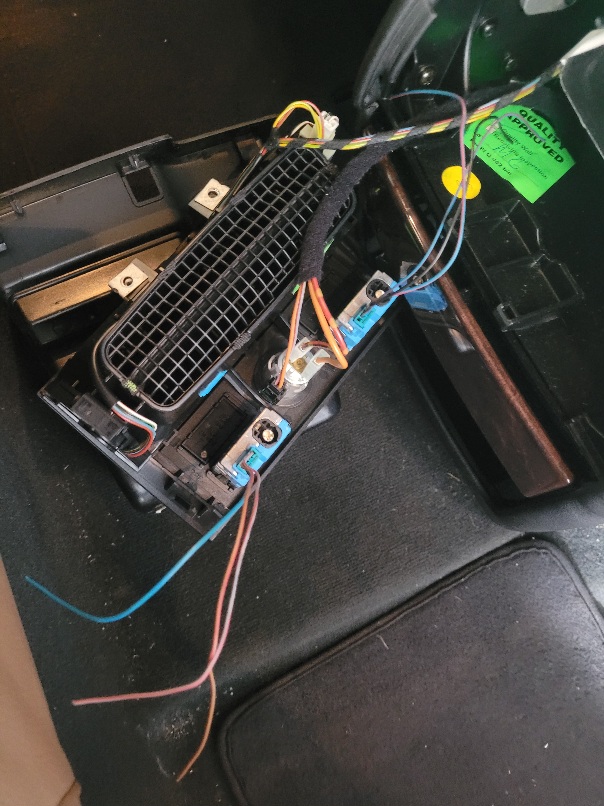

Resurrecting this thread, I have placed the USB-C ports in the center console along with the harnesses. how do I wire this up?

[wpoll]

Originally Posted by ToadFMB

Resurrecting this thread, I have placed the USB-C ports in the center console along with the harnesses. how do I wire this up?

Brown wire (pin #2) goes to brown (brown with black?) wire on cig. socket. this is the ground connection.

Pin #3 (not sure of colour - blue with red?) is illumination and connects to the grey with red wire on the cig. socket bulb connection.

Pin #1 (not sure of colour - blue with ?) is power and can either connect to power wire on the cig. socket or better, run a wire up to the fusebox behind the glovebox an tap into a switch power source.

Connecting directly to the cig. socket power will run the USB-C converters at all times and may flatten the battery after a week or so.

Connecting to the switched power will shut off the USB-C converters when you shut down the car.
