  #21
Old 03-13-2020, 10:59 AM
Member

Join Date: Jun 2013
Location: Virigina, USA
Posts: 2,573
StephenVA is on a distinguished road
Quote:
Originally Posted by andrewwynn View Post
Sounds like you are filling cold or filling to the max line. Proper fill is to the center of the two marks as shown above and the proper test is warm after letting settle five minutes.
I wish that was true but unfortunately it is not. The reading after warm up with 8.5 qts is below the dip stick completely. Adding 1 qt brings it to center after warm up, 5 min wait. I thought is was just mine but a few other owners report similar results on the 4.8is. Everything else I own and/or work on, the normal fill is right on target.

There is a great write up on what happens on 360/430 Ferrari applications on cold fills until it reads correctly on the dip stick story. MASS Air Flows wasted, hydro lock, etc as that application is a wet sump I believe.
__________________

2005 X5 4.8IS
The Blue ones are always FASTER....

Current Garage:
2005 X5 4.8is
2002 M5 TiSilver
2003 525iT
1998 528i
Former Garage Stable Highlights
2004 325XiT Sport
1973 De Tomaso Pantera, L Model
1970 Dodge Challenger T/A 4 sp Alpine White
1970 Dodge Challenger T/A 4 sp GoManGo Green
1971 Dart Sport, “Dart Light” package
1969 Road Runner 383
1968 Ply Barracuda 340S FB Sea-foam Green

Last edited by StephenVA; 03-13-2020 at 11:15 AM.
Reply With Quote

Sponsored Links

  #22
Old 03-13-2020, 12:23 PM
Member

Join Date: Nov 2014
Location: SF Bay Area
Posts: 1,423
oldskewel is on a distinguished road
Good info. I never knew about the spec for it to be warm. For most cars, in my experience it is to be cold, with plenty of time to all drip down to the oil pan.

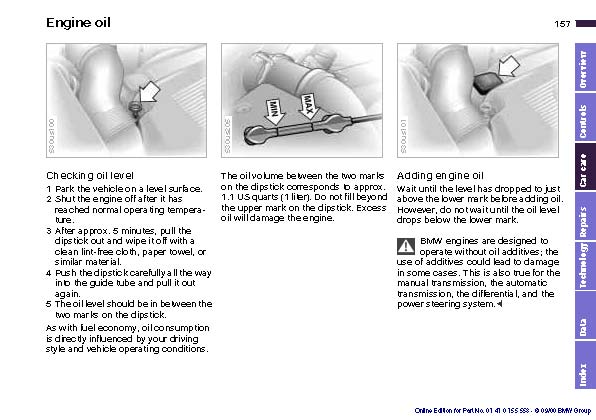

Here's the page from the owner's manual for my 2001. Regarding top mark vs. midpoint between the marks, I can see how it can be read both ways. I'll continue to fill to the top mark.
Name:  2001 X5 owners manual_Page_157.jpg
Views: 98
Size:  52.2 KB
__________________
2001 X5 3.0i, 203k miles, AT, owned since 2014
Reply With Quote
  #23
Old 03-13-2020, 01:00 PM
andrewwynn's Avatar
Member

Join Date: Jun 2015
Location: Racine, WI
Posts: 10,818
andrewwynn will become famous soon enough
The manual is not explicit but there is plenty of documentation elsewhere that 'full' is right in the middle but that the engine is designed to deal with 1/2L extra oil. There is no issue with having an extra 1/2L so filling to the max is not a problem unless you fill to max when cold which is definitely over the max line.
__________________
2011 E70 • N55 (me)
2012 E70 • N63 (wife)
Reply With Quote
  #24
Old 03-13-2020, 01:06 PM
andrewwynn's Avatar
Member

Join Date: Jun 2015
Location: Racine, WI
Posts: 10,818
andrewwynn will become famous soon enough
Quote:
Originally Posted by StephenVA View Post
I wish that was true but unfortunately it is not. The reading after warm up with 8.5 qts is below the dip stick completely. Adding 1 qt brings it to center after warm up, 5 min wait. I thought is was just mine but a few other owners report similar results on the 4.8is. Everything else I own and/or work on, the normal fill is right on target.
BMW spec'd in L. A quick look up showed 8L is the spec for the 4.8 which is almost exactly 8.5Q, you are saying you need a full add'l Q to get to the center; that does seem amazing, i would like to see other people's answer.

Makes you wonder; is the correct amount the actual quarts/liters put in or the line on the dip stick. any chance not the original dip stick and yours is too short ?
__________________
2011 E70 • N55 (me)
2012 E70 • N63 (wife)
Reply With Quote
  #25
Old 03-13-2020, 04:41 PM
wpoll's Avatar
Member

Join Date: Sep 2015
Location: South Island, New Zealand
Posts: 4,660
wpoll will become famous soon enough
Quote:
Originally Posted by oldskewel View Post
Good info. I never knew about the spec for it to be warm. For most cars, in my experience it is to be cold, with plenty of time to all drip down to the oil pan.
In 40 years of goofing with cars I've never seen a manufacturer spec the oil level cold - always hot (after a short drain-back period).
__________________
Wayne
2005 BMW X5 3.0d (b 02/05)
2001 BMW F650GS Dakar (b 06/01)
Reply With Quote
  #26
Old 03-13-2020, 05:37 PM
Member

Join Date: Nov 2014
Location: SF Bay Area
Posts: 1,423
oldskewel is on a distinguished road
Quote:
Originally Posted by wpoll View Post
In 40 years of goofing with cars I've never seen a manufacturer spec the oil level cold - always hot (after a short drain-back period).
Check this out from the cartalk guys:
https://www.cartalk.com/content/when...-your-oil-when

It's a trade-off:
Cold, first thing in the morning, will be more accurate, since all the oil had all the time it needs to drip into the pan. The thermal expansion effect may be more stable too for most climates.
But most people don't even think to open their hood unless they're waiting for the tank to fill at a gas station with nothing else to do, so checking while warm after a few minutes is better than not waiting, and better than never checking at all.

But it does matter, since the spec level on the dipstick should read differently depending on which method is specified. From the cartalk thing there, the manufacturers are on to this. Yes, the lazy-people / warmed-up method is the new norm. Check your manual if in doubt.

I always understood the tradeoff, but was unaware that manufacturers had (all?) chosen to go with the warmed up method.

My 911 has to be warmed up, level, and idling while I check, just like most automatic transmissions. But that's different. And it has an accurate oil-level gauge on the dash too.
__________________
2001 X5 3.0i, 203k miles, AT, owned since 2014
Reply With Quote
