  #1
Old 08-05-2020, 03:38 AM
Member

Join Date: Aug 2020
Location: Puyallup, WA
Posts: 14
Golfknar is on a distinguished road
Unhappy What Could Go Wrong?!

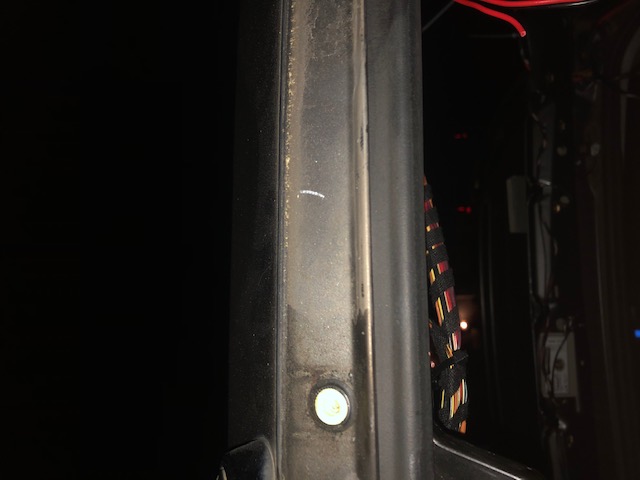

I am working to mount this rear view cam. Pics attached for my plans. Have never drilled a hole in a car before. Scratch mark where I’m planning to drill. Just under trim for reverse lights and the button for hatch. Only way I can see running the wires??
Attached Images


Last edited by Golfknar; 08-05-2020 at 03:13 PM.
Reply With Quote

Sponsored Links

  #2
Old 08-05-2020, 03:51 AM
EODguy's Avatar
Member

Join Date: Jun 2018
Location: Saudi Arabia/Philippines/USA
Posts: 3,831
EODguy is on a distinguished road
Don't drill holes...

Placement of backup cameras is usually done by replacing one of the license plate lights.

Also your photos are not showing it's only showing a broken link. (for me at least)

Sent from my SM-A730F using Tapatalk
__________________
"When the Team Chief said.... You're trapped in a hole with nothing but a goat and a slinky, what do you do? Stubby said, I'm not sure but it won't end well for the goat...." ~(Overheard) Last day, Phase 3, Q Course
Reply With Quote
  #3
Old 08-05-2020, 05:11 AM
SpookX5's Avatar
Member

Join Date: Nov 2019
Location: Naaldwijk
Posts: 124
SpookX5 is on a distinguished road
I have one that fits in the licence plate light location, it just needed to be bonded in.

Your new licence plate light with camera will use an LED. The car will give a bulb out warning because of less resistance. You can fix this by installing a resistor or code out the bulb out warning for the licence plate lights with NCS Expert.
Reply With Quote
  #4
Old 08-05-2020, 06:11 AM
Member

Join Date: Aug 2020
Location: Puyallup, WA
Posts: 14
Golfknar is on a distinguished road
NCS Expert

Sounds good in the code. I see many different purchase options for cable and software for NCS expert. Huge price differences... any links to what I should purchase or threads I should read?

No holes.. I have no idea how to run the cables from the license plate lights. Any suggestions? The hole for the power and the hatch switch is too small to fit additional wires, if I drill directly through I could fit them..?? I see no other option.

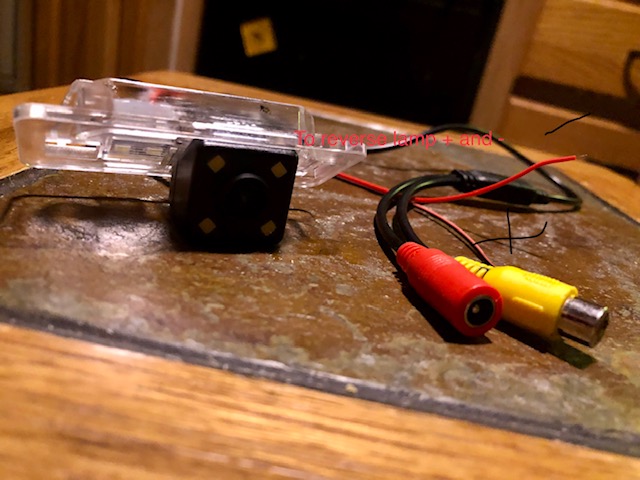

The camera I have “supposedly” fits the light for license. See pics... just needs some finesse?

Bonded in? Soldered?
Reply With Quote
