  #21
Old 09-30-2021, 04:25 PM
andrewwynn's Avatar
Member

Join Date: Jun 2015
Location: Racine, WI
Posts: 10,817
andrewwynn will become famous soon enough
What’s the current reading on your amount of camber. You can usually get a good estimate Using your smart phone but I can get a very accurate measurement if yousend a photo hi zoom from fire behind your car
__________________
2011 E70 • N55 (me)
2012 E70 • N63 (wife)
Reply With Quote

Sponsored Links

  #22
Old 09-30-2021, 05:17 PM
Member

Join Date: Mar 2016
Location: Saskatchewan Canada
Posts: 2,053
80stech is on a distinguished road
Double check what oldskewel is showing you. There is an adjuster at the bottom rear of the lower control arm (a-frame) and one at the upper front control arm which you can't see with the tire on (which is why I think the picture he posted is taken upside down of the upper one,) One of those has slipped (or turned) on you.
__________________
1988 325is (purchased new) sold
2004 X5 3.0 2005 X3 2.5
2008 X5 3.0 (new to me)

Last edited by 80stech; 09-30-2021 at 05:26 PM.
Reply With Quote
  #23
Old 09-30-2021, 05:51 PM
RocketyMan's Avatar
Member

Join Date: Jan 2020
Location: PNW
Posts: 553
RocketyMan is on a distinguished road
Quote:
Originally Posted by andrewwynn View Post
What’s the current reading on your amount of camber. You can usually get a good estimate Using your smart phone but I can get a very accurate measurement if yousend a photo hi zoom from fire behind your car
I have a magnetic tool I can place on the rotor with a bubble level. I'll also get a picture of the wheel kicking out for a good visual indicator.

Quote:
Originally Posted by 80stech View Post
Double check what oldskewel is showing you. There is an adjuster at the bottom rear of the lower control arm (a-frame) and one at the upper front control arm which you can't see with the tire on (which is why I think the picture he posted is taken upside down of the upper one,) One of those has slipped (or turned) on you.
Yes, the upper control arm adjustment controls nearly all the toe-adjustment. This one is such a pain because the wheel hides it pretty well. I'll check it too just to be certain.
__________________
2003 BMW X5 3.0i -- MT5, 3.64s final gears, H&R lowering springs, K-Mac bushing kit
2007 BMW X3 3.0Si -- MT6
Reply With Quote
  #24
Old 09-30-2021, 06:01 PM
andrewwynn's Avatar
Member

Join Date: Jun 2015
Location: Racine, WI
Posts: 10,817
andrewwynn will become famous soon enough
According to BMW toe is primarily the bolt on the inner bolt of the "swing part". Camber from the upper forward control arm. They both affect both. The wishbone affects both. (not adjustable).
__________________
2011 E70 • N55 (me)
2012 E70 • N63 (wife)
Reply With Quote
  #25
Old 09-30-2021, 06:08 PM
andrewwynn's Avatar
Member

Join Date: Jun 2015
Location: Racine, WI
Posts: 10,817
andrewwynn will become famous soon enough
[mention]RocketyMan [/mention] make sure to include both back wheels from directly behind so I can get a horizontal references from the bumper.


Sent from my iPhone using Tapatalk Pro
__________________
2011 E70 • N55 (me)
2012 E70 • N63 (wife)
Reply With Quote
  #26
Old 09-30-2021, 06:19 PM
RocketyMan's Avatar
Member

Join Date: Jan 2020
Location: PNW
Posts: 553
RocketyMan is on a distinguished road
Quote:
Originally Posted by andrewwynn View Post
According to BMW toe is primarily the bolt on the inner bolt of the "swing part". Camber from the upper forward control arm. They both affect both. The wishbone affects both. (not adjustable).

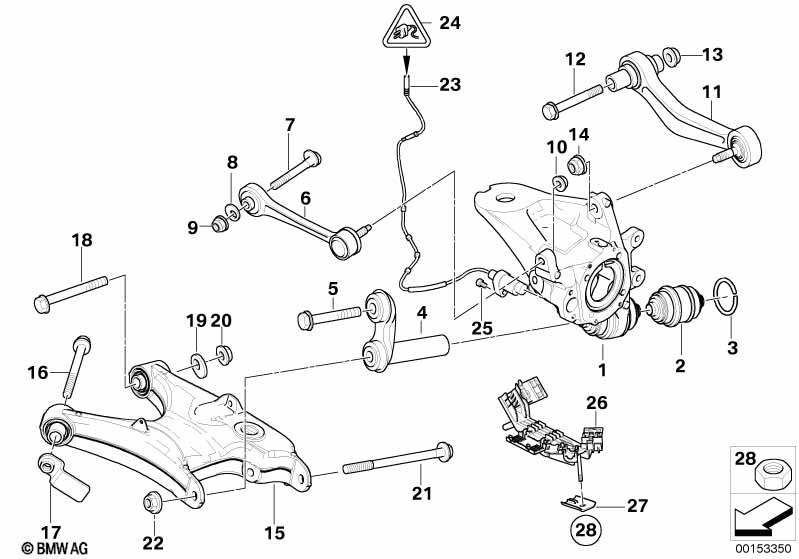

Are you saying #6 does mostly camber? I thought that does toe since #11 is non-adjustable. Therefore, #6 would adjust the toe as it pivots about the same plane of #11.

I understand the swingarm that both bushes adjust a little of one or the other.
__________________
2003 BMW X5 3.0i -- MT5, 3.64s final gears, H&R lowering springs, K-Mac bushing kit
2007 BMW X3 3.0Si -- MT6
Reply With Quote
  #27
Old 09-30-2021, 06:34 PM
andrewwynn's Avatar
Member

Join Date: Jun 2015
Location: Racine, WI
Posts: 10,817
andrewwynn will become famous soon enough

7 is the eccentric bolt for camber.


18 is the eccentric bolt for toe.

18 effectively moves the bottom of the wheel carrier fire/aft.

7 pushes the top front of the wheel carrier in/out

Since neither are on a horizonal plane, each will affect both.

It's largely why I didn't do my own rear alignment while I have no concerns doing toe alignment on the front.
__________________
2011 E70 • N55 (me)
2012 E70 • N63 (wife)
Reply With Quote
  #28
Old 09-30-2021, 07:16 PM
bcredliner's Avatar
Premier Member

Join Date: Jun 2008
Location: Little Elm,Texas. (40 minutes North of Dallas)
Posts: 8,105
bcredliner is on a distinguished road
Quote:
Originally Posted by RocketyMan View Post
The springs only dropped the rear 1" about. Maybe it's possible the springs are still settling in--but that's been since about over 10k miles ago.

I had an alignment soon after I changed the springs to H&R.
As mentioned in an earlier post I would take it to a shop to have it aligned. If something is wrong with the suspension a good shop will find it.

If the springs did any settling that would usually be in the first few miles after installation. That is, unless you have been way overloading the springs recently. I've had H&R springs for many years--no settling.
__________________
X5 4.6 2002 Black Sap, Black interior. 2013 X5M Melbourne Red, Bamboo interior
Dallas

Last edited by bcredliner; 09-30-2021 at 07:26 PM.
Reply With Quote
  #29
Old 09-30-2021, 08:31 PM
Member

Join Date: Nov 2014
Location: SF Bay Area
Posts: 1,423
oldskewel is on a distinguished road
Quote:
Originally Posted by 80stech View Post
Double check what oldskewel is showing you. There is an adjuster at the bottom rear of the lower control arm (a-frame) and one at the upper front control arm which you can't see with the tire on (which is why I think the picture he posted is taken upside down of the upper one,) One of those has slipped (or turned) on you.
The pic I posted is not upside down as I see it. If the text in the pic is right-side up, the pic is as well. No guarantees what the site or your browser are doing. I think things are clearly labeled in the pic as far as swing arm, starboard, etc. The thread I link to above has that pic with more info and explanation.

Regarding toe vs camber alignment back there, the forward upper control arm is called the "guide link" and its eccentric bolt (#7) and washer (#8) are for primarily adjusting toe. The lower control arm is called a "swing arm" and the eccentric bolt (#18) + washer (#19) on there are for adjusting camber. I probably have bolt and nut sizes and torque specs in that thread. There is some cross-coupling of toe and camber, so you iterate between the two. Also toe has a much tighter spec than camber, so toe is the final one to be adjusted.

I have done both toe and camber on my car, probably reported details in that thread linked above.

Distance from the underside of the fender lip to the underside of the lower wheel rim will be only very slightly affected by camber change, so I believe the measurement will still be sufficiently reliable. Main purpose of that would be to see if the rear is still 1" lower as you modified it to be, or if it has dropped lower, which would explain some camber change.

To measure camber accurately, my method is to park it on flat and level ground (at least side-to-side), and use a straight edge on the wheel rim edges, measuring camber angle (relative to gravity, but since ground is confirmed level, it is a direct measurement) using the Klein Tools 935 DAGL, which easily gives better than 0.1* accuracy.

https://www.kleintools.com/catalog/l...ammable-angles
__________________
2001 X5 3.0i, 203k miles, AT, owned since 2014
Reply With Quote
  #30
Old 09-30-2021, 09:31 PM
RocketyMan's Avatar
Member

Join Date: Jan 2020
Location: PNW
Posts: 553
RocketyMan is on a distinguished road
Quote:
Originally Posted by oldskewel View Post
The pic I posted is not upside down as I see it. If the text in the pic is right-side up, the pic is as well. No guarantees what the site or your browser are doing. I think things are clearly labeled in the pic as far as swing arm, starboard, etc. The thread I link to above has that pic with more info and explanation.

Regarding toe vs camber alignment back there, the forward upper control arm is called the "guide link" and its eccentric bolt (#7) and washer (#8) are for primarily adjusting toe. The lower control arm is called a "swing arm" and the eccentric bolt (#18) + washer (#19) on there are for adjusting camber. I probably have bolt and nut sizes and torque specs in that thread. There is some cross-coupling of toe and camber, so you iterate between the two. Also toe has a much tighter spec than camber, so toe is the final one to be adjusted.

I have done both toe and camber on my car, probably reported details in that thread linked above.

Distance from the underside of the fender lip to the underside of the lower wheel rim will be only very slightly affected by camber change, so I believe the measurement will still be sufficiently reliable. Main purpose of that would be to see if the rear is still 1" lower as you modified it to be, or if it has dropped lower, which would explain some camber change.

To measure camber accurately, my method is to park it on flat and level ground (at least side-to-side), and use a straight edge on the wheel rim edges, measuring camber angle (relative to gravity, but since ground is confirmed level, it is a direct measurement) using the Klein Tools 935 DAGL, which easily gives better than 0.1* accuracy.

https://www.kleintools.com/catalog/l...ammable-angles
Yes, this is what I originally thought to be true for that particular control arm.

As an update, I did find the #6 control arm bolt, (#7 & #8) to be a tiny bit loose. But not substantially. MAYBE the big bump would be harsh enough to jolt the eccentric bolt loose-ish.


More pictures to come.
