ISTA no communication to modules (egs,...)

Hi all,

New to the forum here, recently bought an bmw e53 4.8is from 2004. I'm working on the maintenance (zero status) and wanted to do a transmission oil change including the mechatronics seals.

To replace those i need to be able to readout the oil temp. in the gearbox.
I have connected the to ista and found many fault code related to "no communication"

I have checked the obd connection for a 12V supply on pin 16. which is present.

Can you guys please help what to check next?
Attached Images

Reply With Quote

Sponsored Links

  #2
Old 04-08-2023, 12:25 PM
Member

Join Date: Jan 2013
Location: Finland
Posts: 1,392
Clavurion is on a distinguished road
What interface you are using, are pins 7 and 8 connected together?

These with metal sump it's quite easy to check by hand that temp is in the required 30-50 C range.
__________________
E39 530dA -02 M-Sport Messing metallic
E53 X5 3.0dA -06 Sport Stratus grey
Reply With Quote
  #3
Old 04-08-2023, 12:30 PM
Member

Join Date: Apr 2023
Location: Netherlands
Posts: 11
Jmol is on a distinguished road

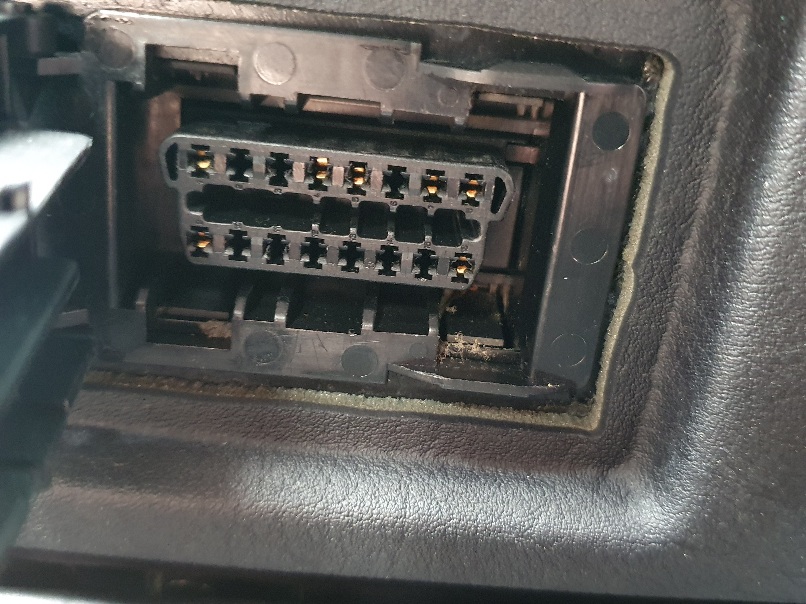

What do you mean connected together?
Attached Images

Reply With Quote
  #4
Old 04-08-2023, 02:43 PM
Member

Join Date: Jan 2013
Location: Finland
Posts: 1,392
Clavurion is on a distinguished road
On the interface side those pins should be in same potential (shorted).
__________________
E39 530dA -02 M-Sport Messing metallic
E53 X5 3.0dA -06 Sport Stratus grey
Reply With Quote
  #5
Old 04-08-2023, 02:58 PM
Member

Join Date: Apr 2023
Location: Netherlands
Posts: 11
Jmol is on a distinguished road
Quote:
Originally Posted by Clavurion View Post
On the interface side those pins should be in same potential (shorted).
With interface, you mean on the other side of the plug, right?
Reply With Quote
  #6
Old 04-08-2023, 03:12 PM
Member

Join Date: Jan 2013
Location: Finland
Posts: 1,392
Clavurion is on a distinguished road
Quote:
Originally Posted by Jmol View Post
With interface, you mean on the other side of the plug, right?
The diagnostic cable you are using.
__________________
E39 530dA -02 M-Sport Messing metallic
E53 X5 3.0dA -06 Sport Stratus grey
Reply With Quote
  #7
Old 04-08-2023, 04:07 PM
Member

Join Date: Apr 2023
Location: Netherlands
Posts: 11
Jmol is on a distinguished road
Quote:
Originally Posted by Clavurion View Post
The diagnostic cable you are using.
Just checked the interface cable, its the cable with a switch and 7 & 8 are bridged.

Btw, don't know if that matters but i see alot of People using the blue version cable..
Attached Images


Last edited by Jmol; 04-08-2023 at 04:22 PM.
Reply With Quote
  #8
Old 04-08-2023, 04:59 PM
workingonit's Avatar
Member

Join Date: May 2021
Location: DFW Texas
Posts: 765
workingonit is on a distinguished road
bridging pins is needed on early X5's

Quote:
Originally Posted by Jmol View Post
Just checked the interface cable, its the cable with a switch and 7 & 8 are bridged.

Btw, don't know if that matters but i see alot of People using the blue version cable..
I bought a blue cable on Amazon, and it also has 7 & 8 bridged. Works fine on my 2001 X5 (K-line only), on INPA (using my Windows 11 laptop), or while running Torque Pro, OBDLink, or BimmerTool apps on my Android tablet.
Name:  blue cable.JPG
Views: 520
Size:  71.6 KB
__________________
01 BMW X5 E53,3.0i-5L40E, 7/13/01
topas-blau,Leder-grau,"resto-project car"

Here:
14 Lexus ES350,3.5L-U660E
09 HHR Panel,2.2L-4T45E
04 Chevy 2500HD,6.0L-4L80E
98 GMC Sierra 1500,5.7L-4L60E

Gone:
66 Chevelle Malibu 2dr ht.,327>441c.i.-TH350>PGlide/transbrake
08 Cobalt Coupe,2.2L-4T45E
69 & 75 C10s,350c.i.-TH350
86 S10,2.8L-700R4
73 Volvo 142,2.0L-MT4
72 & 73 VW SuperBeetles,1.6l-MT4
64 VW,1.2l-MT4
67 Dodge Monaco 500 2dr ht.,383c.i.-A727
56 Chevy 210 4dr,265c.i.-PGlide
Reply With Quote
  #9
Old 04-09-2023, 05:14 AM
Member

Join Date: Apr 2023
Location: Netherlands
Posts: 11
Jmol is on a distinguished road
Yes should be the same.

Anyone could help me solve the communication issues?
Reply With Quote
  #10
Old 05-25-2023, 08:56 PM
Member

Join Date: Apr 2015
Location: Sacramento
Posts: 194
stiubhartach is on a distinguished road
Check your windows firewall. You need to make sure it’s allowing communication with the cable/car. I disable mine altogether on my dedicated car laptop.
__________________
2005 X5 4.4i SterlingGrau, Sport Package, DSP
Build 3/12/2005



Reply With Quote
