What Puller For Front Bearings?

[cn90]

@wpoll et al,

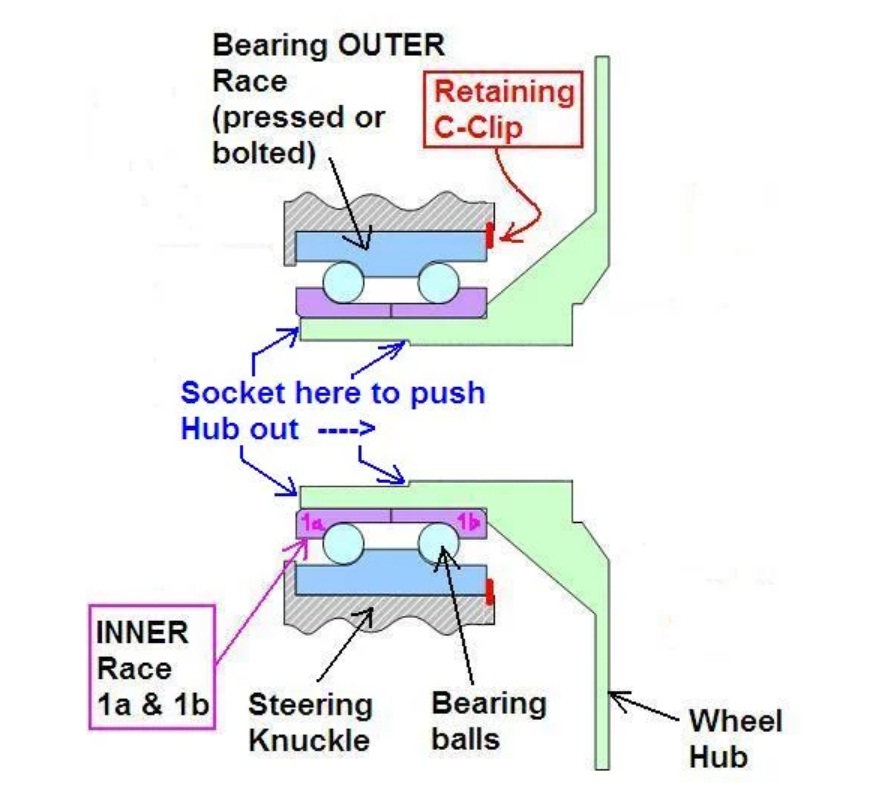

- I sketched a generic photo so you can see OUTER vs INNER race terminology.

- When REMOVING hub/bearing (after circlip is removed), you basically push the Hub out, the part called "1b" comes out with the Hub.

- The part "1a" is where you apply the force to push the OUTER race out.

- During installation: install the new bearing using old bearing but push ONLY on the OUTER race.

- Then use appropriate adapters to install the Hub into the INNER race, i.e., force should be applied only to the INNER race during this step bc if ppl use a hammer to pound on the Hub at this stage, the force generated by the hammer goes like this: Hub ---> Inner Race ---> Bearing Balls ---> OUTER race: a big no-no.

---
