What's the mechatronic Separator plate part number for 6HP26x X5 2004 November
What's the transmission mechatronic Separator plate part number for GA6HP26 trans on an X5 2004 November N62? I'm preparing for a transmission overhaul replacing the accumulator/damper in addition to the solenoids and other parts. I saw a post where a 2005 4.4 N62 has the B052 separator. https://www.thectsc.com/products/sep...-4-171-45.html

Thanks for any info!
__________________
'05 E53 X5 4.4i, '97 E39 528, '07 E92 335i, '16 F86 X6M.
Last edited by X5only; 05-02-2025 at 01:39 AM.
Reply With Quote

Sponsored Links

  #2
Old 04-30-2025, 04:29 AM
wpoll's Avatar
Member

Join Date: Sep 2015
Location: South Island, New Zealand
Posts: 4,862
wpoll will become famous soon enough
Shouldn't the ID plate on the side of the trans aid in identifying the correct parts...?

__________________
Wayne
2005 BMW X5 3.0d (b 02/05)
2001 BMW F650GS Dakar (b 06/01)
Reply With Quote
  #3
Old 04-30-2025, 04:44 AM
wpoll's Avatar
Member

Join Date: Sep 2015
Location: South Island, New Zealand
Posts: 4,862
wpoll will become famous soon enough
OK, according to Sonnax the seperator plates are not specific to a particular trans model, so you may not know definitively until you open her up...

https://www.sonnax.com/tech_resource...lication-chart
__________________
Wayne
2005 BMW X5 3.0d (b 02/05)
2001 BMW F650GS Dakar (b 06/01)
Reply With Quote
  #4
Old 04-30-2025, 10:51 AM
X5only's Avatar
Member

Join Date: Feb 2008
Location: Bellevue, WA
Posts: 1,519
X5only is on a distinguished road
Trying to avoid decommissioning the vehicle while waiting for parts.
__________________
'05 E53 X5 4.4i, '97 E39 528, '07 E92 335i, '16 F86 X6M.
Reply With Quote
  #5
Old 04-30-2025, 03:28 PM
X5only's Avatar
Member

Join Date: Feb 2008
Location: Bellevue, WA
Posts: 1,519
X5only is on a distinguished road
X5 N62 build date - 2004/11

Serial No: 0116750
168020018

Model No:
6HP-26X
Attached Images

__________________
'05 E53 X5 4.4i, '97 E39 528, '07 E92 335i, '16 F86 X6M.
Reply With Quote
  #6
Old 04-30-2025, 05:40 PM
Member

Join Date: Jan 2013
Location: Finland
Posts: 1,517
Clavurion is on a distinguished road
Quote:
Originally Posted by wpoll View Post
OK, according to Sonnax the seperator plates are not specific to a particular trans model, so you may not know definitively until you open her up...

https://www.sonnax.com/tech_resource...lication-chart
Unfortunately this is my understanding too. There is no 100% sure way to tell which separator plate you have before you take the mechatronics apart.
__________________
E39 530dA -02 M-Sport Messing metallic
E53 X5 3.0dA -06 Sport Stratus grey
E70 X5 40d -12 M-Sport Space grey
Reply With Quote
  #7
Old 05-02-2025, 01:35 AM
X5only's Avatar
Member

Join Date: Feb 2008
Location: Bellevue, WA
Posts: 1,519
X5only is on a distinguished road
Here're results of my research. From the below awesome videos for mechatronic service on E53, 6HP26x 2004 separator plate code is B051 and for 2005-2006 it's B052. I'm planning to do valvebody overhaul and these videos are detailed.
X5 E53 2004 4.4: https://www.youtube.com/watch?v=Ct8qbmDXqjs
X5 E53 2006 4.4: https://www.youtube.com/watch?v=W7DZbrvrI5k&t=1073s
X5 E53 2004 4.4 https://www.youtube.com/watch?v=YeLFFkx94Jg

And a general guidance on the overhaul. https://www.youtube.com/watch?v=CumnLzqhBao
__________________
'05 E53 X5 4.4i, '97 E39 528, '07 E92 335i, '16 F86 X6M.
Last edited by X5only; 05-02-2025 at 02:28 AM.
Reply With Quote
  #8
Old 05-02-2025, 06:57 AM
Member

Join Date: Jan 2011
Location: Blackburn UK
Posts: 423
RRPhil is on a distinguished road

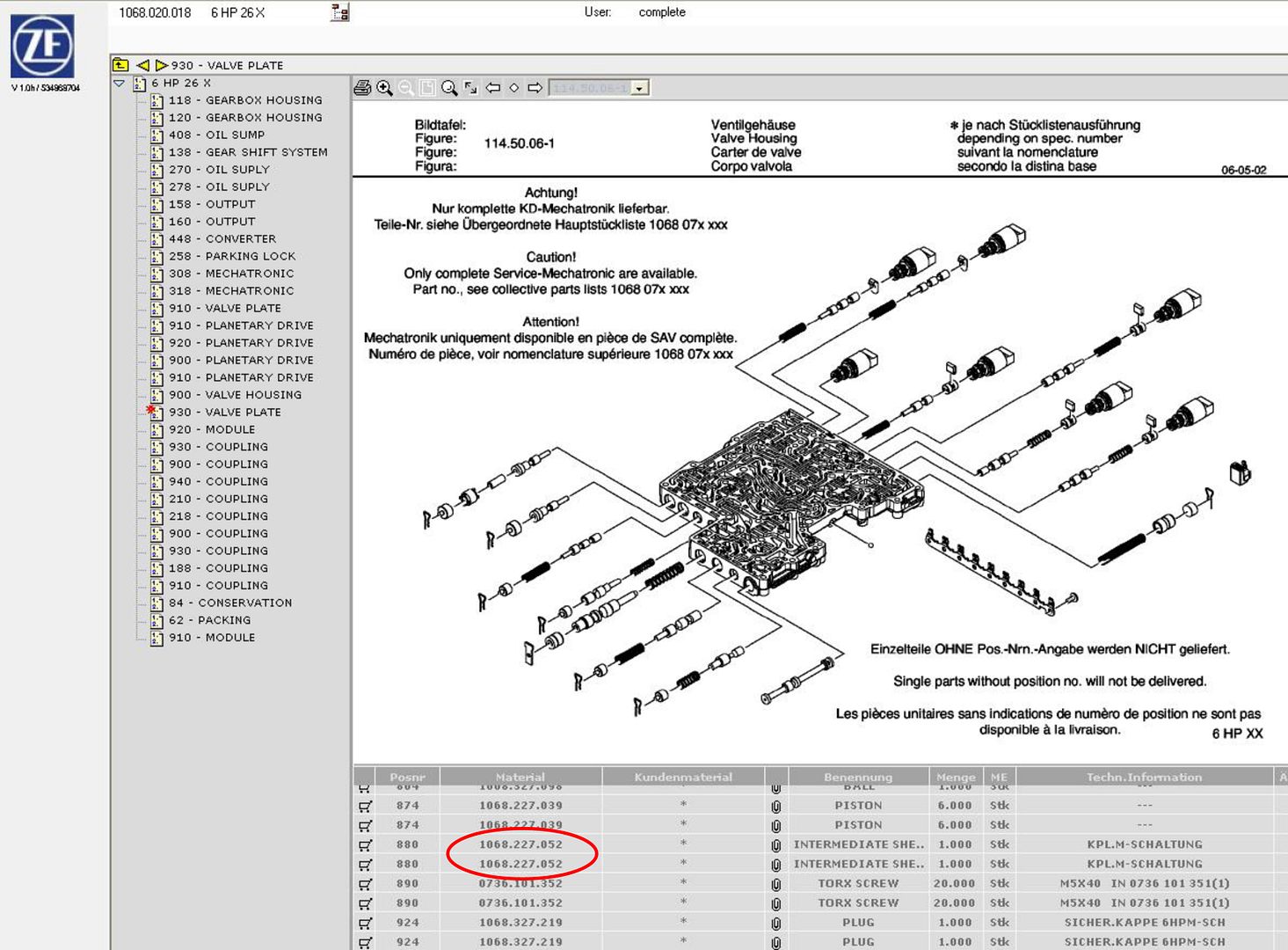

Your 1068 020 018 transmission has the 1068 128 421 Mechatronic unit with the 052 intermediate sheet.



Phil
Reply With Quote
  #9
Old 05-02-2025, 09:10 AM
X5only's Avatar
Member

Join Date: Feb 2008
Location: Bellevue, WA
Posts: 1,519
X5only is on a distinguished road
Quote:
Originally Posted by RRPhil View Post
Your 1068 020 018 transmission has the 1068 128 421 Mechatronic unit with the 052 intermediate sheet.



Phil
Wow, Phil, thank you so much for a conclusive verification without opening the transmission. This lines up with the build date of my 2004/11 which was sold as a 2005 X5 model year. I've placed an order for 052 intermediate sheet.

https://www.transmissionpartsdistrib...-1068-327-180/
