  #11
Old 04-20-2006, 12:49 AM
Member

Join Date: Mar 2005
Location: St. Louis
Posts: 1,164
CGSTL is on a distinguished road
Quote:
Originally Posted by WagnerX5
Hmmm. Got any pics....?

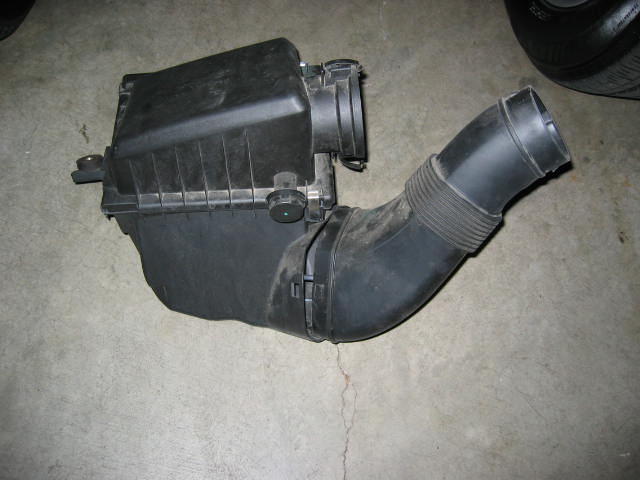

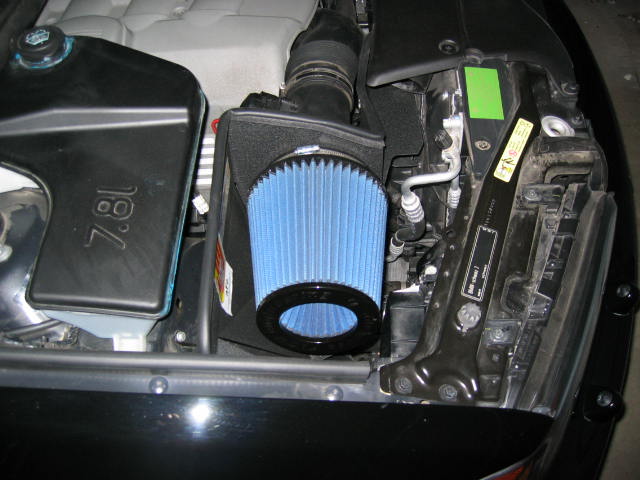

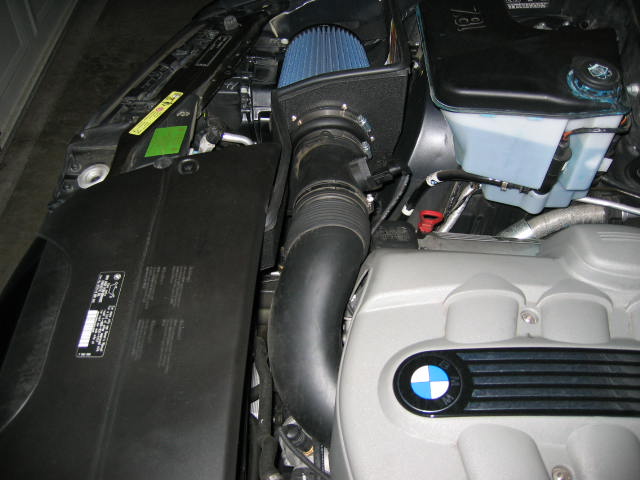

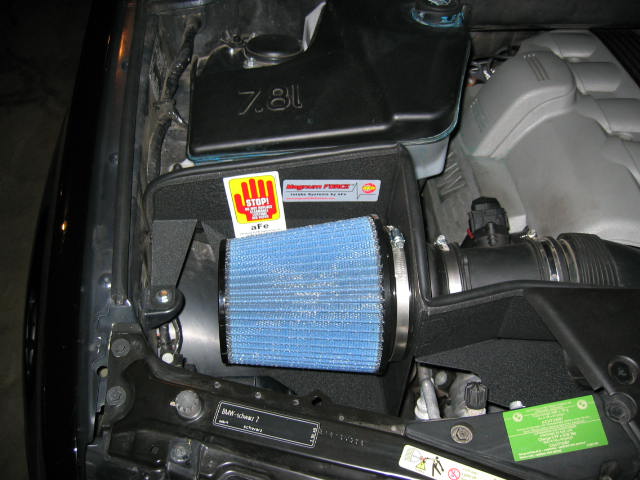

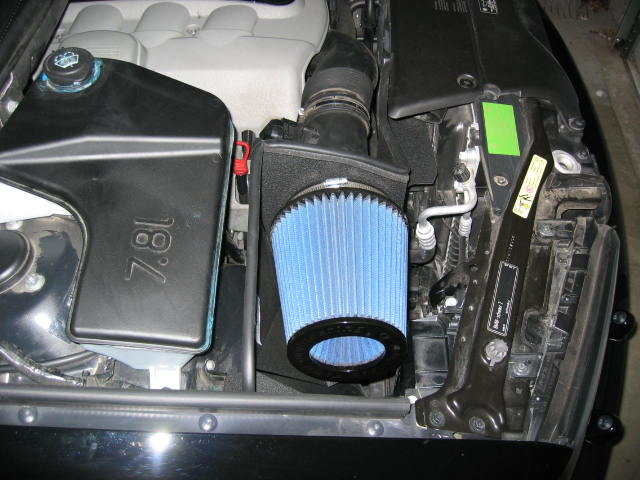

Pix below are the stock airbox with feeder tube (runs from behind the grills into the lower half of the stock airbox) and the newly installed CAI.

Keep in mind that this is for a 4.4i. Someone else here (I think it was KewlX5) did an install on a 3.0i and it looked much different.
Attached Images

Reply With Quote

Sponsored Links

  #12
Old 04-20-2006, 07:36 AM
Wagner's Avatar
..make it happn' capn'

Join Date: Mar 2005
Location: Mt. Airy, MD
Posts: 17,733
Wagner is on a distinguished road
Looks good!
__________________

An unwavering defender of those I see worth protecting.

"promote the general welfare, not provide the general welfare"

We the People of the United States, in Order to form a more perfect Union, establish Justice, insure domestic Tranquility, provide for the common defence, promote the general Welfare, and secure the Blessings of Liberty to ourselves and our Posterity, do ordain and establish this Constitution for the United States of America.
Reply With Quote
  #13
Old 04-20-2006, 09:39 AM
aus aus is offline
Member

Join Date: Feb 2006
Location: Seal Beach, CA
Posts: 159
aus is on a distinguished road
Doesn't look like you have the "dangling tube" that others with 4.4's have said they have... strange.
Intake looks good.
Reply With Quote
  #14
Old 04-20-2006, 11:57 AM
Member

Join Date: Mar 2005
Location: St. Louis
Posts: 1,164
CGSTL is on a distinguished road
Quote:
Originally Posted by aus
Doesn't look like you have the "dangling tube" that others with 4.4's have said they have... strange.
Intake looks good.
A-Ha! I know why I don't have the dangling tube!

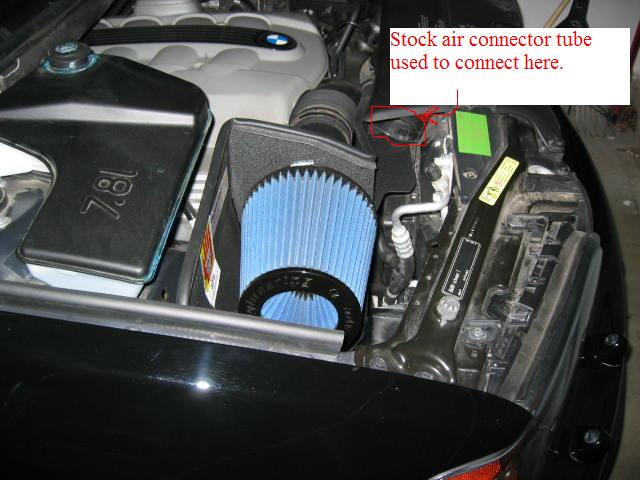

The tube is connected to the upper piece which is circled in red below. It is a bit tricky to separate those two pieces. There are two pinch points on the tube that get removed; once pinched, the tube will slide right out.

It seems that some folks aren't pinching and pulling that dangling tube down and out.
Reply With Quote
  #15
Old 04-20-2006, 01:58 PM
aus aus is offline
Member

Join Date: Feb 2006
Location: Seal Beach, CA
Posts: 159
aus is on a distinguished road
It's a different tube we're talking about. The one circles is just the "snorkle" from the radiator shroud. There's another ?vaccum tune that's connected to the airbox on 4.6is models and some 4.4 people say they have this small tube as well.
Reply With Quote
  #16
Old 04-20-2006, 02:10 PM
asawadude's Avatar
Premier Member

Join Date: Jun 2005
Location: The other side of town
Posts: 3,792
asawadude is on a distinguished road
There have been other message threads discussing what to do with the mysterious tube after a CAI install. Crosvys did a very nice job of documenting the issue.

http://www.xoutpost.com/x5-e53-forum/...stand-pix.html

Do a search for the others - there were solutions identified.
Reply With Quote
  #17
Old 04-20-2006, 05:22 PM
Member

Join Date: Mar 2005
Location: St. Louis
Posts: 1,164
CGSTL is on a distinguished road
Quote:
Originally Posted by aus
It's a different tube we're talking about. The one circles is just the "snorkle" from the radiator shroud. There's another ?vaccum tune that's connected to the airbox on 4.6is models and some 4.4 people say they have this small tube as well.
Now I see. The insertion point on my air box was capped. I did not have a downward snorkel tube on my 2005 4.4i. Interesting...
Reply With Quote
  #18
Old 04-21-2006, 02:00 AM
aus aus is offline
Member

Join Date: Feb 2006
Location: Seal Beach, CA
Posts: 159
aus is on a distinguished road
Quote:
Originally Posted by asawadude
There have been other message threads discussing what to do with the mysterious tube after a CAI install. Crosvys did a very nice job of documenting the issue.

http://www.xoutpost.com/x5-e53-forum/...stand-pix.html

Do a search for the others - there were solutions identified.
Not really a whole lot of solutions for that hose since no one REALLY know's what it's for.
Reply With Quote
  #19
Old 04-21-2006, 02:41 AM
Member

Join Date: Mar 2006
Location: SF/LA/SD :)
Posts: 1,180
crosvs is on a distinguished road
EVERYONE: READ MY UPDATED THREAD ON THIS MATTER -- solution found!!
__________________
MARC/CROSVS | UCLA Bruin, B.A. Econ, Aug 2004 | J.D., Thomas Jefferson School of Law, May 2008 -- MEMBER: California State Bar, December 4, 2008

2005 BMW 645 Cabrio | Black Sapphire Metallic, Ti trim | 6AT | fully loaded sans HUD

 2000 Ford Mustang V6 | laser red on tan | 5-spd | track-prepped
Reply With Quote
  #20
Old 04-21-2006, 07:27 PM
aus aus is offline
Member

Join Date: Feb 2006
Location: Seal Beach, CA
Posts: 159
aus is on a distinguished road
Looks like the Valvtronic motors don't have that small tube.
