Cool Custom Subwoofer Enclosure and Amp Installed

Subwoofer selected:

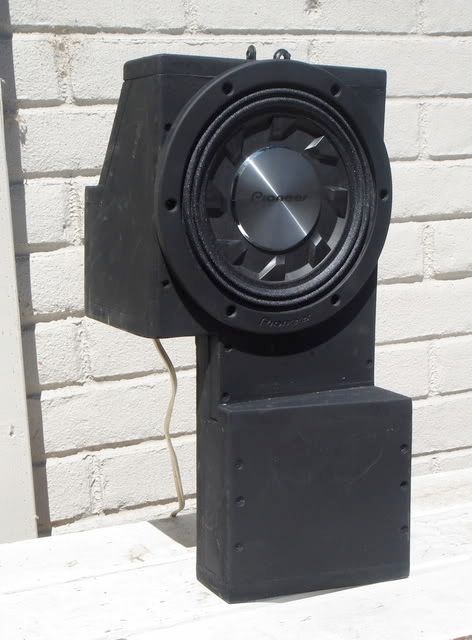

Pioneer TS-SW2541D 10" shallow mount which only requires 0.35 ~ 0.7 cu ft. of air space! This enclosure is about 0.45 cu ft so its within spec.



Amplifier selected:

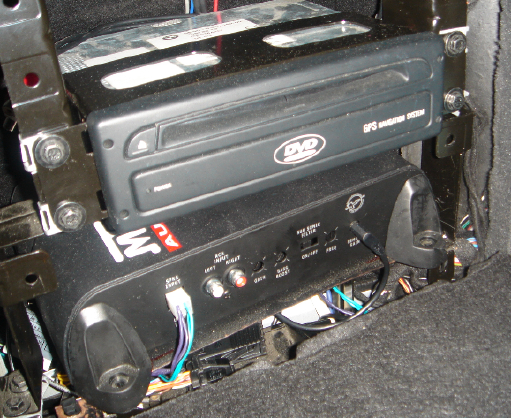

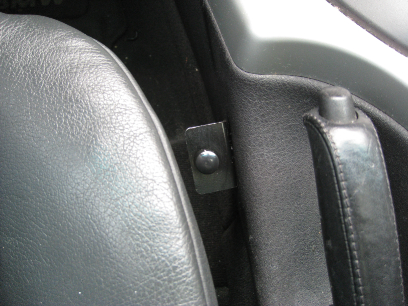

MTX TC-3001. This amp was just the right size to fit in the equipment compartment. It also has speaker level inputs, smart engage and a remote bass level controller.



About fabricating the enclosure:

A cardboard 3D template was created and adjusted it to make the best use of the area available. Once the shape was determined, fabricating the actual enclosure was fairly easy. 3/4" MDF was used, glued and screwed.




Testing the enclosure outside the X5 at loud volumes: There was no buzzing or rattling. Solid, like a rock! When mounted in the compartment, there is very minimal buzzing of the surrounding vehicle assemblies. The shape of the enclosure allows you take advantage of the OEM mounting points with simple brackets.

Specific wiring instructions: Read How to add a sub amp to your factory audio.
Attached Images


Last edited by zerochief; 02-17-2009 at 04:24 AM. Reason: Pics & links added
Reply With Quote

Sponsored Links

  #2
Old 03-12-2007, 07:23 AM
dr.jay's Avatar
Member

Join Date: Feb 2006
Location: Greenwood Always Up To No Good!
Posts: 2,508
dr.jay is on a distinguished road
Nice!!
__________________
"To become a member of a crew you've got to be 100% Italian so they can trace all your relatives back to the old country. See, it's the highest honor they can give you. It means you belong to a family and crew. It means that nobody can [email protected] around with you. It also means you could [email protected] around with anybody just as long as they aren't also a member. It's like a license to steal. It's a license to do anything"
Reply With Quote
  #3
Old 03-12-2007, 11:10 AM
Sterling's Avatar
Member

Join Date: Feb 2007
Location: DFW, Texas
Posts: 95
Sterling is on a distinguished road
how do you calculate the volume of odd shaped enclosures? I'm emulating the JL audio stealthbox in shape and size. I planned to use the same speaker that they do. The only differences would be the thickness of my enclosure..... in some places its 3/8th inch mdf and in some places its about 1/4th inch reinforced fiberglass.....
Reply With Quote
  #4
Old 03-12-2007, 11:15 AM
zerochief's Avatar
Member

Join Date: Apr 2006
Location: USA
Posts: 1,399
zerochief is on a distinguished road
I used some simple calculations to get the approximate cu. ft.

Last edited by zerochief; 12-30-2008 at 01:16 AM.
Reply With Quote
  #5
Old 03-12-2007, 11:56 AM
Member

Join Date: Sep 2006
Location: San Diego, CA
Posts: 114
atillathetom is on a distinguished road
looks good...

What was the total cost?
Total install time?
How does it sound?

Tom
__________________
2005 4.8is
TiAG/Black
Nav
Load Floor
Reply With Quote
  #6
Old 03-12-2007, 08:59 PM
zerochief's Avatar
Member

Join Date: Apr 2006
Location: USA
Posts: 1,399
zerochief is on a distinguished road
Cost / Time

MTX Amp about $150 w/ shipping
Pioneer shallow sub about $110 w/ shipping
2 sheets (2x4 ft) 3/4" MDF at Home Depot about $15
Quality wire for amp power, ground and speaker about $25
Glue, screw, brackets, zip ties etc less than $15

Total Cost: $315

Last edited by zerochief; 02-10-2009 at 02:22 AM.
Reply With Quote
  #7
Old 03-12-2007, 11:00 PM
Sterling's Avatar
Member

Join Date: Feb 2007
Location: DFW, Texas
Posts: 95
Sterling is on a distinguished road
do you have any pics of the enclosure out of the vehicle?
Reply With Quote
  #8
Old 03-12-2007, 11:21 PM
zerochief's Avatar
Member

Join Date: Apr 2006
Location: USA
Posts: 1,399
zerochief is on a distinguished road

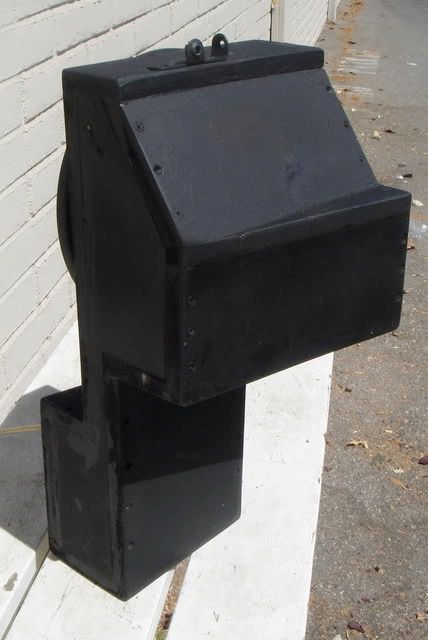

Quote:
Originally Posted by Sterling
do you have any pics of the enclosure out of the vehicle?
Not too pretty! ...but vibration free, air tight and mounts at the OEM positions.
