#1
04-01-2010, 07:41 PM
|
|||
|
|||
|
mine works fine now... 3 days now...
i'm not changing it unless it happens again
|
|
#2
04-05-2010, 10:22 PM
|
|||
|
|||
|
wont open again... OK I AM CHANGING THE PART!
|
|
#3
12-31-2010, 02:07 PM
|
|||
|
|||
|
X5 Passenger Door Won't Unlock -- Fix with pics

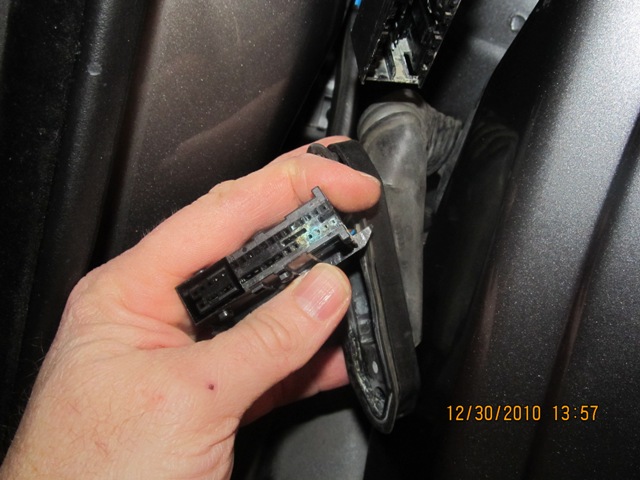

My wife's 05 4.4.i Sport passenger door was in "dead lock" when most of the power to the door was lost. Fuses were fine, tried removing one of the battery terminals, neither was the cause. Could not operate anything from the driver control or central locking (window, mirror, locks), and worst of all, could not open the passenger door from outside OR inside the vehicle. I knew that I would have to get the door open to make any kind of fix, so with a lot of elbow grease, and moving/reclining the passenger seat as far back (out of the way) as I could, I managed to remove the door panel (there are other great posts on how to remove the door panel). After farting around with the mechanism manually, I realized that it was in some special secure mode, and nothing was going to open it manually. The next move was to remove the cloth tape on the wires leading to the door lock actuator, and strip a bit of insulation back on each of the wires (see pic). This allowed me to apply 12V to the heavier gauge black and brown wires which fired the actuator and the door managed to get out of dead lock (I could not find a schematic, so do this at your own risk!) This allowed me to open the door with a big smile after few hours of swearing off BMW's. Anyway, since the fuses were fine, and so many things lost power, I was suspicious of the connection between the door wiring harness main wiring that can be found where the boot attaches near the door hinges. I opened this up and found 1) 4 pins corroded, 2) one pin corroded badly and broken off in the female end of the plug. A mess. See pic. I am now working on finding a replacement pin (local dealer shows a part number, but they don't have it -- helpful, as usual. Thanks Calgary BMW! They provided another wired lead that I am trying to salvage the pin from. I'll let you know how it goes.
|
|
#4
12-31-2010, 05:27 PM
|
||||
|
||||
|
ive been using turnermotorsports.com with good success
|
|
#5
02-27-2011, 10:04 PM
|
|||
|
|||
|
Similar problem here. 2003 X5 3.0D with kaput actuator in passenger door. Door locked shut. Have removed inner door panel and have access to actuator and latch mechanism but is in lock mode and so mechanism does not work. Have tried putting power through actuator directly as per Mackinop but unit is dead.
Already have a new actuator ready to go in which works fine when hooked up to wiring harness. But can not work out a way to get door opened with old actuator in situ. And can not remove old actuator with door shut! Is driving me nuts! Anyone with any suggestions?
|
|
#6
02-28-2011, 08:43 AM
|
|||
|
|||
|
Have managed to unlock door! Had a look at a BMW document on Central Body Electrics zke111. This has a view of the internals of a door lock actuator. Shows a locking rod which is offset in double lock mode. Was able to get a hooked wire inside the actuator from side where Bowden cable attaches and disengage this locking rod, then pulling bowden cable (internal handle) released lock! Finally!
Link to pdf: http://www.bmwmotorsports.org/BMW_docs/x5zkeIII.pdf Photos on p24. Last edited by malcthom; 02-28-2011 at 08:50 AM.
|
|
