Hole in hose under engine cover HELP!!

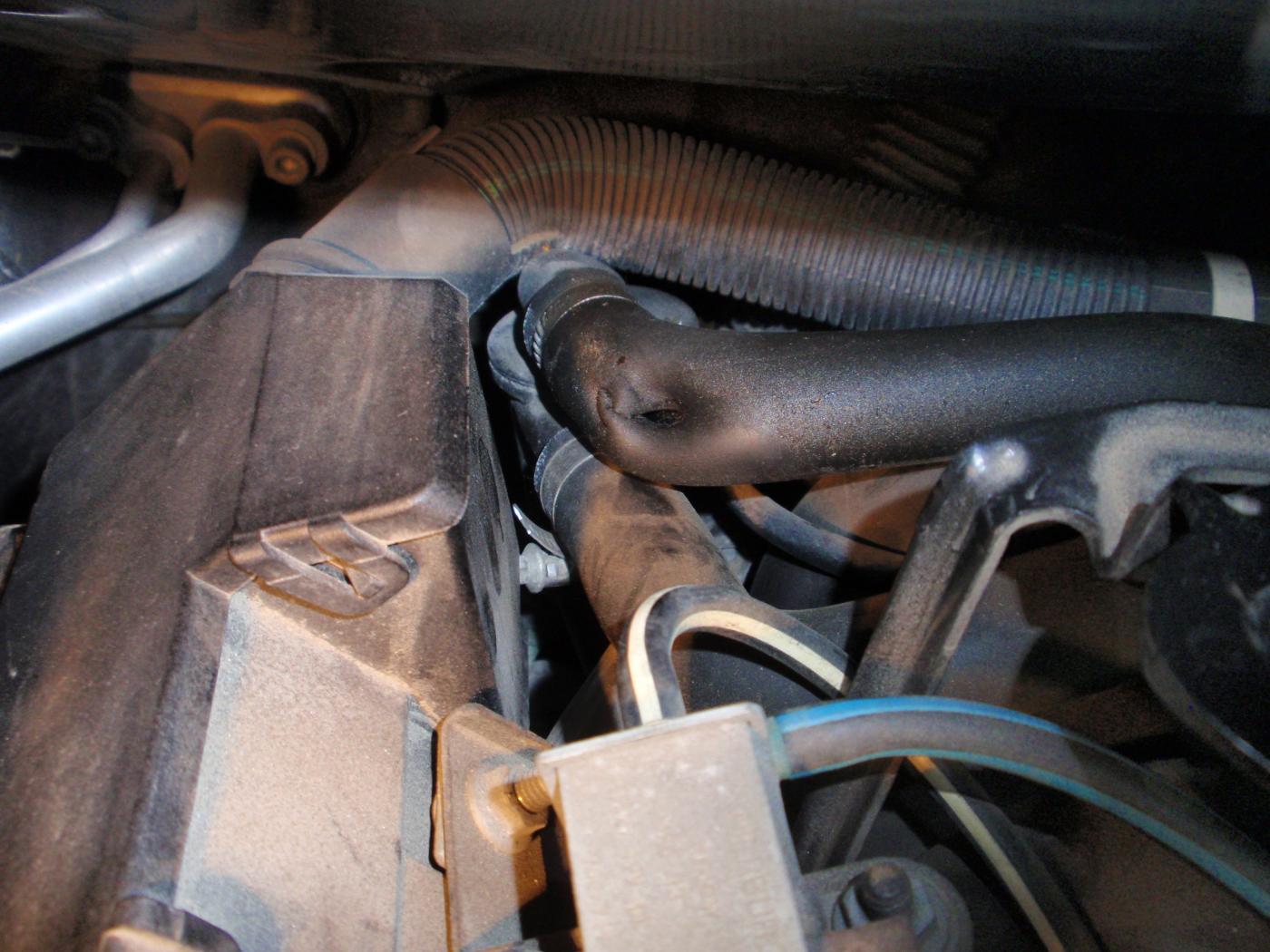

So I took the engine cover off to clean the engine and found a hoel in a hose twords the back of the engine. It is about the size of my finger, I can tell it is sucking air because when I plug it a whistling noise goes away. No check engine light. Anyone have any idea what the hose is for? I have an appt next week to change belts and am wondering if I can wait that long? Thanks guys
Attached are a few pictures for soem reference.
Attached Images

Reply With Quote

Sponsored Links

  #2
Old 09-21-2010, 10:31 PM
Negritoamni's Avatar
Member

Join Date: Aug 2010
Location: Miami
Posts: 26
Negritoamni is on a distinguished road
This is common, the hose with the hole goes to the oil separator,and the hose that connects the valve covers will get worse if not replaced. And there is a third hose that is under the oil separator , this one is about six inches long. You should replace all three. If not replaced they will lean out your fuel mixture, thus gas mileage out the window and generate fault codes "Bank1 and Bank2 too lean"....or MAS fault
For some reason these hoses can`t take the heat and oil, they get all gummy and collaspe or rip apart. They are not expensive, but the short hose, Hummm is a bear to change, the Fire wall must be lifted to get to it. And if you notice a hint of blue smoke at the exhaust, replacing the oil separator would be a good idea.
Hope this helps..
__________________

1979 320i/6 w/ m20 engine /5 speed
2001 X5 4.4i w/Sports Package
1998 M3 w/HR springs / Bilstein Sport struts
1994 735i Black w/black interior (sold)
1986 528e Black w/ black interior (sold)
1985 325e 4dr (sold)
Reply With Quote
  #3
Old 09-21-2010, 10:51 PM
Member

Join Date: Jul 2009
Location: MN
Posts: 90
EDG08 is on a distinguished road
Thanks, your right the hose is really soft and feels gummy. Is this a do it yourself project or stealership? From the looks of it there is not much space to work back there!!
Reply With Quote
  #4
Old 09-21-2010, 11:08 PM
Negritoamni's Avatar
Member

Join Date: Aug 2010
Location: Miami
Posts: 26
Negritoamni is on a distinguished road
the two top hoses you can replace in 20 mins...
The one short one a couple of hours. But yes you should be able to replace them yourself....
a little motivation....$1200 dollars at the dealer with the oil separator replacement...I don`t think so....
__________________

1979 320i/6 w/ m20 engine /5 speed
2001 X5 4.4i w/Sports Package
1998 M3 w/HR springs / Bilstein Sport struts
1994 735i Black w/black interior (sold)
1986 528e Black w/ black interior (sold)
1985 325e 4dr (sold)
Reply With Quote
  #5
Old 09-21-2010, 11:13 PM
Jordo's Avatar
Member

Join Date: Sep 2010
Location: Lancaster PA
Posts: 676
Jordo is on a distinguished road
WOW, this must be common! I just fixed mine. I started this thread.

http://www.xoutpost.com/bmw-sav-foru...ause-pics.html

Then this dude had a simular issue, that I commented in. I did not know about a third hose tho. anyway here is that thread. Both should help you out. Check them out and let me know what you think.

http://www.xoutpost.com/bmw-sav-foru...rpm-surge.html
__________________


Pro motocrosser since 2005. First time BMW owner.
2002 4.4 E53
Reply With Quote
  #6
Old 09-21-2010, 11:16 PM
Jordo's Avatar
Member

Join Date: Sep 2010
Location: Lancaster PA
Posts: 676
Jordo is on a distinguished road
Quote:
Originally Posted by Negritoamni View Post
the two top hoses you can replace in 20 mins...
The one short one a couple of hours. But yes you should be able to replace them yourself....
a little motivation....$1200 dollars at the dealer with the oil separator replacement...I don`t think so....

I had a thought. How about I yank this entire system out, and throw it in the woods!?

I will plug up the holes in the intake and let the crankcase breather/vent just vent to atmosphere. Have you heard of this? Do you think too much oil will come out of the breather/vent and make a mess?
__________________


Pro motocrosser since 2005. First time BMW owner.
2002 4.4 E53
Reply With Quote
  #7
Old 09-21-2010, 11:21 PM
Negritoamni's Avatar
Member

Join Date: Aug 2010
Location: Miami
Posts: 26
Negritoamni is on a distinguished road
That`s exactly how my hoses looked like when I had this issue...good pics
__________________

1979 320i/6 w/ m20 engine /5 speed
2001 X5 4.4i w/Sports Package
1998 M3 w/HR springs / Bilstein Sport struts
1994 735i Black w/black interior (sold)
1986 528e Black w/ black interior (sold)
1985 325e 4dr (sold)
Reply With Quote
  #8
Old 09-21-2010, 11:24 PM
Jordo's Avatar
Member

Join Date: Sep 2010
Location: Lancaster PA
Posts: 676
Jordo is on a distinguished road
Quote:
Originally Posted by Negritoamni View Post
That`s exactly how my hoses looked like when I had this issue...good pics

Who? me?
__________________


Pro motocrosser since 2005. First time BMW owner.
2002 4.4 E53
Reply With Quote
  #9
Old 09-21-2010, 11:29 PM
Negritoamni's Avatar
Member

Join Date: Aug 2010
Location: Miami
Posts: 26
Negritoamni is on a distinguished road
It would probably react the same as running the engine without the oil cap, to lean, and your DME computer will work overtime trying to richen the fuel mixture...


On another note ; I recall a service letter on a heater blanket to keep this area hot in cold climates, to avoid moisture buildup in these hoses...
__________________

1979 320i/6 w/ m20 engine /5 speed
2001 X5 4.4i w/Sports Package
1998 M3 w/HR springs / Bilstein Sport struts
1994 735i Black w/black interior (sold)
1986 528e Black w/ black interior (sold)
1985 325e 4dr (sold)
Reply With Quote
  #10
Old 09-21-2010, 11:35 PM
Member

Join Date: Jul 2009
Location: MN
Posts: 90
EDG08 is on a distinguished road
Thanks, Man those hoses looked terrible. How long did it take to do the top 2 hoses? It sounds like the lower hose might be beyond my capabilities. What did you all take off to get at the lower back of the upper two hoses? It looks pretty tight back there.
Reply With Quote
