  #13521
Old 05-14-2021, 11:18 AM
andrewwynn's Avatar
Member

Join Date: Jun 2015
Location: Racine, WI
Posts: 10,817
andrewwynn will become famous soon enough
Quote:
Originally Posted by EODguy View Post
I haven't had to pull my transmission (knock on wood) but I will say that the exhaust is heavier and more unwieldy than you think!! I almost got a new part in my hair when I pulled mine off while on a lift.....

Sent from my SM-A730F using Tapatalk


I use floor jack to lower exhaust when car is on stands. Yes heavy.

"It's made of iron I assure you it will sink"
__________________
2011 E70 • N55 (me)
2012 E70 • N63 (wife)
Reply With Quote

Sponsored Links

  #13522
Old 05-14-2021, 11:48 AM
EODguy's Avatar
Member

Join Date: Jun 2018
Location: Saudi Arabia/Philippines/USA
Posts: 3,831
EODguy is on a distinguished road
Quote:
Originally Posted by andrewwynn View Post
I use floor jack to lower exhaust when car is on stands. Yes heavy.

"It's made of iron I assure you it will sink"
I had it on the lift so I used a Jamal stand, but he was way too short to help truth be told...

Sent from my SM-A730F using Tapatalk
__________________
"When the Team Chief said.... You're trapped in a hole with nothing but a goat and a slinky, what do you do? Stubby said, I'm not sure but it won't end well for the goat...." ~(Overheard) Last day, Phase 3, Q Course
Reply With Quote
  #13523
Old 05-14-2021, 02:50 PM
andrewwynn's Avatar
Member

Join Date: Jun 2015
Location: Racine, WI
Posts: 10,817
andrewwynn will become famous soon enough
Is Jamal anything like my hired help I call Manuel labor? (S. O. B. Helper).
__________________
2011 E70 • N55 (me)
2012 E70 • N63 (wife)
Reply With Quote
  #13524
Old 05-14-2021, 06:10 PM
X5only's Avatar
Member

Join Date: Feb 2008
Location: Bellevue, WA
Posts: 1,438
X5only is on a distinguished road
Quote:
Originally Posted by TriX5 View Post
On the E53 V8 it can be done single-handedly but a helper makes it less annoying to lift the exhaust out of the way and when splitting the trans from the engine.

You need lift or a flat surface where you can raise the car at least a foot off the ground. Remember, the car will there immobilized for a few days or even weeks depending on what it is you need to do.

Some of the bell housing bolts are not so easy to access. You will need some long extensions for your socket set and knuckles or flex joints. Removing the exhaust maybe an issue as the studs in the manifold can be brittle and the bolts joining front to rear can seize. (Make sure you get a MAP gas burner to assist wit rusty fasteners)

A transmission jack is helpful but I did mine without one. The two top bell housing bolts are easier to access from the top. At the time I did the valley pan at the same time, so a lot of stuff was off the top of the motor already. Not impossible to tackle a trans removal but patience and a more than a handful of tools is needed. When I went for round two (re-seal engine and chain guides) I just removed the front end and pulled the engine/trans out in one go.

I'd rate it a 6 or 7 on scale 10. Time is more the issue than complexity.
Thanks for the tips. Not urgent but I'm having a slow leak at # 5 when the vehicle is packed for a couple of days. I find a drop or two of coolant on the floor and I traced it to that part. I could take the opportunity to service the trans too as I was also planning trans fluid and filter change as well as the seals and solenoids. I already did the coolant pipe and valley pan gasket. Might as well replace # 7 while there. Sigh, never ending projects but I'll do anything for her .
Attached Images

__________________
'05 E53 X5 4.4i, '97 E39 528, '07 E92 335i, '16 F86 X6M.

Last edited by X5only; 05-14-2021 at 07:33 PM.
Reply With Quote
  #13525
Old 05-14-2021, 06:47 PM
Member

Join Date: Aug 2018
Location: PNW
Posts: 32
kspark is on a distinguished road

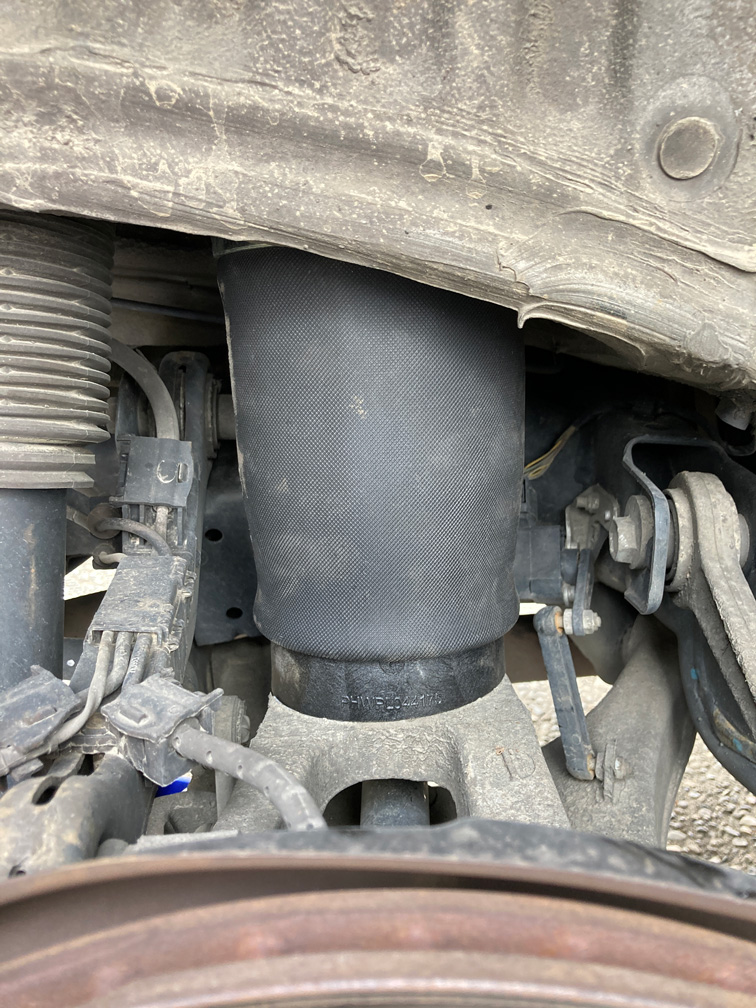

Got the infamous "SELF-LEVELING SUSP INACTIVE" dash message. Replaced rear airbags + ride height sensors.

Tips-

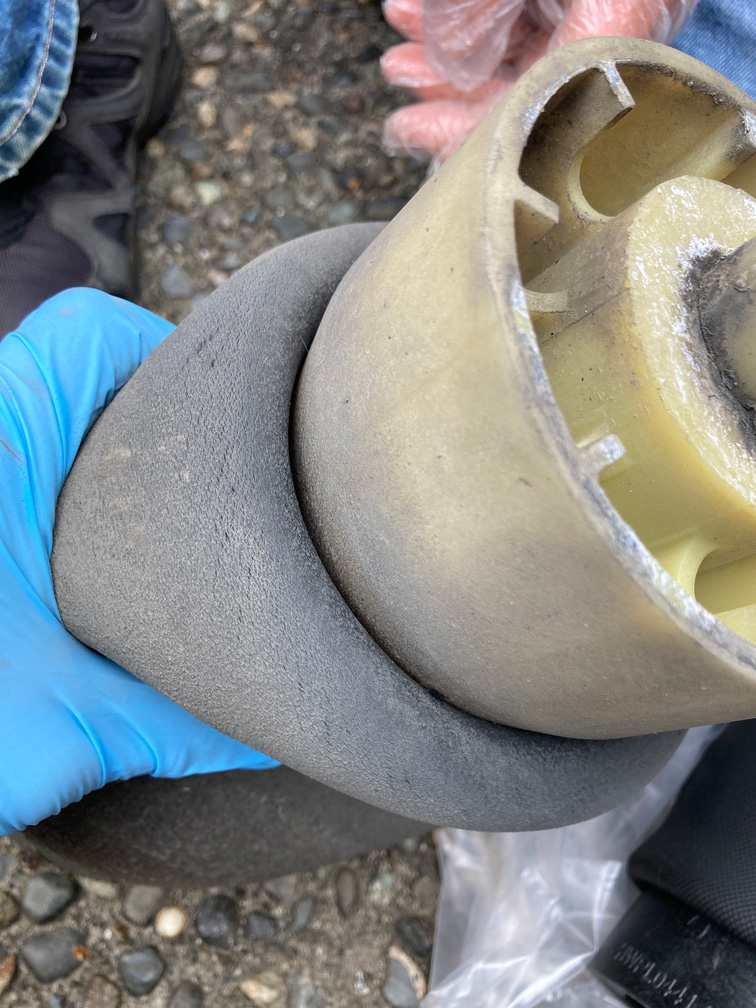

At 130k, the original bags were not in good shape. Even if they didn't leak I would replace. Picture says it all.

Arnotts version of the bags are great quality, don't hesitate to use them.

The "C" clips that came with the Arnotts bags weren't great. They seemed inferior to the original BMW clips. I re-used the BMW ones.

Stabbing the old airbags to release the air was easy.

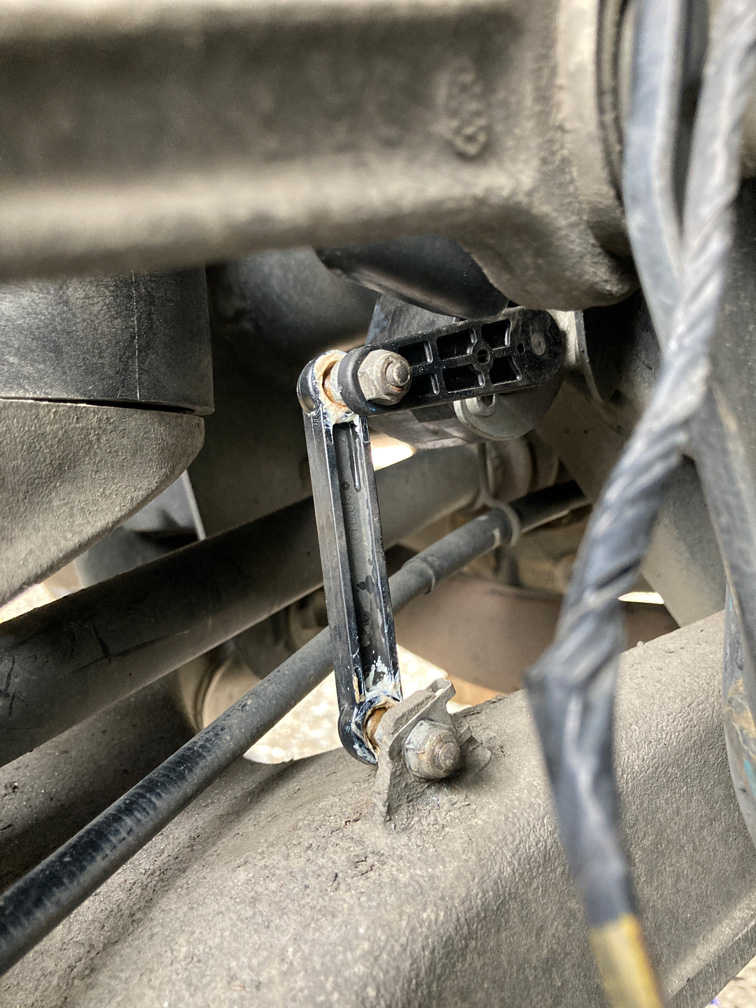

I replaced the ride height sensors too. I wish they came with new connecting arms. The original ones were rusty and didn't move freely. Silicone lube helped a bit.

Overall this was a very simple job.
Attached Images

Reply With Quote
  #13526
Old 05-14-2021, 11:38 PM
andrewwynn's Avatar
Member

Join Date: Jun 2015
Location: Racine, WI
Posts: 10,817
andrewwynn will become famous soon enough
The sensor arms are about $7/10 at fcpeuro.

I came up to wife's new to us e70 today and the right rear air spring was flat.

It airs right up when turned on the car but already have arnott spring ordered.

Tight budget just spent a ton on new toolboxes and entire rear suspension kit for my car so I'll do her air springs one at a time but will get the other done before a road trip this summer.

Mine are still working at 196k miles! Hers just failed at 76.
__________________
2011 E70 • N55 (me)
2012 E70 • N63 (wife)
Reply With Quote
  #13527
Old 05-14-2021, 11:43 PM
andrewwynn's Avatar
Member

Join Date: Jun 2015
Location: Racine, WI
Posts: 10,817
andrewwynn will become famous soon enough


Picked up my new Milwaukeee packout tool boxes.



Mind blowing difference
__________________
2011 E70 • N55 (me)
2012 E70 • N63 (wife)
Reply With Quote
  #13528
Old 05-15-2021, 09:30 AM
Member

Join Date: Sep 2016
Location: USA
Posts: 1,109
Bdc101 is on a distinguished road
Wow nice!



What's the big "A" for on the back window there?
__________________
2003 3.0 5MT Topasblau
Purchased in 2016 and surprisingly still running
Reply With Quote
  #13529
Old 05-15-2021, 09:47 AM
EODguy's Avatar
Member

Join Date: Jun 2018
Location: Saudi Arabia/Philippines/USA
Posts: 3,831
EODguy is on a distinguished road
Quote:
Originally Posted by Bdc101 View Post
Wow nice!



What's the big "A" for on the back window there?
I am betting that Andrew now has so many BMW's he's had to label them for inventory purposes.

Sent from my SM-A730F using Tapatalk
__________________
"When the Team Chief said.... You're trapped in a hole with nothing but a goat and a slinky, what do you do? Stubby said, I'm not sure but it won't end well for the goat...." ~(Overheard) Last day, Phase 3, Q Course
Reply With Quote
  #13530
Old 05-15-2021, 10:19 AM
crystalworks's Avatar
Member

Join Date: Jun 2014
Location: SA, TX
Posts: 6,414
crystalworks is on a distinguished road
Nice boxes! Expanding your mobile capabilities? Or just making your life easier? Edit: probably both now that I think about it.
__________________
2005 X5 4.4i Build 04/05 Maintenance/Build Log
Nav, Pano, Sport (Purchased 06/14 w/ 109,000 miles) (Sold 8/15 w/121,000 miles)


2006 X5 4.8is Build 11/05 Maintenance/Build Log
Nav, DSP, Pano, Running Boards, OEM Tow Hitch, Cold Weather Pckg (Purchased 08/15 w/ 90,500 miles)

2010 X5 35d Build 02/10
Nav, HiFi, 6 DVD, Sports Pckg, Cold Weather Pckg, HUD, CAS, Running Boards, Leather Dash, PDC, Pano (Purchased 03/17 w/ 136,120 miles)
Reply With Quote
