Can someone help me find the part number for PDC cover ECS help please

[ECS Tuning]

Looking at all my diagrams it's not super clear which part exactly holds the sensor. There appears to be a few different "mounts" which hold everything tight. If it's possible to get a camera (cell or just a small camera) and get a half way decent photo of the mount you feels busted we can work from there.

Just looking at it though, it would appear Part 7 (the supports) might be a key in keeping everything from being loose.

ECS Tuning

[SlickGT1]

Originally Posted by ECS Tuning

Looking at all my diagrams it's not super clear which part exactly holds the sensor. There appears to be a few different "mounts" which hold everything tight. If it's possible to get a camera (cell or just a small camera) and get a half way decent photo of the mount you feels busted we can work from there.

Just looking at it though, it would appear Part 7 (the supports) might be a key in keeping everything from being loose.

ECS Tuning

Yea I am going to attempt to remove the bumper tonight worst case tomorrow. Number 7 looks like it belongs to the rear bumper, no?

[SlickGT1]

Wanted to update, fixed the PDC. Turned out to be cut wires. Friend soldered them up, and we are good to go. Yay, $100 in the pocket.

Oh and I found that part number that we couldn't figure out. I'll update that later.

[ECS Tuning]

Originally Posted by SlickGT1

Wanted to update, fixed the PDC. Turned out to be cut wires. Friend soldered them up, and we are good to go. Yay, $100 in the pocket.

Oh and I found that part number that we couldn't figure out. I'll update that later.

Boo! I was hoping it was something cheap and easy for you. I'm looking forward to seeing those parts needed!

ECS Tuning

[SlickGT1]

Originally Posted by ECS Tuning

Boo! I was hoping it was something cheap and easy for you. I'm looking forward to seeing those parts needed!

ECS Tuning

It was cheap, but not easy. The wires were corroded and ripped right at the plug. I was almost ready to buy a whole harness for the PDC. Second soldering attempt was a success. My friend really has skill in this area. Then some epoxy to seal up the connections, and I was back with a functional PDC system.

So as promised.

That trim that holds the PDC. By the way, I couldn't find it on real OEM, but found it on ECST website. Go figure.
Part # 51127039603
Home Page > Search > ES76224 > ES#76224 Parking Sensor Bracket - 51127039603

This part, that we suspected, does not belong anywhere in the front.
Part 10 from realoem. # 51117009895
Home Page > Search > ES74355 > ES#74355 Front Bumper Trim Support - Priced Each - 51117009895

The PDC does not come with the trim. (I ordered all of this just to be safe, but now need to return) Hopefully ECST won't charge me the restock fee, and I am giving them back 18 pieces of stuff I did not order or pay for.

I ordered 2 of these.
Home Page > Search > ES18560 > ES#18560 Pressure Regulator Valve Repair Kit - 11127547058

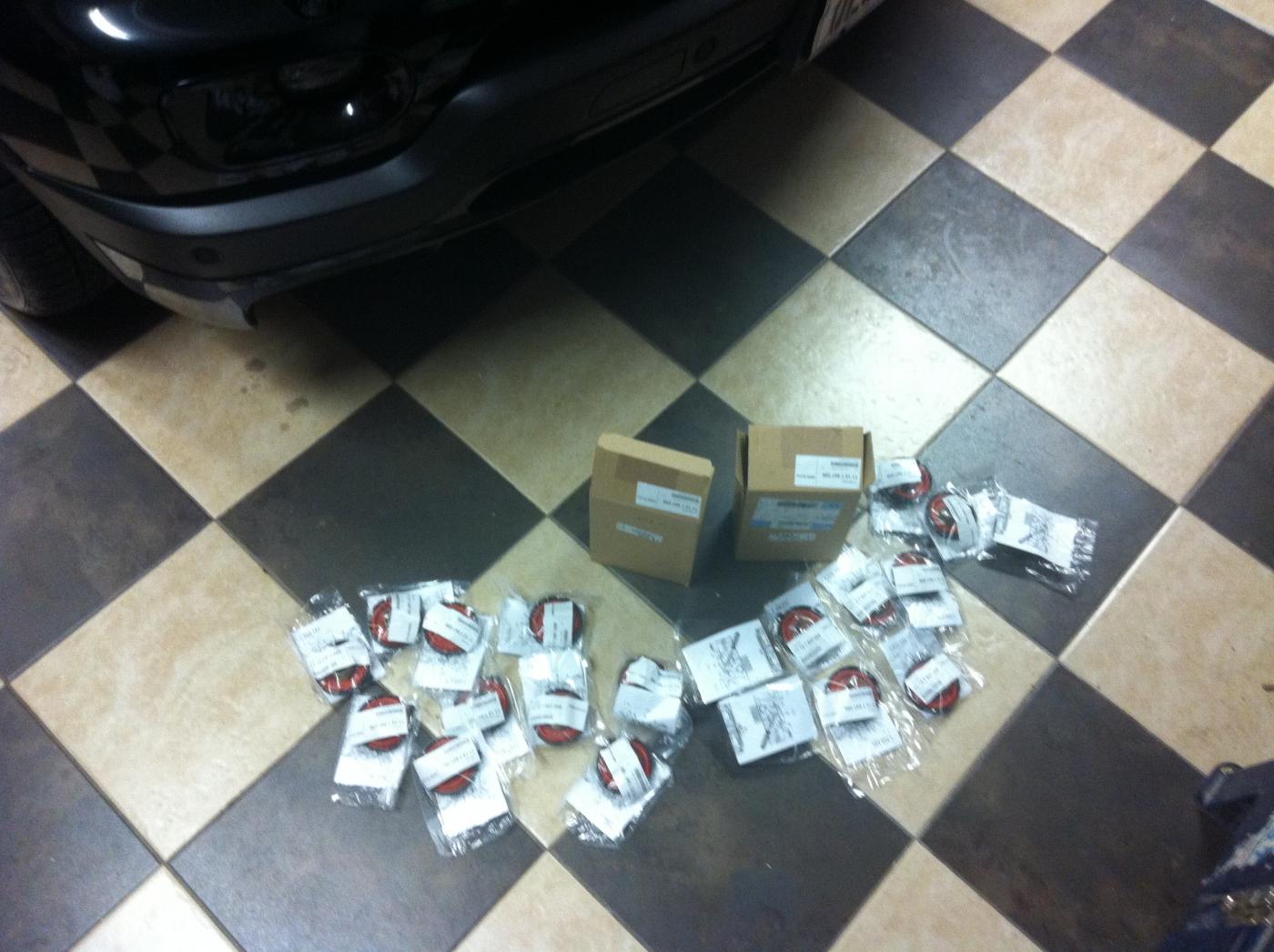

I received 20 of them. Or 2 complete boxes with 10 each. Someone was generous.
