  #41
Old 10-08-2018, 06:06 PM
andrewwynn's Avatar
Member

Join Date: Jun 2015
Location: Racine, WI
Posts: 4,369
andrewwynn is on a distinguished road
Ball joint will shudder bad with gentle brakes from 50-60 mph.


Sent from my iPhone using Tapatalk Pro
__________________
E53 / M54 2001 3.0i gas LHD (pair of them: his & her)
Reply With Quote

Sponsored Links

  #42
Old 10-08-2018, 06:56 PM
bcredliner's Avatar
.1 decrease 0-60 time = $1000 & DIY

Join Date: Jun 2008
Location: Little Elm,Texas. (40 minutes North of Dallas)
Posts: 6,902
bcredliner is on a distinguished road
Quote:
Originally Posted by Maruzo View Post
Have this issue, shudder on the steering wheel. Only happens during parking lot menuvers when I turn left or right while backing up, and when I move forward right after.

No shudder If I take off from garage (moving forward).
Since there are many potential causes of your problem my suggestion is it is best to continue to troubleshoot to get to root cause cause before spending any money on a potential fix.

Do you feel the shudder if you are sitting still and turn the wheel lock to lock and/or if you turn from lock to lock at about 10mph?
Do you hear anything when it shudders?
Is the engine idle at the proper rpm when in gear?
Does it shudder if you increase the RPMs, hold it with the brakes and turn lock to lock or is it only when your foot is not on the gas pedal?
Have you checked the power steering fluid level and is the belt tight or is it leaking?
Does it shudder when you have driven a few miles and brake fairly hard from about 70mph in a straight line?
Do you hear a clunk when you go from reverse to drive?
Have you checked sway bar links and bushings are secure and in good condition?
Do you have any steering wheel shake when driving?
__________________
X5 4.6 2002 Black Sap, Black interior. 2013 X5M Melbourne Red, Bamboo interior
Dallas
Reply With Quote
  #43
Old 06-27-2019, 12:00 AM
Maruzo's Avatar
Member

Join Date: Mar 2017
Location: Los Angeles
Posts: 190
Maruzo is on a distinguished road
Quote:
Originally Posted by SlickGT1 View Post
Without brakes? Then your ball joint is gone.

Confirm is this makes sense.
Does not happen when wet/raining.
Does not happen as soon as you start driving, takes time to present itself.

Anyway, pretty sure itís your balljoints.
Sorry for the late reply but I finally replaced the ball joints this week.

Here are the results:

1. the steering shudder that accompanies parking lot 3 point maneuvers has virtually disappeared. The steering felt lighter and there's a slight sense of more cushion from the front end, if that makes any sense.

2. If I turn the steering really quickly to reverse heading, I still get the shudder, but it's much less pronounced.

Since this is only the second part of the front suspension component that I've replaced (first being the 2 upper control arms), I think I can improve on the ride/ handling if I continue to replace all other front end components.

My next thought is to prepare for the replacement of both the tension struts and the lower wishbones, or sometimes called the lower forward and rear position control arms?

I think one of them (tension strut?) connects to the ball joints by sharing a 22mm bolt together.

Maybe I should start with this component, since when I was replacing the ball joints today I had to move the control arm out of the way and as I move it I found that the arm was moving freely without much resistance.

Probably not a good sign? Possible worn out bushing inside the tension strut?

What do you guys think?

Posting a link to the 2 sets of lower control arms I'm thinking of buying:

https://www.fcpeuro.com/products/bmw...-e534piecekitl

By the way, big thanks to you guys for posting your experiences here. I finally gathered up enough will and courage, bought all the parts, including the jack stands and the ball joints, lifted up the front of the car and with the help of my friend knocked out both used joints and replaced them with Lemforder parts.

It's only the first day so we'll see if the steering shudder stays away for good!
__________________
2003 X5 4.6is Estoril Blue, acquired March 2018
2006 330i Sports 6 MT Sparkling Graphite daily driver
2010 535xi 6 MT Barbera Red
Reply With Quote
  #44
Old 06-27-2019, 01:10 AM
crystalworks's Avatar
Premier Member

Join Date: Jun 2014
Location: SA, TX
Posts: 3,698
crystalworks is on a distinguished road
^Yep, that's a solid kit and what would have been OE on our X5's. Should deliver another ~100k miles of solid service. Agreed, being able to move the front tension arm by hand, easily, is not a good sign. I'm guessing when you pull it you will find at least a good amount of cracking and maybe tearing.
__________________
2005 X5 4.4i Build 04/05 Maintenance/Build Log
Nav, Pano, Sport (Purchased 06/14 w/ 109,000 miles) (Sold 8/15 w/121,000 miles)


2006 X5 4.8is Build 11/05 Maintenance/Build Log
Nav, DSP, Pano, Running Boards, OEM Tow Hitch, Cold Weather Pckg (Purchased 08/15 w/ 90,500 miles)

2010 X5 35d Build 02/10
Nav, HiFi, 6 DVD, Sports Pckg, Cold Weather Pckg, HUD, CAS, Running Boards, Leather Dash, PDC, Pano (Purchased 03/17 w/ 136,120 miles)
Reply With Quote
  #45
Old 06-27-2019, 01:38 AM
Maruzo's Avatar
Member

Join Date: Mar 2017
Location: Los Angeles
Posts: 190
Maruzo is on a distinguished road
Quote:
Originally Posted by crystalworks View Post
^Yep, that's a solid kit and what would have been OE on our X5's. Should deliver another ~100k miles of solid service. Agreed, being able to move the front tension arm by hand, easily, is not a good sign. I'm guessing when you pull it you will find at least a good amount of cracking and maybe tearing.
Thanks a lot Crystalworks! I've been researching the diy videos and think maybe I should also swap out the sway bar links.

I see on your service history thread that you've done both sway bar links and the lower control arm.

Did you buy Lemforder as well?

Do you reuse the bolts or use all new ones?
__________________
2003 X5 4.6is Estoril Blue, acquired March 2018
2006 330i Sports 6 MT Sparkling Graphite daily driver
2010 535xi 6 MT Barbera Red
Reply With Quote
  #46
Old 06-27-2019, 02:22 AM
andrewwynn's Avatar
Member

Join Date: Jun 2015
Location: Racine, WI
Posts: 4,369
andrewwynn is on a distinguished road
If you are getting shake when going slow and changing directions that indicates slop likely in the CV joint. The thrust bushings are a very distinct thud as they move upwards of 1.5-2cm during braking.

Have somebody else drive the x about 5 mph and brake firmly. The wheels will shift quite a bit backwards in the car if the thrust bushings are shot.

Don't bother trying to swap the bushings if they are shot. not worth the effort. Get lemforder complete thrust arms. (if that's the issue).


Sent from my iPhone using Tapatalk Pro
__________________
E53 / M54 2001 3.0i gas LHD (pair of them: his & her)
Reply With Quote
  #47
Old 06-27-2019, 10:32 AM
crystalworks's Avatar
Premier Member

Join Date: Jun 2014
Location: SA, TX
Posts: 3,698
crystalworks is on a distinguished road
Quote:
Originally Posted by Maruzo View Post
Thanks a lot Crystalworks! I've been researching the diy videos and think maybe I should also swap out the sway bar links.

I see on your service history thread that you've done both sway bar links and the lower control arm.

Did you buy Lemforder as well?

Do you reuse the bolts or use all new ones?
As I posted in another thread, I am not talented enough to diagnose shudders, shimmies, shakes, etc to each different part in the suspension. When I buy a used BMW I do the entire front suspension when I get some sort of issue that pops up indicating a failure of a component. Usually saves me a lot of time and headache personally.

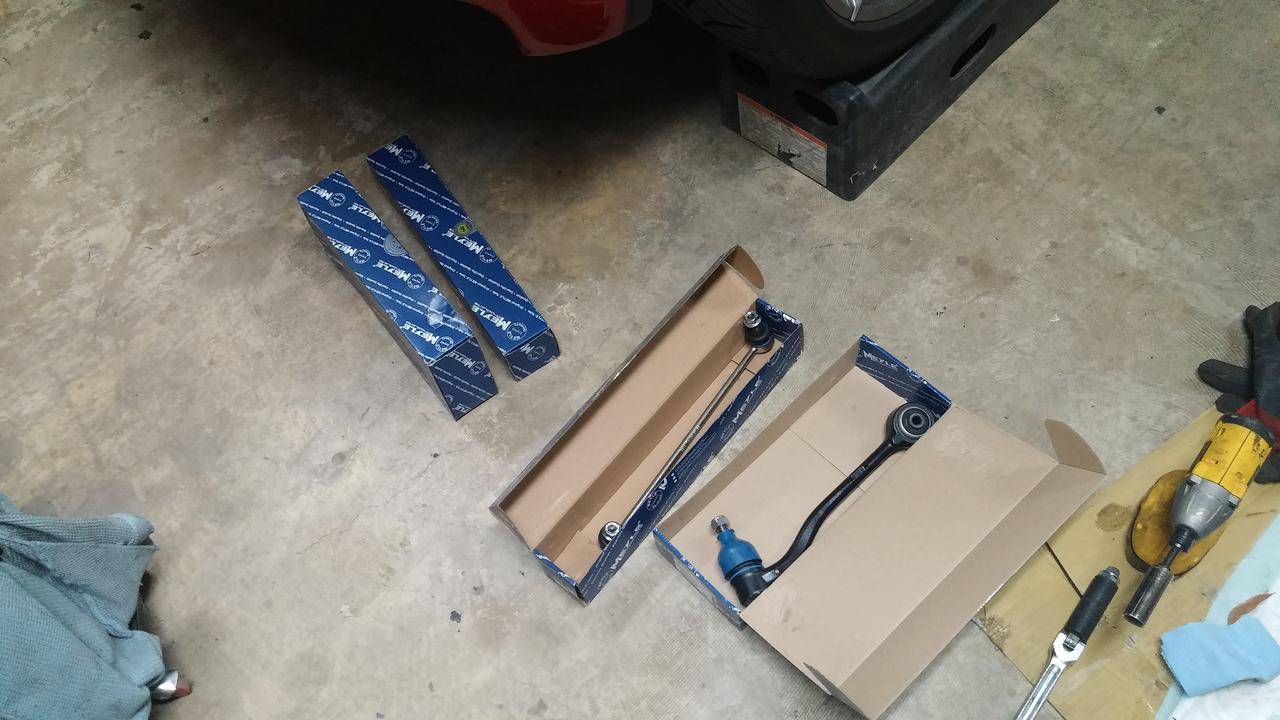

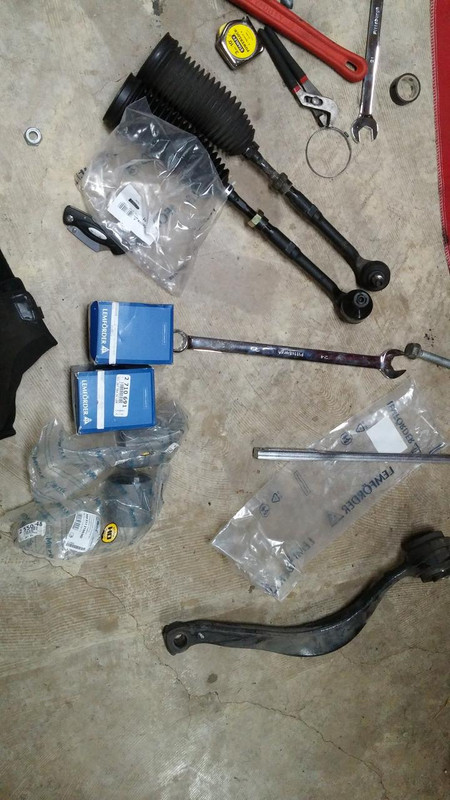

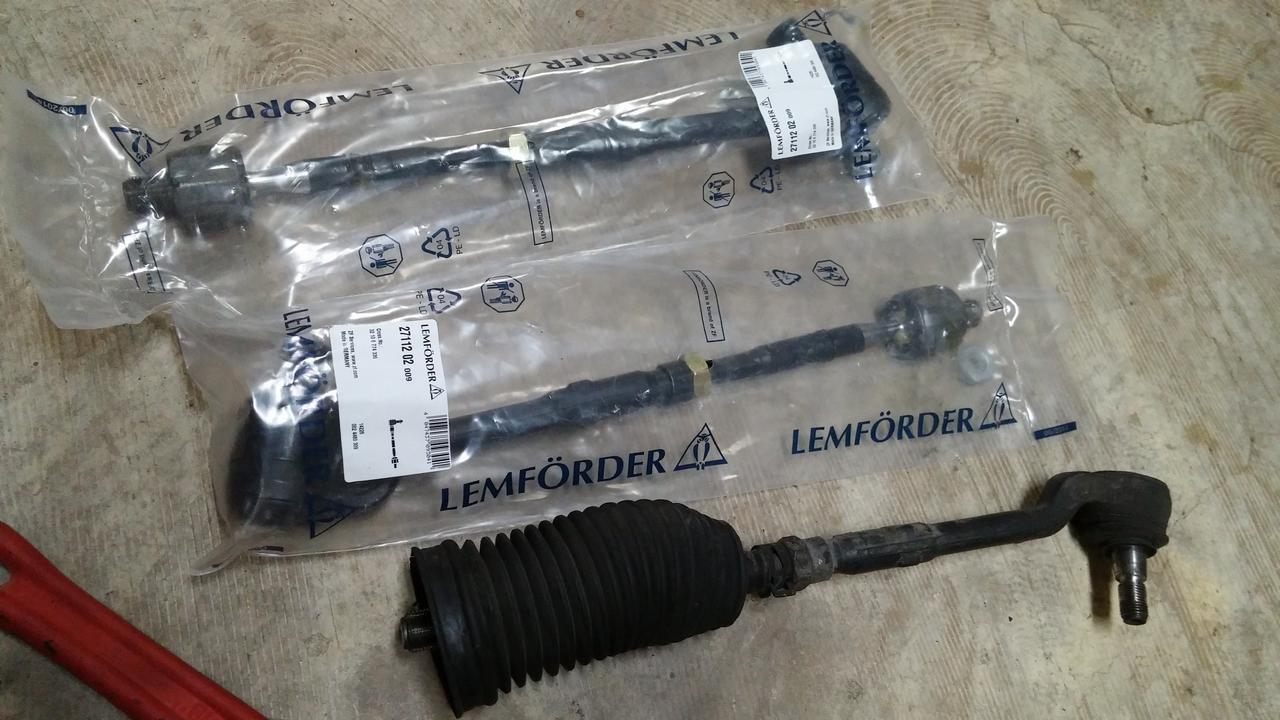

I used Lemforder lower ball joints, Meyle HD tension arm bushings (had them pressed into original arms), Meyle HD front sway bar end links, Lemforder inner/outer tie rods, and Meyle rear (front suspension) lower control arms. It is easier to buy the front arms with bushings already pressed in (Lemforder) as andrew suggests.
I had the shop I used to work at press them in for me as I don't have a press. I reused all the hardware that was not included with their respective new parts. Many new control arms/ball joints will come with new nuts/washers.





__________________
2005 X5 4.4i Build 04/05 Maintenance/Build Log
Nav, Pano, Sport (Purchased 06/14 w/ 109,000 miles) (Sold 8/15 w/121,000 miles)


2006 X5 4.8is Build 11/05 Maintenance/Build Log
Nav, DSP, Pano, Running Boards, OEM Tow Hitch, Cold Weather Pckg (Purchased 08/15 w/ 90,500 miles)

2010 X5 35d Build 02/10
Nav, HiFi, 6 DVD, Sports Pckg, Cold Weather Pckg, HUD, CAS, Running Boards, Leather Dash, PDC, Pano (Purchased 03/17 w/ 136,120 miles)
