Cant get rear driveshaft off please help

I am currently working on my rear driveshaft center support bearing. its on a 06 4.8is. so what i have done is the rear part of the driveshaft that connects to the diff is currently off and hanging and the center support is off and the bolts for the front of the driveshaft where it attaches to the tranny are off but i cannot get it to detach from the tranny side to save my life. yes all the bolts are off that side including the bolts from the weibo to the shaft and the bolts from the weibo to the tranny yoke. anyone know how to get this freakin shaft to come off???!!! lol grrrrrrrrrrrrrr thanks guys -shane v
Reply With Quote

Sponsored Links

  #2
Old 03-13-2014, 12:12 PM
Member

Join Date: Mar 2013
Location: Detroit, Mi.
Posts: 509
BigBlack48is is on a distinguished road
Can we get a picture? and how many miles are on your ride?
__________________
2006 X5 48is Black / Black - LED AEs - FCAB - GAS 1.2bar cap
Reply With Quote
  #3
Old 03-13-2014, 12:28 PM
shanev's Avatar
Member

Join Date: Apr 2013
Location: wisconsin
Posts: 14
shanev is on a distinguished road

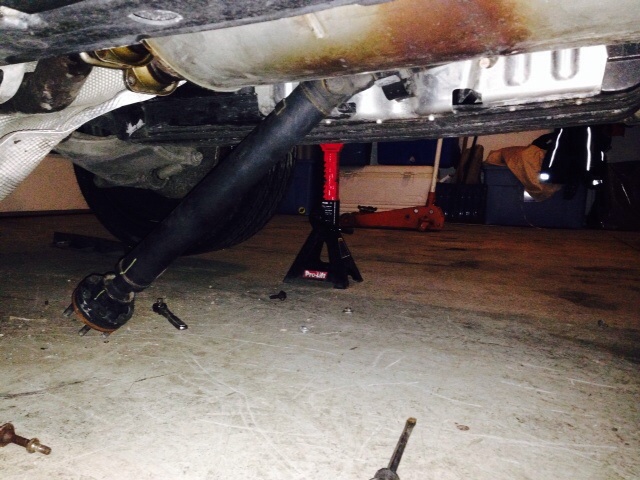

Pics

150,xxx
Attached Images

Reply With Quote
  #4
Old 03-13-2014, 12:29 PM
shanev's Avatar
Member

Join Date: Apr 2013
Location: wisconsin
Posts: 14
shanev is on a distinguished road

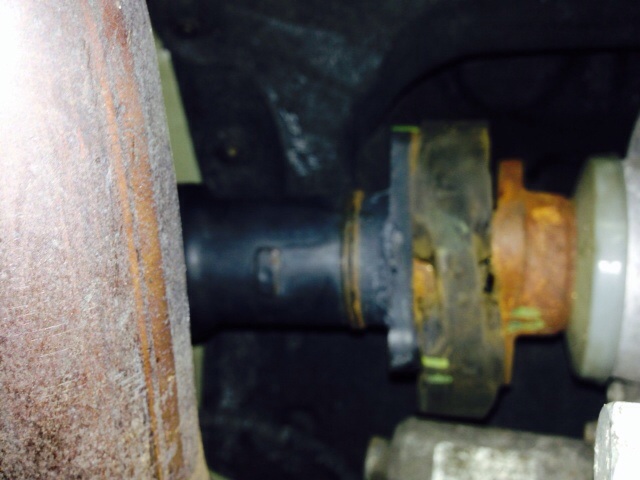

Pics

Here
Attached Images

Reply With Quote
  #5
Old 03-13-2014, 12:31 PM
shanev's Avatar
Member

Join Date: Apr 2013
Location: wisconsin
Posts: 14
shanev is on a distinguished road
Can't separate

Yeah so I can't separate the driveshaft from the tranny yoke. Any tips or anything that can help get this to seperate?
Reply With Quote
  #6
Old 03-13-2014, 12:54 PM
Member

Join Date: Mar 2013
Location: Detroit, Mi.
Posts: 509
BigBlack48is is on a distinguished road
it looks like it's already starting to come away from the yoke. pry bar pushing the guibo away from the yoke would be the route I would go ( since your replacing the guibo anyways )

Are you planning on just replacing the carrier bearing or replacing the complete drive shaft?
__________________
2006 X5 48is Black / Black - LED AEs - FCAB - GAS 1.2bar cap
Reply With Quote
  #7
Old 03-13-2014, 03:27 PM
Member

Join Date: Oct 2011
Location: NYC
Posts: 4,755
SlickGT1 is on a distinguished road
Wow, that is not really normal.

I too suggest pry bar.

Why are you replacing it anyway?
__________________
2006 4.8is, Black on White. SOLD Sniff Sniff.

2017 F85 x5m, Black on Red. BEAST MODE


"The older we grow the greater becomes our wonder at how much ignorance one can contain without bursting one's clothes." - Mark Twain

Unlock OBC post 5
Reply With Quote
  #8
Old 03-13-2014, 06:55 PM
shanev's Avatar
Member

Join Date: Apr 2013
Location: wisconsin
Posts: 14
shanev is on a distinguished road
Bearing

I'm just replacing the center support. The thing in the middle of the driveshaft. Wasn't planning on replacing the guibo if I don't have to
Reply With Quote
  #9
Old 03-13-2014, 07:18 PM
upallnight's Avatar
Member

Join Date: Aug 2012
Location: Cook County
Posts: 7,280
upallnight is on a distinguished road
Too late now but you could have separated the driveshaft at the u-joint and replace the center support without having to remove the driveshaft from the trans. But since the guibo looks all f#$k up you will now have to replace the front guibo.
__________________
2006 Infiniti G35
2001 BMW 3.0I E53 X5 Build date 08/2000 SOLD
Lotus Europa 1970 Destroyed by fire
Lotus Europa 1970 S2 Renault Powered
Lotus Type 52 1970 Twincam Webers Powered
PORSCHE 911 Targa 1982 The Garage Queen
Audi Avant donated to Kars for Kids
BMW 525IT Sold
Audi 4000CS Quattro Sold
Jensen Healey Lotus Powered Sold
Opel 1900 Sold
Triumph Spitfire 1971 Sold
Triumph Spitfire 1968 Sold
Plymouth "Cuda" 340 Six pack SOLD
Reply With Quote
  #10
Old 03-13-2014, 07:21 PM
shanev's Avatar
Member

Join Date: Apr 2013
Location: wisconsin
Posts: 14
shanev is on a distinguished road
U joints

How does the u joints come off. Is it like the old ones with a c clip I'm the center part? Haven't done one in a very long time
Reply With Quote
