  #61
Old 07-07-2018, 07:04 AM
Member

Join Date: Jun 2017
Location: Australia
Posts: 146
FourPointEight-is is on a distinguished road
No because the on-screen instructions say not to do that - it says:

1. Connect & pressurize bleeding equipment (which I presume is a pressure bleeder to the reservoir)
2. Open bleed screw
3. Run the "bleeding routine"
4. Actuate the brake pedal to limit 5 times - clear fluid should escape from the bleeder
5. Close the bleed screw

I follow those instructions to a T - no improvement after nearly 3 bleed cycles and over 2 liters of fluid bled through.
Reply With Quote

Sponsored Links

  #62
Old 07-07-2018, 08:23 AM
upallnight's Avatar
Member

Join Date: Aug 2012
Location: Cook County
Posts: 7,280
upallnight is on a distinguished road
This is how I used INPA to bleed the ABS module.

Open INPA.
Select E53
Select Chassis
Select appropriate DSC
Select Activate (F6)
Have second person put pressure on brake pedal
Select either F2 or F3 (ABS FL RL or FR RR) depending on which one you are bleeding
When you hear the ABS buzz, open the bleed valve. It will then make a second noise where is activates the valves at which point the pedal will start going down in pulses and the fluid will start coming out the caliper.
__________________
2006 Infiniti G35
2001 BMW 3.0I E53 X5 Build date 08/2000 SOLD
Lotus Europa 1970 Destroyed by fire
Lotus Europa 1970 S2 Renault Powered
Lotus Type 52 1970 Twincam Webers Powered
PORSCHE 911 Targa 1982 The Garage Queen
Audi Avant donated to Kars for Kids
BMW 525IT Sold
Audi 4000CS Quattro Sold
Jensen Healey Lotus Powered Sold
Opel 1900 Sold
Triumph Spitfire 1971 Sold
Triumph Spitfire 1968 Sold
Plymouth "Cuda" 340 Six pack SOLD
Reply With Quote
  #63
Old 07-08-2018, 11:30 PM
Member

Join Date: Jun 2017
Location: Australia
Posts: 146
FourPointEight-is is on a distinguished road

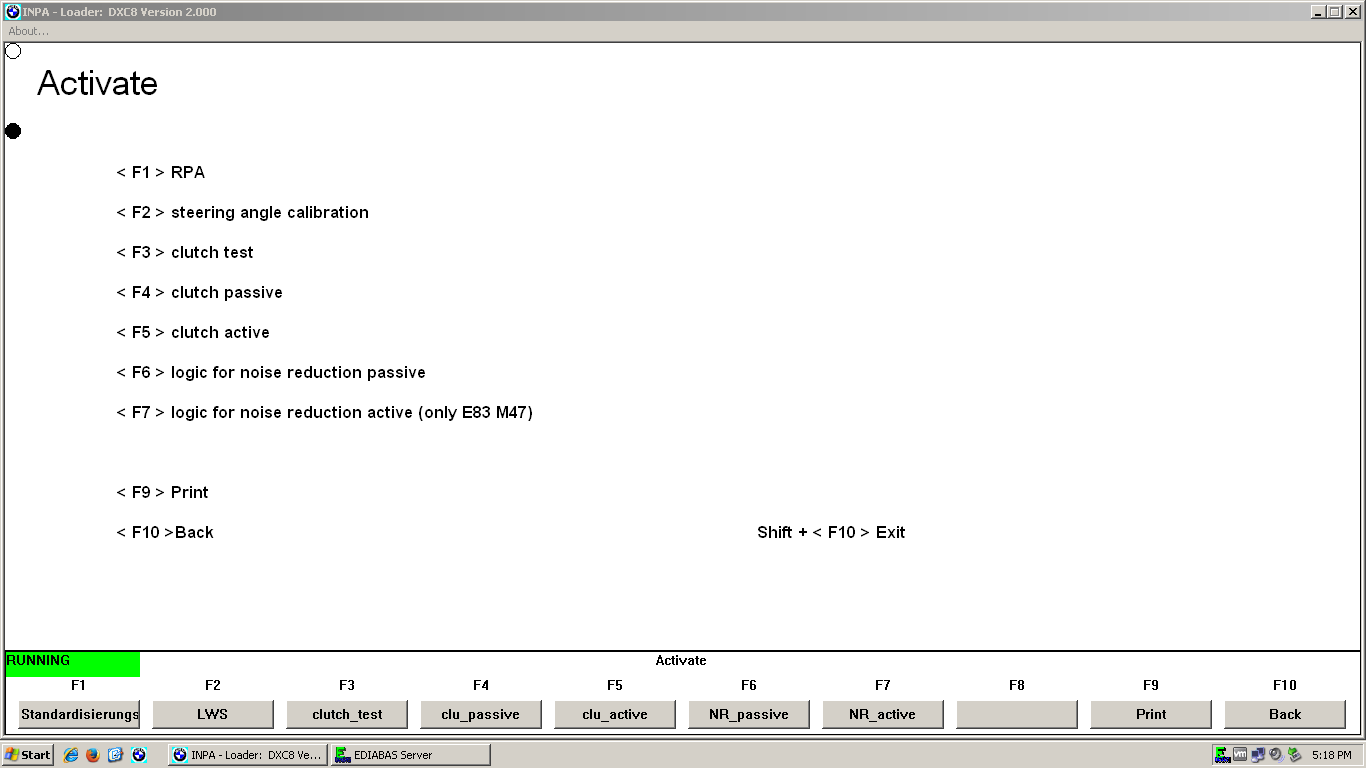

upallnight, when I hit "F6" to activate - my INPA doesn't seem to have those bleed methods.
Attached Images


Last edited by FourPointEight-is; 07-08-2018 at 11:31 PM. Reason: add screenshot of INPA
Reply With Quote
  #64
Old 07-08-2018, 11:32 PM
Member

Join Date: Jun 2017
Location: Australia
Posts: 146
FourPointEight-is is on a distinguished road

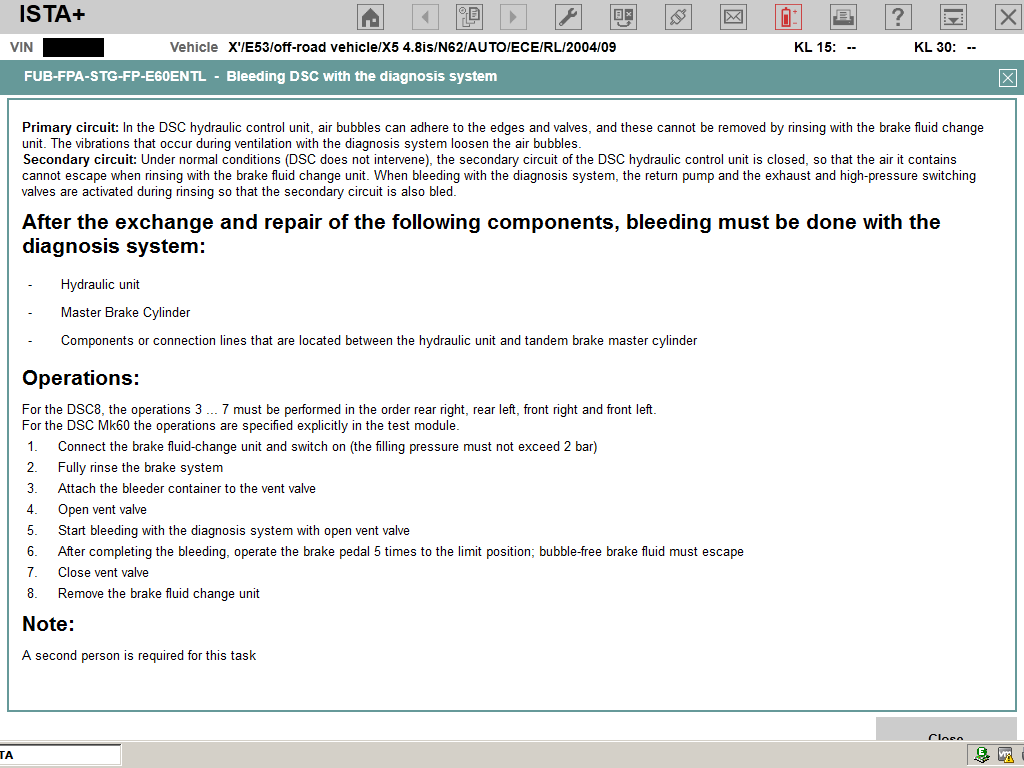

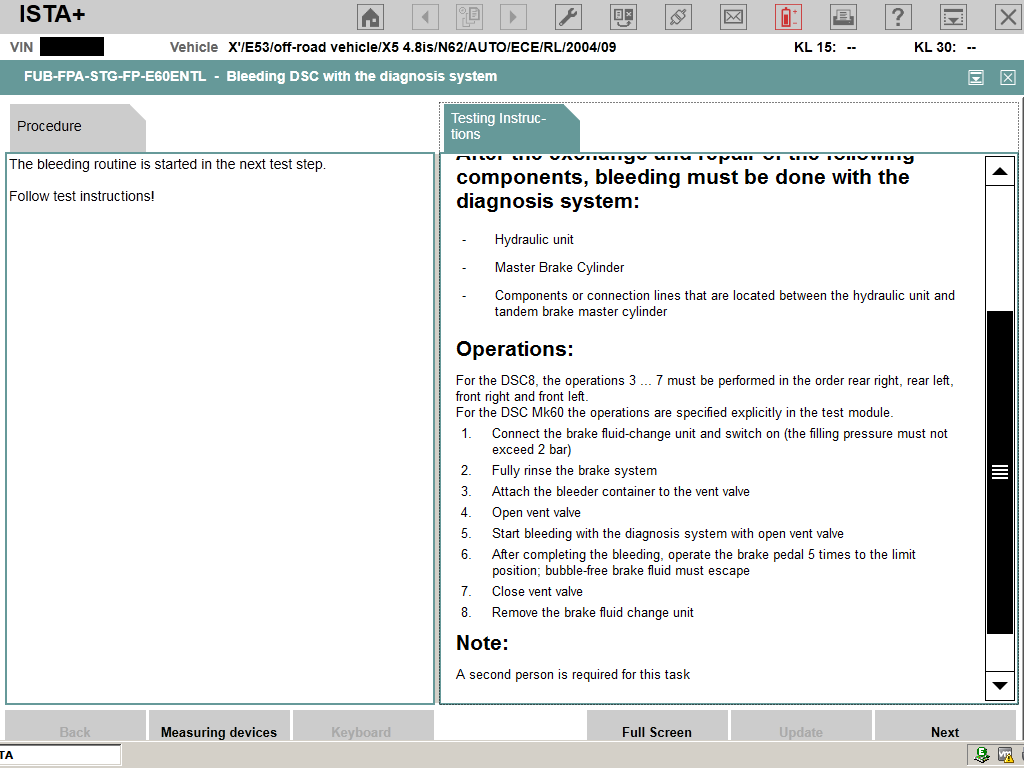

However here is what the ISTA bleed screen looks like
Attached Images

Reply With Quote
  #65
Old 07-09-2018, 09:15 PM
upallnight's Avatar
Member

Join Date: Aug 2012
Location: Cook County
Posts: 7,280
upallnight is on a distinguished road
for the bleeder container do you have a tube/hose that is attached to the caliper bleed nipple and the other end of the tube/hose is below the fluid in the container? If the tube/hose is above the brake fluid that you are collecting in the container when you release the brake pedal after pushing to the floor it will suck back air into the system.
__________________
2006 Infiniti G35
2001 BMW 3.0I E53 X5 Build date 08/2000 SOLD
Lotus Europa 1970 Destroyed by fire
Lotus Europa 1970 S2 Renault Powered
Lotus Type 52 1970 Twincam Webers Powered
PORSCHE 911 Targa 1982 The Garage Queen
Audi Avant donated to Kars for Kids
BMW 525IT Sold
Audi 4000CS Quattro Sold
Jensen Healey Lotus Powered Sold
Opel 1900 Sold
Triumph Spitfire 1971 Sold
Triumph Spitfire 1968 Sold
Plymouth "Cuda" 340 Six pack SOLD
Reply With Quote
  #66
Old 07-09-2018, 09:17 PM
Member

Join Date: Jun 2017
Location: Australia
Posts: 146
FourPointEight-is is on a distinguished road
It does, and my bleeding catch bottle has a 1-way check valve in it as well.

I am going to bleed 500 ML of (~15 oz) fluid through each caliper tonight... if that doesn't fix it then I'm not sure.
Reply With Quote
  #67
Old 07-09-2018, 10:38 PM
bcredliner's Avatar
Premier Member

Join Date: Jun 2008
Location: Little Elm,Texas. (40 minutes North of Dallas)
Posts: 7,536
bcredliner is on a distinguished road
I never pedal bleed anymore. Uses too much fluid and it is not unusual to have to do it several times to get a solid pedal. When I did pedal bleed I closed the bleeding valve before the pedal got to the floor. Pumped brake pedal up and did the same process over and over. Not unusual to see clear fluid for several cycles and then see more air bubbles.

Since brakes are rather important I think it is imperative to purchase a good quality pressure bleeder and follow the process in the ECS video posted. I have used a vacuum bleeder that was very effective also. I never use the same color fluid when bleeding. Shouldn't have any problems getting the brakes bled in all but the unusual circumstances.
__________________
X5 4.6 2002 Black Sap, Black interior. 2013 X5M Melbourne Red, Bamboo interior
Dallas
Reply With Quote
  #68
Old 07-15-2018, 09:01 AM
Member

Join Date: Jun 2017
Location: Australia
Posts: 146
FourPointEight-is is on a distinguished road
Exclamation

Hmm, unfortunately not making much progress here. I believe the situation has been made worse - of the 2 ports on the master cylinder, the one closest to the front of the vehicle is fine but the one that comes into the side of it has a slight leak. Looks like I just didn't tighten it enough... my fault for not checking this.

I bet there is a shit ton of air inside the system now. I tightened down the brake pipe (Had to really go to town on it to get it to stop leaking). Hopefully this hasn't introduced too much more air into the system (since the reservoir has been pressurized to >15 PSI for the duration of this exercise

Can someone outline the EXACT steps that they are using when bleeding.

Here's what I've been doing:
  1. Fill fluid + attach pressure bleeder to reservoir cap
  2. Pump up the pressure bleeder to at least 15 PSI
  3. Attach length of clear hose to the bleeder nipple valve & crack it open until I see fluid flow
  4. Run the "bleeding routine" in ISTA/D (screenshot above)
  5. After the bleeding routine completes, press brake pedal as far down as it'll go 5 times
  6. Repeat steps 4 & 5 until roughly 2-300 mL (10 oz) of fluid emerges from the caliper

The sequence of bleeding is like so:
  • Rear Right
  • Rear Left
  • Front Right
  • Front Left

Does that look right?

If yes, how many times should I expect to repeat on each corner before I notice an improvement?
Reply With Quote
  #69
Old 07-16-2018, 08:44 AM
Member

Join Date: Jun 2013
Location: Virigina, USA
Posts: 2,410
StephenVA is on a distinguished road
YES!
The sequence of bleeding is like so:
Rear Right
Rear Left
Front Right
Front Left[/I][/B]

Question: Is your vehicle right hand drive and is the master on the left or right? In the US the master is on the left (Driver's side)

Normally it takes 5X to get a great flow and all the air out. I personally do the power bleeding sequence then go back and do a manual bleed AFTER wards, using 80-90% pedal travel as some of the master cyl pistons will cross a water pock section of the bore and tear the piston cup edges. Once that happens you will never get a normal pressure stroke out of the master, forcing a master cyl replacement procedure.

Note: Smack each caliper with a SOFT faced hammer between bleeds as crap gets trapped in their as well. Due to the extra small brake lines and connectors, it takes a while to get clean flow all the way to the right rear as you are flushing the entire system line to that point.

Once the ABS system has air it will take more than a few approaches to clear out. Multiple people have posted that they actually had to drive and activate ABS involvement twice then go back and bleed again to clear all the air from the system.

Good luck.
__________________

2005 X5 4.8IS
The Blue ones are always FASTER....

Current Garage:
2005 X5 4.8is
2002 M5 TiSilver
2003 525iT
1998 528i
Former Garage Stable Highlights
2004 325XiT Sport
1973 De Tomaso Pantera, L Model
1970 Dodge Challenger T/A 4 sp Alpine White
1970 Dodge Challenger T/A 4 sp GoManGo Green
1971 Dart Sport, “Dart Light” package
1969 Road Runner 383
1968 Ply Barracuda 340S FB Sea-foam Green

Last edited by StephenVA; 07-16-2018 at 08:51 AM.
Reply With Quote
  #70
Old 07-16-2018, 04:53 PM
Best4x4xFAR's Avatar
Member

Join Date: Oct 2008
Location: Maryland
Posts: 347
Best4x4xFAR is on a distinguished road
Going though this nightmare now..
Had to replace a rotted out line to the passenger rear..
Have bleed the rear brakes multiple times..
Fresh new fluid coming out..
Pedal is like a marshmallow..

Guess I will have to locate and try a pressure bleeder next..
__________________
~Scott

--------------------
Black Sapphire Metallic/Sand Beige '13 E70 35d, SP, NAV, Tech, Comfort Access/Seats
20" Style 214's Wrapped in Continental DWS06 Extreme Contacts

(SOLD) Alpine White/Sand Beige '06 E53 3.0, SP, PP, CC, RC, NAV, Sat Radio
19" Style 63's
Wrapped in Bridgestone Dueler HP Sports-- Summer Shoes
18" Style 131's Wrapped in 255/55-18 Nokian WRG2 SUV's -- Winter Boots
Reply With Quote
