#1
04-17-2015, 01:05 AM
|
||||
|
||||
|
$100k E53 X5 is easy: just add up your service receipts...
__________________
Kirk Las Vegas 2016 X5 40e Mineral White/Black Dakota Leather, ZLL, ZCW, ZDA, ZDB, ZPP, multi contour seats, rear side window shades, HK stereo 2011 E90M3, 6-speed manual
|
|
#2
04-17-2015, 01:10 AM
|
||||
|
||||
|
Quote:
|
|
#3
04-17-2015, 02:07 AM
|
||||
|
||||
|

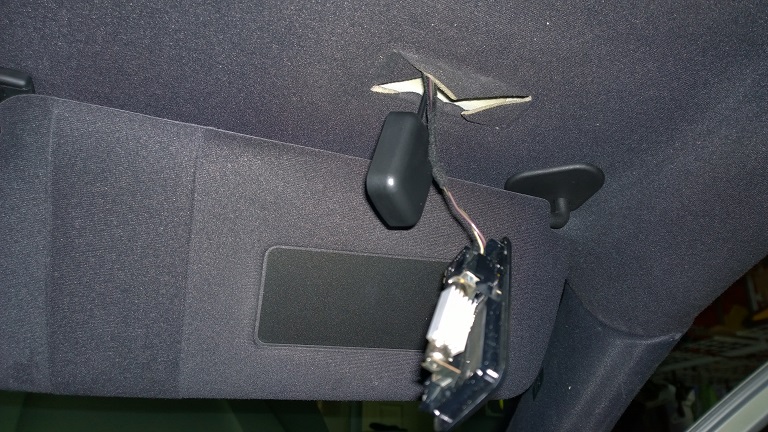

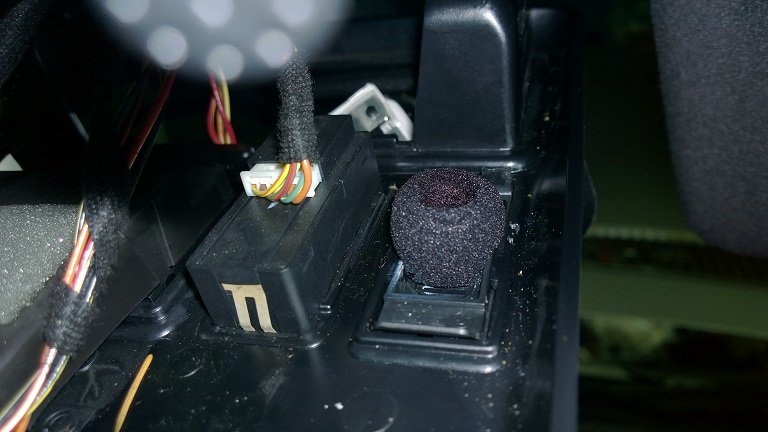

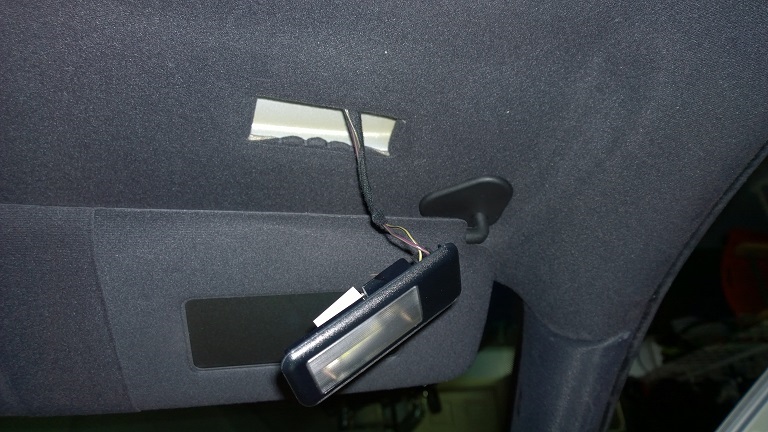

Pictorial narration where and how I installed the mic and GPS antenna. The mic form is stuck with superglue (on the sides and not on the tip) where the factory mic was installed. I did the ultimate test of mic reception- called wife and she could hear me very clearly even when I sat in the back seat and speaking in a normal voice! GPS stuck on the passenger side roof- the reception is immediate!
There was no need to remove the A pillar or the glove box. A word of caution- make sure the tip of the guiding wire (cloth hanger) will not catch onto something such as the airbag curtain or other cables. Use pliers to flatten the tip. Be gentle when pulling the cables through.
__________________
'05 E53 X5 4.4i, '97 E39 528, '07 E92 335i, '16 F86 X6M. Last edited by X5only; 04-17-2015 at 04:04 AM.
|
|
#4
04-17-2015, 02:11 AM
|
||||
|
||||
|

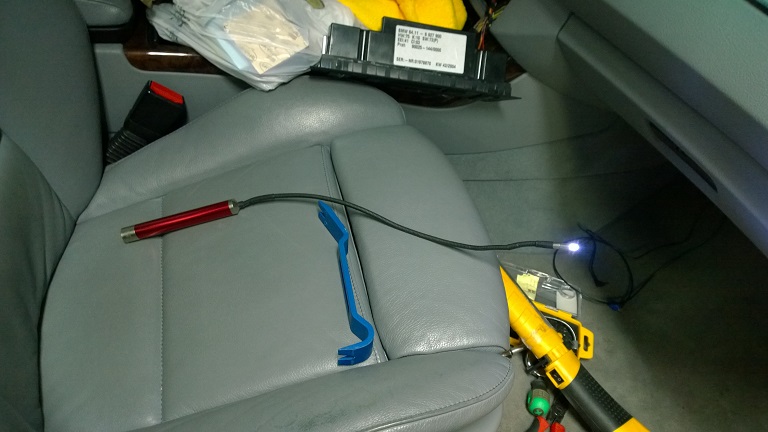

As you can see I in the pics, the mic cable barely makes it to the unit. GPS cable will have ample length. That flexible tool with a lit tip was from Harborfreight and was very handy in exploring where to run the cables. You just wait to see the light on the other end (pun not intended) for possible routes as you prod here and there.
__________________
'05 E53 X5 4.4i, '97 E39 528, '07 E92 335i, '16 F86 X6M. Last edited by X5only; 04-17-2015 at 04:00 AM.
|
|
