Loose part location.

Please help me identify the location of this part i found loose behind the lower grill on my 2013 X5 M sport. Part number 511 8049073 LH I've looked everywhere under the front area and can not find where it belongs. The part number implies the Left Hand version but I can not find a similar part on the Right. Its approximately 5" H X 4" W. Thanks


Name:  IMG_2701.jpg
Views: 190
Size:  192.7 KB
__________________
2013 X5 3.5i M Sport
2004 M3 cabriolet SMG
Reply With Quote

Sponsored Links

  #2
Old 08-31-2017, 05:33 PM
Member

Join Date: Jul 2015
Location: Vancouver, BC
Posts: 201
the_ulf is on a distinguished road
RealOEM.com - Part Search
__________________
discs 'n drums 'n body roll
Reply With Quote
  #3
Old 08-31-2017, 05:34 PM
Member

Join Date: Aug 2015
Location: Santa Fe, NM
Posts: 24
jdg857 is on a distinguished road

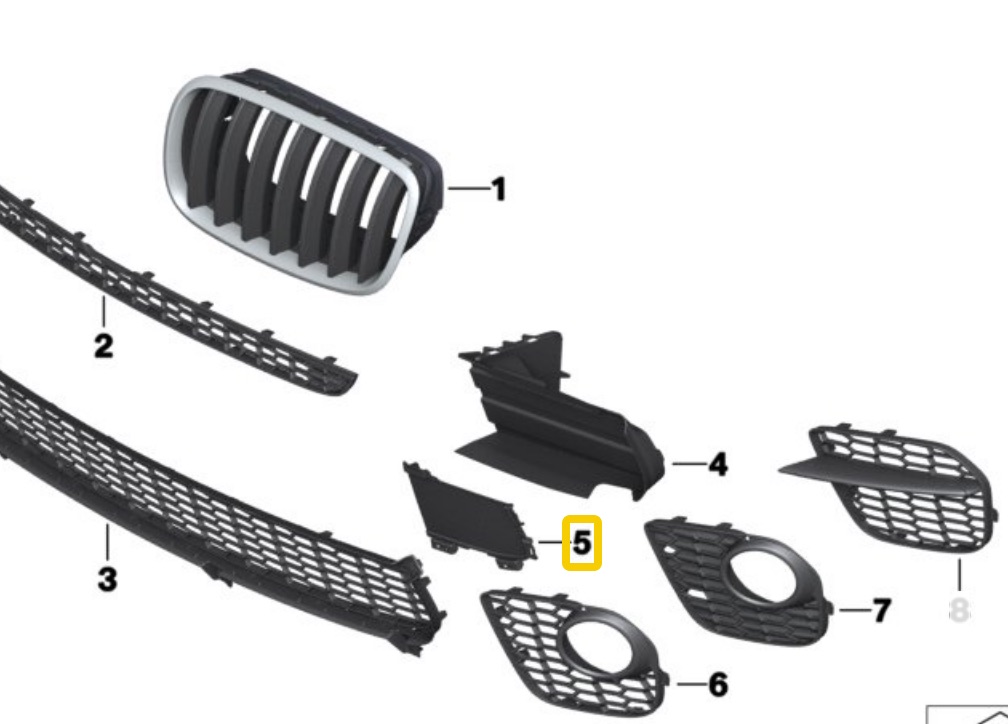

found this at realoem.com
Attached Images

__________________
Gone but not forgotten:
1974 2002
1986 325
1994 325
Now:
2011 X3
2012 X5 Diesel
Reply With Quote
  #4
Old 08-31-2017, 05:48 PM
Member

Join Date: Aug 2017
Location: Los Angeles
Posts: 20
msan is on a distinguished road
Funny, mine keeps falling out of the holder on the driver left side. You can play with it by pulling out the foglight black plastic cover and accessing it from there. I put mine back on 100% but after driving on the freeway it pops loose again. Passenger side is OK.

2012 Msport here
__________________
2012 X5 35i M Sport
Reply With Quote
  #5
Old 08-31-2017, 08:03 PM
Tomaz's Avatar
Member

Join Date: Oct 2005
Location: Los Gatos, California
Posts: 1,178
Tomaz is on a distinguished road
Thanks, I've seen the breakaway of the picture on RealOEM snd pulled the fog light cover.. But it doesn't show me where the part belongs when it's in place. And I can not see the right side one! My kingdom for a photo.
__________________
2013 X5 3.5i M Sport
2004 M3 cabriolet SMG
Reply With Quote
  #6
Old 08-31-2017, 08:55 PM
Member

Join Date: Aug 2017
Location: Los Angeles
Posts: 20
msan is on a distinguished road
Well I can tell you all five of the slits have a corresponding tab in the bumper/grill. You'll just have to feel for them. You can see what it should look like using the passenger side
__________________
2012 X5 35i M Sport
Reply With Quote
  #7
Old 09-01-2017, 04:15 AM
Tomaz's Avatar
Member

Join Date: Oct 2005
Location: Los Gatos, California
Posts: 1,178
Tomaz is on a distinguished road
Quote:
Originally Posted by msan View Post
Well I can tell you all five of the slits have a corresponding tab in the bumper/grill. You'll just have to feel for them. You can see what it should look like using the passenger side
Notice I said I could not see that part on the right!
__________________
2013 X5 3.5i M Sport
2004 M3 cabriolet SMG

Last edited by Tomaz; 09-04-2017 at 07:22 PM.
Reply With Quote
  #8
Old 09-04-2017, 07:16 PM
Tomaz's Avatar
Member

Join Date: Oct 2005
Location: Los Gatos, California
Posts: 1,178
Tomaz is on a distinguished road

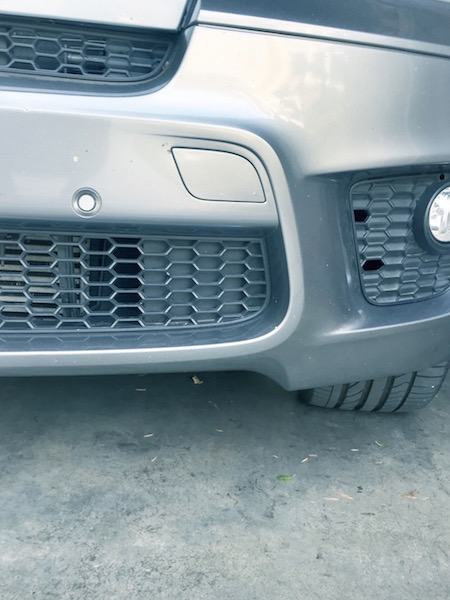

Figured it out. A air deflector behind the lower grill. Now I just need to buy one for the right side. The part listed for $45.00! For a simple piece of plastic!
Attached Images

__________________
2013 X5 3.5i M Sport
2004 M3 cabriolet SMG

Last edited by Tomaz; 09-12-2017 at 09:39 AM.
