X5 horn not working - fuses keep blowing

Hi - I have an issue with the horn in my 2007 x5 3.0 not working. I checked the fuse box and realized the fuse for the horn was blown so I swapped in a new one and tried it again. Fuse blew as soon as I pressed the horn. Any ideas what this could be or how I could fix it ? Itís really hard to drive in NJ a without a horn and prone to accidents.


Sent from my iPhone using Tapatalk
Reply With Quote

Sponsored Links

  #2
Old 07-10-2021, 09:18 PM
ard ard is offline
Member

Join Date: Mar 2006
Location: Sierra Foothills, California
Posts: 6,319
ard is on a distinguished road
likely one of the conductors in the steering column module (SZL?) has shorted to ground.

https://www.youtube.com/watch?v=Mk6QEPrg97Y



Just look at schematic and use a multi-meter to track it down.


your horn prevents accidents in NJ?!? Interesting.

Last edited by ard; 07-11-2021 at 01:11 AM.
Reply With Quote
  #3
Old 07-11-2021, 03:17 AM
andrewwynn's Avatar
Member

Join Date: Jun 2015
Location: Racine, WI
Posts: 8,210
andrewwynn will become famous soon enough
First bet would be in the wiring to the horn itself. Does the car use a horn relay or just electronics/transistors?

Which fuse is blown? There should be a high current fuse for the horn and low current fuse for the wheel electronics/clock Spring.

The only high current wires usually in a clock spring are for the air bag the rest are just control wires low voltage low current.


Sent from my iPhone using Tapatalk Pro
__________________
E53 / M54 2001 3.0i gas LHD (pair of them: his & her)
Reply With Quote
  #4
Old 07-11-2021, 06:49 AM
Zulu95's Avatar
Member

Join Date: Mar 2005
Location: Show Me
Posts: 2,574
Zulu95 is on a distinguished road

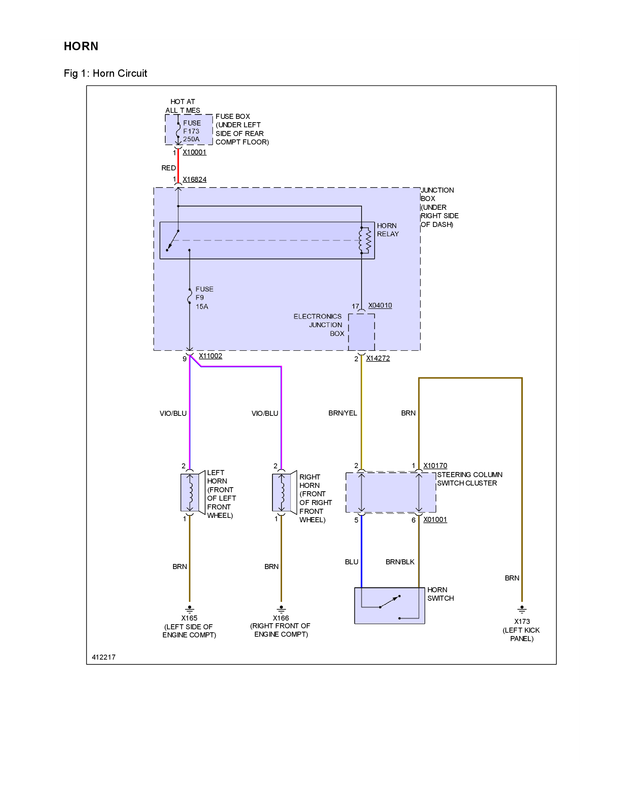

Hope this helps:


__________________
Sent via Telegraph Wires using my Morse Key.
2015 X5
xDrive35i MSport
2013 X5 xDrive35i
Reply With Quote
  #5
Old 07-12-2021, 06:40 PM
ard ard is offline
Member

Join Date: Mar 2006
Location: Sierra Foothills, California
Posts: 6,319
ard is on a distinguished road
Thanks zulu.


The JBE can be a source of misery.... be aware than odd electrical failures have been traced to this.


OP which fuse is failing? you can disconnect one horn, then the other, to see if one of that has failed-short...
Reply With Quote
  #6
Old 07-14-2021, 01:21 AM
Member

Join Date: Dec 2019
Location: NJ
Posts: 17
leafsrule531 is on a distinguished road
Sorry for the late reply on this. I hurt my back playing tennis over the weekend and the unfortunately the pain has been brutal so havenít really had a chance to look into this at all.

This is the website I used to check the fuse:

https://fusesdiagram.com/bmw/fuses-a...mw-x5-e70.html

According to the website thereís only one fuse for the horn which is located at F9. Thatís the one I replaced and as soon as I tried the horn it blew and all I hear is a clicking sound when I press the horn. I did watch the YouTube video which you posted which was very helpful.

Iím not very electrical savvy at all so while the diagram was informative... Iíll need a lot more help to try to figure out the issue.


Sent from my iPhone using Tapatalk
Reply With Quote
  #7
Old 07-14-2021, 01:28 AM
Member

Join Date: Dec 2019
Location: NJ
Posts: 17
leafsrule531 is on a distinguished road
Quote:
Originally Posted by ard View Post
Thanks zulu.


The JBE can be a source of misery.... be aware than odd electrical failures have been traced to this.


OP which fuse is failing? you can disconnect one horn, then the other, to see if one of that has failed-short...

I donít really have any other electrical issues in the car other than the horn not working so Iím hopeful that the issue is not the JBE since itís pretty expensive.


Sent from my iPhone using Tapatalk
Reply With Quote
  #8
Old 07-14-2021, 07:44 AM
Zulu95's Avatar
Member

Join Date: Mar 2005
Location: Show Me
Posts: 2,574
Zulu95 is on a distinguished road
Isolate each section of the circuit for testing: Remove the relay, reset the fuse and press the button. If the fuse blows then it is not the wiring to or parts of the horns. (Doubt that will be it.)
Pull the connectors from the horns and put the relay back in and press the button. If fuse blows then it is the wiring. If it does not then connect one or other horn. Repeat test. If the fuse blows then that horn is faulty. If not it is the other horn. Replace both as a precaution.
__________________
Sent via Telegraph Wires using my Morse Key.
2015 X5
xDrive35i MSport
2013 X5 xDrive35i
Reply With Quote
  #9
Old 07-14-2021, 01:33 PM
andrewwynn's Avatar
Member

Join Date: Jun 2015
Location: Racine, WI
Posts: 8,210
andrewwynn will become famous soon enough
It's nearly impossible to be the electronics. It's almost certainly wiring. Rather than blow fuse after fuse just use Ω meter and measure the load side of fuse to ground it should be a couple ohms. If blowing fuses it will be well under an ohm. Likely means hot wire is grounded under a tiedown strap
__________________
E53 / M54 2001 3.0i gas LHD (pair of them: his & her)
Reply With Quote
  #10
Old 07-15-2021, 04:37 PM
ard ard is offline
Member

Join Date: Mar 2006
Location: Sierra Foothills, California
Posts: 6,319
ard is on a distinguished road
OP..so Fuse #9 is listed in that diagram.


You say you hear a click though? This is the thing labeled 'relay' inside the junction box in the diagram. Good news as this means all the circuitry is probably working.


There is either w wiring short or a short has failed internally causing it to draw too much current


1. Find each horn
2. Remove both wires from each horn
3. Replace F9 with good fuse
4. Try horn.
4a if fuse blows, it is a wiring issue
5. If fuse doesnt blow, attach ONE horn. Try again. If it blows, THAT horn is bad
6. If it doesnt blow, attach second horn. It should blow, that is the bad horn


Report back
