New member, New to me E70. Not running

Hello, my name is Dave.
I am the proud owner of an '02 E46 330xi, which is currently my summer vehicle.
I also own an '09 E83 3.0si, which I use in the winter months.

I recently came across a low-mileage (150,000km) 08 E70 4.8i with Sports pkg. for a very good deal. I have been on the hunt for an E70 for a few months, and this one has all the options I wanted, and at the right price.
The vehicle cranks and fires, like it is starving for fuel, but does not run. The previous owner told me she had nothing but issue after issue with the vehicle, and she sold it at a loss just to be rid of it.
She had recently replaced the alternator, battery an drive belt. These issues were all related to a situation in which she was finding the vehicle with a dead battery numerous times. After the new battery it ran fine for a few weeks and then she said it began starting and idling, but when you hit the pedal, it would die. She said she replaced the fuel pump and filter with new, but they didn't fix it, so they returned the new fuel pump and reinstalled the original pump. I don't believe the mechanic was BMW savvy at all.
I have found a situation in which the overhead console buttons and ambiance lights do not ever turn off. not sure if this is a DME problem or not.
I scanned the DME and found a bunch of codes, including a couple DME failure codes; BTW, (present) means an active code.

2B98 DME: Control unit internal fault RAM backup plausibility (present)

CD8B DME: Local CAN communication fault (present)

2A6B DME: Valvetronic power limitation (not present)

2F08 DME Intake air temp sensor (present)
(I think this and a couple MAF codes came up when I unplugged the MAF)
5F39 DSC Transfer Case internal (not present)

5EBA DSC: Steering angle sensor (present)
(I think this will go away when I relearn the SAS)
5DCF DSC: Control unit undervoltage (not present)

93D0 ACSM Safety battery terminal (present)

There are a bunch more 'not present' (history) codes for the EMF adn ACSM systems.
601C, 601D, 601E, 6022, 6023, 6041, D395, 93D0, 9408, and 93C6

I am thinking the DME is defective, or failing. I acquired a used DME from another '08 with 4.8i engine as a spare.

I have downloaded ista p but have yet to install it and run it.

Does anyone have experience mailing off their DME, CAS and key for diagnosis/repair, and could someone give me a recommendation on where to send it? I'm in Ontario, Canada

Last edited by E-series ftw; 02-04-2023 at 07:50 PM.
Reply With Quote

Sponsored Links

  #2
Old 02-04-2023, 08:27 PM
crystalworks's Avatar
Member

Join Date: Jun 2014
Location: SA, TX
Posts: 6,425
crystalworks is on a distinguished road
Oooph. Her problem is now your problem. Glad you have BMW ownership experience.

What have you checked so far? The safety battery terminal is probably where I'd start...
__________________
2005 X5 4.4i Build 04/05 Maintenance/Build Log
Nav, Pano, Sport (Purchased 06/14 w/ 109,000 miles) (Sold 8/15 w/121,000 miles)


2006 X5 4.8is Build 11/05 Maintenance/Build Log
Nav, DSP, Pano, Running Boards, OEM Tow Hitch, Cold Weather Pckg (Purchased 08/15 w/ 90,500 miles)

2010 X5 35d Build 02/10
Nav, HiFi, 6 DVD, Sports Pckg, Cold Weather Pckg, HUD, CAS, Running Boards, Leather Dash, PDC, Pano (Purchased 03/17 w/ 136,120 miles)
Reply With Quote
  #3
Old 02-04-2023, 11:12 PM
E-series ftw's Avatar
Member

Join Date: Feb 2023
Location: Ontario, Canada
Posts: 41
E-series ftw is on a distinguished road
Funny, I went to look at the battery to see if the pyrotechnic charge had deployed, by checking the play in the B+ cable, and noticed a small, 2-wire connection dangling beside the battery. I found itís home on the side of the battery terminal and plugged it in.
I didn't try to start it, but I doubt that little 2-wire plug will make a difference.

Last edited by E-series ftw; 02-04-2023 at 11:25 PM.
Reply With Quote
  #4
Old 02-05-2023, 02:11 PM
ard ard is offline
Member

Join Date: Mar 2006
Location: Sierra Foothills, California
Posts: 6,741
ard is on a distinguished road
$1000 says it is NOT the DME.


Do a search for FRM. Could be PART of the issue.

Also dig into your wiring around the modules in the rear and up under the dash- looking for water damage and shorts.


IMO this will not be a 'one thing magic bullet'.


Reading codes on a car that doesnt run, that has been powered on and off- jumped- who knows what- over a period of weeks or months will likely give yoi as confusing mash up of codes. Codes that are due to low power and lack of coherent communications with other modules, and not necessarily due to hard singular faults
Reply With Quote
  #5
Old 02-05-2023, 04:03 PM
Member

Join Date: Jul 2020
Location: CA
Posts: 36
gpeterson is on a distinguished road
Quote:
Originally Posted by ard View Post
Do a search for FRM. Could be PART of the issue.

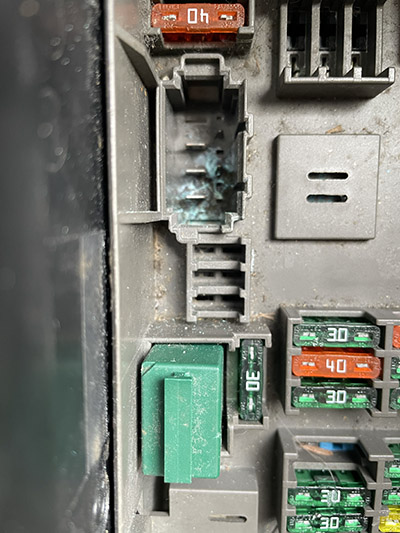

This, or JBE on the passenger side. I bought a non-running 2007 4.8 and one of the pins that supplied power to the valvetronic modules had broken off due to corrosion. Mine was easy to troubleshoot since the modules didn't respond to ISTA and I found they had no power.


Last edited by gpeterson; 02-05-2023 at 07:45 PM.
Reply With Quote
  #6
Old 02-06-2023, 07:54 AM
E-series ftw's Avatar
Member

Join Date: Feb 2023
Location: Ontario, Canada
Posts: 41
E-series ftw is on a distinguished road
Quote:
Originally Posted by gpeterson View Post
This, or JBE on the passenger side. I bought a non-running 2007 4.8 and one of the pins that supplied power to the valvetronic modules had broken off due to corrosion. Mine was easy to troubleshoot since the modules didn't respond to ISTA and I found they had no power.

Thanks for the replies.
While I do own 3 BMWs, I am not up to speed on the forum acronyms.

Can you elaborate on FRM and JBE please?

Doing a search of FRM on the forum search comes back with nothing.
Reply With Quote
  #7
Old 02-06-2023, 08:05 AM
Zulu95's Avatar
Member

Join Date: Mar 2005
Location: Show Me
Posts: 2,634
Zulu95 is on a distinguished road
FRM - Footwell Module

JBE - Junction Box Electronics
__________________
Sent via Telegraph Wires using my Morse Key.
2015 X5
xDrive35i MSport
2013 X5 xDrive35i
Reply With Quote
  #8
Old 02-06-2023, 10:27 AM
haigha's Avatar
Member

Join Date: Jun 2005
Location: Machine
Posts: 1,436
haigha is on a distinguished road
Quote:
Originally Posted by E-series ftw View Post
Thanks for the replies.
Doing a search of FRM on the forum search comes back with nothing.
As you've discovered, using the site Search doesn't work well for short words. For FRM, use this in your search engine of choice:

frm site:xoutpost.com

https://www.google.com/search?hl=en&...3Axoutpost.com
Reply With Quote
  #9
Old 02-06-2023, 12:34 PM
crystalworks's Avatar
Member

Join Date: Jun 2014
Location: SA, TX
Posts: 6,425
crystalworks is on a distinguished road
Quote:
Originally Posted by haigha View Post
As you've discovered, using the site Search doesn't work well for short words. For FRM, use this in your search engine of choice:

frm site:xoutpost.com

https://www.google.com/search?hl=en&...3Axoutpost.com
Don't use the forum search at all. Google search the site as described above.

Nice the battery safety charge was an easy remedy. As others have pointed out, time to start looking for corrosion or water intrusion. Agree with Ard. Not likely a corrupt DME issue.
__________________
2005 X5 4.4i Build 04/05 Maintenance/Build Log
Nav, Pano, Sport (Purchased 06/14 w/ 109,000 miles) (Sold 8/15 w/121,000 miles)


2006 X5 4.8is Build 11/05 Maintenance/Build Log
Nav, DSP, Pano, Running Boards, OEM Tow Hitch, Cold Weather Pckg (Purchased 08/15 w/ 90,500 miles)

2010 X5 35d Build 02/10
Nav, HiFi, 6 DVD, Sports Pckg, Cold Weather Pckg, HUD, CAS, Running Boards, Leather Dash, PDC, Pano (Purchased 03/17 w/ 136,120 miles)
Reply With Quote
  #10
Old 02-06-2023, 07:24 PM
ard ard is offline
Member

Join Date: Mar 2006
Location: Sierra Foothills, California
Posts: 6,741
ard is on a distinguished road
(FWIW..in ~20 years messing with E39M5 (aka S62) on forums can only recall ONE truly bad DME that still managed to run and do weird things: it was a fet driver for one of the 8 fuel injector outputs. When DMEs go bad they are dead. They dont become flakey, throw errors and running problems and then progress to dead.)
Reply With Quote
