[Epacy]

Originally Posted by synaptik

how many people with v2s are gonna update? i just got my v2s installed and am perfectly happy with them. the power supply isnt really a big issue for me

Originally Posted by Kloogy

Ove seen the V2's and I would be perfectly happy with those.

Yes, they look fine. That's not the point. The difference is what kind and how the PS is housed. They will look the same.

[teknostar]

I can not figure out how these are supposed to go in.

I have a MY11 E70

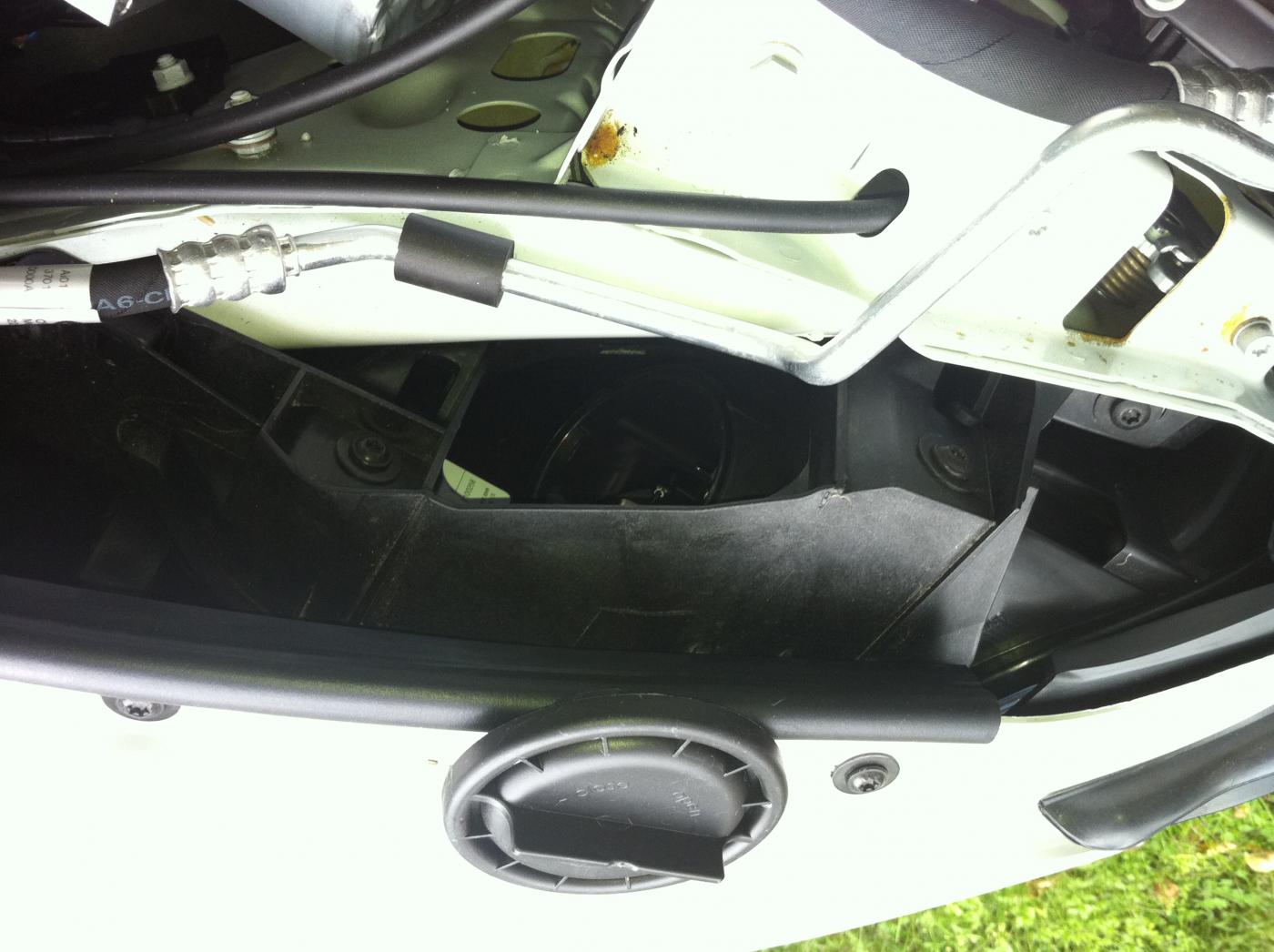

There are two caps to access the head lights on each side.

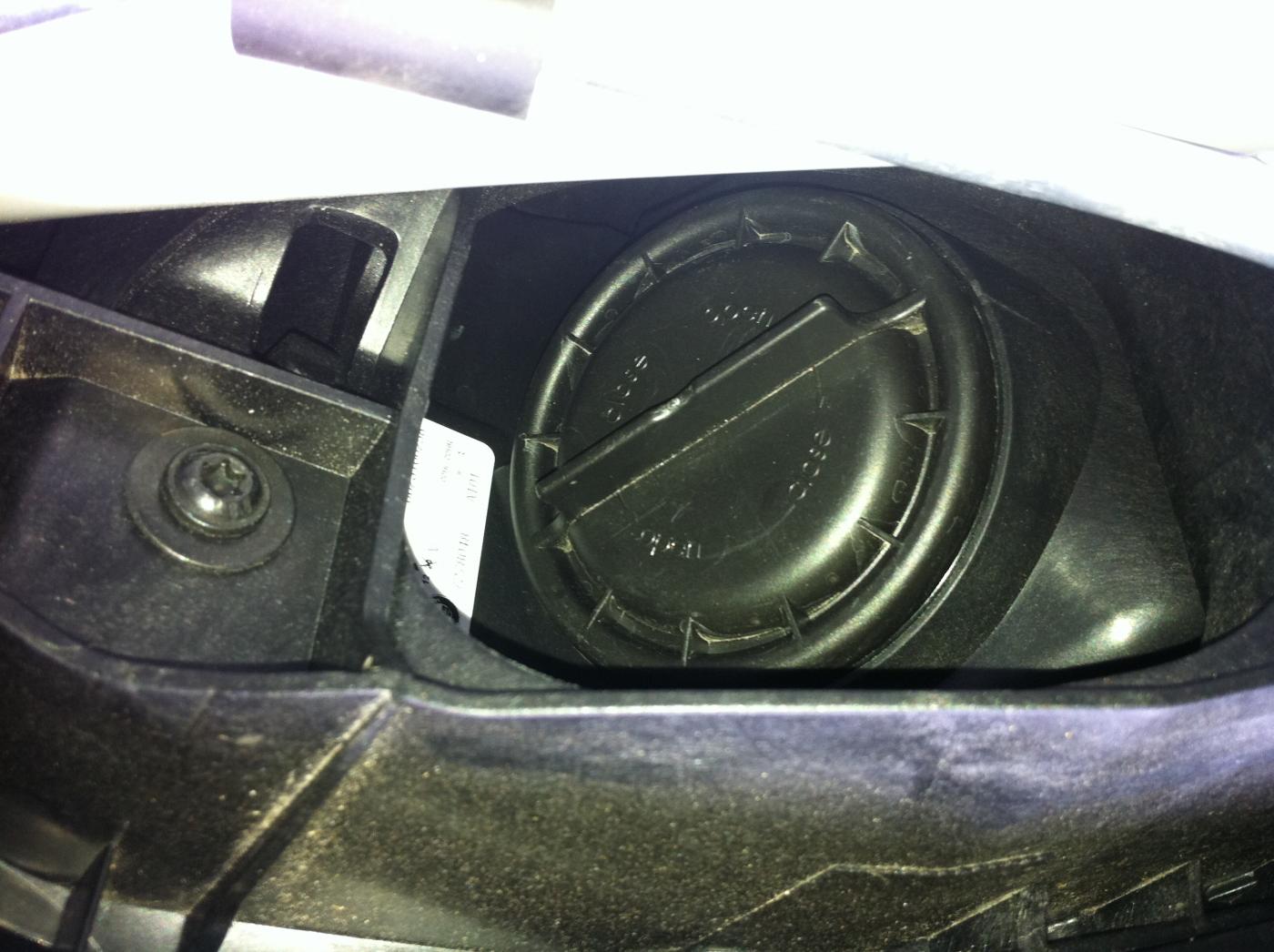

Front one has a cap that screws off, and the back one has a clip at the top and flips open then comes off completely.

From the pictures posted earlier in the thread it looks pretty obvious that it is the front cap that needs removing.

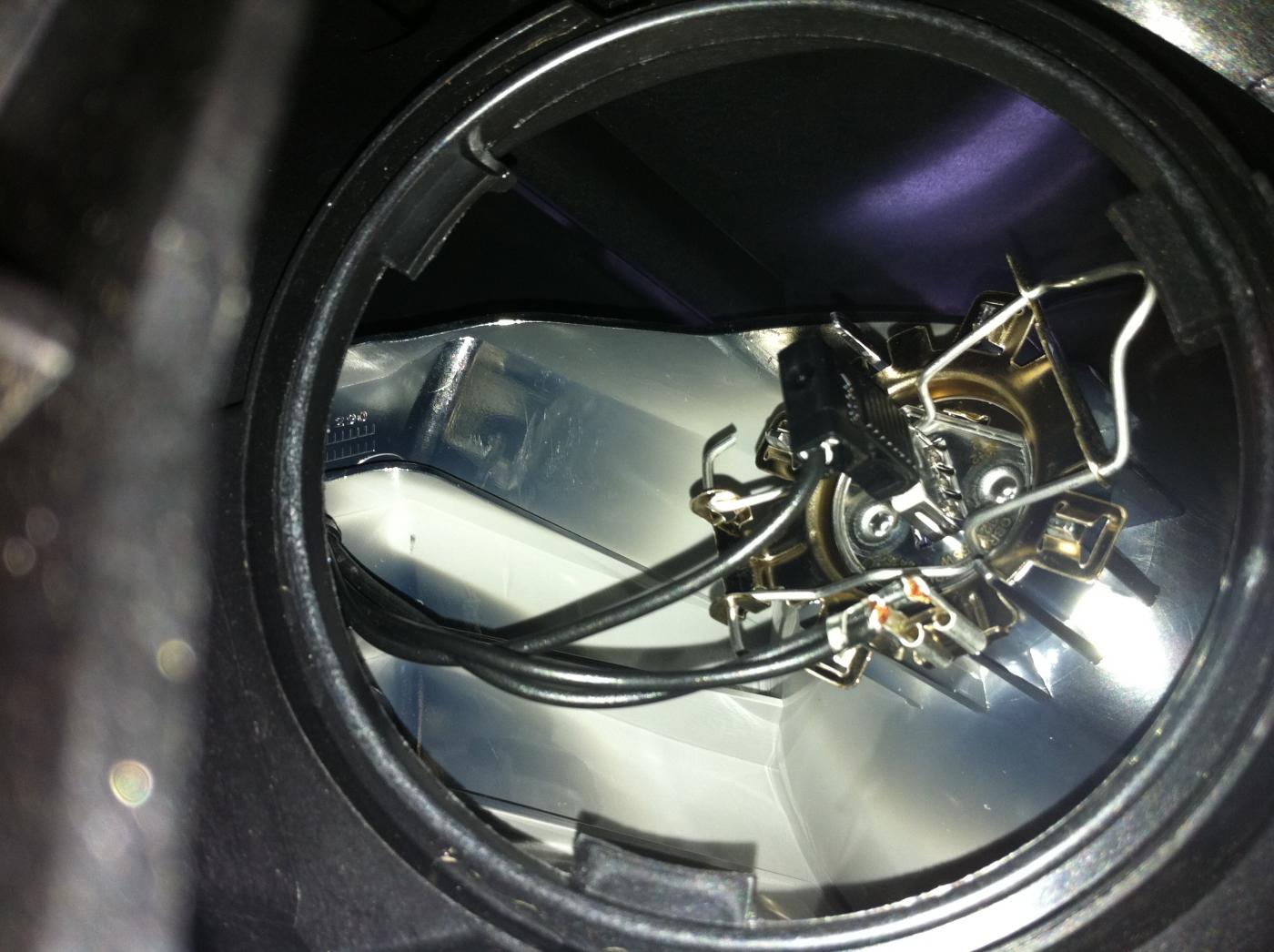

Inside i can only see the bulb that powers the highbeam???

The clips on the back of this bulb do not match up with the clips on the Lux

Please help

Thanks

[Noodles]

Hmm..weird. I also have a my11 x5 and it looks totally different. Could it be because yours is a aus spec? My lux v3 took 10min to install and the clips lined up with my lights. I only had 1 twist cover and the inside is just a single plug connector and no wires or anything like yours. I'll check mine later n get bak to u.

[Epacy]

Upgrade for the new power supplies has been initiated. My new power supply is in the mail and I'll be attaching that to the LED module and putting everything inside the headlight! No more wires interfering with the cap!!

LuxAngelEyes ˃˃ LUX H8 Angel Eyes, Version 3.0 - BMW M3 Forum (E90 E92)

Upgrade Options, from v1 or v2 to v3Upgrade options are available. An upgrade would Only entail a new power supply, not new LED. Upgrading the power supply will give you a new warranty, giving you a new 1 year warranty on your lights.

There are 2 options:

1) I send you the new power supplies and a link to the DIY Install
2) You send me your kit and I upgrade it and return it to you

For the DIY Install, it would entail cutting 2 wires, stripping them and soldering them to the new power supply. all the materials will be included:

Price:

Option 1: DIY - $55
Option 2: Send Away - $60

There will be an item on my web site for the upgrade process.

[Jim E.]

Originally Posted by teknostar

I can not figure out how these are supposed to go in.

I have a MY11 E70

There are two caps to access the head lights on each side.

Front one has a cap that screws off, and the back one has a clip at the top and flips open then comes off completely.

From the pictures posted earlier in the thread it looks pretty obvious that it is the front cap that needs removing.

Inside i can only see the bulb that powers the highbeam???

The clips on the back of this bulb do not match up with the clips on the Lux

Please help

Thanks

For what it's worth, I don't think the headlight assemblies are the same part numbers. This may account for the difference.

[jeep]

Originally Posted by teknostar

I can not figure out how these are supposed to go in.

I have a MY11 E70

There are two caps to access the head lights on each side.

Front one has a cap that screws off, and the back one has a clip at the top and flips open then comes off completely.

From the pictures posted earlier in the thread it looks pretty obvious that it is the front cap that needs removing.

Inside i can only see the bulb that powers the highbeam???

The clips on the back of this bulb do not match up with the clips on the Lux

Please help

Thanks

In the US model there is no separate High Beam bulb, and I am guessing it is the same in Australia. There is only one Xenon bulb for both high and normal beam.

Even though it seems that there are two projector lamps in the headlight assembly the inner one drives the Halos. The interesting bit of engineering is that the bulb does not emit light to the front but sideways into the Halo optical channel (it is essentially a very thick fiber optic cable). This same channel wraps around the Xenon as well. So if you take out the bulb and it is not Xenon it is the one driving the Angel Eyes.

[teknostar]

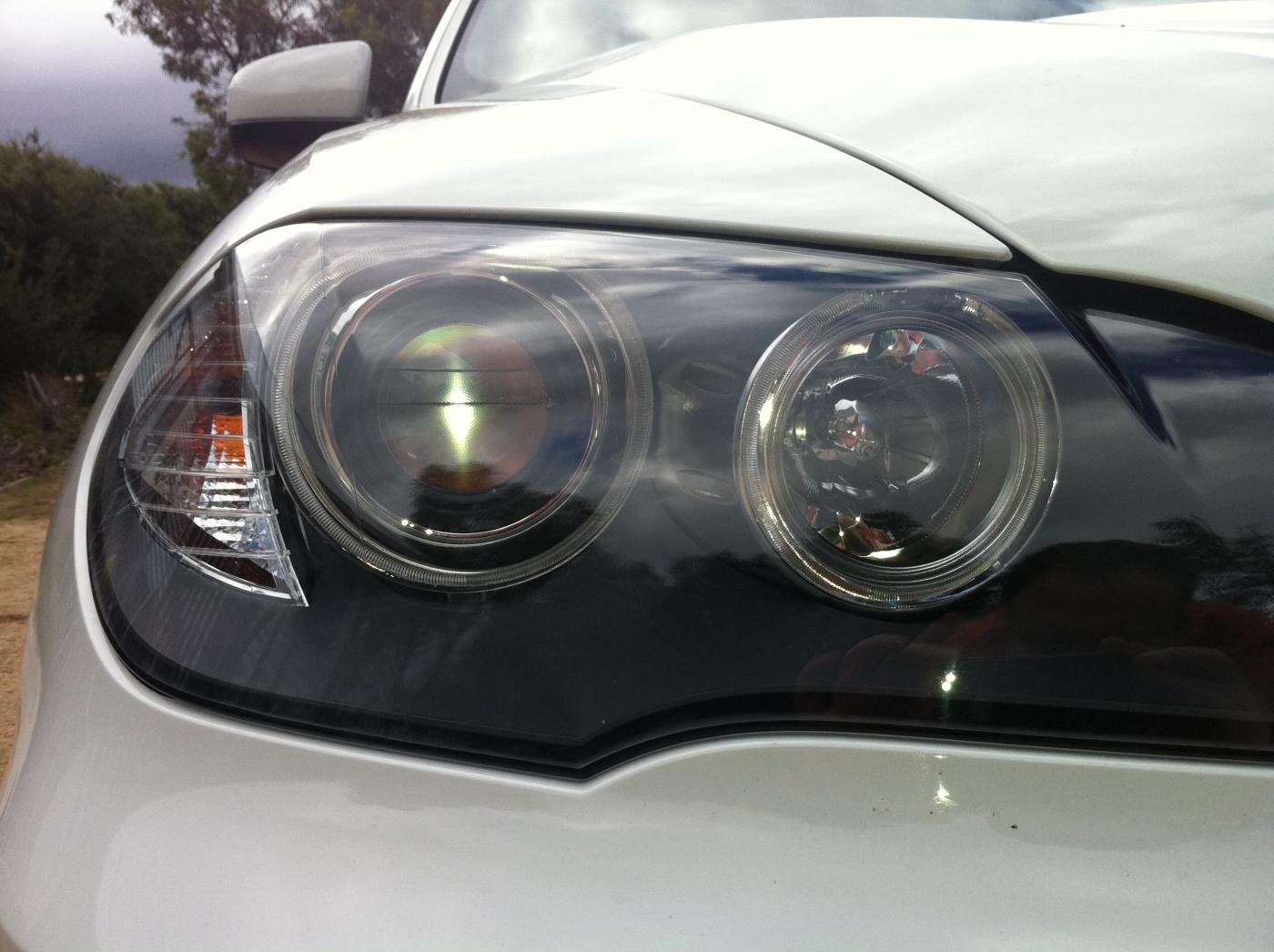

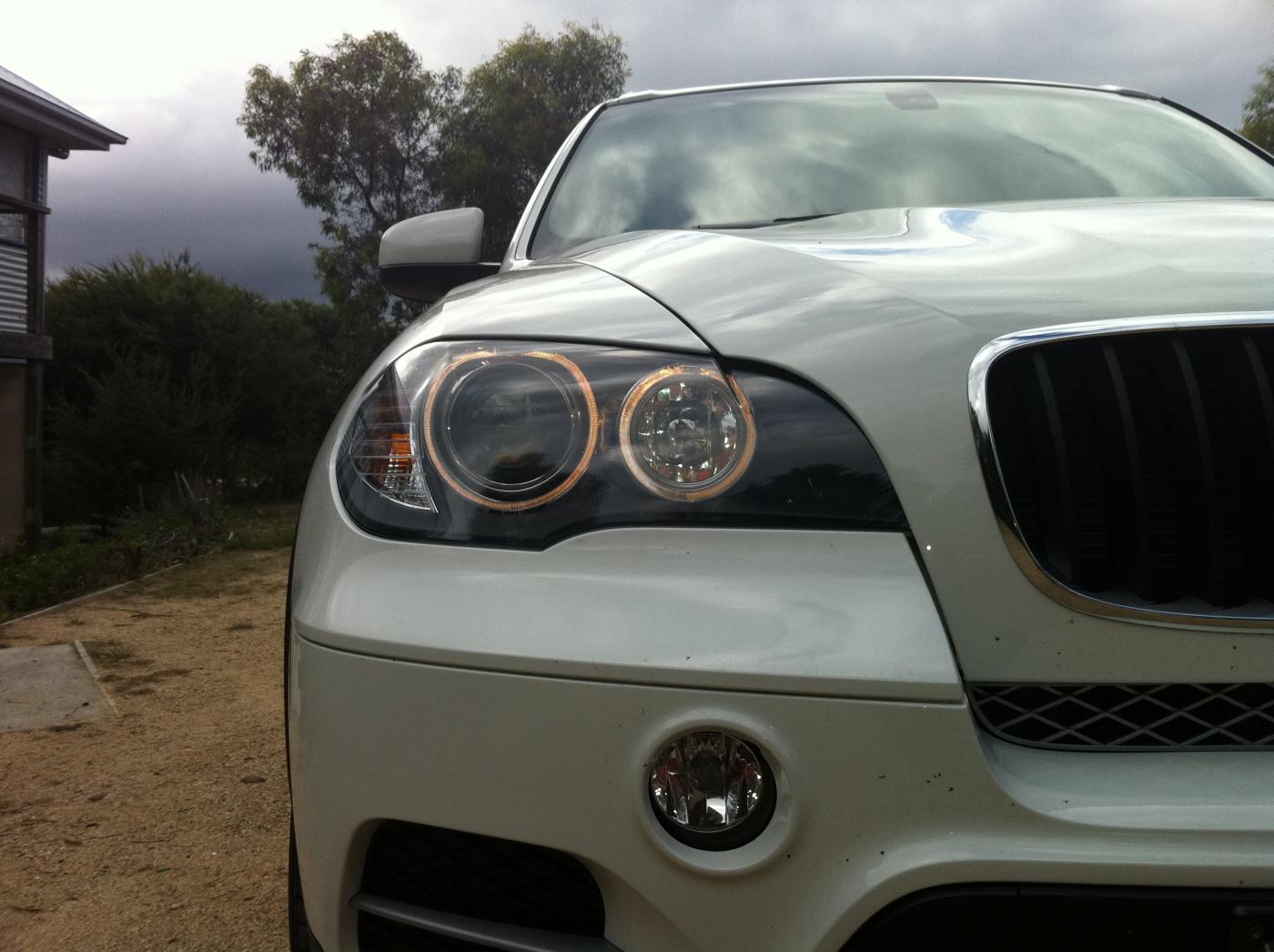

I can not find where the bulb for the angel eyes is. looking at these pictures, the outside bulb is for my low beams, the inner bulb is for the high beams. It seems in the engine bay there are two caps to access the bulbs for the headlights. I can not see an H8 bulb in either of these.

Guess i will take it to a dealer and ask them where the AE bulb goes.

[KmanOz]

Originally Posted by teknostar

I can not find where the bulb for the angel eyes is. looking at these pictures, the outside bulb is for my low beams, the inner bulb is for the high beams. It seems in the engine bay there are two caps to access the bulbs for the headlights. I can not see an H8 bulb in either of these.

Guess i will take it to a dealer and ask them where the AE bulb goes.

Technostar

From what I can tell you DON'T have HID headlamps. In Australia (and someone can correct me if Im wrong) if you had HID headlamps you would also have the headlamp washer as they are sold together as a package.

You have HALOGEN headlamps and they are put together completely differently. What you're seeing is the high beam lamp behind the screw cap. Halogen headlamps use a weird looking LED unit to light the Halo. Its extremely hard to access and is located inside a square little box somewhere between the Low & High beam. Basically a NUT BUSTER !

Here's a thread which discuss's the whole topic.

http://www.xoutpost.com/bmw-sav-foru...x5-2008-a.html

Cheers

Kman

[teknostar]

Thanks Kman.

What a pain in the ass.

I was looking forward to LED AEs

[NOX 3.2]

I didn't know, but the 2011 X5 in India came with LED coronas!
