E70 hitch/ harness install / programming question

[ryanp910]

Kormaster, what coding guys will you use? Can you PM me their information? I have a 2013 diesel that I just put a hitch and oem wire harness on. I am also in SoCal. Only thing left is the coding.

[Kormaster]

Hi guys

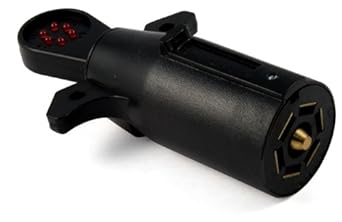

I got the tow module programmed. How do you verify if it worked? I dont have access to my trailer right now so I bought a 7 pin connector tester



All the lights work and left/right/reverse/brake works.

BUT - brake controller light and PDC/Camera function doesnt work. PDC still goes off when connected and no fancy reverse camera function.

Maybe programming didnt work? Maybe I screwed up on the install?

Im using Prodigy RF controller. Since the oem harness has brake controller 4 pin and that is not hooked up to anything, is that part of the problem? RF module only hooks up to 7 pin and communcates with RF handheld so no wire to run inside the car. If brake controller pin is not active, maybe i screwed up tapping the 3rd pin from the tail light harness and that is the wire communicates with AHM module

[wsybert]

My camera trailer function works without being hooked up. The vehicle pinout won't activate the electric brakes because it doesn't know you have it.
I would guess the RF will work independent of the vehicle system, with regard the brake control.

[Kormaster]

Thanks for the info. I guess it makes me believe that programming probably didn't work. No camera function available. Then brake controller light doesn't light up w tester so it is not even sending output signal.

So possible that AHM module is not even activated?

[blue dragon]

^^ For some strange reason, the programming on the US models doesn't activate the rear camera towbar function on the LCI models.

[330i ZHP]

you have to change the one setting to ECE instead of US

[330i ZHP]

AHM Module = Trailer module

Change VO/FA in CAS and FRM
+AHMU

LAENDERVARIANTE_AHM
us
CCMELDUNG_ABRISS_AHV
cc_04bh
CCMELDUNG_FEHLER_AHM
cc_04bh
CCMELDUNG_VERRIEGEL_AHV
cc_04bh
START_CCM
klemme_15
TYP_AHV_SG
keine_ahv
SL_BEI_KZL_AKTIV
nicht_aktiv

[Kormaster]

I got it all figured out!!! Everything works! Thank you so much everyone CIC module, Macro_Zoom code was the only way to add zoom mode on hitch reverse angle on LCI E70.

[330i ZHP]

Was the information I posted correct? I need to code mine.

Any help is appreciated

[Kormaster]

I had a local coder to help me on this issue. I couldnt do this on my own
