  #21
Old 02-11-2006, 07:24 PM
dkl's Avatar
dkl dkl is offline
Member

Join Date: Mar 2005
Location: Southern Cal
Posts: 2,949
dkl is on a distinguished road
The CD player does simply slide out as one piece. Although, I thought I ran into the same problem that you have described, but it just turned out that I had to loosened up the screws some more. The trick is that you have to keep turning those 2 screws (counterclockwise) below the CD player until they start making a "click"...that's when they are completely loose.
Reply With Quote

Sponsored Links

  #22
Old 02-11-2006, 07:34 PM
dkl's Avatar
dkl dkl is offline
Member

Join Date: Mar 2005
Location: Southern Cal
Posts: 2,949
dkl is on a distinguished road
Quote:
Originally Posted by avonside
Hi Ken,

Yes you have to take out the CD player aswell, there are two small allen screws, turn them anti clockwise untill they are loose and then slightly grip again.The most difficult job was removing the 3 pins from the aux harness plug, even with a small screw driver releasing the tiny pins they were quite tight to pull out, but be gentle and it is fine,but you might not need to do this.The instuctions with the kit explain why. .Feeding the cable down to the ash tray area is easy.I will take a picture and add it here later.PM me if you need any further help.
Steve
Steve,
I never realized that one would need to transfer the 3 pins (wires) over to the connector that was already installed behind the radio (CD player). I've always thought that it would just be "plug and play" using the connector that came with the kit. But luckily, I had some previous experience with removing/installing this type of pins/connectors...so it wasn't so bad.
Reply With Quote
  #23
Old 02-11-2006, 11:50 PM
avonside's Avatar
Member

Join Date: Jul 2005
Location: Stratford Upon Avon ,UK
Posts: 283
avonside is on a distinguished road
Thanx, yes I did it myself, took about 45 minutes.The aux input cable was $35 from crevier.


Quote:
Originally Posted by 5Xwen
Very nice aux install. Did you do this yourself or have it installed. What was the cost?
__________________
2005 Toledo Blue 3.0 Beige Lthr-sport-prem-clim-autodim mirrors;;
Mods so far; rear fog lights retro-fit,ractive oval tips,titanium grille set,OEM trailer hitch,mud flaps, aux audio input,non-smoker ash tray,sub-installation and a set of the 4.8is 20" replicas with cooper Zeon 4xS.Euro clear headlights & rear parking sensors.LPG Dual fuel convertion.Chrome bezel rings,Fitted uk cycle lighting board electric hook up,Sport wheel centre re-trimmed in Alcantara,
Still luvin the ride :
Reply With Quote
  #24
Old 02-11-2006, 11:59 PM
avonside's Avatar
Member

Join Date: Jul 2005
Location: Stratford Upon Avon ,UK
Posts: 283
avonside is on a distinguished road
How did you get on, where did you put the input in the end.Drilling the hole was ok,it was a 1/4" , just took it nice and carefull.
Taking out the pins was a bit of a pain, 1 was v easy, 1 was a little tight and the 3rd was a bas***d and it damaged a little .But they all went back in the connector behind the cd, I just wrapped some insulation tape around the 3 cables so they all stuck together,to stop the loose one not pushing out.
The Amp and sub project is still " in progress ", I am waiting till I get a quiet friday and then take the car to work on my dime and do the work in the workshop, it will be so much easier with all the tools, I also have the OEM hitch to fit and my Reactive tips to do,,,,, so many projects and so little time ( with 2 small children anyway !!!! ).
Steve.




Quote:
Originally Posted by dkl
Steve,
I never realized that one would need to transfer the 3 pins (wires) over to the connector that was already installed behind the radio (CD player). I've always thought that it would just be "plug and play" using the connector that came with the kit. But luckily, I had some previous experience with removing/installing this type of pins/connectors...so it wasn't so bad.
__________________
2005 Toledo Blue 3.0 Beige Lthr-sport-prem-clim-autodim mirrors;;
Mods so far; rear fog lights retro-fit,ractive oval tips,titanium grille set,OEM trailer hitch,mud flaps, aux audio input,non-smoker ash tray,sub-installation and a set of the 4.8is 20" replicas with cooper Zeon 4xS.Euro clear headlights & rear parking sensors.LPG Dual fuel convertion.Chrome bezel rings,Fitted uk cycle lighting board electric hook up,Sport wheel centre re-trimmed in Alcantara,
Still luvin the ride :
Reply With Quote
  #25
Old 02-13-2006, 01:35 AM
dkl's Avatar
dkl dkl is offline
Member

Join Date: Mar 2005
Location: Southern Cal
Posts: 2,949
dkl is on a distinguished road
Quote:
Originally Posted by avonside
How did you get on, where did you put the input in the end.Drilling the hole was ok,it was a 1/4" , just took it nice and carefull.
Taking out the pins was a bit of a pain, 1 was v easy, 1 was a little tight and the 3rd was a bas***d and it damaged a little .But they all went back in the connector behind the cd, I just wrapped some insulation tape around the 3 cables so they all stuck together,to stop the loose one not pushing out.
The Amp and sub project is still " in progress ", I am waiting till I get a quiet friday and then take the car to work on my dime and do the work in the workshop, it will be so much easier with all the tools, I also have the OEM hitch to fit and my Reactive tips to do,,,,, so many projects and so little time ( with 2 small children anyway !!!! ).
Steve.
Steve, I really wanted to put the jack in the same location as you did, but I didn't trust myself with the drill. Instead, I decided to hack into something that is somewhat more "disposable"...like the ashtray itself.
Attached Images

Reply With Quote
  #26
Old 02-13-2006, 03:10 AM
avonside's Avatar
Member

Join Date: Jul 2005
Location: Stratford Upon Avon ,UK
Posts: 283
avonside is on a distinguished road
Well done Ken, enjoy.What type of music player do you have.I would have done the " I pod your BMW " thing if I had one.But I am very happy with my Sony HD5 , the battery life is amazing, about 35 hrs and the songs are seamless when played back !!.
__________________
2005 Toledo Blue 3.0 Beige Lthr-sport-prem-clim-autodim mirrors;;
Mods so far; rear fog lights retro-fit,ractive oval tips,titanium grille set,OEM trailer hitch,mud flaps, aux audio input,non-smoker ash tray,sub-installation and a set of the 4.8is 20" replicas with cooper Zeon 4xS.Euro clear headlights & rear parking sensors.LPG Dual fuel convertion.Chrome bezel rings,Fitted uk cycle lighting board electric hook up,Sport wheel centre re-trimmed in Alcantara,
Still luvin the ride :
Reply With Quote
  #27
Old 02-13-2006, 03:19 AM
dkl's Avatar
dkl dkl is offline
Member

Join Date: Mar 2005
Location: Southern Cal
Posts: 2,949
dkl is on a distinguished road

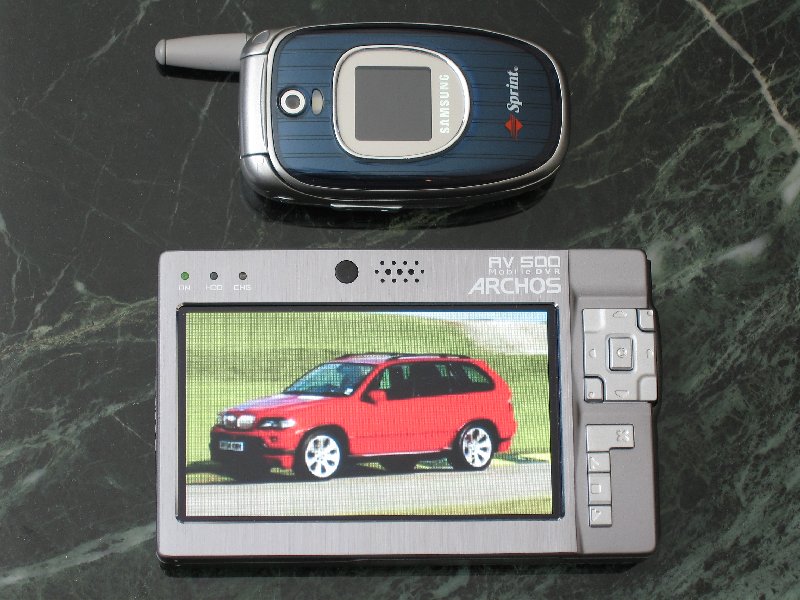

I have the Alpine MP3 6disc changer for the everyday commute, but for the longer trips...I'm using the archos AV500 => , which provides all of my albums at my fingertip.
Reply With Quote
  #28
Old 02-20-2008, 11:03 PM
Rearro's Avatar
Member

Join Date: Nov 2007
Location: Silverdale, Wa.
Posts: 34
Rearro is on a distinguished road
Can someone post step by step instruction on how to install the aux input?? I bought the cable but have absolutely no clue where to start???

Last edited by Rearro; 02-20-2008 at 11:36 PM.
Reply With Quote
  #29
Old 02-23-2008, 07:52 PM
Rearro's Avatar
Member

Join Date: Nov 2007
Location: Silverdale, Wa.
Posts: 34
Rearro is on a distinguished road
well, i GOT IT DONE! But i guess the hardest part was not knowing that the 3 aux cables that you end up taking off of the aux connecter actually go in to 1( the black one not the white one ) of two 12 pin connectors that are attached to the CD PLAYER NOT THE RADIO ITSELF.
I ended up running mine to the ash tray! Here are some pictures.




Last edited by Rearro; 02-23-2008 at 07:58 PM.
Reply With Quote
  #30
Old 06-14-2008, 10:40 AM
jmagne's Avatar
Member

Join Date: May 2008
Location: Montreal, QC
Posts: 29
jmagne is on a distinguished road
I installed my aux input today, decided to place it in the rear cause I don't like having cables around center console and because I often plug the portable DVD player for kids. (I have confort seats and panoramic sunroof, therefore no possibility to retrofit entertainment system)

The OEM cable is long enought to go through the center arm rest:

__________________
Jeremy
Reply With Quote
