  #1
Old 03-03-2006, 12:23 AM
UCrewX5's Avatar
co-founder

Join Date: Mar 2005
Location: Hockeytown, USA
Posts: 9,738
UCrewX5 has disabled reputation
Custom X5world V26 with Perspective View

For those that would like a copy of my customized V26 with fully enabled Perspective View (both in Direction of Travel and Point North modes) and a custom X5world splash screen (credit to datake for the base image) that looks like this:



This is a complete V26 image (not the V26 Beta) based on the original V26 files but it has a custom navboot file that enables the Perspective mode menus and has the custom X5world splash screen and settings screen.

A few notes on the upgrade, but first a reminder that there are risks to doing the upgrade on your own, so do so knowing that risk is present. Although rare, problems can occur if update steps aren't followed properly or there are issues with the media. Such conditions can cause problems with the nav drive which may not be recoverable.

- The image files have been zipped (compressed), so you will first need to un-zip them. I use a free program called TugZip, but there are other programs such as WinZip that will also do the trick.
- Once you have uncompressed the image files you will need to burn them to a CD-R using a program called Alcohol 120%, which is available as a free 30 day trial here - http://trial.alcohol-soft.com/en/download_120.php
- Burn the disk using a high quality CD-R disk at the lowest possible burning speed using these steps:
1. click on "image burning wizard" then click "browse" and find the folder that you extracted the two files to.
2. click on "bmw v26 X5world" (there's only one to choose) and click "open" it.
3. Under Image file information, it should list the two files. Click "Next"
4. If you didn't insert a high quality CD-R earlier, insert it and set the write speed at the slowest one (mine was 2x). Make sure the CD/DVD Recorder is set on the right drive.
5. Click "Start" and it should start burning. Once it reaches 100%, it'll be done and the disc will eject on its own.
- Once the disk is ready, follow these steps
1. Go to your vehicle and turn the ignition switch to the first position. Let the navigation system boot up and get into a normal operating mode.
2. Leaving the system on (never turn the power off during these steps!!), go back and eject the navigation CD from your drive unit.
3. Put in the V26 disk you created into your drive unit. Watch your screen and be patient. It says it will take about 6 minutes to do the upgrade, but it doesn't take that long. When it’s done it will eject the CD automatically.
4. Put your navigation CD back in the drive and make sure everything is working properly.

If you are already on V26 then you will have to downgrade to an older version such as V25 in order to do the V26 update with these custom enhancements. Note that doing a downgrade will put your nav drive into Euro mode (yards instead of feet and no accept screen).

Here's the link to the download - http://www.megaupload.com/?d=HXI7DHZL

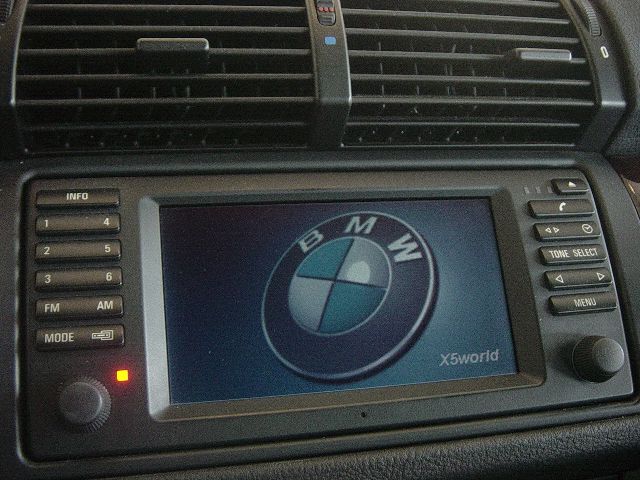

Splash Screen Photo (note, colors look better in person then on photo):

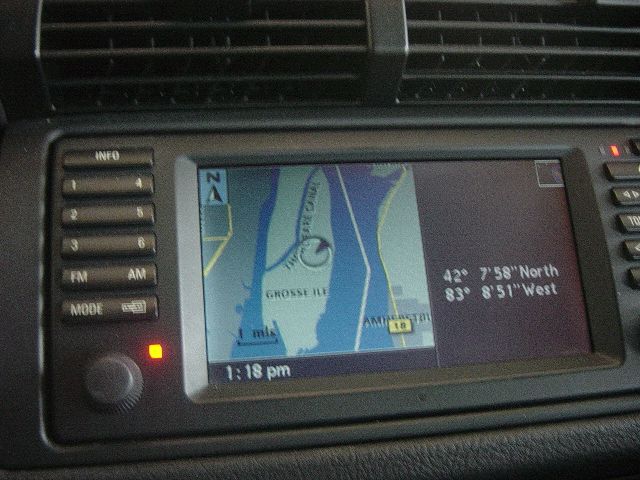

Pointing North - 2D:



Pointing North 3D (Perspective Mode):

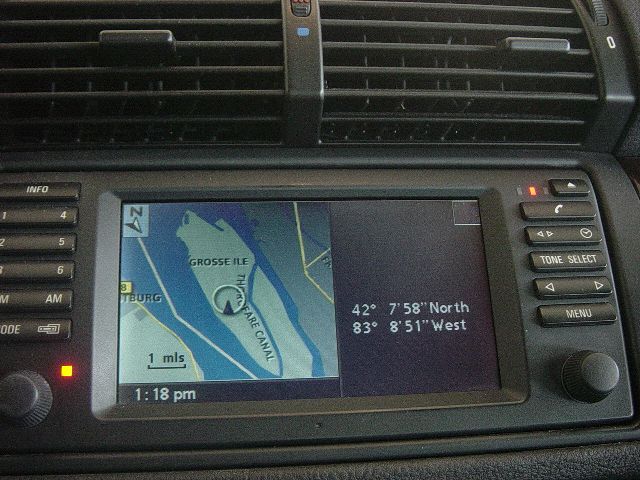

Direction of Travel 2D:

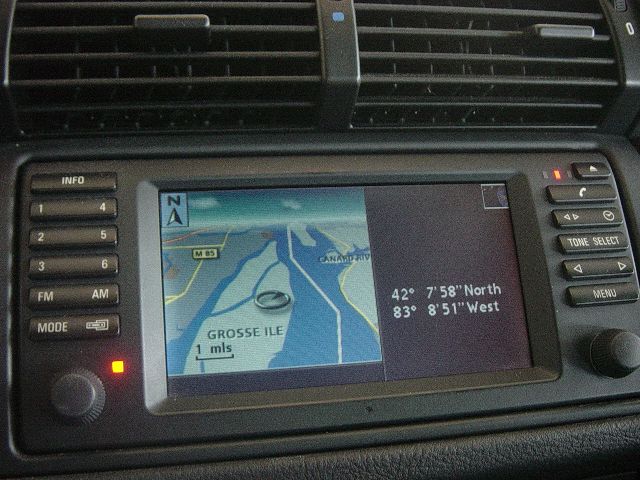

Direction of Travel 3D (Perspective Mode):


Enjoy!!
__________________

Xoutpost.com - where you come for the information but stay for the friendships

Sponsored Links

  #2
Old 03-03-2006, 12:26 AM
Member

Join Date: Apr 2005
Location: X5world
Posts: 473
ArtMan is on a distinguished road
Thanks, I am thinking about getting a nav so ill take this just in case. Thank you this is awsome!
  #3
Old 03-04-2006, 03:24 PM
Member

Join Date: Mar 2006
Location: Netherlands, The
Posts: 21
GordonW is on a distinguished road
Hello!

I just uploaded your software-version of V26 to my MK4 Nav-system.
I tryed a few things but i didn't find the 3D-mode option on the nav-screen.

How can I get there????

With kind regards,
Gordon
  #4
Old 03-04-2006, 04:07 PM
UCrewX5's Avatar
co-founder

Join Date: Mar 2005
Location: Hockeytown, USA
Posts: 9,738
UCrewX5 has disabled reputation
You change modes by selecting Pointing North or Direction of travel. For example, if you are in Pointing North 2D then selecting Pointing North again will bring up Pointing North 3D (3D = Perspective mode). Pressing Pointing North again will toggle it back to 2D.

The same holds true for Direction of Travel. If you are in Direction of Travel 2D mode then pressing Direction of Travel again will toggle you into 3D mode.
__________________

Xoutpost.com - where you come for the information but stay for the friendships
  #5
Old 03-04-2006, 04:11 PM
Member

Join Date: Mar 2006
Location: Netherlands, The
Posts: 21
GordonW is on a distinguished road
Thanx!!!
  #6
Old 03-06-2006, 01:30 PM
Member

Join Date: Feb 2006
Location: UK
Posts: 7
mikee is on a distinguished road
So just to confirm, downgrading to v25 and then using the above link to upgrade works ok with no bugs so far reported on this version?
  #7
Old 03-06-2006, 01:56 PM
UCrewX5's Avatar
co-founder

Join Date: Mar 2005
Location: Hockeytown, USA
Posts: 9,738
UCrewX5 has disabled reputation
Quote:
Originally Posted by mikee
So just to confirm, downgrading to v25 and then using the above link to upgrade works ok with no bugs so far reported on this version?
Yes, as far as I am aware of.
__________________

Xoutpost.com - where you come for the information but stay for the friendships
  #8
Old 03-06-2006, 03:00 PM
Member

Join Date: Mar 2006
Location: Netherlands, The
Posts: 21
GordonW is on a distinguished road
JEP! Downgrade to v25 and then use the above link to upgrade. Works ok with no bugs!

Good luck and happy upgrading. Nice peache og work by UCrewX5
  #9
Old 03-06-2006, 03:11 PM
Xtreme53's Avatar
Member

Join Date: Apr 2005
Location: Illinois
Posts: 46
Xtreme53 is on a distinguished road
I wish I had NAV just so I could use the X5World Splash Screen.
  #10
Old 03-06-2006, 03:16 PM
JV's Avatar
JV JV is offline
Member

Join Date: Mar 2005
Location: DC
Posts: 5,012
JV is on a distinguished road
I have the MkIV and I downgraded to v23 because I had it on hand for my old MkIII, then loaded this custom v26 and it worked fine. Thanks, Jeff!

JV
__________________
JV

What gets us into trouble is not what we don't know...it's what we know for sure that just ain't so
