2005 X3 stock BMW nav question

I have been reading the forums for the past week as I am trying to update the OS as well as the nav DVD. I currently have the 4-1/42 SW version 24.1 and I plan to upgrade to the latest v28. I also got the DVD disk w/ 2007.1 NA map. The question I have is where do I find the DVD-ROM. Should I insert it into the CD player? I have a 6-cd changer and the main cd-drive is below the nav attachment. The NAV system in my car is the pop-up type.

Sorry if these questions have been answered already, I tried searching but could not find anything specific to the pop-up Nav system in a X3. Any help is much appreciated. Thanks in advance.
Reply With Quote

Sponsored Links

  #2
Old 11-28-2006, 01:27 PM
davidr's Avatar
Member

Join Date: Mar 2006
Location: London UK
Posts: 117
davidr is on a distinguished road
The DVD player is in the trunk behind the flap on the left hand side as you look into the trunk. Press the button to remove the carpet panel. DVD drive is behind
Reply With Quote
  #3
Old 11-28-2006, 01:40 PM
davidr's Avatar
Member

Join Date: Mar 2006
Location: London UK
Posts: 117
davidr is on a distinguished road

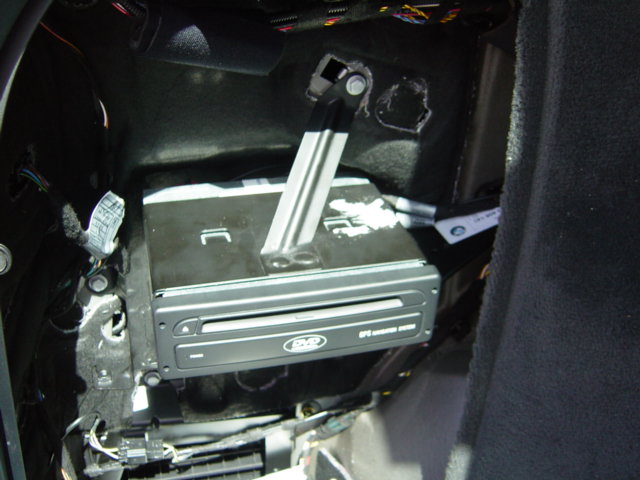

Picture of X3 DVD player

DVD player in trunk
Attached Images

Reply With Quote
  #4
Old 11-28-2006, 01:41 PM
Member

Join Date: Nov 2006
Location: Washington, D.C
Posts: 7
brainguy is on a distinguished road
Quote:
Originally Posted by davidr
The DVD player is in the trunk behind the flap on the left hand side as you look into the trunk. Press the button to remove the carpet panel. DVD drive is behind
Perfect....thanks davidr.

Should I remove the nav DVD before I update the OS? If so, can i put in the new DVD after I update the OS to v28. Thanks a lot for your help.
Reply With Quote
  #5
Old 11-28-2006, 05:00 PM
Member

Join Date: Nov 2006
Location: Washington, D.C
Posts: 7
brainguy is on a distinguished road
After having completed the upgrade and tested the 2007.1 NA DVD, I feel pretty stupid re-reading my above post. Guess it happens when this is your first BMW and you are learning the ropes!

Initially, I put the OS v28 update CD in the CD player and not the DVD Nav system. The CD player tried reading it but after a minute it went quiet. Fortunately when I hit the eject button the CD came out.

I popped the trunk and based on davidr's picture above and directions (which were awesome..thanks again davidr!) I found the DVD-ROM NAV in the trunk. I removed the DVD and popped the OS update CD and the update went smoothly and completed in 2 mts and 50 seconds (yes I counted!).

After the update completed, the screen had a message asking me to remove the update CD and hit OK. You don't have to eject the CD, if the upgrade is successful the CD automatically ejects itself. I removed the CD and hit OK. The system rebooted in around 30 seconds and asked me to insert the CD/DVD into the NAV system. I popped the newly burnt 2007.1 North American version DVD and it read the maps automatically.

I noticed that the rendering is much smoother and the colors are more pleasant. I am going to see how this works out when I go on my 300 mile trip within the next couple of weeks.

Just wanted to post my experience so that someone else like me may find it useful. This forum is absolutely wonderful! Thanks all.
