  #11
Old 12-20-2018, 06:11 PM
Member

Join Date: Mar 2016
Location: Saskatchewan Canada
Posts: 844
80stech is on a distinguished road
I guess there needs to some dead band so that people don't see the gauge fluctuating as the DME changes running temp with heated thermostat. I assume 10 deg buffer is still enough though?
__________________
1988 325is (purchased new)
2004 X5 3.0 (new to me) 2005 X3 2.5 (new to wife)
Reply With Quote

Sponsored Links

  #12
Old 12-20-2018, 06:19 PM
Overboost's Avatar
//Binary is in my DNA

Join Date: Apr 2006
Location: Huntersville, NC
Posts: 1,457
Overboost is on a distinguished road
Quote:
Originally Posted by 80stech View Post
I guess there needs to some dead band so that people don't see the gauge fluctuating as the DME changes running temp with heated thermostat. I assume 10 deg buffer is still enough though?

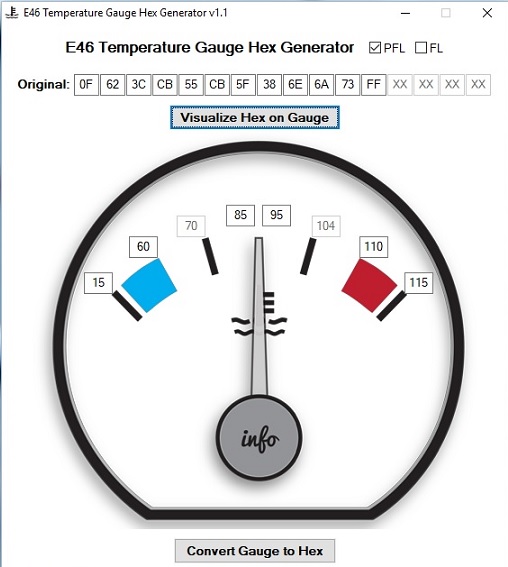

My gauge sits straight up at 90C. If I jump on the throttle, the DME sends a signal to the heated thermostat and the temperature will drop as much as 10C. My gauge reflects that just as I would expect. It moves a little to the left. I now have a actual accurate gauge the way I want it. Plus, with my recommended hex code the red is now 115C and gives me more than enough time to shut it down if I have an overheating event long before the engine is hurt.
Attached Images

__________________
  • 2004 E53 X5 3.0 ZSP (4/04 build date) Jet Black exterior/Sand Beige interior
  • 2002 E46 325i ZPP (2/02 build date) Alpine White exterior/Hell Beige interior

Digital Competition Systems
The older I get... The faster I was...
No Fear


Reply With Quote
  #13
Old 12-20-2018, 07:17 PM
Overboost's Avatar
//Binary is in my DNA

Join Date: Apr 2006
Location: Huntersville, NC
Posts: 1,457
Overboost is on a distinguished road
Make sure to look for the code in both these lines of your Gauge EEPROM hex code 80stech:

0x0F0 rolling into 0x100
0x290 rolling into 0x02A0

And here are is the original hex code with the modified hex code underneath. Just change the ones in bold:

0F 65 32 D0 4B D0 73 38 78 69 7D FF
0F 65 3C D0 55 D0 5F 38 6E 69 73 FF
__________________
  • 2004 E53 X5 3.0 ZSP (4/04 build date) Jet Black exterior/Sand Beige interior
  • 2002 E46 325i ZPP (2/02 build date) Alpine White exterior/Hell Beige interior

Digital Competition Systems
The older I get... The faster I was...
No Fear


Reply With Quote
  #14
Old 12-20-2018, 09:47 PM
Member

Join Date: Mar 2016
Location: Saskatchewan Canada
Posts: 844
80stech is on a distinguished road
K, got it! I needed to use the binoculars! Cheers

I guess no checksum needed with redundant code. Good learning experience though for down the road.
__________________
1988 325is (purchased new)
2004 X5 3.0 (new to me) 2005 X3 2.5 (new to wife)
Reply With Quote
  #15
Old 12-20-2018, 10:53 PM
Overboost's Avatar
//Binary is in my DNA

Join Date: Apr 2006
Location: Huntersville, NC
Posts: 1,457
Overboost is on a distinguished road
__________________
  • 2004 E53 X5 3.0 ZSP (4/04 build date) Jet Black exterior/Sand Beige interior
  • 2002 E46 325i ZPP (2/02 build date) Alpine White exterior/Hell Beige interior

Digital Competition Systems
The older I get... The faster I was...
No Fear


Reply With Quote
  #16
Old 12-20-2018, 10:56 PM
Member

Join Date: May 2018
Location: NYC
Posts: 886
mr_robot is on a distinguished road
This is for 3.0 and 4.4 only correct?


Sent from my iPhone using Tapatalk Pro
__________________
2005 Imola 4.8iS
Reply With Quote
  #17
Old 12-20-2018, 10:59 PM
Overboost's Avatar
//Binary is in my DNA

Join Date: Apr 2006
Location: Huntersville, NC
Posts: 1,457
Overboost is on a distinguished road
Quote:
Originally Posted by mr_robot View Post
This is for 3.0 and 4.4 only correct?


Sent from my iPhone using Tapatalk Pro
I would think the gauge is the gauge. I have not done it personally on anything other than the M54 but if you can get us some screenshots of your gauge EEPROM, we can have a look.
__________________
  • 2004 E53 X5 3.0 ZSP (4/04 build date) Jet Black exterior/Sand Beige interior
  • 2002 E46 325i ZPP (2/02 build date) Alpine White exterior/Hell Beige interior

Digital Competition Systems
The older I get... The faster I was...
No Fear


Reply With Quote
  #18
Old 12-21-2018, 12:16 AM
Member

Join Date: Mar 2016
Location: Saskatchewan Canada
Posts: 844
80stech is on a distinguished road
So with your numbers the red lite comes on at 115 not 110 right?
__________________
1988 325is (purchased new)
2004 X5 3.0 (new to me) 2005 X3 2.5 (new to wife)
Reply With Quote
  #19
Old 12-21-2018, 12:19 AM
andrewwynn's Avatar
Member

Join Date: Jun 2015
Location: Racine, WI
Posts: 3,428
andrewwynn is on a distinguished road
I want to do this fix asap! The moronic non gauge is one of the worst things ever. I drove my car months never getting to closed loop because the needle pointed to noon and the temp was 74c!


Sent from my iPhone using Tapatalk Pro
__________________
E53 / M54 2001 3.0i gas LHD (pair of them: his & her)
Reply With Quote
  #20
Old 12-21-2018, 12:27 AM
Overboost's Avatar
//Binary is in my DNA

Join Date: Apr 2006
Location: Huntersville, NC
Posts: 1,457
Overboost is on a distinguished road
Quote:
Originally Posted by 80stech View Post
So with your numbers the red lite comes on at 115 not 110 right?
I think the red light comes on at a value from the DME (that has not been modified) but it is too late at that point. My drop dead red marker on the gauge comes on at 115C instead of 125C. (50 degrees F)
__________________
  • 2004 E53 X5 3.0 ZSP (4/04 build date) Jet Black exterior/Sand Beige interior
  • 2002 E46 325i ZPP (2/02 build date) Alpine White exterior/Hell Beige interior

Digital Competition Systems
The older I get... The faster I was...
No Fear


Reply With Quote
