Yet another gearbox (maybe) problem and torque converter compatability US/EUR

Hello to all,

BMW X5 E53, 4.4l, 2001 year, EUR version, LHD with the following VIN Number - WBAFB31000LP01783

From the 1 000 000 threads I read about the ZF 5HP24 I read and torque issues I couldn't find anything matching my issue.
Long story short - my torque was refurbished some 15000 km ago because of hard kicking, cable harness replaced, oil flushed, soft updated.

Afterwards the gearbox temps were still somewhat high and after a longer drive it didn't quite downshift so smoothly as it should.

So I put in a B&M cooler to serve as an additional cooler. It did improve the overall work of the gearbox, temps are now ok.

However, after a longer drive a noise appears more like a howl from a huge fan, its goes louder with rpm increase. This noise appears only after 15+min of driving.No slipping, no kicking, no power loss. Noise is most audible in the lower revs - 1500-300, afterwards the engine is too loud (stripped cats)

When the car is cold it all runs smooth as butter.

I don't have any kicking now, but this noise increased over the last 15 000 km, especially when driving uphill in the mountains.

All of this leads me to believe the torque will die soon and I should get it replaced, before it kills my gearbox as well.

Has someone else experienced similar issues only when car is warmed up?

And for the part in question - https://www.carid.com/dacco/automati...8&url=13111841

This torque should fit theoretically. I asked the support and gave them my Vin number - they said their product is a 100% match for the US version, but can not guarantee for EU.

Could someone tell if there are any differences in the ZF gearboxes/torques between US/EU markets?

Any help is much appreciated.
Best regards
Reply With Quote

Sponsored Links

  #2
Old 02-09-2019, 11:10 AM
Member

Join Date: Jan 2011
Location: Blackburn UK
Posts: 334
RRPhil is on a distinguished road

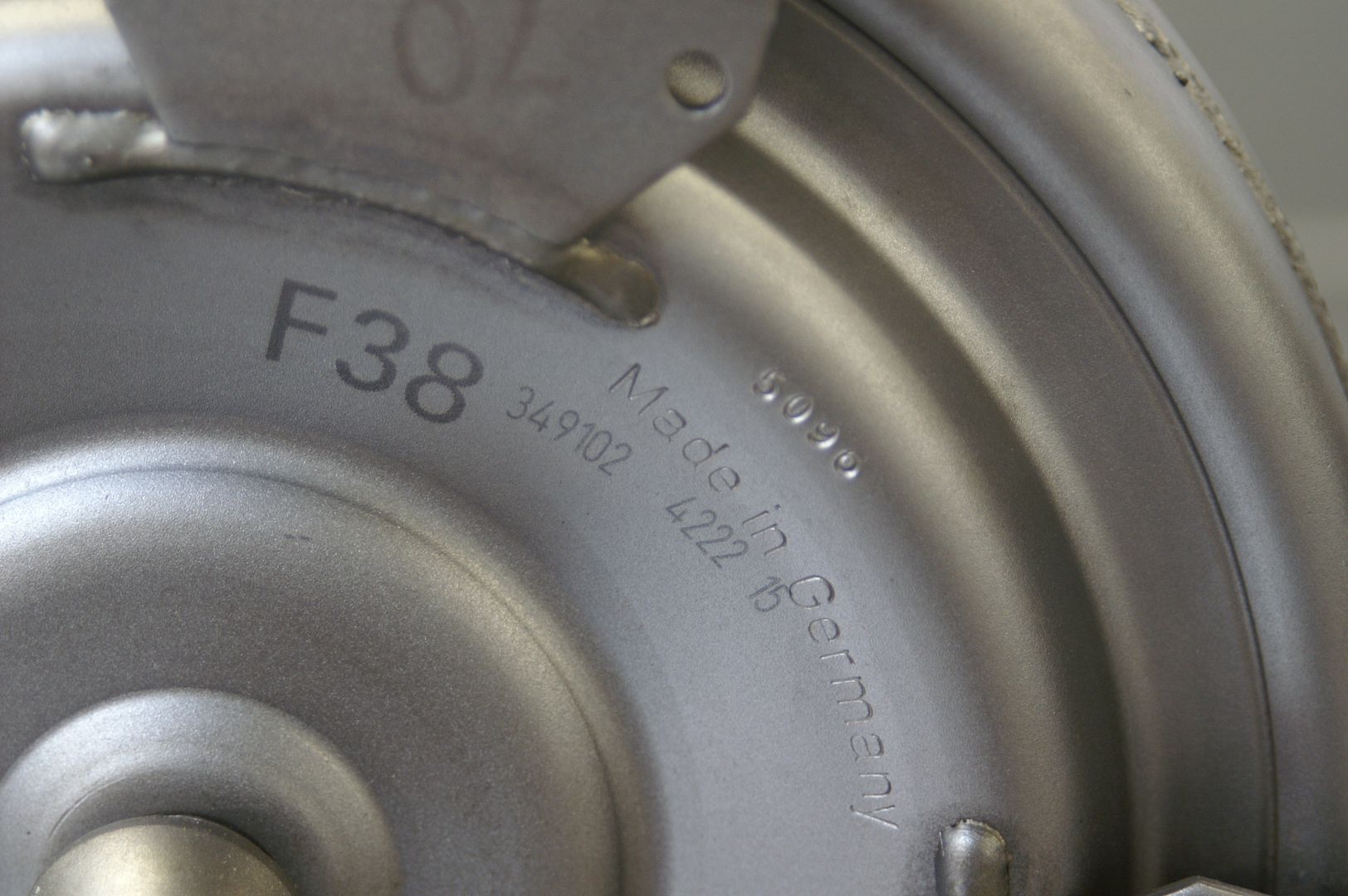

Mechanically the transmission and torque converter are identical for Europe and the USA. The transmission ECUs may be different as calibrations may change between territories. Your transmission uses a SACHS WA4/W260 S-2GWK torque converter which is identified as either an F38 or an A85 (doesn’t matter which). The identical torque converter is used in the L322 Range Rover with the 4.4i M62 engine.





The 4.6iS has a different (280mm) converter.

Sorry, but I can’t open the link.

Phil
Reply With Quote
  #3
Old 02-10-2019, 04:50 PM
Member

Join Date: May 2017
Location: Bulgaria
Posts: 3
gadden is on a distinguished road
Thanks a lot for the detailed info!

Dacco® - Automatic Transmission Torque Converter
2001 BMW X5 Fits Following Model(s):4.4L

Specifications:
Bolt Pattern: 10.500"
Converter type: Lock-up
Hub Type: SlottedMounting
Style: 4 pads
OEM Replacement: D21, F38, F39, 157 102
Pilot Diameter: 1.257"
Ring Gear Tooth Count: NoneSpline
Count: 27
Stud Count: NoneThread
Size: 10 mm x 1.5Weight: 41.00lbs

According to these specs (taken form the website) it should match... Realoem also shows mine to be F38. Guess i'll buy it and hope for the best.

Does anyone have any experience with Dacco products?

Regards
Reply With Quote
