Cat issues , any thoughts??

Hello crew! Well, I have been chasing down, what my wife was certain was , a heat shield rattle in my rear header (I have the m54b30 3 litre engine)
I couldnít find anything that would rattle while I was underneath, no steering lines, no pebble stuck on a muffler, no nothing!!!
Last night I pulled the top o2 sensor and saw that the top of the cat was nearly covered ( maybe 80% covered) with this white hard crust! I attached the camera to a pic, and tried to pick away at it, but it was pretty solid!!
Iím figuring the cats are toast (after 350,000km!!!)
Probably going to get an aftermarket set odd eBay or so!!
Is my predicament normal?? Any other Ďhigh milersí have to replace the headers??
My fuel mileage is consistent around 12-12.5 litres per 100km
Iíll attach photos once I resize them
__________________
2003 X5 3.0i (02/2003) sport package, Sapphire black metallic / Black Dakota Sport seats. compass mirror retrofit, trailer hitch retrofit, Prodigy P2 trailer brake controller installed, PDC retrofit, Lumbar support retrofit. heated rear seats retrofitted. Running boards retrofitted and subwoofer install in progress. 4.8is Brakes installed front and back. Bluetooth TCU installed, Rear Fog lights installed. Retrofitted reclining rear seat backs.
Reply With Quote

Sponsored Links

  #2
Old 09-26-2019, 08:15 PM
Premier Member

Join Date: Apr 2019
Location: Boston, MA
Posts: 39
Effduration is on a distinguished road
If you are not getting a code related to cat efficiency I would not replace a cat. My e39 with same engine has 400k miles. I am getting occasional Cat error codes, but I will try the rear 02 threaded spacers to solve that problem.

I suppose if the rattle was loud and obviously a piece of broken cat material, I might replace it.

Last edited by Effduration; 09-27-2019 at 07:49 AM.
Reply With Quote
  #3
Old 09-26-2019, 08:50 PM
Member

Join Date: Aug 2013
Location: Abbotsford BC CANADA
Posts: 311
RFaber is on a distinguished road

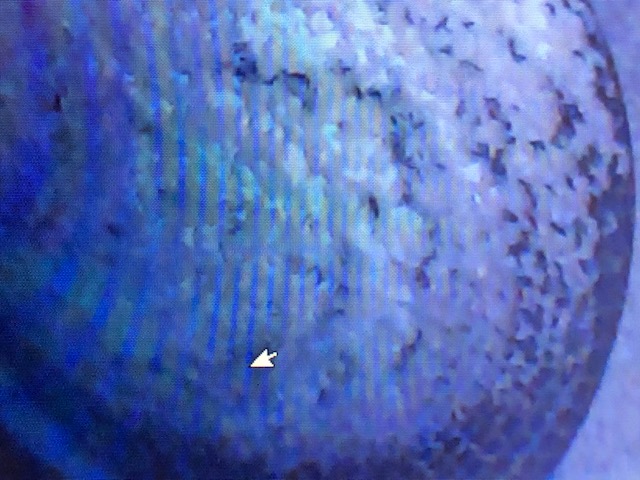

Here is a photo of what Iím looking at, this is the cat as viewed through the o2 sensor hole
Attached Images

__________________
2003 X5 3.0i (02/2003) sport package, Sapphire black metallic / Black Dakota Sport seats. compass mirror retrofit, trailer hitch retrofit, Prodigy P2 trailer brake controller installed, PDC retrofit, Lumbar support retrofit. heated rear seats retrofitted. Running boards retrofitted and subwoofer install in progress. 4.8is Brakes installed front and back. Bluetooth TCU installed, Rear Fog lights installed. Retrofitted reclining rear seat backs.
Reply With Quote
  #4
Old 10-01-2019, 04:09 PM
srmmmm's Avatar
Member

Join Date: Jun 2013
Location: DFW, Texas
Posts: 815
srmmmm is on a distinguished road
I'm at 590,000KM on the original convertors with no error codes on them. But I only use Shell gasoline and no fuel system additives.


2002 X5 3.0 367,000 miles
2014 428i 65,000 miles


2004 325i Sold at 123,600 miles
2001 325i Sold at 66,000 miles


1970 Firebird Under restoration
Reply With Quote
  #5
Old 10-01-2019, 06:25 PM
bcredliner's Avatar
.1 decrease 0-60 time = $1000 & DIY

Join Date: Jun 2008
Location: Little Elm,Texas. (40 minutes North of Dallas)
Posts: 6,939
bcredliner is on a distinguished road
When is the rattle heard? Over bump, accelerating, etc. There should be error code for bad cat. Have you checked for codes?
__________________
X5 4.6 2002 Black Sap, Black interior. 2013 X5M Melbourne Red, Bamboo interior
Dallas
Reply With Quote
  #6
Old 10-02-2019, 01:45 PM
Member

Join Date: Aug 2013
Location: Abbotsford BC CANADA
Posts: 311
RFaber is on a distinguished road
No codes, I had a misfire code last summer, while hauling my trailer up a pretty good size mountain pass. Changed plugs and all the ignition coils. It’s been good since! O2 sensors seem to be outputting proper values, I use mid grade - 89 or premium -91
The rattle is at startup, and while idling, I don’t hear it during highway driving,
I’ve gone underneath and it’s coming from the rear cat just before the pipe bends to travel to the rear. It’s not a heat Shield, I’m suspecting the packing material around the cat has shifted and allowing the rattle, the cats looked plugged. So I’m changing both! And I may do my valve stem seals, and possibly the head gasket depending how the exhaust bolts come out!!!
__________________
2003 X5 3.0i (02/2003) sport package, Sapphire black metallic / Black Dakota Sport seats. compass mirror retrofit, trailer hitch retrofit, Prodigy P2 trailer brake controller installed, PDC retrofit, Lumbar support retrofit. heated rear seats retrofitted. Running boards retrofitted and subwoofer install in progress. 4.8is Brakes installed front and back. Bluetooth TCU installed, Rear Fog lights installed. Retrofitted reclining rear seat backs.

Last edited by RFaber; 10-02-2019 at 02:12 PM.
Reply With Quote
  #7
Old 10-02-2019, 05:44 PM
Member

Join Date: Nov 2014
Location: SF Bay Area
Posts: 882
oldskewel is on a distinguished road
Quote:
Originally Posted by RFaber View Post
No codes, I had a misfire code last summer, while hauling my trailer up a pretty good size mountain pass. Changed plugs and all the ignition coils. Itís been good since! O2 sensors seem to be outputting proper values, I use mid grade - 89 or premium -91
The rattle is at startup, and while idling, I donít hear it during highway driving,
Iíve gone underneath and itís coming from the rear cat just before the pipe bends to travel to the rear. Itís not a heat Shield, Iím suspecting the packing material around the cat has shifted and allowing the rattle, the cats looked plugged. So Iím changing both! And I may do my valve stem seals, and possibly the head gasket depending how the exhaust bolts come out!!!
Definitely possible to get the exhaust manifolds off with the head still installed. I did that on my M54B30 last summer. That task was one of the tougher parts of the whole experience, but definitely done. If you search for posts of mine, I think I mentioned the difficulties, and maybe tricks I did to get it done. So I would definitely not be looking to do a head gasket just because it's tough to get the exhaust manifolds off.

Good luck on the work.
__________________
2001 X5 3.0i, 190k miles, AT, owned since 2014
Reply With Quote
  #8
Old 10-02-2019, 07:35 PM
Member

Join Date: Aug 2013
Location: Abbotsford BC CANADA
Posts: 311
RFaber is on a distinguished road
Thanx, I did read your posts, I figure if I break a bolt or two, the head will probably have to come off for me to drill out the broken bolts!! Iím no stranger to this sort of work, I would just rather not have to!! Unless of course the white residue is caused by a coolant leak into the exhaust! Wish me luck! My new cats/headers are on the way!!! Iíll post ability my experience once Iím done! Thanx!!
__________________
2003 X5 3.0i (02/2003) sport package, Sapphire black metallic / Black Dakota Sport seats. compass mirror retrofit, trailer hitch retrofit, Prodigy P2 trailer brake controller installed, PDC retrofit, Lumbar support retrofit. heated rear seats retrofitted. Running boards retrofitted and subwoofer install in progress. 4.8is Brakes installed front and back. Bluetooth TCU installed, Rear Fog lights installed. Retrofitted reclining rear seat backs.
Reply With Quote
  #9
Old 10-03-2019, 07:16 AM
Premier Member

Join Date: Apr 2019
Location: Boston, MA
Posts: 39
Effduration is on a distinguished road
Are you using stock, OEM cats/ exhaust manifolds?
Reply With Quote
  #10
Old 10-03-2019, 09:38 AM
Member

Join Date: Jul 2015
Location: Ohio
Posts: 103
iansanderson is on a distinguished road
Quote:
Originally Posted by RFaber View Post
Here is a photo of what Iím looking at, this is the cat as viewed through the o2 sensor hole
Based on that pic, that cat is becoming clogged from what looks like deposits. Misfires, and low engine output are in your near future. Rockauto has a bunch of aftermarket options. My cats on my 04 went around ~150K mi with a P0422 catalyst inefficiency. I think I paid $800/ea for OEM, and just did both "while you're in there" since they both had to come out anyways
