  #11
Old 08-30-2020, 05:15 PM
Member

Join Date: Feb 2020
Location: Cornwall, UK
Posts: 90
Redraptor141 is on a distinguished road
Good Point WPoll.

I’ve never had an issue but i use hose with a large ID/OD wall. So definitely something to consider

Yeh I would definitely suggest buying one of the pumps above. So useful with all the bloody plumbing on cars these days. And cheap as well. I was just trying to suggest ways of testing if the OP didn’t have one.

I would say my 535d had the exact same symptoms as yours and it turned out to be a combination of vacuum leaks and a duff solenoid. FYI the solenoids are 29 on eBay here in the U.K. I would try to get a Pierberg one if you do need one as I believe that was the original manufacturer.
__________________
E53 3.0d Sport 119,000 Miles
E61 535d Estate - Hybrid turbos and Dark-side intercooler...389hp,792nm

Last edited by Redraptor141; 08-30-2020 at 05:21 PM.
Reply With Quote

Sponsored Links

  #12
Old 08-30-2020, 05:32 PM
Member

Join Date: Feb 2020
Location: Cornwall, UK
Posts: 90
Redraptor141 is on a distinguished road
https://youtu.be/dkPuEmwP4oQ

Worth a punt if you suspect the solenoid. I’ve done this same thing on a Mercedes one a couple years back and it still works now.
__________________
E53 3.0d Sport 119,000 Miles
E61 535d Estate - Hybrid turbos and Dark-side intercooler...389hp,792nm
Reply With Quote
  #13
Old 09-02-2020, 04:32 PM
Member

Join Date: Jul 2018
Location: Noway
Posts: 55
norway2 is on a distinguished road
Thank you very much for good suggestions and help so far, have now had the vacuum hoses checked except for those marked yellow in the attached picture because they were difficult to follow because they were hidden under the manifold and miscellaneous. Can leakage in that part of the hoses lead to reduced power on the engine and a lot of smoke from the exhaust? Seems to me that it will be a lot of work to replace them
Attached Images

Reply With Quote
  #14
Old 09-02-2020, 04:53 PM
wpoll's Avatar
Member

Join Date: Sep 2015
Location: South Island, New Zealand
Posts: 3,436
wpoll will become famous soon enough
Quote:
Originally Posted by norway2 View Post
Thank you very much for good suggestions and help so far, have now had the vacuum hoses checked except for those marked yellow in the attached picture because they were difficult to follow because they were hidden under the manifold and miscellaneous. Can leakage in that part of the hoses lead to reduced power on the engine and a lot of smoke from the exhaust? Seems to me that it will be a lot of work to replace them
Parts labelled 2b & 2c in the above diagram are easy to get at - they are the EGR components and are not under the intake manifold. The pressure modulator/converter unit 2a IS under the intake manifold, so harder to test.

Parts associated with "3" (3a, 3b & 3c) are not fitted to the e53 platform - they control the radiator flaps on the e46 only.
__________________
Wayne
2005 BMW X5 3.0d (b 02/05)
2001 BMW F650GS Dakar (b 06/01)

Last edited by wpoll; 09-02-2020 at 08:19 PM.
Reply With Quote
  #15
Old 09-05-2020, 04:52 PM
Member

Join Date: Jul 2018
Location: Noway
Posts: 55
norway2 is on a distinguished road
Hi
Thank you for taking the time to provide such a comprehensive answer, which has been of great help
Took off the manifold today and got the vacuum hoses checked properly and it turned out that there was a small crack in the hose from the vacuum tank to the split located under the manifold, changed the hose and got back the engine power that was missing :-)

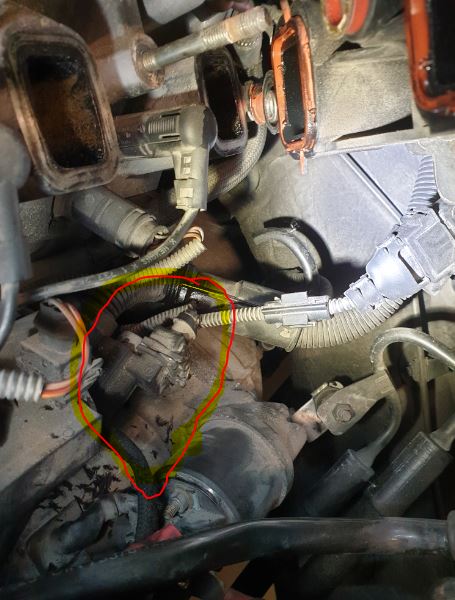

When I had the manifold I also saw another part that had a bad hose, when I googled part number I got up pressure converter exhaust control and the hose that was bad went down to the bottom of the engine somewhere, will check closer tomorrow but is does anyone know where this goes and if it has an important function? This may well have something to do with the fact that I got so much smoke from the exhaust
Attached Images

Reply With Quote
  #16
Old 09-05-2020, 05:41 PM
Member

Join Date: Jan 2013
Location: Finland
Posts: 548
Clavurion is on a distinguished road
If the vacuum hose was with red stripe it's for engine supports.

https://www.realoem.com/bmw/enUS/sho...diagId=22_0076
__________________
E39 530dA -02 M-Sport Messing metallic
E53 X5 3.0dA -06 Sport Stratus grey
Reply With Quote
  #17
Old 09-10-2020, 03:26 AM
Member

Join Date: Jul 2018
Location: Noway
Posts: 55
norway2 is on a distinguished road
Changed the vacuum hose today, it went down to a split and on to the engine mounts, even though I changed the hose which was bad I am bothered that the whole car shakes a bit when it idles low and stands still (almost like sitting on a bus :-). When the engine is cold it does not shake, expect the engine mounts to be bad but it was difficult to get them checked properly since they were mounted quite inaccessible. Tried to blow in the hose that goes down to the engine mounts and it did not seem to be resistance.
Has regained the power in the engine but still smokes a lot at start-up and for a few seconds afterwards and then the smoke disappears again
Reply With Quote
  #18
Old 09-14-2020, 04:41 PM
Member

Join Date: Jul 2018
Location: Noway
Posts: 55
norway2 is on a distinguished road
Hi
I still have problems with the engine, the turbo has regained a lot of power after reeration of vacuum hoses but still runs rough, mostly when it is hot. I now think that injector no. 5 is bad, when I disconnect power to the injector when the engine is cold I hear a difference in how the engine runs, but when I do the same when the engine is hot I hear no difference. has anyone experienced this before ??
Is it necessary to code injector if i replace it?
Reply With Quote
  #19
Old 09-14-2020, 05:01 PM
wpoll's Avatar
Member

Join Date: Sep 2015
Location: South Island, New Zealand
Posts: 3,436
wpoll will become famous soon enough
Quote:
Originally Posted by norway2 View Post
Hi
I still have problems with the engine, the turbo has regained a lot of power after reeration of vacuum hoses but still runs rough, mostly when it is hot. I now think that injector no. 5 is bad, when I disconnect power to the injector when the engine is cold I hear a difference in how the engine runs, but when I do the same when the engine is hot I hear no difference. has anyone experienced this before ??
Is it necessary to code injector if i replace it?
Do you have any software that can diagnose the issue? INPA works well in this case, with diagnosis tools like Selective Mass Adjustment etc...



This can help you track down an injector issue, such as injector #2 in the image above (not my car!)

And yes, if you replace an injector, it must be coded in the DDE.

https://www.newtis.info/tisv2/a/en/e...-lines/45TwIED

I think the adjustment steps refer to BMWs DIS diagnostics system, although I think it can also be done in INPA, ISTA-P etc.
__________________
Wayne
2005 BMW X5 3.0d (b 02/05)
2001 BMW F650GS Dakar (b 06/01)
