Trans Failsafe

[haigha]

On the N62 transmission, there's a small part in the valve body that has to be set correctly when re-assembling it for gear selection to work properly. X5only ran into this issue when putting his back together. I don't know if it would cause the issue you're seeing if it has the same feature and isn't seated correctly.

[Purplecty]

Originally Posted by andrewwynn

How's the trans connector look? It should have just been reconnected but if was dirty and not cleaned I've seen similar

Trans connector is clean!

[andrewwynn]

The setback of the main plug i think can be not inn the right groove and the pins won't all make contact. I've seen that before and it will give similar crazy gear selection values


Sent from my iPhone using Tapatalk Pro

[Purplecty]

Originally Posted by andrewwynn

With the scanner you should be able to monitor the L-pins value and compare to a chart of what they should be.

You mean the expected solenoid ohms? I have this from a range rover thread but no failsafe and the trans is in neutral when the expected selected gear indicator on the cluster goes unlit

[Purplecty]

Originally Posted by andrewwynn

The setback of the main plug i think can be not inn the right groove and the pins won't all make contact. I've seen that before and it will give similar crazy gear selection values


Sent from my iPhone using Tapatalk Pro

How is this adjusted? It seems as if the selector switch or cable is off by a hair but its been adjusted.

[RRPhil]

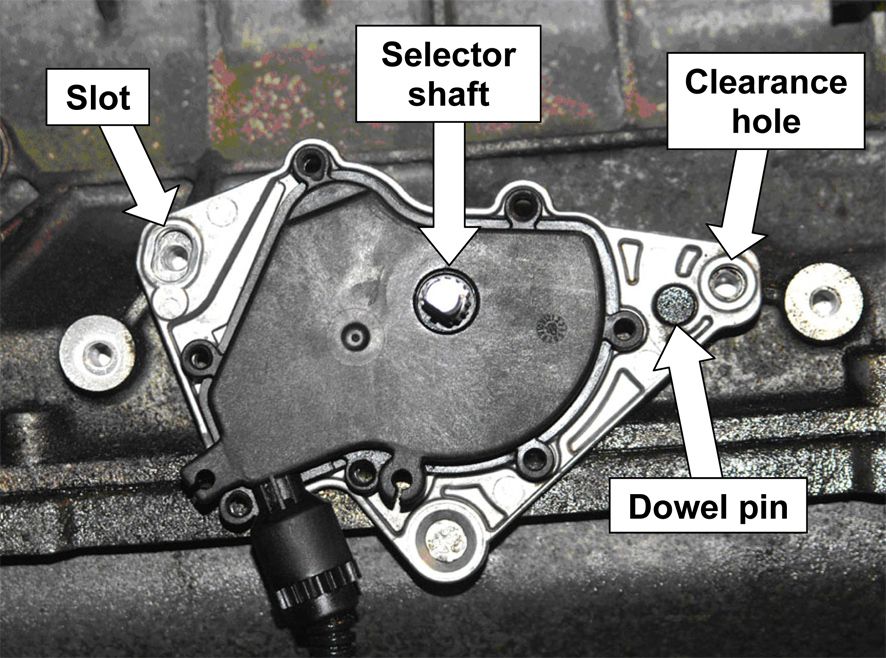

The inhibitor switch is dowelled into a fixed position on the casing. The cable is the only adjustment.



Unlike with the GM 5L40-E, where the inhibitor/gear position switch is inside the transmission and therefore the 20-pin connector also carries the L1-4 signals, the 5HP24 has a separate connector for this (& therefore only needs a 16-pin connector at the back of the casing) where you can test the signal.



https://xoutpost.com/844101-post2.html

Phil

[Purplecty]

Originally Posted by RRPhil

The inhibitor switch is dowelled into a fixed position on the casing. The cable is the only adjustment.







Unlike with the GM 5L40-E, where the inhibitor/gear position switch is inside the transmission and therefore the 20-pin connector also carries the L1-4 signals, the 5HP24 has a separate connector for this (& therefore only needs a 16-pin connector at the back of the casing) where you can test the signal.







https://xoutpost.com/844101-post2.html



Phil

Thanks Phil! I guess I can take another stab at more cable adjusting...

[andrewwynn]

I forgot the v8 uses separate connector for L1-4. See if your scanner will let you monitor those values real-time. I'm looking for the chart that shows which pins are engaged for which gear but in the meantime:


http://jagrepair.com/images/AutoRepa...r%20Manual.pdf


Sent from my iPhone using Tapatalk Pro

[andrewwynn]

That took way too long to find.

If you can get the L1-4 on your scanner you can compare.

If they don't match suggests the selector switch, wiring or connector likely at fault. As R Phil mentioned you can measure right at the selector switch connector just need to determine which pins are L1-4 and if 1-0 are referenced to ground or hot.

[Purplecty]

This Andrew? I have INPA / ISTA / DIS so im sure one of those can hepp
