Lighting (Angel Eyes) wiring for factory switched operation.

On the LCM (located in the passenger's right kick panel)

Look at the top connector.

Fourth pin down on the left side is a brown wire with white stripe.

This is the +12V tap for the relay's trigger wire, so that your lights (Angel Eyes) will come on with the running (parking) lights.
__________________
Previously owned: '03 4.6iS Dinan Supercharged

Last edited by J.Belknap; 12-29-2010 at 06:23 PM.
Reply With Quote

Sponsored Links

  #2
Old 10-23-2009, 04:17 PM
J.Belknap's Avatar
Member

Join Date: Feb 2009
Location: NY
Posts: 2,001
J.Belknap is on a distinguished road
Here are details specifically for DEPO (speedster source) pre-facelift Angel Eye installs.

1) This is where your trigger wire (red with white stripe) goes. Fourth pin down on the left is the brown/white wire. Tie it in as mentioned in my first post.

http://img.photobucket.com/albums/v1...lknap/LCM1.jpg

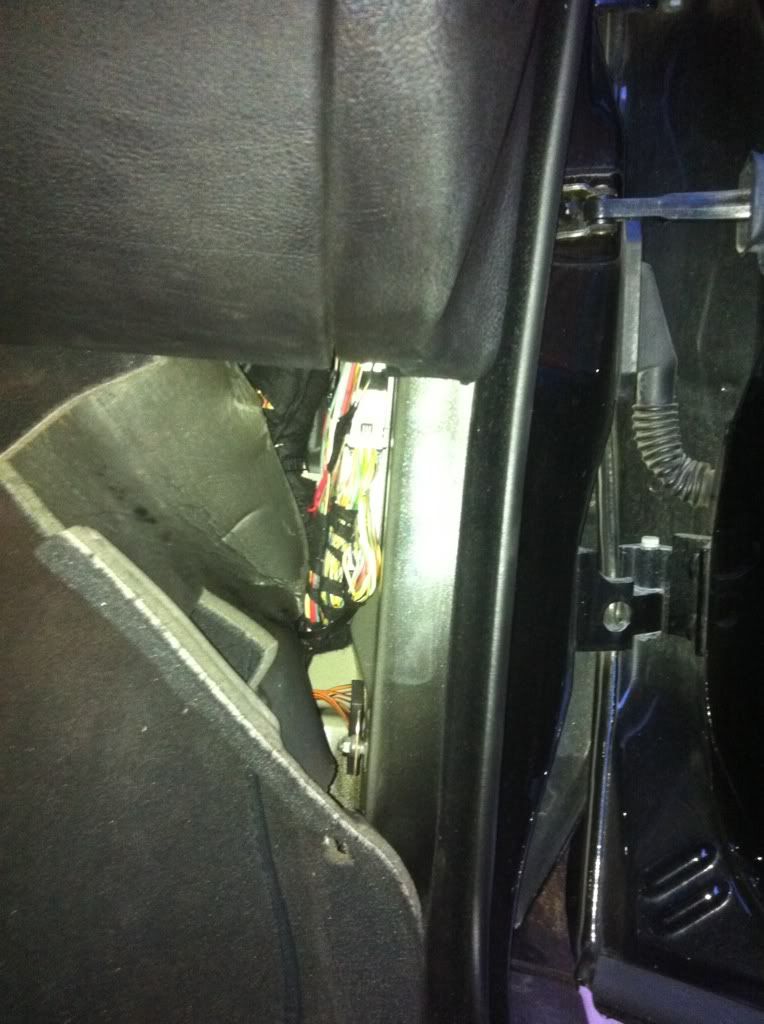

EDIT: HERE ARE BETTER PICS OF THE LCM

http://img.photobucket.com/albums/v1...5/60e418c8.jpg
http://img.photobucket.com/albums/v1...5/619493d8.jpg
http://img.photobucket.com/albums/v1...5/6036ffc0.jpg
http://img.photobucket.com/albums/v1...5/36f8f3f3.jpg


2) Pull out the other "red with white stripe" wire from the center pin of the AE relay. Throw it in the trash.

http://img.photobucket.com/albums/v1...p/IMG_1570.jpg
http://img.photobucket.com/albums/v1...p/IMG_1573.jpg

3) This is where the red wire with ringed terminal goes.

http://img.photobucket.com/albums/v1...p/IMG_1574.jpg

4) This is where the black wire with ringed terminal goes.

http://img.photobucket.com/albums/v1...p/IMG_1575.jpg

'grats, you're done wiring the DEPO (speedster source) Angel Eyes to your E53, and you can turn them on when you want, with the factory switch.
__________________
Previously owned: '03 4.6iS Dinan Supercharged

Last edited by J.Belknap; 12-29-2010 at 09:21 PM.
Reply With Quote
  #3
Old 10-23-2009, 05:23 PM
m5james's Avatar
Member

Join Date: Apr 2008
Location: Kirkland, WA to Alexandria, VA - Now in Marysville, WA
Posts: 4,001
m5james is on a distinguished road
Good to know. I just tapped into a switched 12V and fused it under the ECU cover. Maybe that'll stop people from being paranoid about the few fires people had in the E46 now that we know the proper place to tap into.
__________________

650hp 10 X5///M - Stage 2, Vibrant 1794's , gutted cats, custom intake, AC Forged 22's
325hp 98 BMW 740iL - ///M5 6spd, www.bavengine.com w/ Performance Option, electric fan, CF intake tube w/ heatshield, Mag 14816 w/ notched bumper, Bilstein/H&R Stage II/Powerflex

600+hp 02 Harley F150 - MHP900 Stage 3 engine, KB2.3, 8# lower, 60# inj, Walbro FP's

135hp 01 TL1000R - M4 full exhaust, K&N, Yosh box, -1/+2 gears, 2CT's
Reply With Quote
  #4
Old 10-23-2009, 06:01 PM
J.Belknap's Avatar
Member

Join Date: Feb 2009
Location: NY
Posts: 2,001
J.Belknap is on a distinguished road
Hopefully it helps someone.

Oh, and it's worth mentioning, solder and heatshrink.

http://img.photobucket.com/albums/v1...p/IMG_1576.jpg

The "pre-connected" AE harnesses are only good in that they show you what is connected to what.

I took those "pre-connected" crap butt splices off and threw them in the trash.

Solder and heatshrink.

Being as that this install is LED, I am not concerned about any type of current draw heating this gauge of wire up. So long as the connections are professional, and fused. No worries.
__________________
Previously owned: '03 4.6iS Dinan Supercharged

Last edited by J.Belknap; 10-23-2009 at 06:10 PM.
Reply With Quote
  #5
Old 10-23-2009, 06:59 PM
m5james's Avatar
Member

Join Date: Apr 2008
Location: Kirkland, WA to Alexandria, VA - Now in Marysville, WA
Posts: 4,001
m5james is on a distinguished road
I liked the way you worded it better the first time.
__________________

650hp 10 X5///M - Stage 2, Vibrant 1794's , gutted cats, custom intake, AC Forged 22's
325hp 98 BMW 740iL - ///M5 6spd, www.bavengine.com w/ Performance Option, electric fan, CF intake tube w/ heatshield, Mag 14816 w/ notched bumper, Bilstein/H&R Stage II/Powerflex

600+hp 02 Harley F150 - MHP900 Stage 3 engine, KB2.3, 8# lower, 60# inj, Walbro FP's

135hp 01 TL1000R - M4 full exhaust, K&N, Yosh box, -1/+2 gears, 2CT's
Reply With Quote
  #6
Old 10-23-2009, 07:52 PM
J.Belknap's Avatar
Member

Join Date: Feb 2009
Location: NY
Posts: 2,001
J.Belknap is on a distinguished road
haha...

Well, the truck is clean. Time to take some money shots!
__________________
Previously owned: '03 4.6iS Dinan Supercharged
Reply With Quote
  #7
Old 10-24-2009, 12:59 AM
RPX5's Avatar
Member

Join Date: Jul 2007
Location: boston
Posts: 606
RPX5 is on a distinguished road
Get those money shots! I think I'll follow your lead here, once I get some time. Quick question though, I'm guessing that you have the same harness as me, and it has 2 smaller gauge red and white wires, right? It looks as if you only put one of those through the firewall for connection. What did you do with the other?
Reply With Quote
  #8
Old 10-24-2009, 09:58 AM
Chris F.'s Avatar
Member

Join Date: Mar 2005
Location: Northeast
Posts: 1,618
Chris F. is on a distinguished road
Thanks for posting this. I'm going to do this project soon, I've just been so busy.

Wiring colors vary from year to year, so can you tell us what year your X5 is?

Chris
Reply With Quote
  #9
Old 10-24-2009, 11:34 AM
J.Belknap's Avatar
Member

Join Date: Feb 2009
Location: NY
Posts: 2,001
J.Belknap is on a distinguished road
Quote:
Originally Posted by RPX5 View Post
Quick question though, I'm guessing that you have the same harness as me, and it has 2 smaller gauge red and white wires, right? It looks as if you only put one of those through the firewall for connection. What did you do with the other?

Quote:
Originally Posted by J.Belknap View Post
Pull out the other "red with white stripe" wire from the center pin of the AE relay. Throw it in the trash.

http://img.photobucket.com/albums/v1...p/IMG_1570.jpg
http://img.photobucket.com/albums/v1...p/IMG_1573.jpg


Quote:
Originally Posted by Chris F. View Post
Thanks for posting this. I'm going to do this project soon, I've just been so busy.

Wiring colors vary from year to year, so can you tell us what year your X5 is?

Chris
2003.
__________________
Previously owned: '03 4.6iS Dinan Supercharged
Reply With Quote
  #10
Old 10-24-2009, 03:59 PM
RPX5's Avatar
Member

Join Date: Jul 2007
Location: boston
Posts: 606
RPX5 is on a distinguished road
Gotcha! Thanks a lot!!
