Home Forums Articles How To's FAQ Register
Go Back   Xoutpost.com > BMW SAV Forums > X5 (E53) Forum
Fluid Motor Union
User Name
Password
Member List Premier Membership Search Today's Posts Mark Forums Read

Xoutpost server transfer and maintenance is occurring....
Xoutpost is currently undergoing a planned server migration.... stay tuned for new developments.... sincerely, the management


Reply

LinkBack Thread Tools Display Modes
  #21
Old 03-27-2011, 10:12 PM
Member

Join Date: Sep 2009
Location: the valley of the sun.
Posts: 409
nigwhyrito is on a distinguished road
XNSF they are not the same the rear footwel lights look like the pic attached they are larger than the normal door lights.

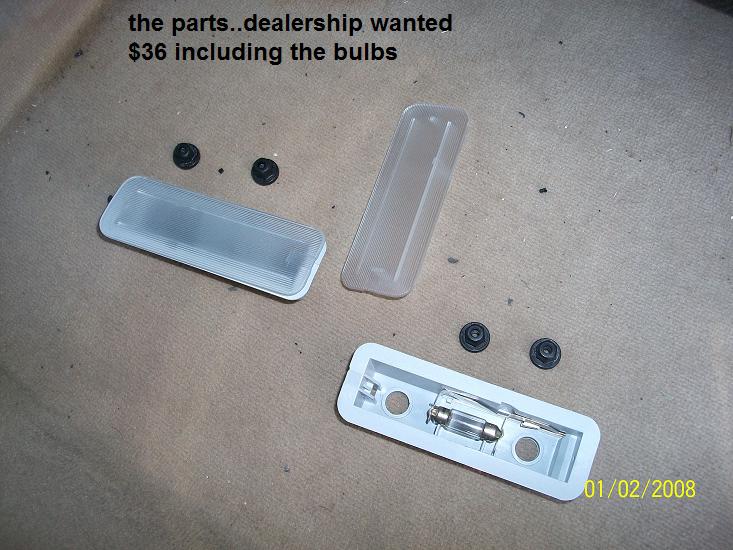

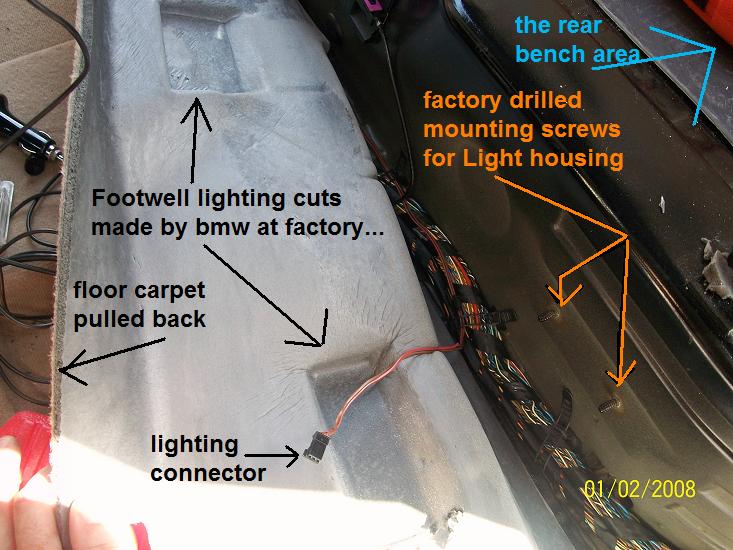

they have 2 nuts each that secure them to the floor. the bulb is 8.00 at the stealer. Its the same bulb in the doors I dont have the part number off the top of my head I called the dealer he quoted me 36 bucks for the 2 lights and then 16 bucks for the bulbs messed that up inpic.. I ended up getting the lights from a parted out thread. Just take a razor blad to the carpet inside the pre cut mold. I made an x on to make the fit as tight as possible then I added some foam from a hardrive case to make the carpet look nice and flush with the lights. the result is below. Now 2 things I need the exact paint on the speaker grilles so i can paint my sub, and my dad or some engineer to get back with me on the parts to order from mouser.
Attached Images

__________________
E53 06 3.0i

wishlist
Comfort Seats
speckdock 2.5
air suspension

Mods
skid plate replica - in box
OEM sunroof deflector
OEM bluetooth streaming
navi,dsp,tv retrofit - wip
Low prof roof racks
2 directtv satelite tuners
Grom audio usb2
quarter and back window sunshades
2 10"subs- boxes opposite sides/Alp MRP-M850
rear heated seats retrofit
rear footwell lights retrofit
remote window roll up

Last edited by nigwhyrito; 03-27-2011 at 10:37 PM.
Reply With Quote

Sponsored Links

  #22
Old 03-27-2011, 10:58 PM
Member

Join Date: Sep 2009
Location: the valley of the sun.
Posts: 409
nigwhyrito is on a distinguished road
helmuth do you have a pic of what your missing. You said you have the rear heated seats so the wires are dangling at the bottom of the seat. But you are missing the wire harness that goes from the relay K92, the ground in the back x492, I think that is the x337 wire harness you are missing that also goes to x792. you may want to contact Alpine m3 in his 4.6 part out thread see and see if he wants to get rid of his harness since i bought hos switches. Be warned that seat heater harness x337 and x792 go all the way to the front fusebox theres a fuse up there for rear seats and they connect in the back to the main fuse panel to. I was lucky my 06 was pre wired.
__________________
E53 06 3.0i

wishlist
Comfort Seats
speckdock 2.5
air suspension

Mods
skid plate replica - in box
OEM sunroof deflector
OEM bluetooth streaming
navi,dsp,tv retrofit - wip
Low prof roof racks
2 directtv satelite tuners
Grom audio usb2
quarter and back window sunshades
2 10"subs- boxes opposite sides/Alp MRP-M850
rear heated seats retrofit
rear footwell lights retrofit
remote window roll up
Reply With Quote
  #23
Old 03-28-2011, 10:01 AM
nra0707's Avatar
Member

Join Date: Jul 2007
Location: Boston, MA
Posts: 364
nra0707 is on a distinguished road
Quote:
Originally Posted by nigwhyrito View Post
helmuth do you have a pic of what your missing. You said you have the rear heated seats so the wires are dangling at the bottom of the seat. But you are missing the wire harness that goes from the relay K92, the ground in the back x492, I think that is the x337 wire harness you are missing that also goes to x792. you may want to contact Alpine m3 in his 4.6 part out thread see and see if he wants to get rid of his harness since i bought hos switches. Be warned that seat heater harness x337 and x792 go all the way to the front fusebox theres a fuse up there for rear seats and they connect in the back to the main fuse panel to. I was lucky my 06 was pre wired.
If I'm not mistaken, even if the wiring harness is present for Helmuth or he can source it, doesn't he need the back rest heating elements to complete the circuit? I would suspect that just plugging in the bottom elements wouldn't be enough for the heating elements to work.
__________________
2000 Z3 2.3 Steel Gray
2004 X5 4.4i Jet Black
Reply With Quote
  #24
Old 03-28-2011, 03:19 PM
Helmuth's Avatar
Member

Join Date: Apr 2010
Location: Austria, Tirol
Posts: 567
Helmuth is on a distinguished road
To nigwhyrito: Exactly what you wrote. I have the rear heated seats so the wires are dangling at the bottom of the seat. The reason for that is that I got a leather rear seat cover with these elemets and had a guy mounting them. What I have additional (since yesterday) are the rear seat heating switches in original. And you are right again, I am missing the harness from the relay K93 to the seats (part of that might be the wiring from the temp sensor to wherever). Really a great idea to source that harness from Alpine M3 but I believe first I need to disassemble my X in order to be sure that the cabling to the switches is there. BUT - when this cabling is there... why is then the cabling to the heated elements missing.

I believe you get my point.

To nra0707: the backrest heating elements are connected in parallel to the seat elemets. So from a technical standpoint no need to have them.

To Alpine M3: not sure if you want to disassemble your X in order to tell me a price for the cabling............ ???

Thanks everybody.
Reply With Quote
  #25
Old 04-02-2011, 08:56 PM
Member

Join Date: Sep 2009
Location: the valley of the sun.
Posts: 409
nigwhyrito is on a distinguished road
its working the 2wire conversion to 3 wire the elements got hot and the oem switches leds came on and each level worked. So im 75% complete

-whats left-
record exact resistance ratings
order thermistor to take the place of the variable resistor
put thermistor into the seat heat element not the backrest element.
rewire it all into molex connectors
then take the leather covers off
put the covers back on.
make the wife drive more so I can enjoy it lol.
take the X in to have the airbag light reset keeps comming on for
the pass... side
--my schematic attached for left side.---
Attached Images

__________________
E53 06 3.0i

wishlist
Comfort Seats
speckdock 2.5
air suspension

Mods
skid plate replica - in box
OEM sunroof deflector
OEM bluetooth streaming
navi,dsp,tv retrofit - wip
Low prof roof racks
2 directtv satelite tuners
Grom audio usb2
quarter and back window sunshades
2 10"subs- boxes opposite sides/Alp MRP-M850
rear heated seats retrofit
rear footwell lights retrofit
remote window roll up

Last edited by nigwhyrito; 04-02-2011 at 09:18 PM.
Reply With Quote
  #26
Old 04-03-2011, 01:30 PM
nra0707's Avatar
Member

Join Date: Jul 2007
Location: Boston, MA
Posts: 364
nra0707 is on a distinguished road
Awesome work!
__________________
2000 Z3 2.3 Steel Gray
2004 X5 4.4i Jet Black
Reply With Quote
  #27
Old 04-08-2011, 01:28 PM
Nik's Avatar
Nik Nik is offline
Member

Join Date: Apr 2010
Location: Georgia
Posts: 736
Nik is on a distinguished road
Ok, so I have alrady Put the Buttons in the place, Now I have got the rear Heated seat, going to replace it in few days. Nothing else is needed for them to light up right? Thanks
Reply With Quote
  #28
Old 04-09-2011, 10:28 AM
nra0707's Avatar
Member

Join Date: Jul 2007
Location: Boston, MA
Posts: 364
nra0707 is on a distinguished road
Nigwhyrito: I was just re-reading your previous post about buying 2 NTC thermistors. I thought NTC decreases resistance as temps increase. Isn't this opposite of what you want? PTC thermistors will increase resistance as the temperature increases, which effectively reduces/cuts current as the surface temperatures of the elements gets too hot.
__________________
2000 Z3 2.3 Steel Gray
2004 X5 4.4i Jet Black
Reply With Quote
  #29
Old 04-10-2011, 12:30 AM
Member

Join Date: Sep 2009
Location: the valley of the sun.
Posts: 409
nigwhyrito is on a distinguished road
Well NRA you and my dad both said the same thing.. but the truth of the matter is on the wds website the signal says NTC. so im just going by all the research I have read reagarding bmw and the range rover is the elements have NTC thermistors..so i guess we'll see when i finally order one. Also my heated seat elements have a thermostat the little metal circular thing. I tested it with a heat gun when it go to hot the circuit was broken.
__________________
E53 06 3.0i

wishlist
Comfort Seats
speckdock 2.5
air suspension

Mods
skid plate replica - in box
OEM sunroof deflector
OEM bluetooth streaming
navi,dsp,tv retrofit - wip
Low prof roof racks
2 directtv satelite tuners
Grom audio usb2
quarter and back window sunshades
2 10"subs- boxes opposite sides/Alp MRP-M850
rear heated seats retrofit
rear footwell lights retrofit
remote window roll up
Reply With Quote
  #30
Old 04-10-2011, 12:38 PM
nra0707's Avatar
Member

Join Date: Jul 2007
Location: Boston, MA
Posts: 364
nra0707 is on a distinguished road
Oh, you're right...it does say NTC in the WDS. I didn't even notice that. I'm not going to question the BMW engineers though it does seem counterintuitive. There must be a reason for doing it that way unless they were just lazy and generically labeled them NTC thermistors. The Range Rover link's description of the cantherm thermal switch sounds a lot like a PTC thermistor. Sounds like your elements' circular/disc thermal switches will be added insurance against overheating.
__________________
2000 Z3 2.3 Steel Gray
2004 X5 4.4i Jet Black
Reply With Quote
Reply

Bookmarks

Thread Tools
Display Modes

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Trackbacks are On
Pingbacks are On
Refbacks are On





All times are GMT -4. The time now is 01:39 AM.
vBulletin, Copyright 2021, Jelsoft Enterprises Ltd. SEO by vBSEO 3.6.0
2017 Xoutpost.com. All rights reserved. Xoutpost.com is a private enthusiast site not associated with BMW AG.
The BMW name, marks, M stripe logo, and Roundel logo as well as X3, X5 and X6 designations used in the pages of this Web Site are the property of BMW AG.
This web site is not sponsored or affiliated in any way with BMW AG or any of its subsidiaries.
