Heated seat retrofit with pictures

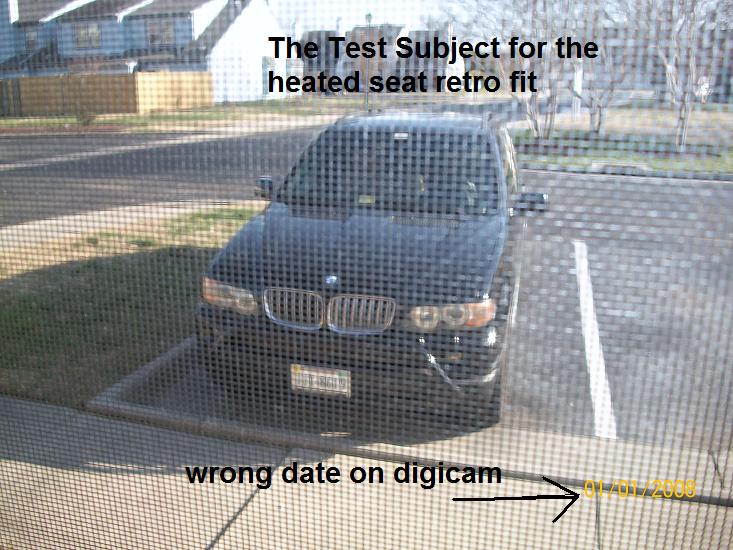

Been searching on this forum for pics of rear heated seat wires and could never find one. Asked a couple people where the wires are hidden or at least the location.. No answer.. Well today was nice day so here are my pics of my X all ripped up for anyone that wants to know for future .. Also to come will be pics of the rear footwell lights added.. Aparently they are prewired too. So in a nutshell the connectors are zip-tied under the front drivers seat.. but at the front of the rear carpet.. close to the back part of the front door pillar.
Attached Images

__________________
E53 06 3.0i

wishlist
Comfort Seats
speckdock 2.5
air suspension

Mods
skid plate replica - in box
OEM sunroof deflector
OEM bluetooth streaming
navi,dsp,tv retrofit - wip
Low prof roof racks
2 directtv satelite tuners
Grom audio usb2
quarter and back window sunshades
2 10"subs- boxes opposite sides/Alp MRP-M850
rear heated seats retrofit
rear footwell lights retrofit
remote window roll up
Reply With Quote

Sponsored Links

  #2
Old 03-12-2011, 10:50 PM
nra0707's Avatar
Member

Join Date: Jul 2007
Location: Boston, MA
Posts: 364
nra0707 is on a distinguished road
This is some great investigation. I've been meaning to do this for a long time and possibly retrofit some aftermarket heaters using the oem switches. Good job on the tear down and pics!

Did you end up pulling the drivers seat out completely or just slide it backward? And the console...did you need to disassemble it?
__________________
2000 Z3 2.3 Steel Gray
2004 X5 4.4i Jet Black
Reply With Quote
  #3
Old 03-12-2011, 11:11 PM
X5 Meister's Avatar
Member

Join Date: Mar 2006
Location: Nordschleife
Posts: 5,486
X5 Meister is on a distinguished road
Nice work, but does your rear seat bench have the heating elements embedded within it?
Reply With Quote
  #4
Old 03-13-2011, 04:01 AM
Member

Join Date: Sep 2009
Location: the valley of the sun.
Posts: 409
nigwhyrito is on a distinguished road
I unbolted drivers seat and slid it backwards.. battery is disconnected to.. was worried about airbag light buti never even disconnected that connector.
no my bench does not have the elements... I have some aftermarket from my last car Im going to retrofit. just need some hog ring pliers or maybe small zipties. I have all the wiring diagrams from wds site .. studied it long time. tommorow will be a day of testing wires and possibly putting in thr rear footwell lights. After doing this I feel you still have to lift the center console up in the back because you still have to fish the rear heat seat wires back to where the switches mount.
__________________
E53 06 3.0i

wishlist
Comfort Seats
speckdock 2.5
air suspension

Mods
skid plate replica - in box
OEM sunroof deflector
OEM bluetooth streaming
navi,dsp,tv retrofit - wip
Low prof roof racks
2 directtv satelite tuners
Grom audio usb2
quarter and back window sunshades
2 10"subs- boxes opposite sides/Alp MRP-M850
rear heated seats retrofit
rear footwell lights retrofit
remote window roll up
Reply With Quote
  #5
Old 03-13-2011, 07:43 AM
Helmuth's Avatar
Member

Join Date: Apr 2010
Location: Austria, Tirol
Posts: 567
Helmuth is on a distinguished road
Sir, Mr. Nigwhyrito

you are my hero, I am searching such a post since one week now. But my problem starts when I look for the plug below the rear set - it was also dirty there :-) - but no plug ............

Did you have to add a relay in the trunk?

Best regards,

Helmuth
Reply With Quote
  #6
Old 03-13-2011, 06:07 PM
nra0707's Avatar
Member

Join Date: Jul 2007
Location: Boston, MA
Posts: 364
nra0707 is on a distinguished road
Hey nigwhyrito...sounds like you're doing an aftermarket solution that I've been thinking about for the last 3 years. Let me know how it turns out or if you can document the heating elements used and wiring that you're putting in place. I'm not much of a wiring guy, but I've read all the wiring diagrams and understand what goes where and does what, but actually wiring it together with aftermarket elements is a bit of a mystery for me.

Also, if you don't have the relay in the rear fuse panel, you might need to buy one.
__________________
2000 Z3 2.3 Steel Gray
2004 X5 4.4i Jet Black
Reply With Quote
  #7
Old 03-13-2011, 11:38 PM
Member

Join Date: Sep 2009
Location: the valley of the sun.
Posts: 409
nigwhyrito is on a distinguished road
Yes you defininetly need the the relay.. Its a light green one has 5 pins. Called k93 unloader relay terminal 15. Today I finshed installing the rear footwell. Now I have to trace the seat heater elements out with and ohm metter to match what the bmw is looking for.. stay tuned for more as it comes ( dangit...My stupid butt learned the difference today between disconnecting the battery and disconnecting the ground terminal comming off the battery. Started x5 after taking seats apart again x5 wouldnt start I almost did a #2 in my pants.. Then she started beeping.. like the doors were locking and I could here the relays in the back clicking away..I checked the votlage out of battery was at 8v.. jumped and everything good except... now I got the dreaded Airbag light and ses light... doh...moral of story disconnect battery at post... disconnecting the ground near the power distribution will screw you up sooner or later.
__________________
E53 06 3.0i

wishlist
Comfort Seats
speckdock 2.5
air suspension

Mods
skid plate replica - in box
OEM sunroof deflector
OEM bluetooth streaming
navi,dsp,tv retrofit - wip
Low prof roof racks
2 directtv satelite tuners
Grom audio usb2
quarter and back window sunshades
2 10"subs- boxes opposite sides/Alp MRP-M850
rear heated seats retrofit
rear footwell lights retrofit
remote window roll up
Reply With Quote
  #8
Old 03-14-2011, 04:22 PM
Helmuth's Avatar
Member

Join Date: Apr 2010
Location: Austria, Tirol
Posts: 567
Helmuth is on a distinguished road
Here is the wiring diagram for one side. Maybe you already have that. +12V to white/yellow ground to brown, thermoelement is connected to yellow/brown.
Attached Images

Reply With Quote
  #9
Old 03-14-2011, 10:10 PM
Member

Join Date: Sep 2009
Location: the valley of the sun.
Posts: 409
nigwhyrito is on a distinguished road
Thanks helmuth and yes I do have that diagram.. Im just waiting on a nice sunny day hopefully the weekend.
__________________
E53 06 3.0i

wishlist
Comfort Seats
speckdock 2.5
air suspension

Mods
skid plate replica - in box
OEM sunroof deflector
OEM bluetooth streaming
navi,dsp,tv retrofit - wip
Low prof roof racks
2 directtv satelite tuners
Grom audio usb2
quarter and back window sunshades
2 10"subs- boxes opposite sides/Alp MRP-M850
rear heated seats retrofit
rear footwell lights retrofit
remote window roll up
Reply With Quote
  #10
Old 03-15-2011, 06:36 AM
Helmuth's Avatar
Member

Join Date: Apr 2010
Location: Austria, Tirol
Posts: 567
Helmuth is on a distinguished road
Did you have your plug below the rear set "simply lying there" or did you have to find it. On mine I was not able to find that plug I pulled on all cables there ........
