[TwinsPoppa]

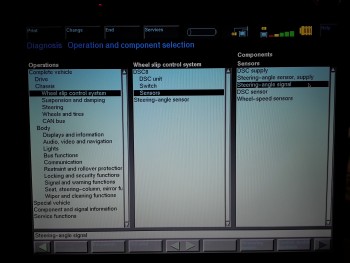

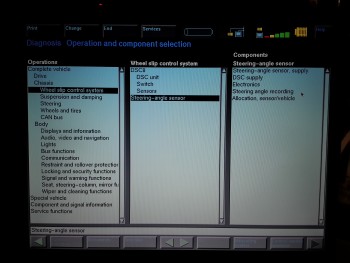

Here are two screenshots in DIS v43. Notice the different options depending on which module/section you go. I don't know if these screenshots will help.

In SSS are there similar screens? Which option are you selecting when you get the 90 degree wipe fault?

I don't have an X to connect to further look into what these options do. Also, I'm about to ship it out so I won't have access to the GT1.

[ninjabmw]

Originally Posted by TwinsPoppa

Here are two screenshots in DIS v43. Notice the different options depending on which module/section you go. I don't know if these screenshots will help.

In SSS are there similar screens? Which option are you selecting when you get the 90 degree wipe fault?

I don't have an X to connect to further look into what these options do. Also, I'm about to ship it out so I won't have access to the GT1.

The screens you showed me i did that in dis wheni was using it i got that error in dis when you do a quick test it poped in LWS(steering angle sensor). I did a test plan followed the procedures come up nothing, in SSS it just connects to modules in the car and so i click on LWS and then it comes up with 2 options replacement and encode i tried both of those none of them did anything. The light is still up but i remember a year or two ago when i called up a guy to diagnose my car he turned the light off but then when i drove it the light come back after like a half a mile.

[TwinsPoppa]

Originally Posted by ninjabmw

Terminal 30 refers to the connection to the steering angle sensor (LWS) it says that sometimes the connection is bad and sometimes it says that WIPER BLADE 90 DEGREE DIFFERENCE i will try this weekend with some pictures to see what happens.

I assume you still have the DSC/Xdrive fault on your dash.

It seems to me since you're having problems calibrating/connecting to the steering angle sensor that is probably the culprit.

Let us know if there are any changes to your situation.
