DIY: 2006 BMW X5 3.0i Fuel Filter

DIY: 2006 BMW X5 3.0i Fuel Filter

The other thread is here. You need to read this thread below in detail!!!
---> http://www.xoutpost.com/bmw-sav-foru...placement.html


The lessons are:

1. The Quick Disconnect is a pain, options:
a. It can be squeezed to remove, but it is difficult to squeeze and tried to remove the line from the Fuel Filter.
b. Some people remove the clip from the connector, but in the process of doing so, you can break it too. Yes, you can easily break the Plastic Clip in the Quick Disconnect!

2. You should buy three (3) Dorman 800-027 clips, $3/each at Advance Auto (you may have to special order) or online.
I broke 2 of the 3 clips and it was Sunday! No parts store carried Dorman 800-027, so I went to local O’Reilly Auto and picked up Dorman 800-023 for Ford/GM package ($4 for the package), modified the clips to fit and it worked perfectly, read on.


PARTS/TOOLS:

1. E53 Fuel Filter, Mann WK513/3 or BMW PN 16126754016, which includes the Pressure Regulator.
About $45 at autohausaz.com

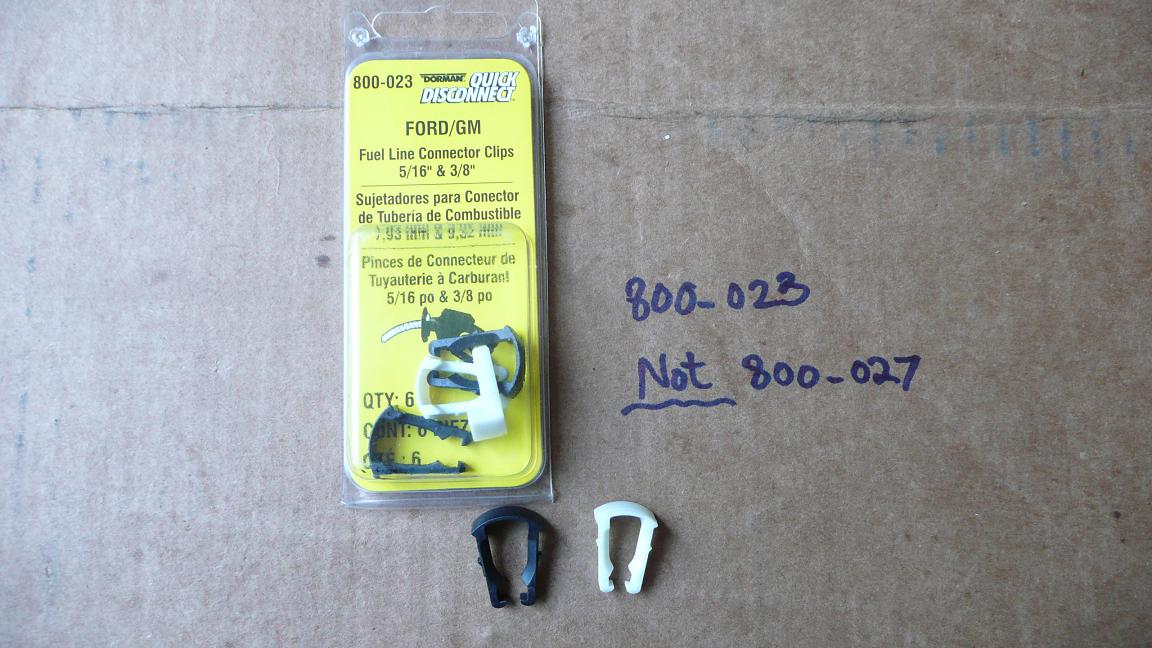

2. Dorman 800-027 is best, if you don’t have that, use Dorman 800-023, which is readily available at O’Reilly Auto. But you need to modify Dorman 800-023.

3. Short section of vacuum hose.

4. 8-mm, 10-mm, and 13-mm sockets and LONG extension!





PROCEDDURE:

1. Car on wood ramps. You can pull the Fuse #47 as in the link above. I did not pull the Fuse and very little fuel came out.





2. The Big Cover on the driver side is a pain because nobody ever posted detailed photo of the exact location of the bolts, so I had to fool around a bit. No worry, if you follow this guide, it is not bad at all. IIRC, there are some 10-mm bolts near the heat shield and Eleven (11) 13-mm bolts (some require long extension and socket to get to: 4 bolts are alongside the driveshaft, 2 are near the muffler, 2 are inside the holes, and 1 is hidden just in front to the rear tire!!!

3. Do not remove the Big Cover, all you need is to lower it.





Off topic but in the Spring, if you need to wash the brake metal lines to prevent corrosion, use some water (gentle stream, no pressure washer) and aim it up holes #3 and #4, water will dissolve the salt used in winter to prevent corrosion!

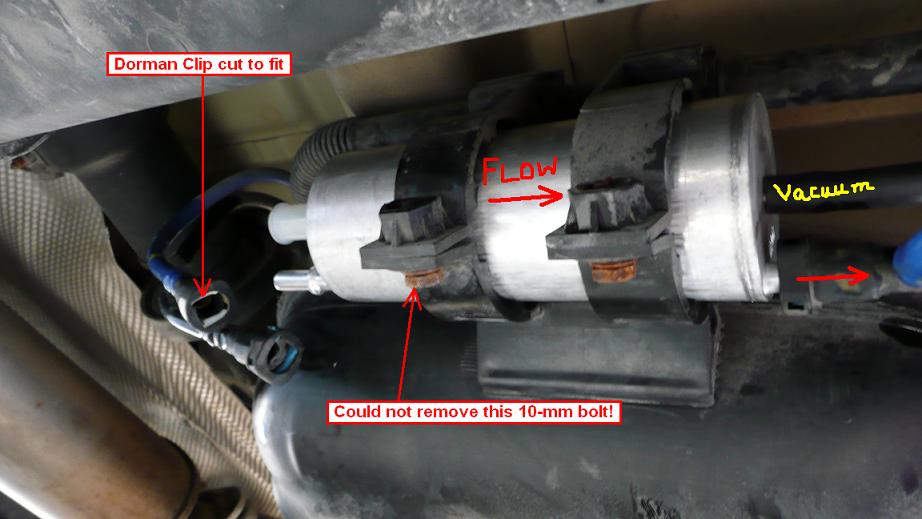

3. The setup looks like this:





4. The old vacuum hose: use a utility knife and cut it GENTLY along its length to remove it. Replace with new vacuum hose, oil the nipple a bit to allow the hose to slide better.
- I could not remove one of the 10-mm bolts (the nut just spins), so I simply slide the old Fuel Filter out and new one in.
- Note in the DIY above, there are 2 ways to undo the connections: squeeze the sides or remove the clips, whatever you do, the chance of breaking the clips is high. I broke 2 out of 3 clips.

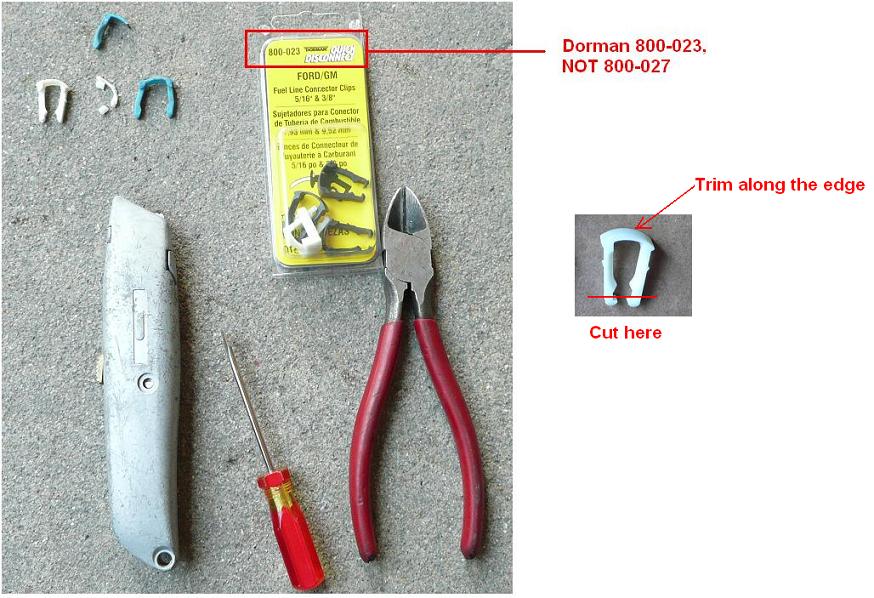

5. Dorman 800-027 is best, if you don’t have that, use Dorman 800-023, which is readily available at O’Reilly Auto. But you need to modify Dorman 800-023 (Ford/GM type): shorten the WHITE clips a bit and trim alongside (taking off about 1mm or so using utility knife).
- Just look at the factory BLUE clip AS A GUIDE. There is only one way to insert it, the concave side of the the clip faces the Fuel Filter.












6. Before you install the connectors, be absolutely sure which is which because once it is installed, it is difficult to undo it and you risk breaking your new plastic clips.
So BLUE is fuel feed and goes to the center of the Fuel Filter. And BLACK is the return line. Do NOT mix up these lines!
- Oil the nipples a bit before installing the connectors. You must hear a “CLICK”.
- Gently tug the connector a bit to be sure it is fully seated. I added zip ties to be sure.






7. Now test the new Fuel Filter by:
- Key in position II a few times to prime the Fuel Filter.
- Start engine and watch for any leaks.


8. Turn off engine and re-install the Big Cover.

PS: For comparison, replacing the Fuel Filter in my 2005 Volvo XC90 is a 10-minute deal, in the X5, it is a 3h job because of the stupid Big Cover, the dumb connection clips and a trip to local parts store.

However, you follow the above advice, then it should be easy for you.





---
Attached Images

__________________
1998 E39 528i 5sp MT
2006 E53 X5 3.0 6sp MT

Last edited by cn90; 01-28-2018 at 09:50 PM.
Reply With Quote

Sponsored Links

  #2
Old 07-13-2014, 11:41 PM
upallnight's Avatar
Member

Join Date: Aug 2012
Location: Cook County
Posts: 6,915
upallnight is on a distinguished road
If you going to DIY at least get the right tool so you won't be breaking (not braking) connectors.

__________________
2006 Infiniti G35
2001 BMW 3.0I E53 X5 Build date 08/2000 SOLD
Lotus Europa 1970 Destroyed by fire
Lotus Europa 1970 S2 Renault Powered
Lotus Type 52 1970 Twincam Webers Powered
PORSCHE 911 Targa 1982 The Garage Queen
Audi Avant donated to Kars for Kids
BMW 525IT Sold
Audi 4000CS Quattro Sold
Jensen Healey Lotus Powered Sold
Opel 1900 Sold
Triumph Spitfire 1971 Sold
Triumph Spitfire 1968 Sold
Plymouth "Cuda" 340 Six pack SOLD
Reply With Quote
  #3
Old 07-14-2014, 12:22 AM
mgbmwx5's Avatar
Member

Join Date: Mar 2010
Location: PNW WA.
Posts: 308
mgbmwx5 is on a distinguished road
Excellent write up! A sticky contender.
I went through the same exact process a few years back when replacing the fuel filter.

The complexity of the fuel system is probably due to this:

Quote:
Originally Posted by Qsilver7 View Post



__________________
/ / / Mike
BMW X5 Xdrive50i 2015 F15
BMW 325iC 1992 E30
BMW X5 4.4i - sold

BMW 335i X Drive 2010 - sold

BMW Z4 3.0is 2006 - sold
BMW 325is 1993 - sold
BMW 2002 1976 - sold


X5 Garage

Reply With Quote
  #4
Old 07-14-2014, 12:25 AM
Member

Join Date: Jun 2014
Location: Omaha, NE
Posts: 1,398
cn90 is on a distinguished road
Quote:
Originally Posted by upallnight View Post
If you going to DIY at least get the right tool so you won't be breaking (not braking) connectors.

That is a nice idea but wrong tool for E53. That tool is good for BMW E39 or Volvo S70 series and not for the E53 quick disconnect type.
__________________
1998 E39 528i 5sp MT
2006 E53 X5 3.0 6sp MT
Reply With Quote
  #5
Old 07-14-2014, 12:33 AM
mgbmwx5's Avatar
Member

Join Date: Mar 2010
Location: PNW WA.
Posts: 308
mgbmwx5 is on a distinguished road
Quote:
Originally Posted by upallnight View Post
If you going to DIY at least get the right tool so you won't be breaking (not braking) connectors.

Pricey little bugger!

Amazon.com: Assenmacher (ASMBMW8390) BMW Fuel Line Disconnect Tool: Home Improvement
__________________
/ / / Mike
BMW X5 Xdrive50i 2015 F15
BMW 325iC 1992 E30
BMW X5 4.4i - sold

BMW 335i X Drive 2010 - sold

BMW Z4 3.0is 2006 - sold
BMW 325is 1993 - sold
BMW 2002 1976 - sold


X5 Garage

Reply With Quote
  #6
Old 07-14-2014, 12:38 AM
upallnight's Avatar
Member

Join Date: Aug 2012
Location: Cook County
Posts: 6,915
upallnight is on a distinguished road
Quote:
Originally Posted by mgbmwx5 View Post
16 bucks with free shipping is too pricey?

BMW Fuel Line Disconnect Tool 3 Series and X5 | eBay
__________________
2006 Infiniti G35
2001 BMW 3.0I E53 X5 Build date 08/2000 SOLD
Lotus Europa 1970 Destroyed by fire
Lotus Europa 1970 S2 Renault Powered
Lotus Type 52 1970 Twincam Webers Powered
PORSCHE 911 Targa 1982 The Garage Queen
Audi Avant donated to Kars for Kids
BMW 525IT Sold
Audi 4000CS Quattro Sold
Jensen Healey Lotus Powered Sold
Opel 1900 Sold
Triumph Spitfire 1971 Sold
Triumph Spitfire 1968 Sold
Plymouth "Cuda" 340 Six pack SOLD
Reply With Quote
  #7
Old 07-14-2014, 04:34 AM
four.8is's Avatar
Member

Join Date: Feb 2014
Location: Seattle
Posts: 943
four.8is is on a distinguished road
Great info and pictures
Gonna tackle this job soon on mine along with fresh oil change.
Is the one on the 4.8is in the same area?
__________________
2006 X5 4.8is LeMans Blue / creambeige interior
Prod.date: 2006-06-21
Reply With Quote
  #8
Old 07-14-2014, 09:27 AM
Member

Join Date: Jun 2014
Location: Omaha, NE
Posts: 1,398
cn90 is on a distinguished road
I believe 4.8i Fuel Filter is in the same area. Please take note on the blue plastic clips and Dorman alternatives, make sure you have new clips before doing the job!

This is safety issue (you are dealing with fuel), so I strongly recommend 3 new clips.

I am now at 115K and Fuel Filter was still OK, it still flows. You probably do this unpleasant job once in the life of the car because of the Big Cover, but even so if you follow the guide I wrote above, you will be fine. This is because the next Fuel Filter change is @ 230K or so, but I don't plan to keep this car beyond 230K miles.

On the issue of the goofy blue clips, the VW people talked about Schwaben Fuel Tool, ~ $25 online:
---> VWVortex.com - Phaeton Fuel Filter Change - Add to TOC

This is similar to squeezing the blue clips on the appropriate sides with your fingers as mentioned in the other thread.



Below is a nice presentation of common fuel clips. Pay attention to time marking at 0:45 seconds, I think this applies to E53:

How to Disconnect Common Fuel Line Fittings - YouTube



__________________
1998 E39 528i 5sp MT
2006 E53 X5 3.0 6sp MT
Reply With Quote
  #9
Old 07-14-2014, 09:55 AM
Ricky Bobby's Avatar
Member

Join Date: Dec 2011
Location: Wake Forest, NC
Posts: 9,332
Ricky Bobby will become famous soon enough
Great writeup cn! So glad your thorough DIY's have graced our boards, and thanks for the tip on the holes to wash salt from under the big cover, great tip!

How long of a section of vaccuum hose did you need for the job? I will tackle mine eventually too even though I have low miles at 74k and always use good 93 octane but I would feel better if the filter was fresh, thank you for the Dorman part number on the clips!


And for what its worth above guys, the tool that was shown is used for the power steering lines quick connectors as far as I can tell it won't work on the fuel lines as I think you need to press the clips inward.
__________________
2003 X5 3.0i 5-Speed - Born on 9/18/2003
105k miles -Topaz Blue/Schwarz/Titan Int. Trim/EHCII/Sport
Proud 3-Pedal owner, UUC SS/AFE/4.8iS Exhaust/Sharked
2013 X5 35D (CEO's) - Born on 5/17/2013 -
68k miles - Alpine White/Cinnamon Brown/Premium Pkg, Sport Activity/Premium Pkg and Sound/20" Style 214/Running Boards

Reply With Quote
  #10
Old 07-14-2014, 02:24 PM
Member

Join Date: Jun 2014
Location: Omaha, NE
Posts: 1,398
cn90 is on a distinguished road
Now I have done this job, I am looking closely at the infamous BLUE clip.

This is how I think it works:
- Press on the clip in the areas as shown (RED arrows)
- The BLUE clip free ends are fixed inside the connector, so they don't move much but the upper part should expand OUTWARD (BLUE arrows), allowing you to undo the connection.

However, this is easier said than done, it was a struggle for me, so whatever you do, stock the Dorman clips beforehand!
Attached Images

__________________
1998 E39 528i 5sp MT
2006 E53 X5 3.0 6sp MT
