#1
06-27-2007, 10:43 AM
|
|||
|
|||
|
Not sure about Navunit
I have a Navcomputer partnumber: 6590 6922720-00 I think it is monochrome but i am not sure its mk3 or mk4 I can't get it coded for color monitor and now im doubting about the version! When i read the unit with navcoder it says mk1,mk2,mk3 but based on this number and after a search on the net its listed with the mk4 I tried to convert it to color with the modified cd's for mk3/mk4 as written by Kiwijochen but wenever i put in a modified os disc it keeps spinning and im having a hard time to get them out, after that i cannnot read nav settings with navcoder until i reload an original os disc (not modified) So i'm stuck and don't know what else to do The modified os disc for mk4 i downloaded here but could not get it to write in mode2/form1 The modified os disc for mk3 i modded myself following the instructions in this forums and are written in mode2/form1 Desperatly seeking help Friendly regards Joël
|
| Sponsored Links | |
|
|
|
|
#3
06-27-2007, 01:19 PM
|
|||
|
|||
|
Quote:
Im pretty sure i have written the os disc in mode 2 and therefore i must have done someting wrong with the modding, i made 3 discs but al the same problem and imgburn shows its mode 2 So if anybody would upload a working os disc for mono 2 color on a mk3, i would mostly be thankfull for that!!!! Regards Joël
|
|
#4
06-28-2007, 03:25 AM
|
|||
|
|||
|

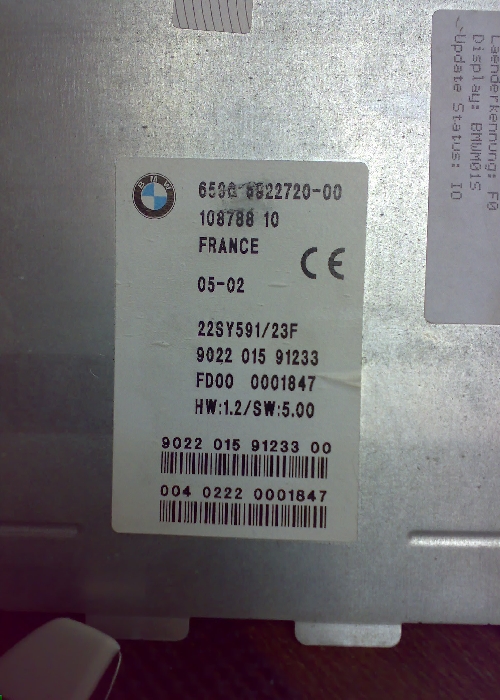

post a picture of the unit, and especially the part number label on the unit
|
|
#5
06-28-2007, 10:47 AM
|
|||
|
|||
|
Quote:
Thnx for helping me out Joël
|
|
#6
06-28-2007, 12:39 PM
|
|||
|
|||
|
found it hopefully
i hope it worked
|
|
#7
06-30-2007, 05:21 AM
|
|||
|
|||
|
That is a monochrome Mk3 nav. I am 100% sure :-)
|
|
#8
06-30-2007, 09:47 AM
|
|||
|
|||
|
Quote:
I followed this instructions: Use a v22 OS. Replace all files: csb 0100 BMWM01S with: cdb 0100 BMWC01S you must include subdirectories. Replace: cdb 0200 BMWM01S with: cdb 0200 BMWC01S Replace: Mk3 0103 BMWM01S with: Mk3 0103 BMWC01S Do the same thing with directories 0116 y 0127. You must include subdirectories. Delete the following directories: langMk2 Mk2C Mk2m V_2 IMPORTANT: Create the image, use the procedure related by KiwiJochen on the following thread: http://www.xoutpost.com/246230-post14.html I replaced this files and subdirectories with magiciso like you said Then i burn the image with imgburn and in the program it says mode2, but when i put in the disc it spins a verry long time (20min or longer) and i have a hard time to get the disc out! When i let navcoder scan, the unit its not detected. Then i put in an v29.1 disc, the procedure works fine and navcoder detects the unit again. I modified v19 v22 several times but always get the same problems. Any suggestions? I think its the writing because several people told me this looks like a problem when you put mode1 disc in a mk3 unit Regards Joël
|
|
