  #81
Old 01-10-2021, 12:12 PM
Member

Join Date: Jul 2016
Location: Menlo Park, CA
Posts: 1,507
Fifty150hs is on a distinguished road
Quote:
Originally Posted by Purplecty View Post
I haven't gotten a chance to use the fuse tester yet as I was deleting the air suspension from the system yesterday and would like to remove all of the unnecessary items that are no longer used. I did find 2 manuals in the owners manual pouch for a Dice and some Valor multimedia iLink. Anyone familiar with these? I see a white and a black old iPod type cable in the glovebox and I will probably have to remove the glovebox to expose where these cables run from to find the module they are connected to.Attachment 79479
Attachment 79480
The white cable in the glove box is probably an old 30 pin Apple cable for connecting an ipod to the head unit. it runs over and plugs in the back. Old tech, but these trucks are old as far as tech is concerned. If you replace your head unit with an Android unit you can pull it then. Until then it isn't doing anything.
Reply With Quote

Sponsored Links

  #82
Old 01-11-2021, 12:58 AM
Member

Join Date: Jan 2017
Location: Chicago
Posts: 597
Purplecty is on a distinguished road
Quote:
Originally Posted by Fifty150hs View Post
The white cable in the glove box is probably an old 30 pin Apple cable for connecting an ipod to the head unit. it runs over and plugs in the back. Old tech, but these trucks are old as far as tech is concerned. If you replace your head unit with an Android unit you can pull it then. Until then it isn't doing anything.

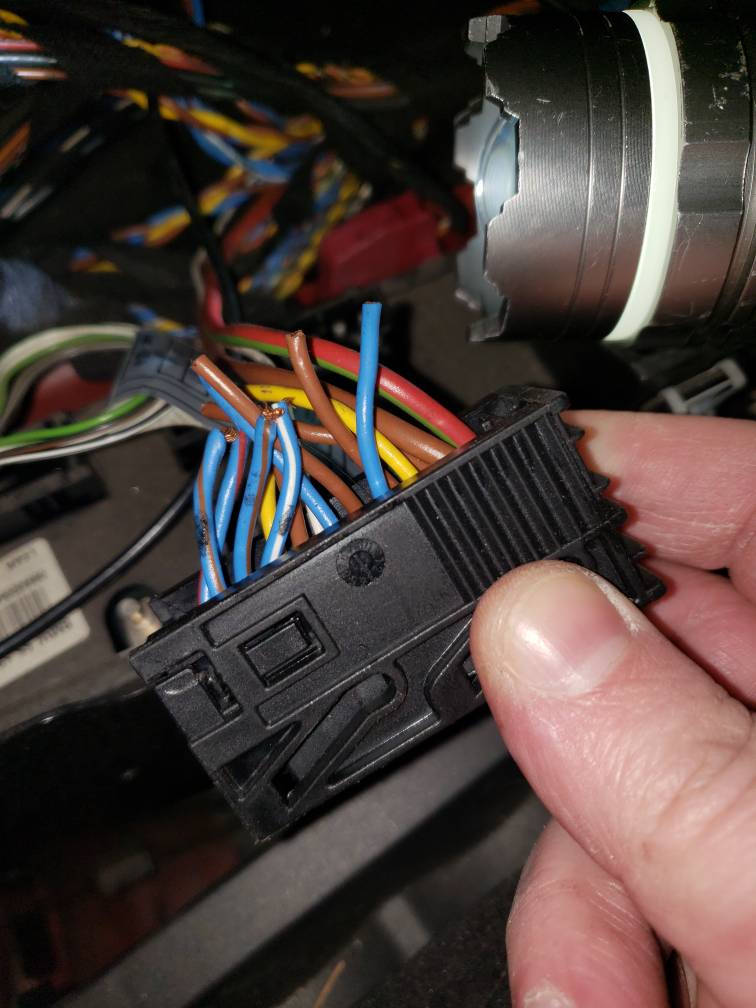

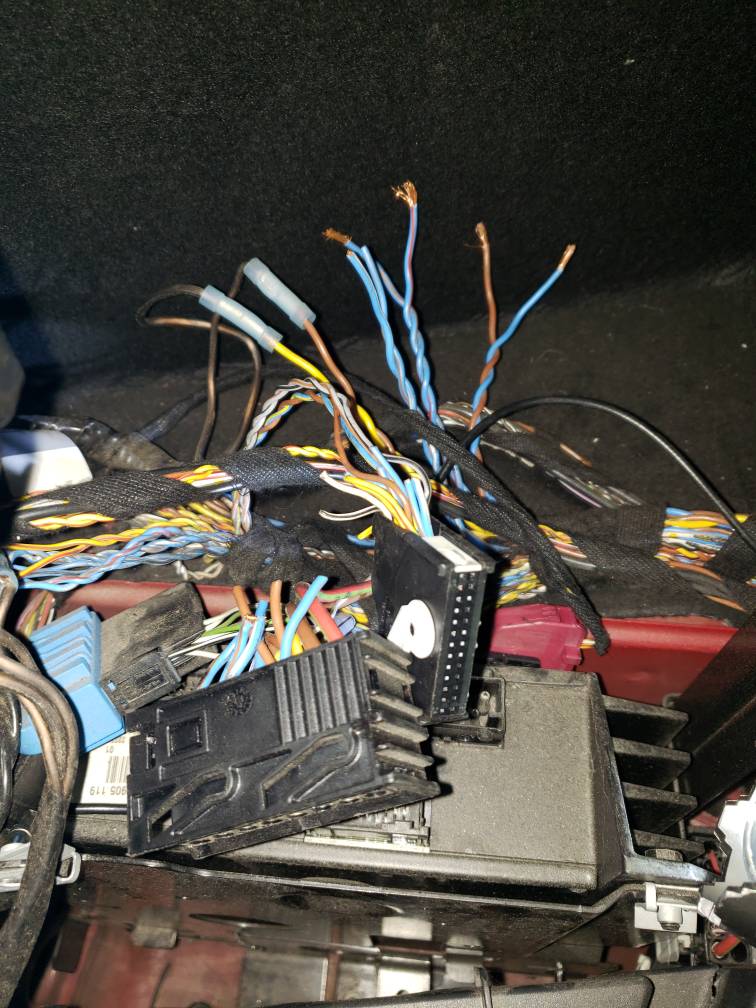

Im assuming it goes to a DICE when the original widescreen navi was installed that is probably located behind the glovebox. Also found a nice mess in the rear when inspecting the wires closer.Name:  20210110_221446.jpg
Views: 51
Size:  126.0 KBName:  20210110_221432.jpg
Views: 50
Size:  76.7 KBName:  20210110_221424.jpg
Views: 49
Size:  73.1 KBName:  20210110_221218.jpg
Views: 52
Size:  122.3 KB
__________________
02 Imola on Black Dinan S2 4.6iS
00 RoyalRot on Sand/Black 740i Short Sport

Last edited by Purplecty; 01-11-2021 at 03:34 PM.
Reply With Quote
  #83
Old 01-11-2021, 10:05 AM
Member

Join Date: Jun 2013
Location: Virigina, USA
Posts: 2,343
StephenVA is on a distinguished road
aftermarket parts... A butchering process in and out it appears. The question will be what is left and what is still trying to run continuously?
__________________

2005 X5 4.8IS
The Blue ones are always FASTER....

Current Garage:
2005 X5 4.8is
2002 M5 TiSilver
2003 525iT
1998 528i
Former Garage Stable Highlights
2004 325XiT Sport
1973 De Tomaso Pantera, L Model
1970 Dodge Challenger T/A 4 sp Alpine White
1970 Dodge Challenger T/A 4 sp GoManGo Green
1971 Dart Sport, “Dart Light” package
1969 Road Runner 383
1968 Ply Barracuda 340S FB Sea-foam Green
Reply With Quote
  #84
Old 01-11-2021, 10:08 AM
Member

Join Date: Jan 2017
Location: Chicago
Posts: 597
Purplecty is on a distinguished road
Quote:
Originally Posted by StephenVA View Post
aftermarket parts... A butchering process in and out it appears. The question will be what is left and what is still trying to run continuously?
I have practically removed everything but the original amp which is no longer connected outside of whatever botch job was done here...
__________________
02 Imola on Black Dinan S2 4.6iS
00 RoyalRot on Sand/Black 740i Short Sport
Reply With Quote
  #85
Old 01-12-2021, 12:25 PM
Member

Join Date: Jan 2021
Location: Toronto-Moscow
Posts: 19
TUNEX_E53 is on a distinguished road
Is your Booster POSITIVE CABLE which is located under the hood closer to the Driver Windshield properly tied up? Simply test if it is getting hot over all. It can cause a parasitic leak if its not properly tied up or (loosened). It will generate heat = BATERY LOSS
Reply With Quote
  #86
Old 01-12-2021, 12:32 PM
Member

Join Date: Jan 2017
Location: Chicago
Posts: 597
Purplecty is on a distinguished road
Quote:
Originally Posted by TUNEX_E53 View Post
Is your Booster POSITIVE CABLE which is located under the hood closer to the Driver Windshield properly tied up? Simply test if it is getting hot over all. It can cause a parasitic leak if its not properly tied up or (loosened). It will generate heat = BATERY LOSS
You mean the positive jump point? What do you mean by tied up?
__________________
02 Imola on Black Dinan S2 4.6iS
00 RoyalRot on Sand/Black 740i Short Sport
Reply With Quote
  #87
Old 01-12-2021, 01:25 PM
Member

Join Date: Jan 2021
Location: Toronto-Moscow
Posts: 19
TUNEX_E53 is on a distinguished road
Quote:
Originally Posted by Purplecty View Post
You mean the positive jump point? What do you mean by tied up?
Make sure its not loosend up.
Just touch it really carefully and check if it generates any heat.
Over time it just might get loosened because of vibrations or if somebody loosened it up due to work being done let's say on a brake booster and then didn't tie it up back tight enough.
Reply With Quote
  #88
Old 01-14-2021, 05:44 PM
Member

Join Date: Jan 2017
Location: Chicago
Posts: 597
Purplecty is on a distinguished road
Found this under the glovebox and disconnected it.Name:  20210114_140034.jpg
Views: 22
Size:  65.2 KB
__________________
02 Imola on Black Dinan S2 4.6iS
00 RoyalRot on Sand/Black 740i Short Sport
Reply With Quote
  #89
Old 01-14-2021, 05:56 PM
Member

Join Date: Jun 2013
Location: Virigina, USA
Posts: 2,343
StephenVA is on a distinguished road
You have to love people who add tech to cars randomly. Want music? Get a ear bud for your iPhone. It will only get worse as more and more models come onto the fifth and final owners. Way too many with more built in factory technology that is outdated the day it leaves the show room floor.
__________________

2005 X5 4.8IS
The Blue ones are always FASTER....

Current Garage:
2005 X5 4.8is
2002 M5 TiSilver
2003 525iT
1998 528i
Former Garage Stable Highlights
2004 325XiT Sport
1973 De Tomaso Pantera, L Model
1970 Dodge Challenger T/A 4 sp Alpine White
1970 Dodge Challenger T/A 4 sp GoManGo Green
1971 Dart Sport, “Dart Light” package
1969 Road Runner 383
1968 Ply Barracuda 340S FB Sea-foam Green
Reply With Quote
  #90
Old 01-14-2021, 07:08 PM
Member

Join Date: Jan 2017
Location: Chicago
Posts: 597
Purplecty is on a distinguished road
I need to pull out the whole glovebox and see if the DICE is behind there as well or of this was to replace the DICE at some point.
__________________
02 Imola on Black Dinan S2 4.6iS
00 RoyalRot on Sand/Black 740i Short Sport
Reply With Quote
