  #81
Old 07-19-2018, 12:32 AM
Member

Join Date: Jun 2017
Location: Australia
Posts: 146
FourPointEight-is is on a distinguished road
Exclamation

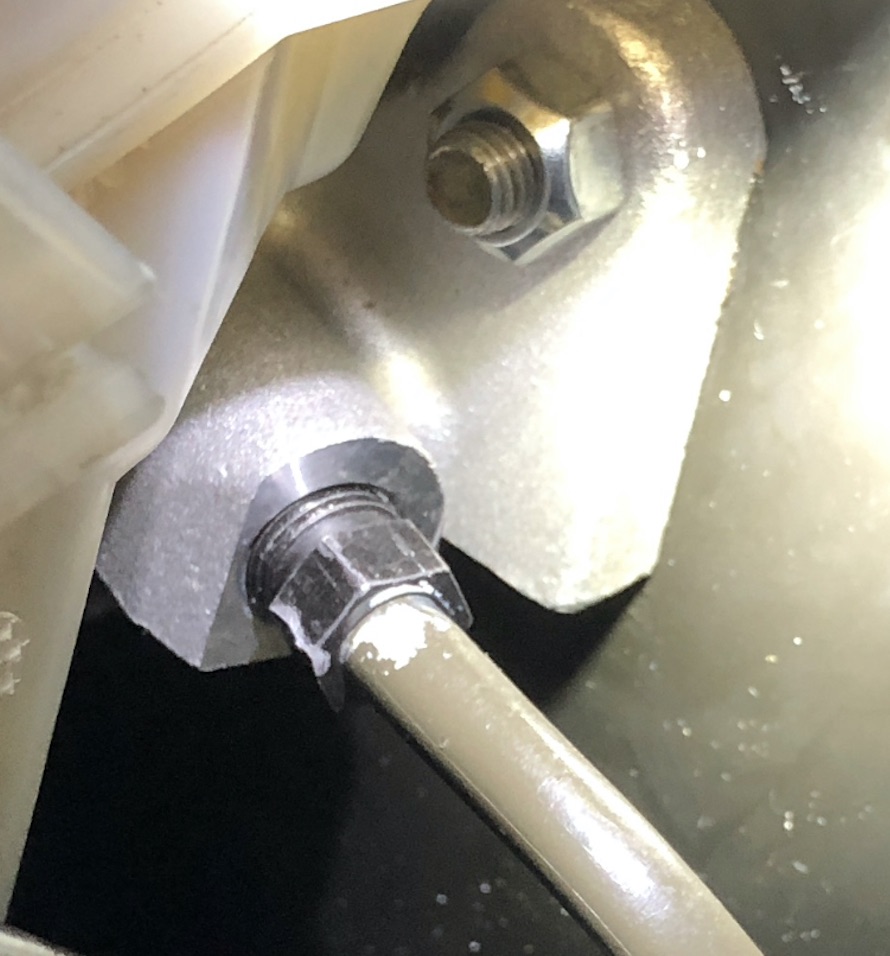

It would appear my problem is not to do with bleeding at all but rather a leak from the rear port on the master cylinder.

Does this look like it's "in" all the way to you guys? I am reluctant to keep tightening it. I don't have a torque wrench that can go on a fitting like this.

BMW TIS says this fitting "Brake lines to hydraulic control unit" should be 17 nM
https://www.newtis.info/tisv2/a/en/e...-lines/5eAqjtl

I don't really think I can tighten this thing anymore...
Attached Images

Reply With Quote

Sponsored Links

  #82
Old 07-19-2018, 02:27 PM
bcredliner's Avatar
Premier Member

Join Date: Jun 2008
Location: Little Elm,Texas. (40 minutes North of Dallas)
Posts: 7,589
bcredliner is on a distinguished road
Hard to say if the connection is tight or not. Meeting torque specs is the determination though if it is cross treaded torque specs will not be accurate. Did you remove this line or were the symptoms prior to the brake work similar to what you have now? Be sure to use a brake/fuel line wrench.
__________________
X5 4.6 2002 Black Sap, Black interior. 2013 X5M Melbourne Red, Bamboo interior
Dallas
Reply With Quote
  #83
Old 07-19-2018, 07:22 PM
Member

Join Date: Jun 2017
Location: Australia
Posts: 146
FourPointEight-is is on a distinguished road
I donít believe itís cross threaded. I used my fingers to do it until it was almost all the way in then used my 12mm open-ended spanner. I did remove this line, itís not possible to extract the brake booster (which was the point of the exercise originally) with this line (and the master cylinder) in place.
Reply With Quote
  #84
Old 07-23-2018, 12:24 PM
Best4x4xFAR's Avatar
Member

Join Date: Oct 2008
Location: Maryland
Posts: 347
Best4x4xFAR is on a distinguished road
I bleed another container of fluid through it this weekend. Took it to a local parking lot. Pedal still like a marshmallow, but if you pressed deep down, it would stop the car..

Did a bunch of panic stopps, getting the ABS pump going. But it just seemed like the rear brakes were not engaging at all..

Quote:
Originally Posted by RajB View Post
The ABS needs recycling to open the valve using the proper software as the rears have most likely bled out. That's the issue I had many years ago when I fitted my BBK.
Well, broke down and took it to the dealer this morning. Explained that I though there was air trapped in the ABS Pump and needed them to have the computer run the bleed sequence to get it out..

Hour and half later they brought it around. $143 dollars sir..

Drove it, somewhat, but not alot better than it was..
Went back in, asked if they test drove it..
Service advisor drove it, said felt fine to him..
Asked if they had cycled the ABS pump, he had no idea of course..
Took it to the shop foreman..

Another hour and half later, Advisor tells me they ran the 'bleed program' from the computer and asks me to test drive it..

Light years better. I'm still a little unhappy with the pedal feel overall, but at least all the brakes are working, and it is safe to drive again.

Hoping my experience is like "Ashaman", in that I've got a solid pedal engine off, but soft engine on

Quote:
Originally Posted by Ashaman074 View Post
I missed my next update, so I'll give a combined Day 4/5

Day 4 I was able to properly pressurize the reservoir. I performed a full bleed, at each point I pressurized the reservoir, opened the bleeder. Allows the attached hose to fully fill, submerged in a container of brake fluid. Pumped the brakes 5 times. Ran the DIS bleed procedure. Pumped the brake 5 times. Started the engine, pumped the brake 5 times. Ran the DIS bleed procedure. Closed the bleeder. Sounds ridiculous; but I got a TON of air out of the system, mainly at the passenger rear.

So, after this raindance, I had a fairly firm pedal with the engine off, but it was still soft with the engine running. Hoping my pedal firms up too over the next few days, but not holding out a lot of hope.

The next day after work, I basically repeated the exact same process. Afterwards, I had a pedal that was rock solid with engine off, and usable with the engine running. I still didn't think it was quite as good as before, but at least I could drive it and bed the pads in.

Today I drove it to work, and they feel great. Not sure why it is any different than last night, maybe the fluid was a bit aerated; but they are fantastic now.

I sometimes like to check it after driving a few days to ensure no additional air worked its way back out of the system, so I'll probably do that this time too - but for the time being I am just happy to lay it to rest - What a fiasco!

You can be darned sure I'll watch fluid levels like a hawk the next service; that is for sure!

But yeah, pressure bleeding running the "Bleed Procedure" routine were key. It was difficult enough and took enough time even with them, I don't think it ever would have been possible without them. I suppose this is pretty typical of any modern AWD vehicle, but it was a frustrating bit O' learning for sure. Thanks again to everyone who helped!
Thanks everyone for your feedback..

P.S. - Would be nice if you didn't have to tell the dealership that there is a procedure to run on the computer to get the air out of the ABS pump..
__________________
~Scott

--------------------
Black Sapphire Metallic/Sand Beige '13 E70 35d, SP, NAV, Tech, Comfort Access/Seats
20" Style 214's Wrapped in Continental DWS06 Extreme Contacts

(SOLD) Alpine White/Sand Beige '06 E53 3.0, SP, PP, CC, RC, NAV, Sat Radio
19" Style 63's
Wrapped in Bridgestone Dueler HP Sports-- Summer Shoes
18" Style 131's Wrapped in 255/55-18 Nokian WRG2 SUV's -- Winter Boots

Last edited by Best4x4xFAR; 07-23-2018 at 05:01 PM.
Reply With Quote
  #85
Old 07-23-2018, 01:38 PM
upallnight's Avatar
Member

Join Date: Aug 2012
Location: Cook County
Posts: 7,280
upallnight is on a distinguished road
Quote:
Originally Posted by FourPointEight-is View Post
I donít believe itís cross threaded. I used my fingers to do it until it was almost all the way in then used my 12mm open-ended spanner. I did remove this line, itís not possible to extract the brake booster (which was the point of the exercise originally) with this line (and the master cylinder) in place.
From the picture that you posted it looks as though it is cross-threaded. I changed the spark plug on my second Lotus and I threaded it in by hand, but when I tried to tighten up the plug with a wrench I felt that something was not right. Yup, you guess it I cross threaded the spark plug hole. Lucky for me I had a spare head that I install to fix the problem that I created.
__________________
2006 Infiniti G35
2001 BMW 3.0I E53 X5 Build date 08/2000 SOLD
Lotus Europa 1970 Destroyed by fire
Lotus Europa 1970 S2 Renault Powered
Lotus Type 52 1970 Twincam Webers Powered
PORSCHE 911 Targa 1982 The Garage Queen
Audi Avant donated to Kars for Kids
BMW 525IT Sold
Audi 4000CS Quattro Sold
Jensen Healey Lotus Powered Sold
Opel 1900 Sold
Triumph Spitfire 1971 Sold
Triumph Spitfire 1968 Sold
Plymouth "Cuda" 340 Six pack SOLD
Reply With Quote
  #86
Old 08-01-2018, 01:21 PM
Member

Join Date: Sep 2016
Location: NY
Posts: 20
FREE-PPV is on a distinguished road
ABS BLEEDING ISSUE

It appears in my research that the ABS can have air bubbles which are difficult to evacuate, been through three bleeding procedures and cannot get full braking, worse yet, brakes lock up when hot at precisely same point in daily drive. Pressure bleed, but very little air came out at calipers. Unlocked the proportion valve which was preventing rear brake bleed as the brake line ruptured and had them replaced. So this is where my problem started, got stuck taking it to a independent who supposedly knew BMW's, yes he came back and said I need master cylinder when he could not bleed rears, and he had no diagnostic system evidently. So got screwed, took it home on front brakes only, replaced master cylinder and no difference, which led me to researching issue myself, bought the bleeder diagnostics, got to bleed rears, but using vacuum bleeder was not working, bought pressure bleeder, got more air out, but still same issue of soft peddle and only 50% braking and still locking up. I read that jacking up rear is solution for stuck air bubbles in master cylinder, so I am stumped, will try to bleed again. Any suggestions?

Thanks,
Reply With Quote
  #87
Old 07-23-2020, 11:32 AM
Member

Join Date: Feb 2011
Location: Calgary, Canada
Posts: 2,097
Clockwork is on a distinguished road
Great info, thanks.
__________________
I swear, my cars are like a girlfriend.
Sometimes its a rough ride, sometimes its smooth motorin'.
Sometimes she doesnt like how i treat her and sometimes i dont like how she behaves.
BUT at the end of the day, she loves it when I am inside her.

_______________________
'91 850i
'05 X5 4.4i
Reply With Quote
  #88
Old 07-23-2020, 12:19 PM
EODguy's Avatar
Member

Join Date: Jun 2018
Location: Saudi Arabia/Philippines/USA
Posts: 2,188
EODguy is on a distinguished road
There's a specific order on bleeding and you must activate the ABS while doing it or else you basically are just pushing bubbles back and forth in the block.

Believe it's RR, LR, RF, LF but I don't have it in front of me to verify. Sorry

Sent from my SM-A730F using Tapatalk
__________________
"When the Team Chief said.... You're trapped in a hole with nothing but a goat and a slinky, what do you do? Stubby said, I'm not sure but it won't end well for the goat...." ~(Overheard) Last day, Phase 3, Q Course

Last edited by EODguy; 07-23-2020 at 12:29 PM.
Reply With Quote
  #89
Old 07-23-2020, 02:21 PM
Member

Join Date: Mar 2017
Location: NWOhio
Posts: 205
absolutezero273c is on a distinguished road
Quote:
Originally Posted by EODguy View Post
There's a specific order on bleeding and you must activate the ABS while doing it or else you basically are just pushing bubbles back and forth in the block.

Believe it's RR, LR, RF, LF but I don't have it in front of me to verify. Sorry

Sent from my SM-A730F using Tapatalk

I learned this the hard way after replacing a rusted out line to the back. It never dawned on me, as I read through all the threads and reviewed ISTA/D on procedures until I broke down and took it to the dealer. It may be self evident but I didn't think of it in trying to do this single handed. I asked the dealer and they have 2 people bleeding the brakes. IIRC, one pumping the brakes while the ABS is engaged via ISTA and one cracking the bleeder screw open.


I bought a pressure bleeder thinking that I would be able to do this by myself AND while activating ABS. No such luck. I had the steps right, starting at the right rear wheel, but it is a 2 man job.
__________________
2005 Titanium Silver X5 4.8is (DD winter) * 2001 Steel Blue 750iL (DD summer) * 2001 Ford Excursion 7.3 L <> 2005 X5 3.0 * 2003 X5 4.4i * 2009 X3 3.0 * 2009 X5 3.0 * 2007 Toyota Avalon Limited
Reply With Quote
  #90
Old 07-23-2020, 03:22 PM
X5only's Avatar
Premier Member

Join Date: Feb 2008
Location: Bellevue, WA
Posts: 1,217
X5only is on a distinguished road
If there's any DIY I just can't stand doing it's brake bleeding - so f#[email protected] bloody tedious but must be done right, or else .... So, for $120 done at my local dealership, I call it money-well-spent for such an onerous task.
