  #271
Old 02-18-2018, 07:59 PM
95wildtt's Avatar
Member

Join Date: Sep 2010
Location: Carmel, IN
Posts: 399
95wildtt is on a distinguished road

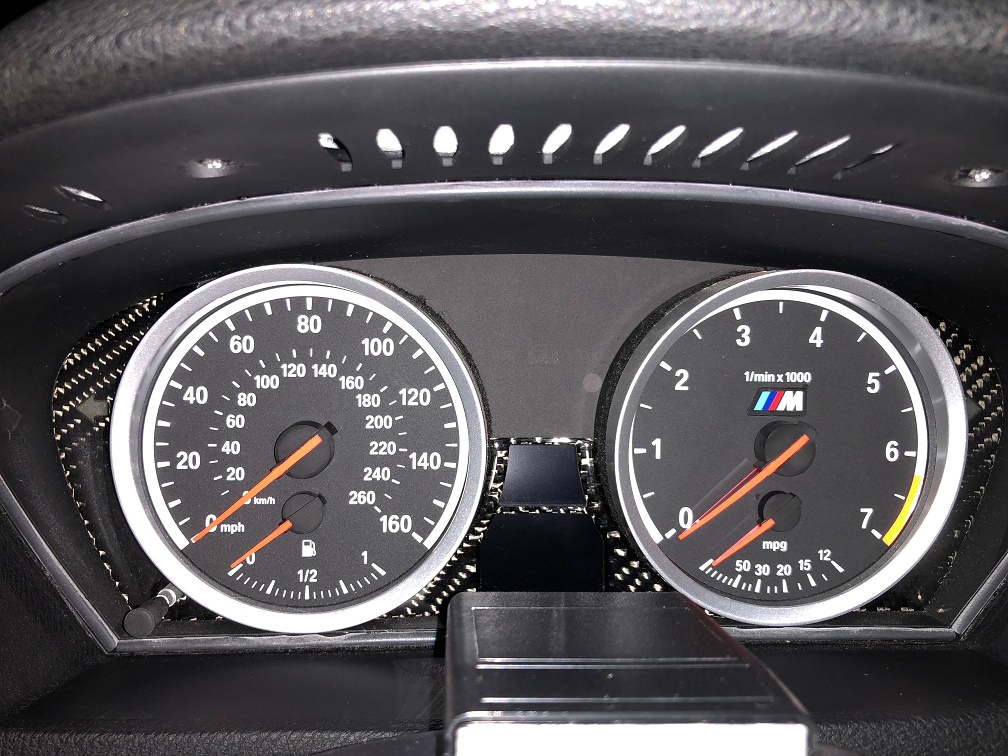

Early 10th Birthday Gift for my 2008 4.8, I finally finished my custom cluster mods...

Enjoy,
John
Attached Images

__________________

2008 4.8i X5 (2/25/08) 105k:
Titanium Silver/Black; All -HUD; Aero Kit; 22" VS-130 w/Pirellis;
///M Shifter & Fr Brakes; Gauge Rings; Console Pads; Custom Wheel & Mats; Roof Rails
Carbon Fiber: Int Trim, Nav Surround, Grill, Cluster Trim, Shifter & Eyelids
1.2" H&R; LUX AEs; LCI Tails; Rear Fogs; NBT EVO; ESS Tune; Meisterchaft GTC Exhaust
Reply With Quote

Sponsored Links

  #272
Old 02-18-2018, 09:14 PM
Member

Join Date: Aug 2016
Location: Detroit, MI
Posts: 302
Nanniepoo is on a distinguished road
Quote:
Originally Posted by Jim Daniel View Post
At least you got them loose.
Sometimes there's so much old thread locker on them, you need a team of elephants on the end of a breaker bar with a long pipe slipped over it.
(well, almost)

Glad it worked out for ya !!
They actually weren't on there too tight. No thread locker.

Finished up today. Took wwaaayyy longer than I thought it would.



Sent from my LG-H872 using Tapatalk
__________________
'08 X5 4.8i - 173k
'15 i3 - 76k

'98 323is - 169k - Garaged
'94 325i - 208k - Sold
Reply With Quote
  #273
Old 02-19-2018, 06:55 PM
Bimmer360's Avatar
Member

Join Date: Nov 2006
Location: Denver, CO
Posts: 1,594
Bimmer360 is on a distinguished road
My gearshift selector does not do manual and does not go to DS mode anymore so I took it apart. A broken piece was in the way and removed that. It is woking now.
__________________
Bimmer360
Space Gray X
My Mod Page
Reply With Quote
  #274
Old 02-21-2018, 10:49 AM
gatojurko's Avatar
Member

Join Date: Mar 2016
Location: Riga
Posts: 502
gatojurko is on a distinguished road
Installed DVR!

Sent from my SM-G900F using Tapatalk
Reply With Quote
  #275
Old 02-21-2018, 10:54 AM
740iS's Avatar
Premier Member

Join Date: May 2010
Location: San Francisco Bay Area
Posts: 433
740iS is on a distinguished road
Quote:
Originally Posted by 95wildtt View Post
Early 10th Birthday Gift for my 2008 4.8, I finally finished my custom cluster mods...

Enjoy,
John
Love the white and ///M decal. Do tell the details.
__________________
'01 740i Sport MKIV, Quad Brake Lights, Bi-Xenon retrofit, HID Fogs Dinan 7 Struts, Springs, camber plates, Intake, MAF, CAI, Throttle Body, NBT Retrofit, Strong Strut


'99 318ti Titanium Silver; '97 318ti Boston Green; '13 X5 3.5i Saphire Black Metallic
'84 633csi Black (sold); '88 325iC Black (sold); '97 740iL Black(sold); '01 740iS Black (sold);'97 318ti White (sold)
; '08 X5 4.8i Titanium Silver (sold); '96 318ti Alaska Blue (sold)
Reply With Quote
  #276
Old 02-21-2018, 04:54 PM
95wildtt's Avatar
Member

Join Date: Sep 2010
Location: Carmel, IN
Posts: 399
95wildtt is on a distinguished road
Quote:
Originally Posted by 740iS View Post
Love the white and ///M decal. Do tell the details.
Sorry I didn't do a DIY, because I wasn't sure anyone else would really want to do this.
The stakes are pretty high and it's by far the most difficult mod I have ever done!!

Here is the thread that got me started on the idea:DIY: Change your gauge cluster light colors!
It wasn't until I had the cluster apart that I realized our gauge back-lighting was different... The LEDs for the gauges aren't on the green circuit board, like the E90. Took me a while to figure out where they were.
Other than that, the steps are pretty much 100% the same.

Let me just say this before I go into details.
You will have to be VERY good at soldering VERY SMALL items, and be willing to cut a hole in the Tach gauge face for the back-lit ///M option.
If these cause a "pucker factor" for you at all, I suggest you read no further

Changing the 8 orange SMD chip LEDs in the cluster to white ones is not for the weak of heart, as I just about trashed my cluster 2 or 3 times.
The LEDs are very small (2835 Chips - 2.8mm x3.5mm and .8mm thick) and are not mounted on the solid green FR-4 PCB under the gauges, as in many of the other clusters out there...
I bought the white LEDs here: https://www.superbrightleds.com/more...led/1843/4456/

They are mounted on 2 flex circuits (see photo) behind the 2 large gauges, and one of them can't be removed due to the cruise control indicator motor. So, the chip LEDs have to be removed and soldered with that Flex Circuit in place.
What a pain in the $%^ that was... several hours, a few choice words, and a couple of repairs to the flex circuits.

Once you have the LEDs changed, it's a matter of painting the rings behind the gauge faces flat white (or the color of your choice) to better reflect the light. I used an airbrush, so it was pretty easy to do this part...
I also cut the faint orange Red-line section out of the gauge face and replaced it with my preferred day-glo orange vinyl (looks yellow in the photos) and also added the same color stripe to the cruise indicator wheel to replace the white one that shows when the cruise is set.

Note 1: If you want to change the color of the needles from orange, you can replace the 4 even smaller LEDs on the green PCB to another color, these would be pretty straight forward to do, compared to the flex circuits.
These are under the white plastic motor pods shown in the photo and can be accessed by removing the white pods... pretty easy.

Note 2: If you would like to change the color of the text between the gauges, from orange to another color, you could remove the LCD display and change the LEDs under it to get a different color.
The thread referenced at the top for the E90 shows how they did this.

Making the back-lit ///M badge:
1. Find a very thin piece of clear plastic to use as a substrate (I used part of a PIAA bulb package that had a clear window in it)
2. I used a very small (7mm x15mm) custom vinyl decal that I purchased a few years ago and stuck it to the clear plastic
3. Then I spray painted the front, over the ///M decal, flat black (with the airbrush)
4. When Dry, very carefully remove the vinyl allowing the clear plastic to show in the shape of the ///M
5. Now put another white vinyl "M" over the clear plastic to replace the painted M that you just removed
6. Cut 3 very small strips of vinyl to size for the /// (I used M colors, but could use German flag or others) and place them in the correct locations
7 I used very thin (.1mm) clear 3M adhesive and applied it to the backside of the substrate so I could attach it to the Tach gauge face.
8 Cut the substrate to only about an 1/8" larger than the vinyl ///M on all sides, but be careful to not remove any of the black paint while doing this, if you do carefully touch it up.

Now, all you have to do is cut a hole in the Tach gauge face in the shape of the ///M vinyl
I put another small ///M vinyl decal on the face where I wanted the back-lit ///M to be and carefully cut around the ///M letters with an xacto knife, make sure it's a new blade.
Then carefully lift the section out that you just cut around, and want to cover with the ///M badge you made above.

Once the hole has been cut and opened, you can carefully place the ///M badge you made over the hole, and you now have a back-lit ///M on the Tach.

Sounds easy huh?

Took me about 2 days to figure out how to do it, and then another day to do the actual work.

** Replacing the LEDs was BY FAR the hardest part of the job, but cutting a hole in the Tach face was the most stressful, as there was no turning back!!

Thanks,
John
Attached Images

__________________

2008 4.8i X5 (2/25/08) 105k:
Titanium Silver/Black; All -HUD; Aero Kit; 22" VS-130 w/Pirellis;
///M Shifter & Fr Brakes; Gauge Rings; Console Pads; Custom Wheel & Mats; Roof Rails
Carbon Fiber: Int Trim, Nav Surround, Grill, Cluster Trim, Shifter & Eyelids
1.2" H&R; LUX AEs; LCI Tails; Rear Fogs; NBT EVO; ESS Tune; Meisterchaft GTC Exhaust

Last edited by 95wildtt; 02-21-2018 at 05:13 PM.
Reply With Quote
  #277
Old 02-23-2018, 10:49 AM
Member

Join Date: Aug 2016
Location: Detroit, MI
Posts: 302
Nanniepoo is on a distinguished road
Quote:
Originally Posted by Nanniepoo View Post
They actually weren't on there too tight. No thread locker.

Finished up today. Took wwaaayyy longer than I thought it would.



Sent from my LG-H872 using Tapatalk


Drove it for the first time today besides for a quick test drive as it's the wife's DD. Brakes feel great! No squealing or odd noises, so I get to pat myself on the back. Leaving work a bit early today to get new tires. Then it's time to get all those recalls done!
Reply With Quote
  #278
Old 02-23-2018, 10:53 AM
Member

Join Date: Oct 2016
Location: Charlotte, NC
Posts: 122
Jarhed1964 is on a distinguished road
Got my car back from dealer 2 days ago. All recalls complete except ccv heater. Replaced leaking lower radiator hose with OEM last night. Ordered new tensioner pulleys (URO with better bearings, and OEM for the deflector pulley). Will install as soon as they arrive with new belts.

Next up: OFH Gasket, Oil Cooler Gasket, Valve Cover Gasket (BMW recommends new cover), and both thrust arms. Bushings are VERY shot, going with Lemfoerder from FCP.
__________________
2009 X5 XDrive30 Sport acquired 10/21/16 "Brigette"
2005 530i Sport acquired 5/2014 (wife traded for a milktoast Honda)
1999 528i Sport (306k miles!!) acquired 8/2006 "Prescilla" (sold)
1997 528i acquired 8/2004, "Helga" parted out and gone
1992 735iL acquired 6/2003, "Wanda" sold
Reply With Quote
  #279
Old 02-27-2018, 07:26 PM
gatojurko's Avatar
Member

Join Date: Mar 2016
Location: Riga
Posts: 502
gatojurko is on a distinguished road
Just put on those carbon M style stickers!

Sent from my SM-G900F using Tapatalk
Reply With Quote
  #280
Old 03-01-2018, 09:23 PM
Member

Join Date: Oct 2016
Location: Charlotte, NC
Posts: 122
Jarhed1964 is on a distinguished road
Quote:
Originally Posted by Jarhed1964 View Post
Had an indie find the coolant leak and source of the bumping on front suspension. Lower rad hose (17127537101) is leaking, ordered from ECS Tuning with some coolant. Thrust arm bushings are leaking. Will get Lemfoerder from FCP as soon as I am ready to replace.
Dammit!!

Replaced the lower coolant hose, but STILL losing coolant somewhere. Always all over the garage floor and coolant level keeps dropping.

Going to have to pull the fan on Saturday and try to find this new leak... or figure out why the new hose is still leaking. Old one was leaking at the lower connection... at least that is what it appeared like anyway. Hope it's just a bad radiator (replaced in 2016 by previous owner shop in VA). That is easier than hunting leaky hoses.
__________________
2009 X5 XDrive30 Sport acquired 10/21/16 "Brigette"
2005 530i Sport acquired 5/2014 (wife traded for a milktoast Honda)
1999 528i Sport (306k miles!!) acquired 8/2006 "Prescilla" (sold)
1997 528i acquired 8/2004, "Helga" parted out and gone
1992 735iL acquired 6/2003, "Wanda" sold
Reply With Quote
