Subwoofer Project FINISHED!!! (Enclosure Dimensions Included)

Finally I decided to pull the trigger!

Information:

Subwoofer: Pioneer Shallow 25cm (10") Sub TS-SW251
It only needs 0.35 cu. ft. enclosure
http://www.pioneer-uae.com/product_d...cat=1&subcat=4

Thanks zerochief for the idea http://www.xoutpost.com/x5-e53-forum/...stom+installed



Amplifier:
Alpine MRP-M350 1 Channel V-Power Class-D Mono Amplifier
700W Max - 200W RMS
http://www.audiogearreviews.com/revi...ne_mrp-350.asp



Enclosure
After several attempts using cupboards, I came out with the below design and dimensions. This should roughly give 15 Liters of volume (0.53 cu. ft.) which is higher than the minimum recommended enclosure volume for the sub.

I will start installation after the carpenter finishes the enclosure. I will keep you updated with the results.

You will find the design and dimensions of the enclosure on the following posts....
__________________
BMW 1M 2012 - Current
Jeep Grand Cherokee Limited 2011 - Current
BMW E93 330i Convertible 2009 - Sold
BMW E46 320i 2004 - Sold
BMW X5 4.4i 2002 - Sold
VW Golf GTI 2000 - Sold
BMW 740i 1996 - Sold

Last edited by Essam Khafagi; 01-09-2009 at 05:37 AM.
Reply With Quote

Sponsored Links

  #2
Old 01-06-2009, 11:33 AM
sleepless's Avatar
Member

Join Date: Sep 2007
Location: nj
Posts: 560
sleepless is on a distinguished road
can't wait to see some pictures ........... also post the sound on youtube...... question.. R U doing the install yourself ? asa lama lakum
Reply With Quote
  #3
Old 01-06-2009, 11:45 AM
Essam Khafagi's Avatar
Member

Join Date: Nov 2006
Location: Egypt
Posts: 1,040
Essam Khafagi is on a distinguished road
I will do the installation on Thursday (my weekend)... and yes, I will do it myself for the first time in my life

I spoke to a lot of car audio technicians here but unfortunately they are all "scared" to touch the BMW OEM audio system. They refused to do it!

The enclosure will be ready by tomorrow. I will post pics as soon as I have it and the fit is OK.

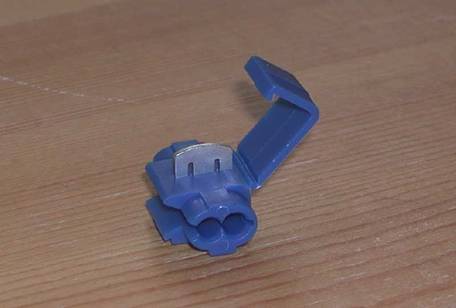

I already have the speaker wires for amp speaker level input and for the sub output. I will get a good power and ground cables from Raidoshack and I also have the crimp and snap connector to tap on the OEM wires. It looks like this:



This article is very useful: http://www.xoutpost.com/articles/x5/s...ctory-amp.html
__________________
BMW 1M 2012 - Current
Jeep Grand Cherokee Limited 2011 - Current
BMW E93 330i Convertible 2009 - Sold
BMW E46 320i 2004 - Sold
BMW X5 4.4i 2002 - Sold
VW Golf GTI 2000 - Sold
BMW 740i 1996 - Sold

Last edited by Essam Khafagi; 01-06-2009 at 12:14 PM.
Reply With Quote
  #4
Old 01-06-2009, 12:00 PM
sleepless's Avatar
Member

Join Date: Sep 2007
Location: nj
Posts: 560
sleepless is on a distinguished road
post some pic. of the wiring of the amp if you could, I am looking @ the same install with the same sub.
Reply With Quote
  #5
Old 01-06-2009, 12:13 PM
Essam Khafagi's Avatar
Member

Join Date: Nov 2006
Location: Egypt
Posts: 1,040
Essam Khafagi is on a distinguished road
^ PM sent
__________________
BMW 1M 2012 - Current
Jeep Grand Cherokee Limited 2011 - Current
BMW E93 330i Convertible 2009 - Sold
BMW E46 320i 2004 - Sold
BMW X5 4.4i 2002 - Sold
VW Golf GTI 2000 - Sold
BMW 740i 1996 - Sold
Reply With Quote
  #6
Old 01-06-2009, 12:20 PM
sleepless's Avatar
Member

Join Date: Sep 2007
Location: nj
Posts: 560
sleepless is on a distinguished road
شكرا جزيلا
Reply With Quote
  #7
Old 01-06-2009, 12:32 PM
Essam Khafagi's Avatar
Member

Join Date: Nov 2006
Location: Egypt
Posts: 1,040
Essam Khafagi is on a distinguished road
Quote:
Originally Posted by sleepless
شكرا جزيلا
That's interesting
How do you know Arabic? Where are you from?
__________________
BMW 1M 2012 - Current
Jeep Grand Cherokee Limited 2011 - Current
BMW E93 330i Convertible 2009 - Sold
BMW E46 320i 2004 - Sold
BMW X5 4.4i 2002 - Sold
VW Golf GTI 2000 - Sold
BMW 740i 1996 - Sold
Reply With Quote
  #8
Old 01-06-2009, 12:37 PM
sleepless's Avatar
Member

Join Date: Sep 2007
Location: nj
Posts: 560
sleepless is on a distinguished road
pm ...sent
Reply With Quote
  #9
Old 01-07-2009, 04:08 PM
Essam Khafagi's Avatar
Member

Join Date: Nov 2006
Location: Egypt
Posts: 1,040
Essam Khafagi is on a distinguished road
Amp was wired today as per the below pics... You can tap into the OEM amp plug as follows:

Channel 1: Blue with Black stripe (+) twisted with Brown with Orange stripe (-)

Channel 2: Yellow with Black stripe (+) twisted with Brown with Orange stripe (-)

Remote: White single Wire

Power: I used the green box behind the spare tire to the left. I had three empty slots

Ground: There is a ground bolt under the handle you use to pull the spare tire out.

I still did not make the final wiring routes and still did not secure the amp in place below the NAV drive. Tomorrow I will paint the box and install the sub then finalize everything. Box details will be in the next post.

and here are the pics:
Attached Images

__________________
BMW 1M 2012 - Current
Jeep Grand Cherokee Limited 2011 - Current
BMW E93 330i Convertible 2009 - Sold
BMW E46 320i 2004 - Sold
BMW X5 4.4i 2002 - Sold
VW Golf GTI 2000 - Sold
BMW 740i 1996 - Sold

Last edited by Essam Khafagi; 01-07-2009 at 04:33 PM.
Reply With Quote
  #10
Old 01-07-2009, 04:17 PM
Essam Khafagi's Avatar
Member

Join Date: Nov 2006
Location: Egypt
Posts: 1,040
Essam Khafagi is on a distinguished road
and now the enclosure box ... after trials and errors the below dimensions are the final result ... I lost some enclosure volume but it is still within the recommended range (the new volume is around 14.25 liters, 0.5 cu. ft). It fits perfectly in place!

It was made from MDF 1.8cm thickness on the sides, bottom, and top. For the face and the back I used 0.8cm MDF. I sealed it using clear wood silicon from inside and outside in addition to pressurized nails. Gonna paint it tomorrow then install the sub. Will use Enamel spray paint (black).

now with the pics before painting...
Attached Images

__________________
BMW 1M 2012 - Current
Jeep Grand Cherokee Limited 2011 - Current
BMW E93 330i Convertible 2009 - Sold
BMW E46 320i 2004 - Sold
BMW X5 4.4i 2002 - Sold
VW Golf GTI 2000 - Sold
BMW 740i 1996 - Sold

Last edited by Essam Khafagi; 01-09-2009 at 11:29 AM.
Reply With Quote
