  #301
Old 05-22-2020, 12:04 PM
bcredliner's Avatar
.1 decrease 0-60 time = $1000 & DIY

Join Date: Jun 2008
Location: Little Elm,Texas. (40 minutes North of Dallas)
Posts: 7,215
bcredliner is on a distinguished road
Wind it up, let her rip, blow out the carbon, usually helps, certainly is fun.
__________________
X5 4.6 2002 Black Sap, Black interior. 2013 X5M Melbourne Red, Bamboo interior
Dallas
Reply With Quote

Sponsored Links

  #302
Old 05-22-2020, 01:38 PM
Overboost's Avatar
//Binary is in my DNA

Join Date: Apr 2006
Location: Huntersville, NC
Posts: 2,535
Overboost is on a distinguished road
Quote:
Originally Posted by bcredliner View Post
Wind it up, let her rip, blow out the carbon, usually helps, certainly is fun.
Something will probably break on the old girl. I just pamper her, I need to get another 100,000 miles out of her.
Reply With Quote
  #303
Old 05-22-2020, 06:14 PM
Overboost's Avatar
//Binary is in my DNA

Join Date: Apr 2006
Location: Huntersville, NC
Posts: 2,535
Overboost is on a distinguished road

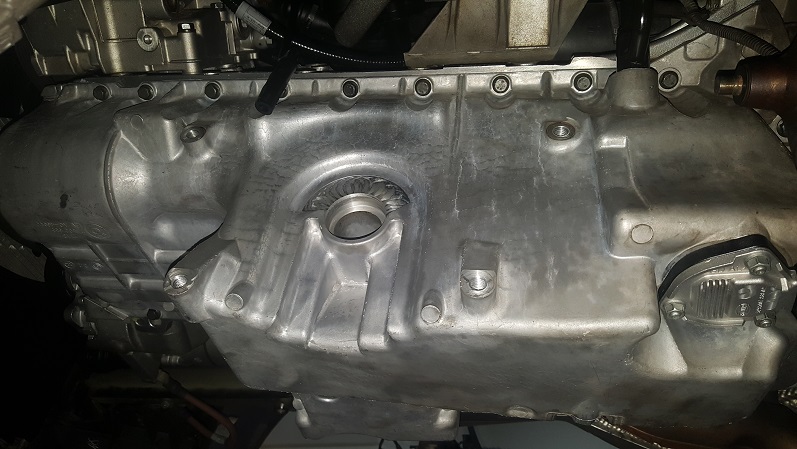

Got a little more done today. I got the pan back on and I am in the recommended Dreibond 1209 sealant procedure. Step 1: initial contact of gasket and sealant. Step 2: 1 hour later torque to 1/2 final torque value and Step 3: 6-24 hours later final torque. So I took the time to replace the intake CPS, mount oil level sensor and dipstick tube.

Tomorrow should be a lot busier. Final torque on the pan, install front diff, subframe, steering rack and power steering pump. (God knows I want to get that subframe back under there supporting the engine as it has been hanging by my Harbor Freight engine support bar for a week now)

Might get to axles too but slow and steady...
Attached Images

Reply With Quote
  #304
Old 05-22-2020, 06:44 PM
crystalworks's Avatar
Member

Join Date: Jun 2014
Location: SA, TX
Posts: 4,510
crystalworks is on a distinguished road
That all looks clean enough to eat off OB. I am envious.
__________________
2005 X5 4.4i Build 04/05 Maintenance/Build Log
Nav, Pano, Sport (Purchased 06/14 w/ 109,000 miles) (Sold 8/15 w/121,000 miles)


2006 X5 4.8is Build 11/05 Maintenance/Build Log
Nav, DSP, Pano, Running Boards, OEM Tow Hitch, Cold Weather Pckg (Purchased 08/15 w/ 90,500 miles)

2010 X5 35d Build 02/10
Nav, HiFi, 6 DVD, Sports Pckg, Cold Weather Pckg, HUD, CAS, Running Boards, Leather Dash, PDC, Pano (Purchased 03/17 w/ 136,120 miles)
Reply With Quote
  #305
Old 05-22-2020, 06:51 PM
Overboost's Avatar
//Binary is in my DNA

Join Date: Apr 2006
Location: Huntersville, NC
Posts: 2,535
Overboost is on a distinguished road
Quote:
Originally Posted by crystalworks View Post
That all looks clean enough to eat off OB. I am envious.
You would have banned me from Xoutpost if you saw the mess I saw under there before starting this project.

Waiting days for the oil to stop dripping down on that front right seam afforded me the time to clean those surrounding areas. Not as clean as the top yet but getting there.

Last edited by Overboost; 05-22-2020 at 06:58 PM.
Reply With Quote
  #306
Old 05-22-2020, 07:06 PM
Overboost's Avatar
//Binary is in my DNA

Join Date: Apr 2006
Location: Huntersville, NC
Posts: 2,535
Overboost is on a distinguished road
Quote:
Originally Posted by srmmmm View Post

Don't forget to grease those front driveshaft splines.


2002 X5 3.0 376,600 miles
2014 428i 66,700 miles


2004 325i sold at 123,600 miles
2001 325i sold at 66,000 miles


1970 Firebird Under restoration - now getting the super-duper extra stout serpentine belt conversion kit because....it's super-duper and extra stout.
Took your advice srmmmm and pulled the shaft (since the diff is not installed or connected) and added some more grease. Surprisingly there was no rust but really not a lot of grease in the splines. Added some extreme pressure red grease and happy to take your suggestion and spend 5 minutes for piece of mind.
Reply With Quote
  #307
Old 05-23-2020, 03:47 PM
srmmmm's Avatar
Member

Join Date: Jun 2013
Location: DFW, Texas
Posts: 859
srmmmm is on a distinguished road
Quote:
Originally Posted by Overboost View Post
Took your advice srmmmm and pulled the shaft (since the diff is not installed or connected) and added some more grease. Surprisingly there was no rust but really not a lot of grease in the splines. Added some extreme pressure red grease and happy to take your suggestion and spend 5 minutes for piece of mind.

You should be good to go now for a long time on that OB. I've got 240,000 miles on mine since it was replaced and repacked. Last inspection at 360,000 miles showed everything fine with plenty of grease still in there.


Sad the factory didn't do a better job of that originally.


2002 X5 3.0 376,600 miles
2014 428i 66,700 miles


2004 325i sold at 123,600 miles
2001 325i sold at 66,000 miles


1970 Firebird - Under restoration - sending dash cover and gauges out for remake $$$$
Reply With Quote
  #308
Old 05-23-2020, 07:57 PM
Overboost's Avatar
//Binary is in my DNA

Join Date: Apr 2006
Location: Huntersville, NC
Posts: 2,535
Overboost is on a distinguished road
Solid day today, I am beat. Everything back together and running with no leaks. I let it run in the air for about 15 minutes going over everything and double checking all my work. Tomorrow I will put the reinforcement plate and splash shield back on, set it down and torque the lower arms on each side and take it for a drive. Man, that right axle fought me for an hour but got it done. The tolerances for the axle to go through that bearing at the end of the axle carrier on the right side of the pan seemed really tight.

Anyway, nice to get her back on the road tomorrow.
Attached Images


Last edited by Overboost; 05-24-2020 at 11:00 AM.
Reply With Quote
  #309
Old 05-24-2020, 02:51 AM
Member

Join Date: Dec 2014
Location: Vienna, Austria
Posts: 72
Patriks7 is on a distinguished road
Iím trying to figure out how to do this next thing, but after a lot of searching I came up blank and am not even sure if itís possible - is it possible to somehow code the front parking sensors to turn on automatically below some speed? Itís something that always throws me off whenever I sit in my X5, as Iím very used to it from my Mercedes. Not going to lie, I have bent my front license plate once or twice.
__________________
03.06 BMW X5 4.8is LeMans Blue
Reply With Quote
  #310
Old 05-24-2020, 12:57 PM
Overboost's Avatar
//Binary is in my DNA

Join Date: Apr 2006
Location: Huntersville, NC
Posts: 2,535
Overboost is on a distinguished road
Quote:
Originally Posted by Patriks7 View Post
Iím trying to figure out how to do this next thing, but after a lot of searching I came up blank and am not even sure if itís possible - is it possible to somehow code the front parking sensors to turn on automatically below some speed? Itís something that always throws me off whenever I sit in my X5, as Iím very used to it from my Mercedes. Not going to lie, I have bent my front license plate once or twice.
I haven't tried it but you could try setting the PDC ON at terminal 15 which I would guess PDC would be active with key on. Then the on/off speed selection would seem to come on below 20 and off again at over 20. I don't know but only a couple of clicks in BMW Scanner 1.4 to find out.

Reply With Quote
