  #21
Old 03-03-2014, 02:01 PM
Member

Join Date: Nov 2012
Location: Allentown, PA
Posts: 800
4.8isX5 is on a distinguished road
Heres a video of the other tool i am talking about, this will do it.

How to Replace a Truck Ball Joint : How to Press Out a Truck's Lower Ball Joint - YouTube


You can rent at advance auto parts free just put a charge on card and once returned its refunded.
__________________
2006 X5 4.8is Fully Loaded

Reply With Quote

Sponsored Links

  #22
Old 03-03-2014, 02:03 PM
upallnight's Avatar
Member

Join Date: Aug 2012
Location: Cook County
Posts: 6,323
upallnight is on a distinguished road
Quote:
Originally Posted by 4.8isX5 View Post
Ohhhh... Ok i see, its mounted differently then i thought.


In this case rent the balljoint tool from advance auto, its a huge c clamp with different fittings that for example allows you to push on the stud while not putting pressure on the top of it.

You need to push from the top and not the stud to remove the ball joint.
__________________
2006 Infiniti G35
2001 BMW 3.0I E53 X5 Build date 08/2000
Lotus Europa 1970 Destroyed by fire
Lotus Europa 1970 S2 Renault Powered
Lotus Type 52 1970 Twincam Webers Powered
PORSCHE 911 Targa 1982 The Garage Queen
Audi Avant donated to Kars for Kids
BMW 525IT Sold
Audi 4000CS Quattro Sold
Jensen Healey Lotus Powered Sold
Opel 1900 Sold
Triumph Spitfire 1971 Sold
Triumph Spitfire 1968 Sold
Plymouth "Cuda" 340 Six pack SOLD
Reply With Quote
  #23
Old 03-03-2014, 02:17 PM
upallnight's Avatar
Member

Join Date: Aug 2012
Location: Cook County
Posts: 6,323
upallnight is on a distinguished road
I like real fix real fast video.

https://www.youtube.com/watch?v=gHCPlh8Loug
__________________
2006 Infiniti G35
2001 BMW 3.0I E53 X5 Build date 08/2000
Lotus Europa 1970 Destroyed by fire
Lotus Europa 1970 S2 Renault Powered
Lotus Type 52 1970 Twincam Webers Powered
PORSCHE 911 Targa 1982 The Garage Queen
Audi Avant donated to Kars for Kids
BMW 525IT Sold
Audi 4000CS Quattro Sold
Jensen Healey Lotus Powered Sold
Opel 1900 Sold
Triumph Spitfire 1971 Sold
Triumph Spitfire 1968 Sold
Plymouth "Cuda" 340 Six pack SOLD
Reply With Quote
  #24
Old 03-03-2014, 07:10 PM
Member

Join Date: Aug 2013
Location: Abbotsford BC CANADA
Posts: 307
RFaber is on a distinguished road

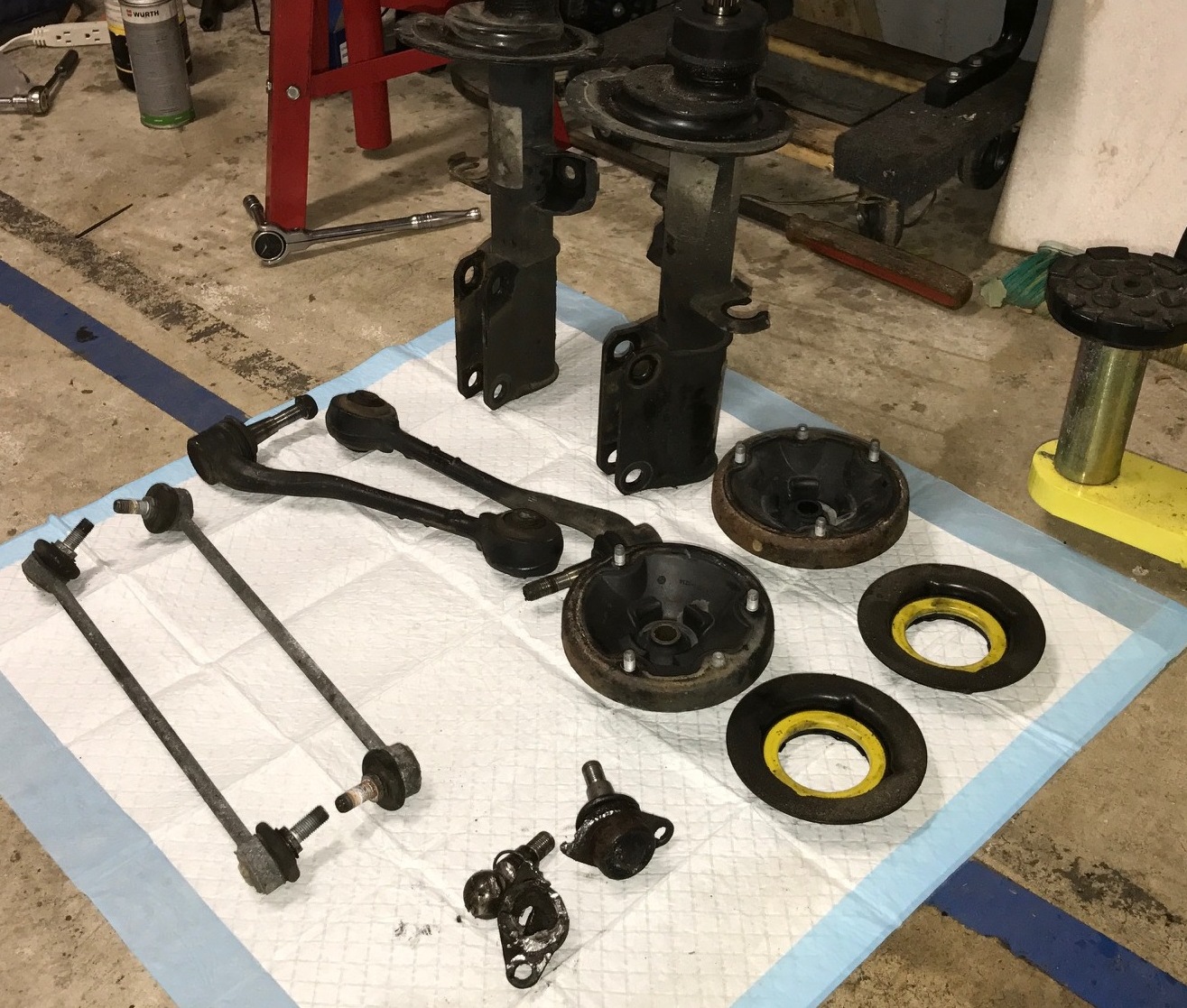

I recently redid the entire front suspension and wheel bearings in my X5, the puller that is listed above is the exact same one which i used, (so exact in fact, i believe the one they took a photo of is mine!!) it worked like a charm! i have pretty much any puller/pusher/picklefork at my disposal and this one is always my go to tool for ball joints.
time is also a good tool to have. If you put the puller on, cinch it up a bit, then go off to do something else, you may find that the ball joint pops out while youre away!
Good luck with your project!
__________________
2003 X5 3.0i (02/2003) sport package, Sapphire black metallic / Black Dakota Sport seats. compass mirror retrofit, trailer hitch retrofit, Prodigy P2 trailer brake controller installed, PDC retrofit, Lumbar support retrofit. heated rear seats retrofitted. Running boards retrofitted and subwoofer install in progress. 4.8is Brakes installed front and back. Bluetooth TCU installed, Rear Fog lights installed. Retrofitted reclining rear seat backs.
Reply With Quote
  #25
Old 03-03-2014, 07:16 PM
Member

Join Date: Aug 2013
Location: Abbotsford BC CANADA
Posts: 307
RFaber is on a distinguished road
once the ball joint was disconnected from the tension arm, i took it off and used a BFH on it, (placed a large impact socket on top of it, so i wouldnt damage the knuckle if i missed (when i missed!?) it did take alot of frustration out when i did finally get it to pop! its stuck in there good! (oh obvious question here but you did remove the two bolts that hold it onto the knuckle right?)
__________________
2003 X5 3.0i (02/2003) sport package, Sapphire black metallic / Black Dakota Sport seats. compass mirror retrofit, trailer hitch retrofit, Prodigy P2 trailer brake controller installed, PDC retrofit, Lumbar support retrofit. heated rear seats retrofitted. Running boards retrofitted and subwoofer install in progress. 4.8is Brakes installed front and back. Bluetooth TCU installed, Rear Fog lights installed. Retrofitted reclining rear seat backs.
Reply With Quote
  #26
Old 03-03-2014, 08:26 PM
bcredliner's Avatar
.1 decrease 0-60 time = $1000 & DIY

Join Date: Jun 2008
Location: Little Elm,Texas. (40 minutes North of Dallas)
Posts: 6,868
bcredliner is on a distinguished road
The free rental kit from Autozone works great for me. I have had some success with a pickle fork but it took many whacks with a 2 pound hammer. I have a ball joint separator tool but the kit or the pickle fork work much better.
__________________
X5 4.6 2002 Black Sap, Black interior. 2013 X5M Melbourne Red, Bamboo interior
Dallas
Reply With Quote
  #27
Old 03-03-2014, 10:32 PM
rogerkiu's Avatar
Member

Join Date: Oct 2005
Location: Hong Kong
Posts: 1,054
rogerkiu is on a distinguished road
In the real case, you cannot removed the tension strut from the ball joint before you remove the whole thing (ball joint with tensiion strut together) from the swivel bearing, because you do not have enough space to put the ball joint extractor to do it. So the problem is how to remove the ball joint from swivel bearing? Here is what I found in TIS, BMW uses this special tool to remove the ball joint from swivel bearing (the upper one), where can we get the special tool?
Attached Images

__________________
--2004 E53 X5 4.8is - ECE version; right hand drive; Located in Hong Kong; ext. black sapphire metallic; int. leather black; adaptive dynamic bi-xenon headlights; 16:9 onboard monitor w/o navigation; 20" genuine BMW Y-spoke 214 wheels with Bridgestone Dueler H/P Sport tires; Int. rear view mirror w/ compass.

Last edited by rogerkiu; 03-03-2014 at 10:39 PM.
Reply With Quote
  #28
Old 03-03-2014, 10:47 PM
MINIz guy's Avatar
Member

Join Date: Jul 2008
Location: Bear, DE
Posts: 1,258
MINIz guy is on a distinguished road
The special tool looks like a slide hammer with an attachment so that it threads onto the ball joint. Interesting. What is on the other side (non threaded side) of the ball joint? Can you just take a socket and hammer and whack it out?

I need to look into how to get this ball joint out if I need to. It's been 114k miles on my family's X5 and it may be time.

Edit: Looked at the expert village video. Looks like that is an easy solution with a tool rented from Autozone. I don't know if it would work on our ball joint though since it has those "ears". How much of a press fit are they? Maybe if they aren't that tight, you could just hammer it out from the back.
__________________

Last edited by MINIz guy; 03-03-2014 at 10:56 PM.
Reply With Quote
  #29
Old 03-03-2014, 11:13 PM
rogerkiu's Avatar
Member

Join Date: Oct 2005
Location: Hong Kong
Posts: 1,054
rogerkiu is on a distinguished road
Quote:
Originally Posted by MINIz guy View Post
The special tool looks like a slide hammer with an attachment so that it threads onto the ball joint. Interesting. What is on the other side (non threaded side) of the ball joint? Can you just take a socket and hammer and whack it out?

I need to look into how to get this ball joint out if I need to. It's been 114k miles on my family's X5 and it may be time.

Edit: Looked at the expert village video. Looks like that is an easy solution with a tool rented from Autozone. I don't know if it would work on our ball joint though since it has those "ears". How much of a press fit are they? Maybe if they aren't that tight, you could just hammer it out from the back.
You don't have enough space to hammer the top of the joint. If you want to hammer it, you have to remove the whole spindle.
__________________
--2004 E53 X5 4.8is - ECE version; right hand drive; Located in Hong Kong; ext. black sapphire metallic; int. leather black; adaptive dynamic bi-xenon headlights; 16:9 onboard monitor w/o navigation; 20" genuine BMW Y-spoke 214 wheels with Bridgestone Dueler H/P Sport tires; Int. rear view mirror w/ compass.
Reply With Quote
  #30
Old 03-03-2014, 11:33 PM
Member

Join Date: Feb 2013
Location: Columbia, MO
Posts: 35
tankowner is on a distinguished road
Quote:
Originally Posted by rogerkiu View Post
You don't have enough space to hammer the top of the joint. If you want to hammer it, you have to remove the whole spindle.
Yes, exactly, that is the issue here. If we go through the trouble of removing the whole knuckle, then we have access and can drive the ball joint out from the top with your tool of choice (BFH and drift, air chisel, rental ball joint press, etc.). But, for now, I am trying to remove the ball joint without removing the entire knuckle. As a matter of fact, I am off to do battle right now . . . I'll let you know how it goes.

By the way, the slide hammer (special tool) looks very interesting, I wonder how well it works. Thanks.
__________________
_____________________________

2001 e53 X5 3.0i (10/2000 build date) - Beige exterior, Beige/Sand interior w/ light wood
Reply With Quote
