Unhappy Weird MkII problem

Hi everyone, lately my fourteen years old BMW navigation system MkII has stopped functioning.

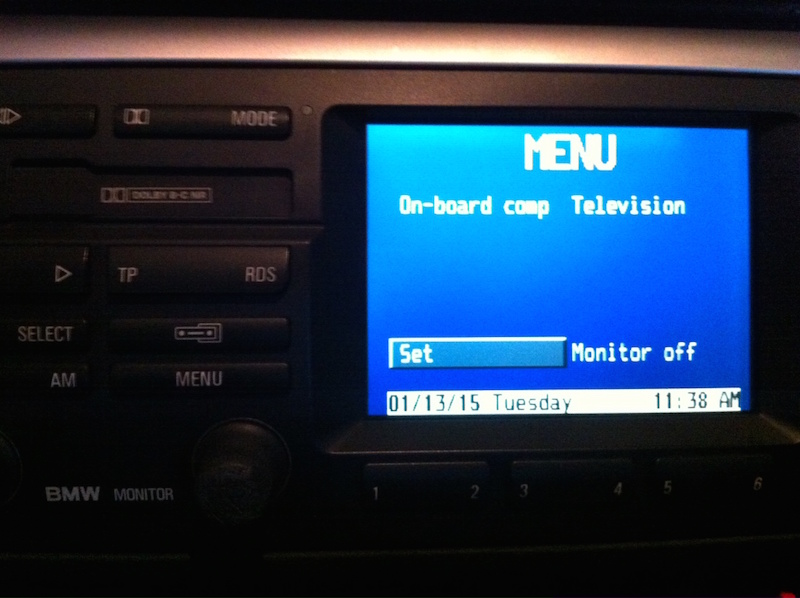

The interface it's showing is different, it presents a 0.5 cm gap from the bezel in the left side, the fonts are changed, the information of the radio stations are changed, it's all messed up!
I tried to solve the problem changing the MkII unit with another one, but the problem is still there. When i disconnect the Video Module the screen just goes black, but I'm able to disconnect the MkII unit and still see the weird interface in the monitor.
May it be something in the connections between the MkII and the monitor?
The red led of the MkII is flashing, so I don't think it's a fuse or relays problem.
The car is a 2000 330d.
Thank you in advice
