  #391
Old 01-15-2019, 05:49 PM
Member

Join Date: Jan 2019
Location: Canberra ACT, Australia
Posts: 13
ArchE53 is on a distinguished road
Ah yes, but for the installation of the halfshaft...
Reply With Quote

Sponsored Links

  #392
Old 01-15-2019, 05:50 PM
Member

Join Date: Nov 2014
Location: SF Bay Area
Posts: 881
oldskewel is on a distinguished road
Quote:
Originally Posted by ArchE53 View Post
Thanks.

Naturally, you would do this with the new boot well up the halfshaft clear of and potential hammer damage.
Yes, when reinstalling, don't forget to have the new boot (or both) already on the half shaft. I am sure that mistake has been made - LOL. But you probably won't need a hammer for the reinstall - I did not.

You will see that the C-clip (lock ring in that diagram) sits in a sharply machined rectangular groove in the shaft, and I assume there is a similar sharp 90* edge inside the outer part of the outer CV joint. If you just put the C-clip in that groove without centering it, it will have some portions that are deep down in the groove, and would prefer to shear the C-clip rather than bend and shift into position.

So with the C-clip in the groove, if you start pressing the splines back together until the C-clip first touches, then you can push on the C-clip with a screwdriver or whatever to make sure it's starting to center itself. Again, it may be convenient to have the wheel rotated here. Once it is centered with no hangups, it should press right in with no destruction of the C-clip. Then you should feel it lock itself in once it is in deep enough.
__________________
2001 X5 3.0i, 190k miles, AT, owned since 2014
Reply With Quote
  #393
Old 01-15-2019, 05:53 PM
wpoll's Avatar
Member

Join Date: Sep 2015
Location: South Island, New Zealand
Posts: 2,722
wpoll will become famous soon enough
Quote:
Originally Posted by ArchE53 View Post
Ah yes, but for the installation of the halfshaft...
As oldskewel said, no hammer needed for re-installation.
__________________
Wayne
2005 BMW X5 3.0d (b 02/05)
2001 BMW F650GS Dakar (b 06/01)
Reply With Quote
  #394
Old 01-15-2019, 06:00 PM
Member

Join Date: Nov 2014
Location: SF Bay Area
Posts: 881
oldskewel is on a distinguished road
Another general tip that I always try to remember when the words hammer and bearing are used in the same sentence is to act as if the bearings themselves (the 6 balls in this case) are made of glass.

You never want to put any impact through those balls. No, they won't shatter like glass, but they may damage the balls or the races, perhaps invisibly, perhaps leading to bearing destruction down the road.

This goes for all bearings. I was just helping a neighbor the other day diagnose a problem he was having that seemed to be CV related. But he said he had his mechanic replace the CV axle assembly just a year ago. Turns out it was a wheel bearing on that side, at a pretty low ~100k mileage. Can't prove anything, but my guess is that the wheel bearing was damaged from a little too much hammering in the wrong parts of the joint when removing it.

And yes, I'm sure many professional mechanics will say this is nuts, and love their 3-lb mini-sledges for all kinds of suspension and CV work. Gets the job done quickly and they're onto the next one. And they love replacing parts down the road too.

I work on all my own cars, keep them for a long time, and have never replaced a wheel bearing in 3 decades and counting. And have only replaced CV joints on my old VW Vanagon (sadly sold that one). Many bearings last forever if properly treated.
__________________
2001 X5 3.0i, 190k miles, AT, owned since 2014

Last edited by oldskewel; 01-15-2019 at 06:18 PM.
Reply With Quote
  #395
Old 01-16-2019, 09:49 PM
upallnight's Avatar
Member

Join Date: Aug 2012
Location: Cook County
Posts: 6,387
upallnight is on a distinguished road

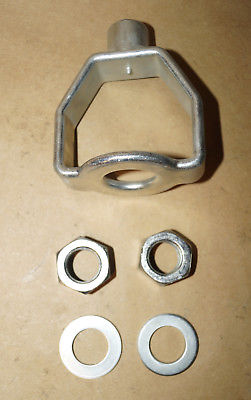

I have a Kent Moore J-41398 cv joint removal tool that I use along with my 5 pound slide hammer to pull the outer cv joint off the axle. One must secure the axle so that when you go to slide the outer cv joint off the axle you don't pull the inner cv joint apart.
Attached Images

__________________
2006 Infiniti G35
2001 BMW 3.0I E53 X5 Build date 08/2000
Lotus Europa 1970 Destroyed by fire
Lotus Europa 1970 S2 Renault Powered
Lotus Type 52 1970 Twincam Webers Powered
PORSCHE 911 Targa 1982 The Garage Queen
Audi Avant donated to Kars for Kids
BMW 525IT Sold
Audi 4000CS Quattro Sold
Jensen Healey Lotus Powered Sold
Opel 1900 Sold
Triumph Spitfire 1971 Sold
Triumph Spitfire 1968 Sold
Plymouth "Cuda" 340 Six pack SOLD
Reply With Quote
  #396
Old 01-16-2019, 09:57 PM
upallnight's Avatar
Member

Join Date: Aug 2012
Location: Cook County
Posts: 6,387
upallnight is on a distinguished road

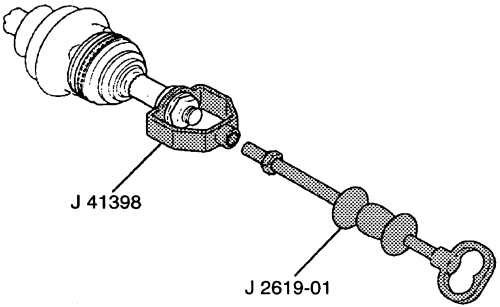

Tool setup.
Attached Images

__________________
2006 Infiniti G35
2001 BMW 3.0I E53 X5 Build date 08/2000
Lotus Europa 1970 Destroyed by fire
Lotus Europa 1970 S2 Renault Powered
Lotus Type 52 1970 Twincam Webers Powered
PORSCHE 911 Targa 1982 The Garage Queen
Audi Avant donated to Kars for Kids
BMW 525IT Sold
Audi 4000CS Quattro Sold
Jensen Healey Lotus Powered Sold
Opel 1900 Sold
Triumph Spitfire 1971 Sold
Triumph Spitfire 1968 Sold
Plymouth "Cuda" 340 Six pack SOLD
Reply With Quote
  #397
Old 09-07-2019, 02:39 PM
haigha's Avatar
Member

Join Date: Jun 2005
Location: Machine
Posts: 1,181
haigha is on a distinguished road
Thanks to all who contributed to this thread.

My mechanic friend and I were able to get it done with the information from posts #40 dville and #45 weasel.

We used a mini sledgehammer without the punch/drift. My biggest punch, about 9", wasn't adequate and my friend didn't bring his larger one. He said brass ones are better. [ Edit: I read oldskewel's post a few earlier than this one again, after posting this. Definitely need to be careful when using a mini-sledge. I'm glad I had an experienced person using it since you can easily do damage. ]

It took about an hour and a quarter taking our time and figuring out where to get the best leverage. We used two vise grips, right next to each other to strengthen the leverage point on the thin part of the axle. Next time, with the correct punch and the knowledge we gained, it'll probably take about 40 minutes. Definitely easier with two people.

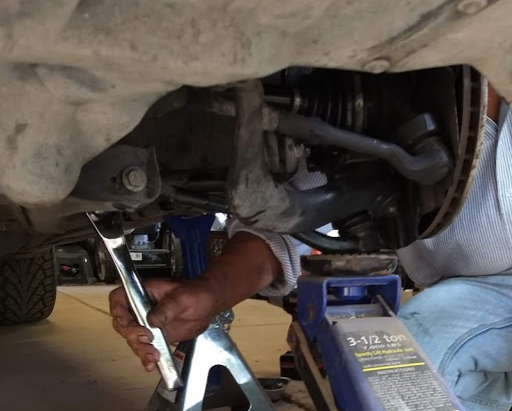

One tip that I don't think anyone has mentioned is you can tighten the control arm while the car is still on jack stands. Jack up the wheel assembly to match its normal position, relative to where the car is sitting in the air (see picture). Knowledge shared from my friend who has 62 years experience as mechanic. He started at 8, helping in his dad's repair shop, and just turned 70!

Also, we put the car in neutral so that we could spin the rotor. This may have helped us find the best place to loosen the axle from the joint. Sturdy wheel chocks at the back and the parking brake on.
Attached Images


Last edited by haigha; 09-09-2019 at 04:14 PM.
